IQP5017-319KIT - IQ Panel 5 Dual-Path Wi-Fi/Cellular Verizon LTE Wireless PowerG and S-Line/319.5 MHz Security System (Powered by Alarm.com)

Item# IQP5017-319KIT

List Price: ~~$1,289.72~~

Our Price: $859.82

IQ Panel 5 Wireless Control Panel (IQP5017)*: IQ Panel 5 Alarm Battery: IQ Panel 5 Power Transformer: Alarm.com Dual-Path Wi-Fi/Cellular Verizon LTE Communicator*: S-Line/Legacy 319.5 MHz Wireless Sensor Daughter Card (QC0001-840): PowerG Wireless Door/Window Contact (PG9945): PowerG Wireless Motion Detector (PG9914): Add PowerG Wireless Secondary Keypad (IQKP-915): Add PowerG Wireless Secondary Touchscreen Keypad (IQR-PG):

Availability: In Stock

QTY:

Shipping3-5 Business Days

Returns30-Day Return Window

PaymentSecure Transaction

Description
Specifications
Documents
Kit Includes

IQP5017-319KIT Security System Description:

The IQ Panel 5 (Part Number: IQP5017-319KIT) is an all-in-one wireless 7" touchscreen security system kit, that contains a built-in dual path Wi-Fi/cellular Verizon LTE Alarm.com communicator, designed for Legacy 319.5 MHz and PowerG 915 MHz long-range encrypted security system sensors. With the IQP5017 panel you can add new or takeover existing Legacy 319.5 MHz, PowerG, PowerG+, and S-Line wireless encrypted sensors to the IQ platform. The IQ Panel 5 delivers next-generation security performance in a completely refreshed, future-ready design. Built from the ground up based on real installer and customer feedback, this powerful control panel features retooled internals, enhanced modularity, and industry-leading wireless reliability to meet the demands of modern security systems.

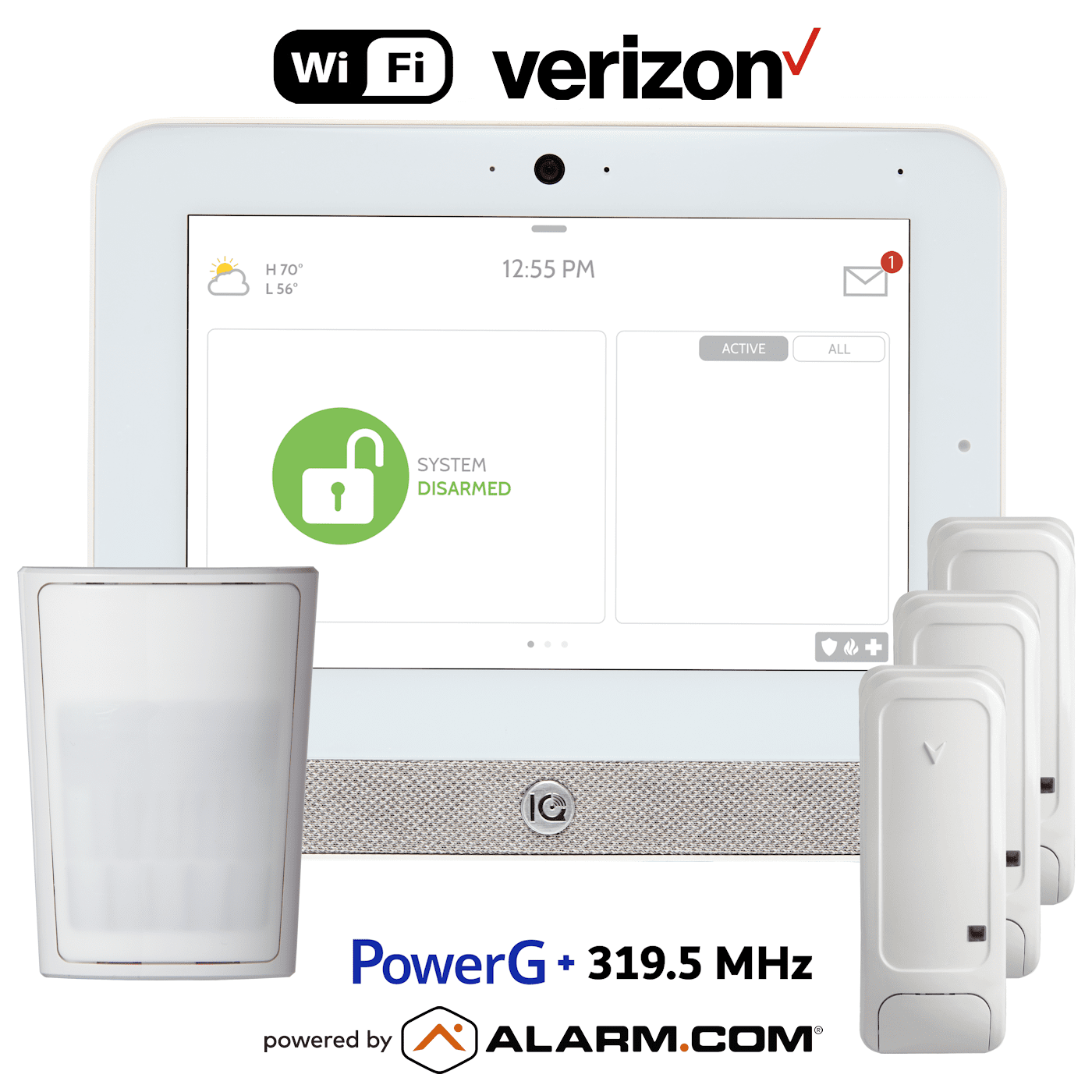

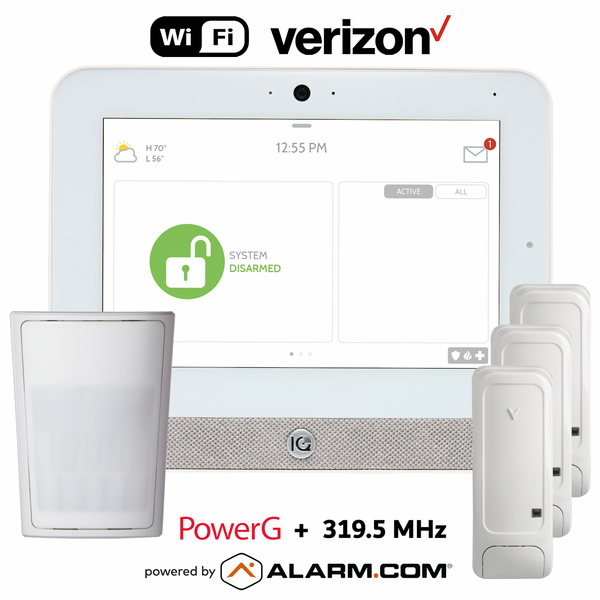

This IQ Panel 5 wireless security system kit includes; (1) wireless touchscreen control panel IQP5017 with built-in Wi-Fi/Cellular Alarm.com Verizon alarm communicator, (3) wireless PowerG door/window contacts PG9945, (1) wireless pet-immune motion detector PG9914, and (1) legacy wireless 319 MHz sensor daughter card QC0001-840. With dual-path alarm communications, primary Wi-Fi that is backed up by cellular Verizon LTE, the IQ Panel 5 security system provides for redundant signaling that is less susceptible to line tampering.

Powered by the cutting-edge Qualcomm Dragonwing™ processor, the IQ Panel 5 runs on Android 14 and offers lightning-fast responsiveness, improved stability, and long-term platform support. With built-in PowerG+ technology, installers get exceptional wireless range and reliability right out of the box. Designed for flexibility, scalability, and ease of installation, the IQ Panel 5 also includes Bluetooth 5.0 + LE, and Z-Wave 800-Series smart home automation support. The IQP5017 is a highly tuned, professional-grade security control panel built to adapt, scale, and last making it the ideal choice for modern residential and light commercial security systems.

System Features:

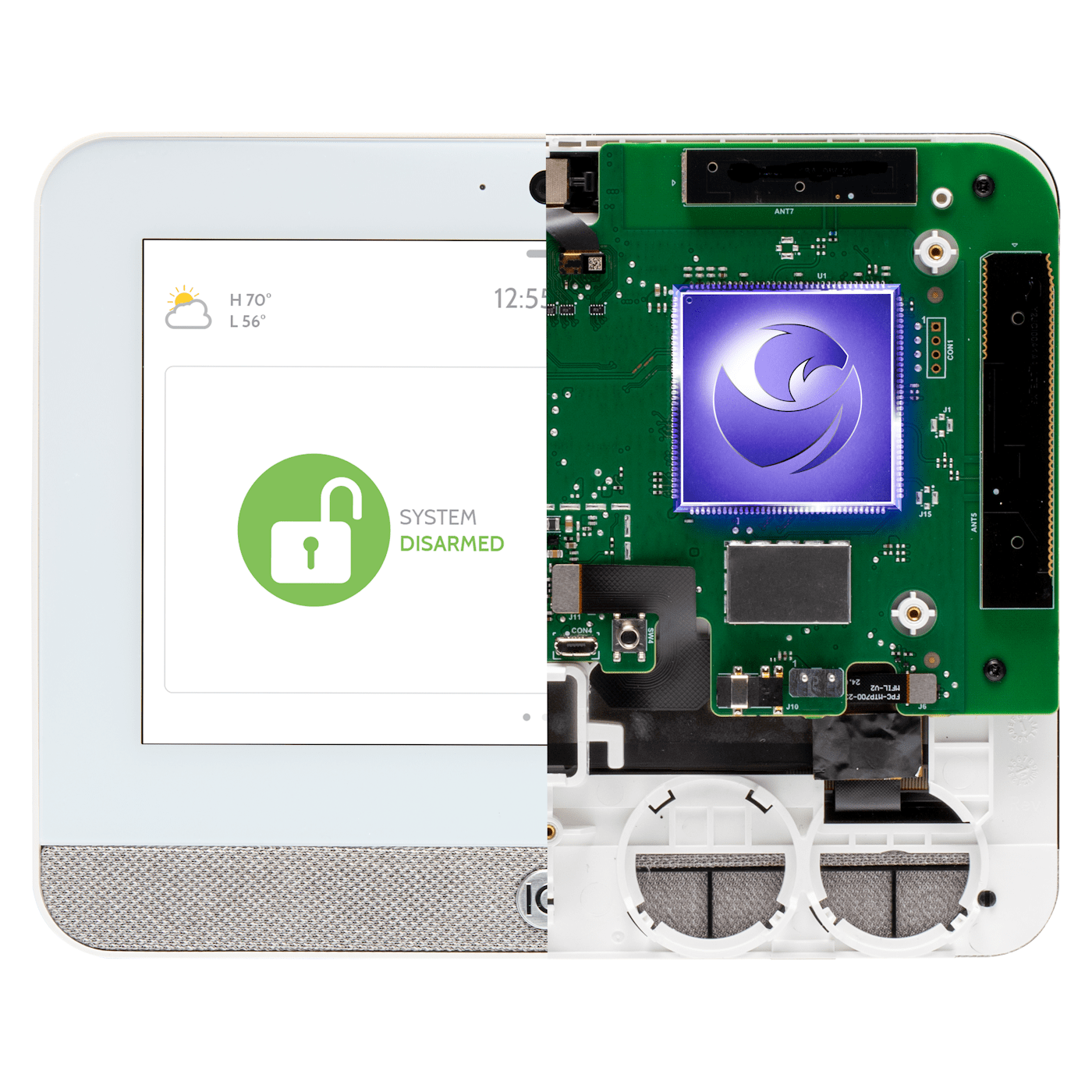

Improved Performance, Refreshed Design: Completely reengineered internals deliver faster operation, improved reliability, and long-term durability.
Powerful Chipset: Powered by the Qualcomm Dragonwing™ processor with Android 14 for smooth performance, advanced features, and future updates.
Built-In PowerG+: Industry-leading wireless range and reliability included in every panel for faster installs and fewer service calls.
Modular SRF Design: Includes Legacy 319 MHz sensor daughter and Ethernet cards to simplify takeovers and custom builds.
Built-In Connectivity: Alarm.com Verizon LTE cellular communicator, Wi-Fi, Bluetooth 5.0 + LE for seamless system integration and smart device support.
Enhanced User Interface: Differentiating software offers a more convenient, customizable experience, making it easy for users to manage and discover advanced features.
Future-Proof Technology: Designed to support upcoming AI-driven features and expanded smart home integrations.
PortraitView™ Camera: Upgraded 13MP camera delivers higher-resolution images with an optimized field of view, no manual tilt adjustment required.
SmartMount™ Installation System: Faster, cleaner installs with improved backplate, tamper, and power supply design for smoother setup and improved performance.
Expand With Video Surveillance: Full suite of Alarm.com powered video security devices, including indoor and outdoor cameras and smart video doorbells

* This IQ Panel 5 security system requires a subscription to Alarm.com powered by GeoArm.

IQP5017-319KIT Security System Specifications:

Dimensions (H x W x D): 6.1" x 7.5" x 1" (155mm x 191mm x 26mm)
Wi-Fi Network: Wi-Fi 802.11 a/b/g/n/ac dual band 2.4/5Ghz - built-in access point capability
Cellular Network: Verizon LTE CAT4 (Bands 2/25, 4/66, 5/26, 7, 12/17, 13, 14 (non-First Net)
Z-Wave: 800-Series module, Z-Wave Long Range (Up to 167 Devices)
PowerG Automation: Up to 100 Devices
PowerG+ Security: Up to 128 Devices, 915MHz, long range, secure encrypted two-way wireless
Security RF: Up to 128 Devices, including S-Line encrypted and Legacy 319.5 MHz
Bluetooth: Bluetooth Low Energy (BLE) 5.0 for Touchless Disarming
Buttons: Hard Button (Single wake/sleep button used for sleep/wake, hard reboot and clean screen cancel)
Camera: 13MP, Wide-Angle 120° Field-of-View, Fixed-Focus Lens with PortraitView
Microphones: 2 MEMS front-facing
Speakers/Siren: 2 Front-facing 4 watt speakers and 85dB piezo siren
Partitions: Up to 4 partitions
User Codes: Up to 242 users
Power Supply: AC/DC external plug-in adapter, Output: 12vDC 1000mA CC, Input: 100-240VAC 50/60Hz, barrel jack
*Adapter evaluated at 120vAC for UL/cUL
Battery: 18650 -Rechargeable lithium-ion 3,000mAh, rated for over 24 hours
Platform: Android 14
Processor: Qualcomm DragonWing Quad Core SOM (System on a Module) with 32GB of NAND Flash
Flash Memory: Internal Storage, 32GB NAND Flash
LED Indicator: Status LED: Green (Disarmed), Red (Armed), Triple full color RGB LED
Tamper: Dual panel and wall tamper switch with spring release
Mount: SmartMount wall mount included. SmartMount table stand sold sperately.
Weight: 1 kg (2lb 4oz) *Packaged Weight
Operational Temperature: 0°C to 49°C (32°F to 120°F), up to 93% relative humidity, indoor, dry ordinary locations use only
Storage Temperature: -20°C to 50°C (-4°F to 100°F) not evaluated by UL/ULC
UL/ULC Certifications: UL/cUL: Residential fire and burglary and UL/ULC Commercial burglary alarm control unit.
Compliant with standards: UL985, UL1023, UL2610, ULC-S545, ULC-S304
FCC Certifications: 2AAJXQSIQP5 (may contain additional modules with separate FCC ID's)
IC Certifications: 11205A-QSIQP5 (may contain additional modules with separate IC ID's)
NOM, IFETEL Certifications: Certificado No.: Reserved

IQP5017-319KIT Security System Documents:

IQP5017-319KIT Security System Includes:

(1) IQ Panel 5 (IQP5017)
(1) Alarm.com Verizon Cellular LTE Alarm Communicator (Built-Into IQ Panel 5)
(1) IQ Legacy 319 MHz Wireless Sensor Daughter Card (QC0001-840) (3) PowerG Wireless Door/Window Alarm Contacts (PG9945)
(1) PowerG Wireless Motion Detector (PG9914)

Miscellaneous: Transformer w/Power Cord, Back Up Battery, User Manual
