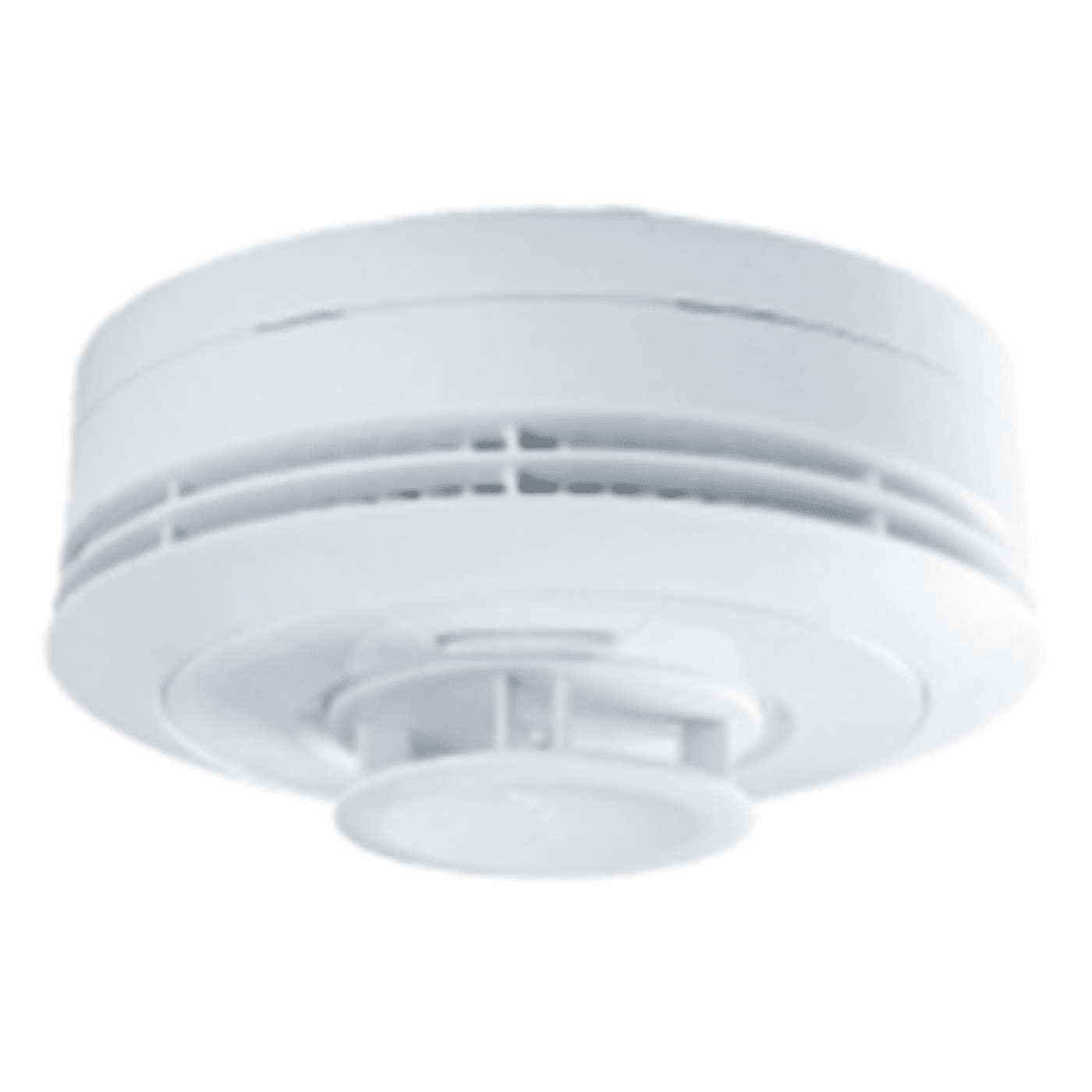

PGP9979 - DSC Wireless PowerG + Heat Detector
DSC PGP9979 Product Description:
The DSC PGP9979 wireless PowerG + heat detector is a reliable life-safety device designed to detect dangerous temperature changes caused by fire. Utilizing PowerG + wireless technology, it delivers secure, long-range communication while maintaining exceptional battery efficiency. The detector combines a fixed temperature heat sensor with a rate-of-rise heat sensor, allowing it to quickly identify rapid increases in temperature that may indicate a developing fire. An internal piezoelectric alarm provides an immediate local alert, ensuring occupants are notified even before the signal reaches the control panel.
Unlike traditional smoke detectors, the PGP9979 is specifically engineered for environments where smoke or airborne particles are common. It is ideal for use in kitchens, garages, mechanical rooms, and other areas where normal cooking fumes or dusty conditions could cause false alarms with smoke detectors. By monitoring heat rather than smoke, the detector offers dependable fire detection while significantly reducing nuisance alarms in challenging environments.
The PGP9979 is the only UL/ULC-certified PowerG heat detector, making it suitable for installations that require strict compliance with safety standards. It must be used in conjunction with UL/ULC-certified compatible control panels, including PowerSeries NEO, PowerSeries Pro, IQ Pro, IQ Pro P, Qolsys IQ Panel 4, IQ4 Hub, and IQ4 NS. When paired with these systems, the DSC PGP9979 delivers trusted, code-compliant fire protection for both residential and commercial applications.
Product Features:
- Wireless PowerG + Technology - for secure, long-range communication and extended battery life.
- Fixed Temperature Heat Sensor - to detect dangerous heat levels caused by fire.
- Rate-of-Rise Heat Detection - that identifies rapid temperature increases.
- Internal Piezoelectric Alarm - for immediate local audible alerts.
- Fire Detection Through Temperature Rise - not smoke, reducing false alarms.
- Ideal for High-Smoke or Dusty Areas - such as kitchens, garages, and mechanical rooms.
- UL/ULC Certified - for compliant life-safety installations.
- Reliable Residential and Commercial Use - where traditional smoke detectors are not suitable.
- Compatible with UL/ULC-Certified Panels - including PowerSeries NEO, PowerSeries Pro, IQ Pro, IQ Pro P, Qolsys IQ Panel 4, IQ4 Hub, and IQ4 NS.
DSC PGP9979 Product Specifications:
- Dimensions: 120mm x 46mm (4.7 x 1.8 in)
- Weight: 7.05 ounces or 200g (including packaging)
- Heat Sensor Fixed Rating: PGP9979: 57°C ± 2°C (135°F ± 5°F) /PGP8979:58°C±4°C
- Heat Sensor Rate of Rise: >40°C (104°F) 8.3°C (15°F) every minute
- Integrated Head Removal Tamper Switch: When head is removed a signal will be sent to the panel/hub via the RF module
- Integrated Head Removal Tamper Switch: When head is removed a signal will be sent to the panel/hub via the RF module
- Sound Level: Minimum output 85dBA at 3m.
- Button Test: Checks the sensors, electronics, battery and horn
- Silence Function: Silences nuisance alarm (automatically resets after approximately 10 minutes)
- Audible Detector: >85dB(A) at 3m (10ft) minimum
- Current Drain: Typical 20?A Standby
- Power Source: 2 x CR123A battery
- LED Indicators: RED - Power up, button test, in alarm, in hush, memory; YELLOW - Power up, low battery, sensor fault, end of life
- Operating Temperature: 40°F to 120°F (4.4°C to 48.8°C)
- Humidity Range: 15% - 95% Relative Humidity (non-condensing)
- Detector Life:Ten years from the manufacturing date
- Battery Life:Up to six year under normal usage, Up to one year under normal usage for PGP9979 (UL)
- Accessories: Supplied with mounting plate, screws, and wall plug
- Maximum UL Spaced: 50 ft (15.2 m) x 50 ft (15.2 m)
- Certifications: UL 268 / ULC-S552-14
- Part Numbers: PGP9979 - NA and LATAM; PGP8979 - EMEA
DSC PGP9979 Product Documents:
• Data Sheet - DSC PGP9979 Wireless PowerG + Heat Detector
• Installation Guide - DSC PGP9979 Wireless PowerG + Heat Detector
DSC PGP9979 Product Compatibility:
- PowerSeries NEO
- PowerSeries Pro
- IQ Pro
- IQ Pro P
- Qolsys IQ Panel 4
- IQ4 Hub
- IQ4 NS
