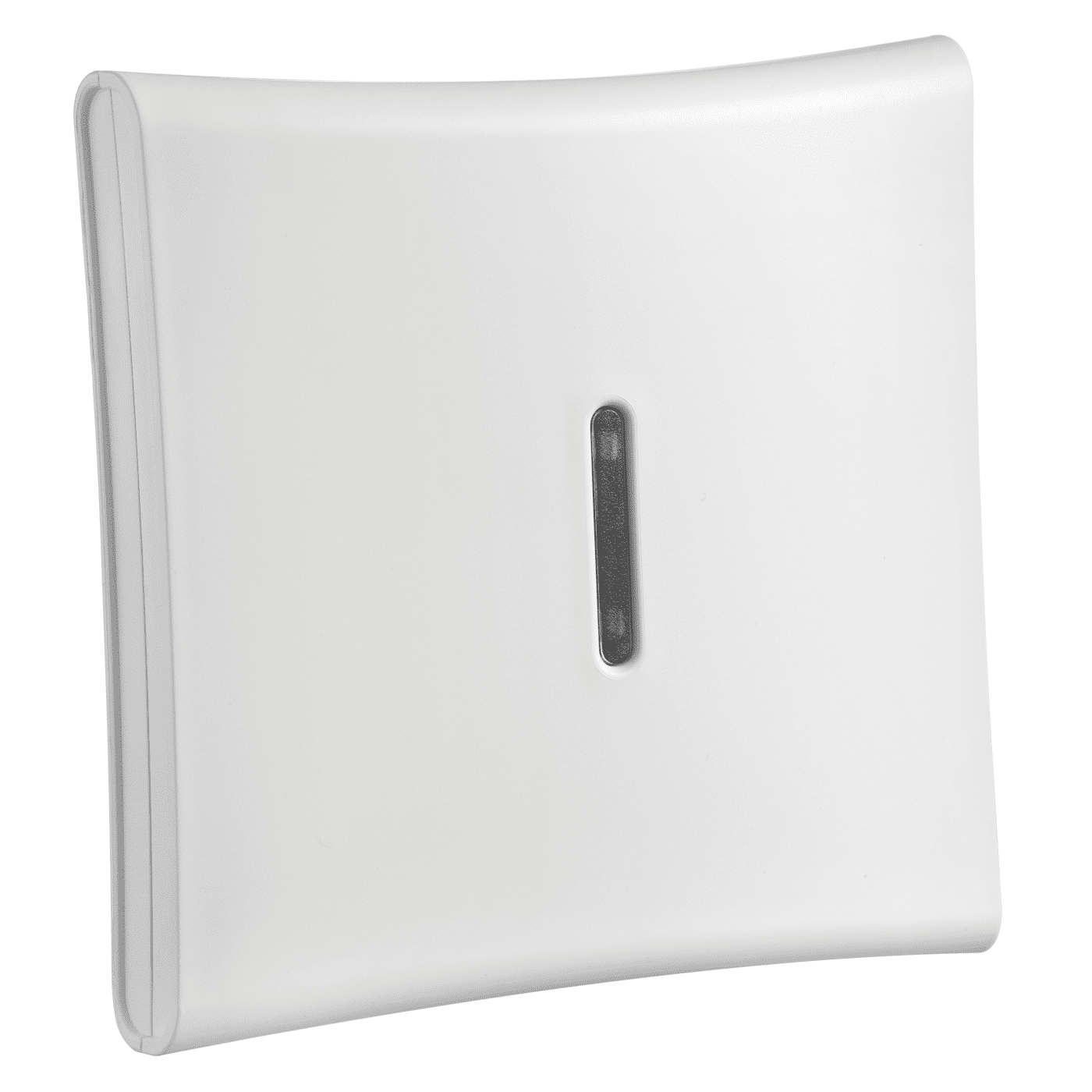

PG9901 - DSC Wireless PowerG Indoor Alarm Siren
DSC PG9901 Product Description:
The DSC PG9901 is a wireless PowerG indoor 110dB alarm siren and strobe light is designed for installation in areas where wiring is difficult. The PG9901 indoor siren is a 2-way fully supervised device that provides differentiated audible and visual alerts in the case of fire, carbon monoxide, burglary and flood events. In addition to providing a loud audible alert, the PG9901 also contains a built-in high-power white strobe light providing a visual alert of the event. With its sleek and modern design, the PG9901 will fit most internal spaces.
Since the PG9901 is wireless, it can conveniently be installed in numerous locations inside the home. With fewer holes to drill and reduced installation time the setup is a breeze. The PG9901 wireless PowerG indoor siren is equipped with a visible signal quality LED indicator that lets the installer choose the optimal location for installation, eliminating the effort of going back and forth to the keypad. All siren configuration settings are handled on the keypad with no need to reopen the device once installed.
Product Features:
- PowerG robust industry leading commercial grade wireless technology
- Visible link quality indicator on device
- 109dB Siren with Strobe Light
- Siren sounds for Fire, Carbon Monoxide, Burglary and Flood Events
- Long-life lithium batteries
- Backed by DSC's 1-year limited manufacturer's warranty
DSC PG9901 Product Specifications:
- Dimensions: 6-7/16" x 6-7/16" x 1-3/4" in (161 x 161 x 50 mm)
- Weight (including battery): 470g (16.5 oz)
- Communication Protocol: PowerG
- Battery Type: 3.6V, Li-Thionyl Chloride 0-102710
- Alarm Sound Level: 85 dB at 3 m (10 feet)
- Frequency Band (MHz): CE Listed PG4901: 433MHz; CE/EN listed PG8901: 868MHz; FCC/IC/UL/ULC listed PG9901: 915MHz
- Operating Temperature: -10°C to 55°C
- Relative Humidity: Up to 93% RH non condensing (UL/ULC only verified up to max 85% RH
- Modulation: GFSK
- Antenna: Built-in antenna
- Siren Type: One Piezo 110 db min. Sound Pressure Level @ 1m, 1400Hz to 3200 Hz, sweep frequency 7 Hz
- Battery Type: Four 3.6V/3.5A/H Lithium independent cells (EVE ER18505M) assembled in two plastic wrappings and connected to the cable adapter.
- Battery Life Expectancy: 8 years (not verified by UL/ULC)
- Low Battery Threshold: 2 V +300 mV negative slope OR 1.2 V
- Strobe Light: Pulsed @ 1 sec.
- Low Battery Threshold: 2 V +300 mV negative slope OR 1.2 V
- Color: White
- Compatible Receivers: HSM2HOST9, HS2LCDRF(P)9, HS2ICNRF(P)9, PG9920, WS900-19, WS900-29 (912 MHz to 919 MHz)
- Approvals: FCC/IC, UL/ULC, CNC
DSC PG9901 Product Documents:
• DSC PG9901 Wireless PowerG Indoor Alarm Siren - Datasheet
• DSC PG9901 Wireless PowerG Indoor Alarm Siren - Installation and Operation Guide
DSC PG9901 LED Strength Indicators:
Visual Signal Strength:
- Green LED Blinks: STRONG
- Orange LED Blinks: GOOD
- Red LED Blinks: POOR
- No blinks: No Communication
Only GOOD or STRONG signal strengths are acceptable. If you receive a POOR signal from the device, re-locate it and re-test until a GOOD or STRONG signal is received.
DSC PG9901 Product Compatibility:
- DSC Iotega Control Panels
- DSC PowerSeries Neo Control Panels
- DSC PowerSeries Pro Control Panels
- Qolsys IQ Panel 2 Control Panels (requires PowerG Daughter Board)
- Qolsys IQ Panel 2 Plus Control Panels (Model Numbers: QS9201-1208-840, QS9201-4208-840, QS9201-5208-840, QS9202-1208-840)
- Qolsys IQ Panel 4 Control Panels
- Qolsys IQ4 Hub Control Panels (Model Numbers: IQPH054, IQPH058)
- Qolsys IQ4 NS Control Panels (Model Numbers: IQPK047, IQPK048)
- Qolsys IQ Pro Control Panels
- IQ Panel 5 Control Panels
- IQ5 Hub Control Panels
- IQ5 NS Control Panels
