PG9200AX - DSC Wireless PowerG Photoelectric Twin Beams Detector

PG9200AX - DSC Wireless PowerG Photoelectric Twin Beams Detector
PG9200AX - DSC Wireless PowerG Photoelectric Twin Beams Detector
Item# PG9200AX
List Price: $1,343.94
Special Order: $895.96
Add Beam Detector Battery (CL-PP1)?:  QTY:

Please Note: The DSC PG9200AX wireless PowerG photoelectric twin beams detector has been marked special order.

DSC PG9200AX Product Description:

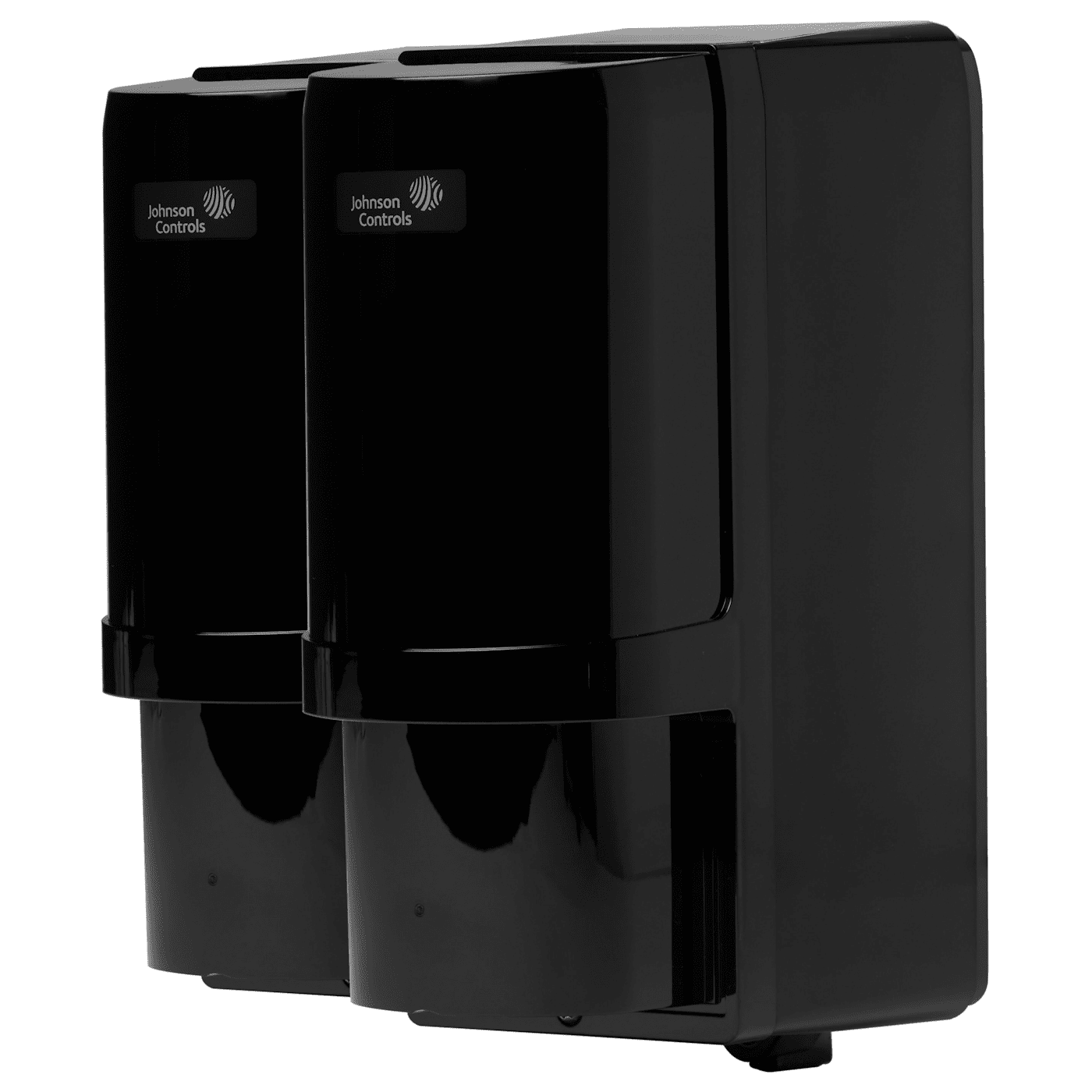

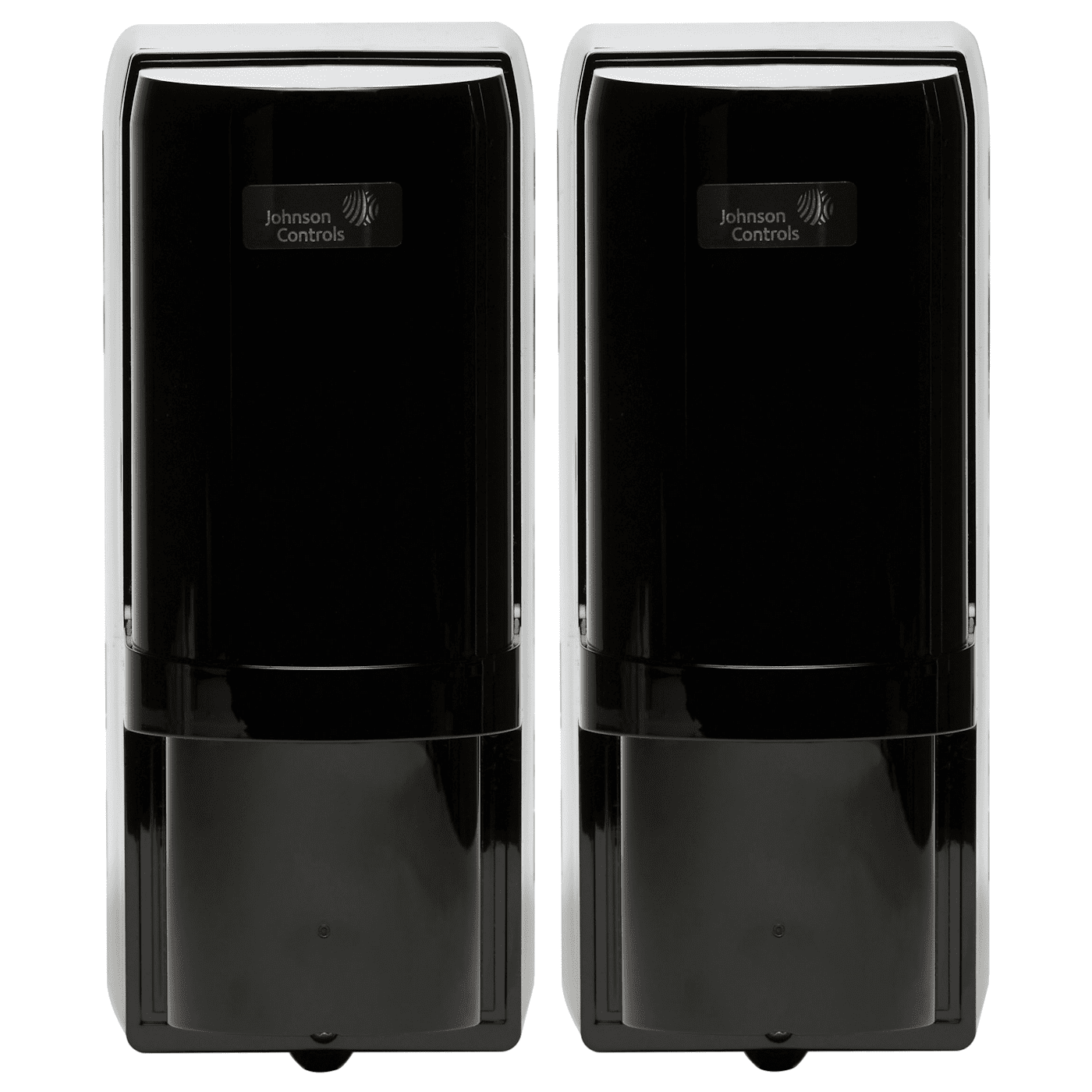

The DSC PG9200AX is a PowerG wireless photoelectric twin beam detector that provides protection for outdoor perimeters up to 200 feet. The PG9200AX beam detector consists of a receiver and a transmitter. It is designed to detect an intruder and activate an alarm control panel; they are part of a complete system, therefore the manufacturer cannot accept responsibility for any damages or other consequences resulting from an intrusion.

Product Features:

  • PowerG robust, industry leading commercial grade wireless technology
  • Aesthetically pleasing slim and compact design
  • Ideal for commercial applications and large residences
  • Market-leading perimeter detection using Active Infrared Technology (Photoelectric beams) and PowerG range
  • Transmitter is designed to send an infrared beam over long distances
  • Coverage area of 200 ft. with short range model
  • Easy to install with view finder, alignment dials and LED indicators
  • Reliable performance with twin beams
  • Cover and wall tamper protection
  • Extended battery life with PowerG
  • Polycarbonate cover protects the cover of the beams from UV rays and other harsh environmental conditions
  • IP55/IP65 dust-tight and waterproof rating ensures dependable operation even in extreme conditions
  • Compatible with DSC PowerSeries Neo Systems, DSC PowerSeries Pro, Qolys IQ Panels

DSC PG9200AX PowerG Technology:


Since its introduction in 2010, PowerG has revolutionized the wireless industry. Today, as a result of extensive research and development, it is clear that PowerG's ability to provide robust communication - even in areas that were previously only suitable for hardwired applications - makes it ideal for a wide range of applications.The power of the technology lends itself to a multitude of installs, from residential sites to small enterprises and big-box operations.

  • Multichannel, Frequency Hopping Spread Spectrum technology - to overcome frequency blocking and interference
  • Adaptive Transmission Power - for battery life preservation
  • High transmission ranges - for reliable communication within up to 2km/2187 yards line-of-sight
  • TDMA synchronized communication technology - to prevent message collisions
  • 128 bit AES encryption - high level protection against analysis tools and digital attacks

DSC PG9200AX Product Specifications:


  • Dimensions (L x W x D): 8.5 " x 3.47" x 6.4" (217mm x 88.1mm x 162.5mm
  • Range: 200 ft (60 m)
  • Detection method: Infrared beam interruption detection
  • Beam frequency selection: 4 channels
  • Interruption period: Variable between 50, 100, 250, and 500 msec
  • Power Source: Recommend: 3.6 V, 13.0 Ah LSH20 lithium batteries manufactured by SAFT.
  • Current draw: 810 µA T: 490 µA + R: 320 µA (at 77°F (25°C), 3.6 VDC)
  • Battery Life: Transmitter: Approximately 3 years. Receiver: Approximately 5 years (typical use)
  • Alarm Indicator (Receiver): Light on - Beam not received. Flickering Light - IR Beams not received sufficiently. Light off - Beam receive
  • Power (Transmitter): Power ON: ON, Power OFF: OFF
  • Low battery: Voltage Reduction: blink
  • Operating Temperature: -4°F - 140°F (-20°C - 60°C)
  • Operating ambient humidity: 95% (Max.)
  • Alignment angle: ±90° Horizontal, ±5° Vertical
  • Weight: 56.4 oz (1600 g) (total weight of transmitter and receiver, excluding accessories)
  • Waterproof rating: IP55
  • Frequency: 912-919 MHz 128/256 second intervals

DSC PG9200AX Product Compatibility:


  • DSC Iotega Control Panels
  • DSC PowerSeries Neo Control Panels
  • DSC PowerSeries Pro Control Panels
  • Qolsys IQ Panel 2 Plus Control Panels
  • Qolsys IQ Panel 4 Control Panels
