IQH5018-345KIT - IQ5 Hub Dual-Path Wi-Fi/Cellular AT&T LTE Wireless PowerG and 345 MHz Security System (Powered by Alarm.com)

Item# IQH5018-345KIT

List Price: ~~$1,123.75~~

Special Order: $749.17

IQ5 Hub Wireless Control Panel (IQH5018)*: IQ5 Hub Alarm Battery: IQ5 Hub Power Transformer: Alarm.com Dual-Path Wi-Fi/Cellular AT&T LTE Communicator*: Legacy 345 MHz Wireless Sensor Daughter Card (QC0005-840): PowerG Wireless Door/Window Contact (PG9945): PowerG Wireless Motion Detector (PG9914): Add PowerG Wireless Secondary Keypad (IQKP-915): Add PowerG Wireless Secondary Touchscreen Keypad (IQR-PG):
QTY:

Shipping3-5 Business Days

Returns30-Day Return Window

PaymentSecure Transaction

Please Note: The IQ5 Hub (IQH5018-345KIT) wireless touchscreen security system kit is orderable, however it is a special order item from manufacturer. This means shipping timeframes in excess of 5+ business days can be expected.

Description
Specifications
Documents
Kit Includes

IQH5018-345KIT Security System Description:

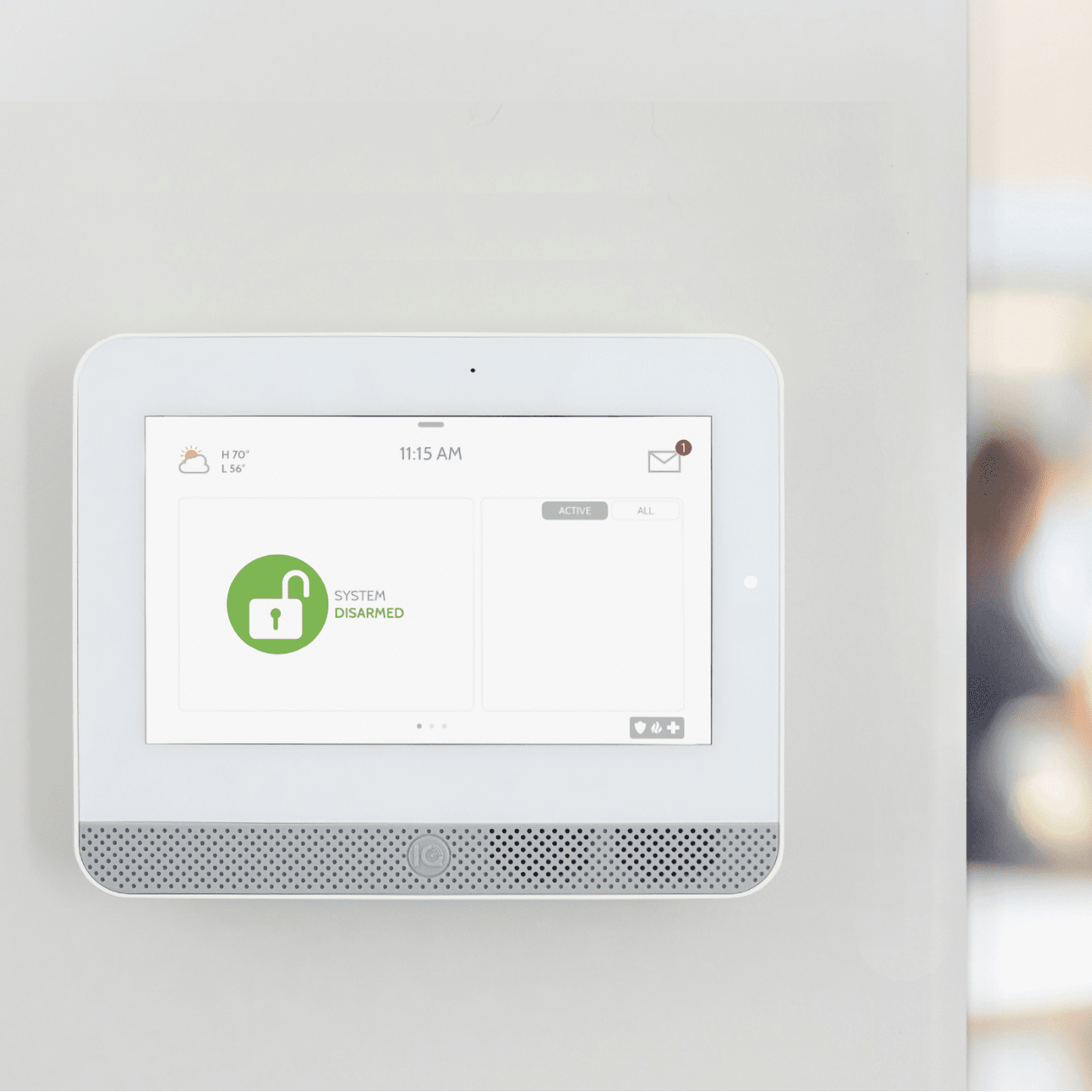

The IQ Panel 5 Hub (Part Number: IQH5018-345KIT) is an all-in-one wireless 7" touchscreen security system kit, that contains a built-in dual path Wi-Fi/cellular AT&T LTE Alarm.com communicator, designed for Legacy 345 MHz, PowerG, and PowerG+ 915 MHz long-range encrypted security system sensors. Deliver premium performance at an accessible price with the IQ5 Hub, an advanced security control panel designed for modern installations. Built to combine speed, flexibility, and reliability, this security panel offers powerful features making it ideal for residential and light commercial security systems.

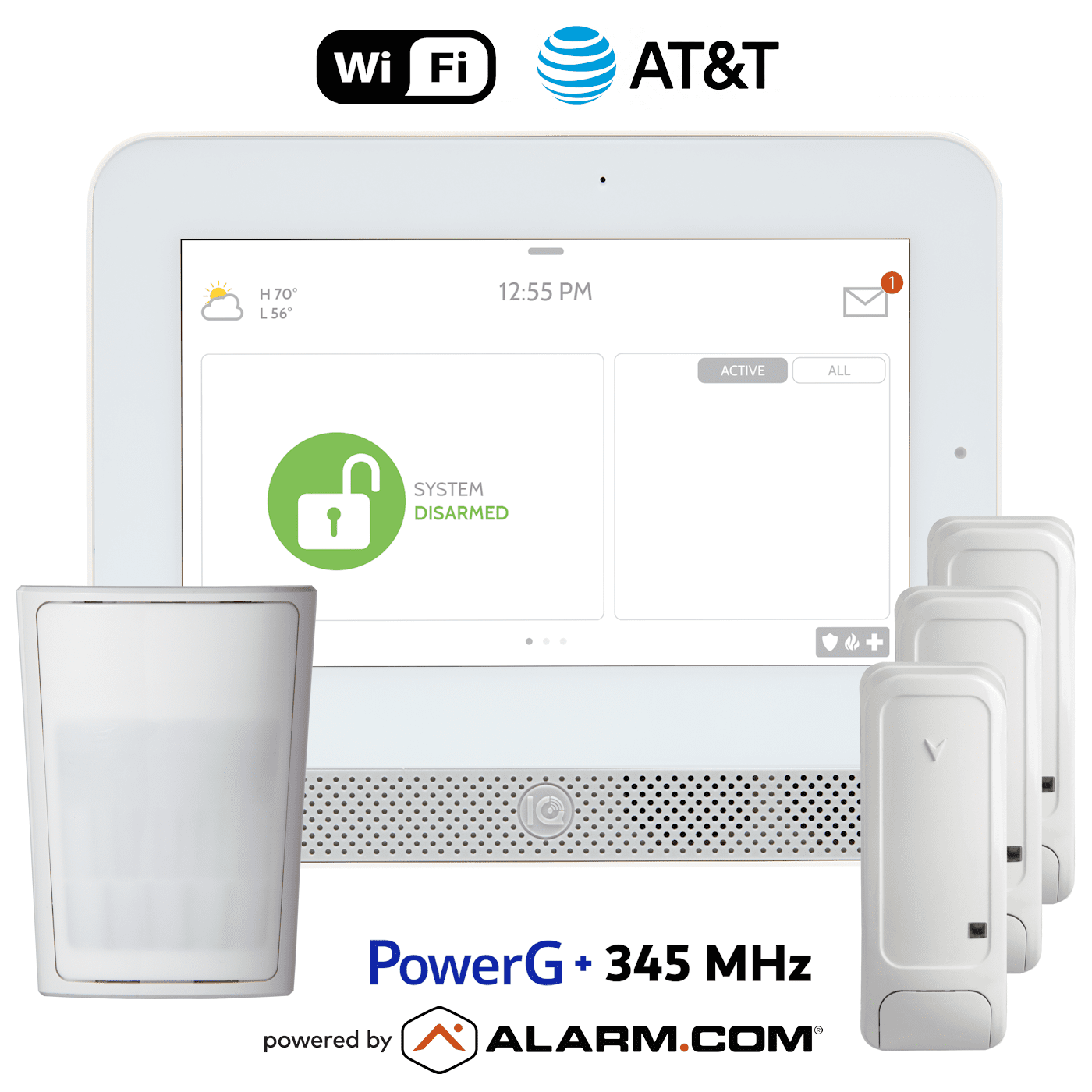

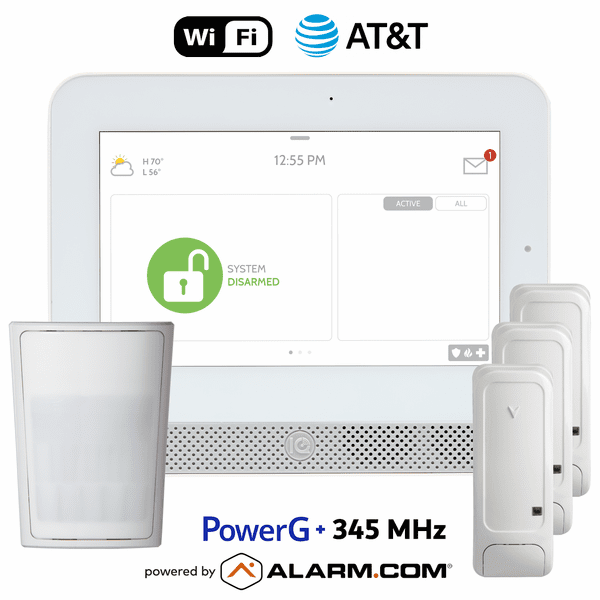

This IQ Panel 5 Hub wireless security system kit includes; (1) wireless touchscreen control panel IQH5018 with built-in Wi-Fi/Cellular Alarm.com AT&T alarm communicator, (3) wireless PowerG door/window contacts PG9945, (1) wireless pet-immune motion detector PG9914, and (1) legacy wireless 345 MHz sensor daughter card QC0005-840. With dual-path alarm communications, primary Wi-Fi that is backed up by cellular AT&T LTE, the IQ Panel 5 Hub security system provides for redundant signaling that is less susceptible to line tampering.

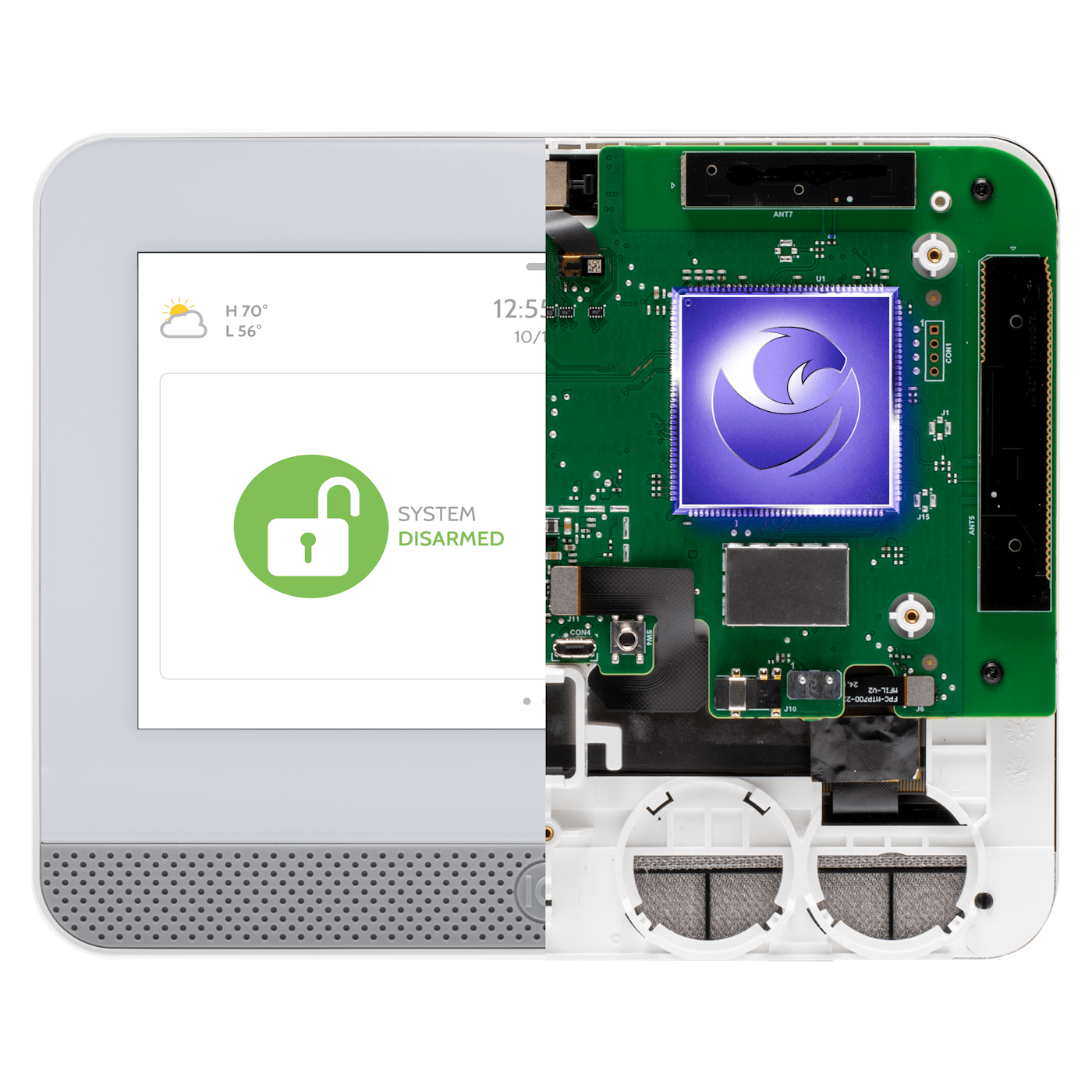

Powered by the cutting-edge Qualcomm Dragonwing™ quad-core processor and running on Android 14, the IQ5 Hub delivers lightning-fast operation, smooth navigation, and long-term platform support. Built-in PowerG+ wireless technology ensures industry-leading range and reliability, while the modular design allows installers to easily customize systems and simplify takeovers. With dual-path Alarm.com connectivity via AT&T LTE and Wi-Fi, along with Bluetooth 5.0 + LE, the panel ensures dependable communication, seamless smart device integration, and future-ready functionality. The IQ5 Hub combines affordability, innovation, and convenience into a powerful, future-ready security solution - making it an excellent choice for installers and customers who want premium capabilities without premium cost.

Security System Features:

Sleek 7" Touchscreen Interface: Modern, compact design with a responsive touchscreen for intuitive system control.
Powerful Performance: Qualcomm Dragonwing™ processor paired with Android 14 OS delivers fast response times and enhanced stability.
Built-In PowerG+ Wireless: Industry-leading 915 MHz PowerG+ reliability included standard for faster installs and fewer service calls.
Modular & Scalable Design: Includes Legacy 345 MHz daughter card, and Ethernet modules.
Dual-Path Connectivity: Built-in Alarm.com AT&T LTE and Wi-Fi provide reliable communication and redundancy.
Bluetooth 5.0 + LE: Enables seamless device pairing and enhanced smart home integration.
Enhanced Software Experience: Differentiating software delivers a more convenient and customizable user interface, helping users easily manage and discover advanced features.
Future-Proof Technology: Designed to support upcoming AI-driven features and expanded smart device integrations.
Easier Installation: Refined hardware design including improved power supply, tamper detection, and backplate that supports smoother installations and improved overall performance.
Expand With Video Surveillance: Full suite of Alarm.com powered video security devices, including indoor and outdoor cameras and smart video doorbells

* This IQ5 Hub security system requires a subscription to Alarm.com powered by GeoArm.

IQH5018-345KIT Security System Specifications:

Dimensions (H x W x D): 6.1" x 7.5" x 1" (155mm x 191mm x 26mm)
Wi-Fi Network: Wi-Fi 802.11 a/b/g/n/ac dual band 2.4/5Ghz - built-in access point capability
Cellular Network: AT&T LTE CAT4 (Bands 2/25, 4/66, 5/26, 7, 12/17, 13, 14 (non-First Net)
Z-Wave: 800-Series module, Z-Wave Long Range (Up to 167 Devices)
PowerG Automation: Up to 100 Devices
PowerG+ Security: Up to 128 Devices, 915MHz, long range, secure encrypted two-way wireless sensors
Security RF: Up to 128 Devices. Including Legacy 345 MHz non-encrypted sensors
Bluetooth: Bluetooth Low Energy (BLE) 5.0 for Touchless Disarming
Buttons: Hard Button (Single wake/sleep button used for sleep/wake, hard reboot and clean screen cancel)
Microphones: 1 MEMS Microphone
Speakers/Siren: 1 Front-facing 2 watt speaker and 85dB piezo siren
Partitions: Up to 4 partitions
User Codes: Up to 242 users
Power Supply: AC/DC external plug-in adapter, Output: 12vDC 1000mA CC, Input: 100-240VAC 50/60Hz, barrel jack
*Adapter evaluated at 120vAC for UL/cUL
Battery: 18650 - Rechargeable lithium-ion 3,000mAh, rated for over 24 hours (Ningbo Veken Battery Co., Ltd, Model VT27 or Icon Energy System Co. Ltd, Model IAN034NA)
Platform: Android 14
Processor: Qualcomm DragonWing Quad Core SOM (System on a Module) with 32GB of NAND Flash
Flash Memory: Internal Storage, 32GB NAND Flash
LED Indicator: Status LED: Green (Disarmed), Red (Armed), Triple full color RGB LED
Tamper: Dual panel and wall tamper switch with spring release
Mount: SmartMount wall mount included. SmartMount table stand sold sperately.
Weight: 1 kg (2lb 4oz) *Packaged Weight
Operational Temperature: 0°C to 49°C (32°F to 120°F), up to 93% relative humidity, indoor, dry ordinary locations use only
Storage Temperature: -20°C to 50°C (-4°F to 100°F) not evaluated by UL/ULC
UL/ULC Certifications: UL/cUL: Residential fire and burglary and UL/ULC Commercial burglary alarm control unit.
Compliant with standards: UL985, UL1023, UL2610, ULC-S545, ULC-S304
FCC Certifications: 2AAJXQSIQP5 (may contain additional modules with separate FCC ID's)
IC Certifications: 11205A-QSIQP5 (may contain additional modules with separate IC ID's)
NOM, IFETEL Certifications: Certificado No.: Reserved

IQH5018-345KIT Security System Documents:

IQH5018-345KIT Security System Includes:

(1) IQ Panel 5 Hub (IQH5018)
(1) Alarm.com AT&T Cellular LTE Alarm Communicator (Built-Into IQ5 Hub)
(1) IQ Legacy 345 MHz Wireless Sensor Daughter Card (QC0005-840) (3) PowerG Wireless Door/Window Alarm Contacts (PG9945)
(1) PowerG Wireless Motion Detector (PG9914)

Miscellaneous: Transformer w/Power Cord, Back Up Battery, User Manual
