IQH5018 - IQ Panel 5 Hub Wireless Touchscreen Security Alarm Control Panel for PowerG 915 MHz Sensors (Built-In Alarm.com Cellular AT&T LTE and Wi-Fi Communicator)

Item# IQH5018

List Price: ~~$682.40~~

Special Order: $454.94

QTY:

Shipping3-5 Business Days

Returns30-Day Return Window

PaymentSecure Transaction

Please Note: The IQ5 Hub (IQH5018) wireless touchscreen alarm control panel is a special order item.

Description
Specifications
Documents

Qolsys IQH5018 Control Panel Description:

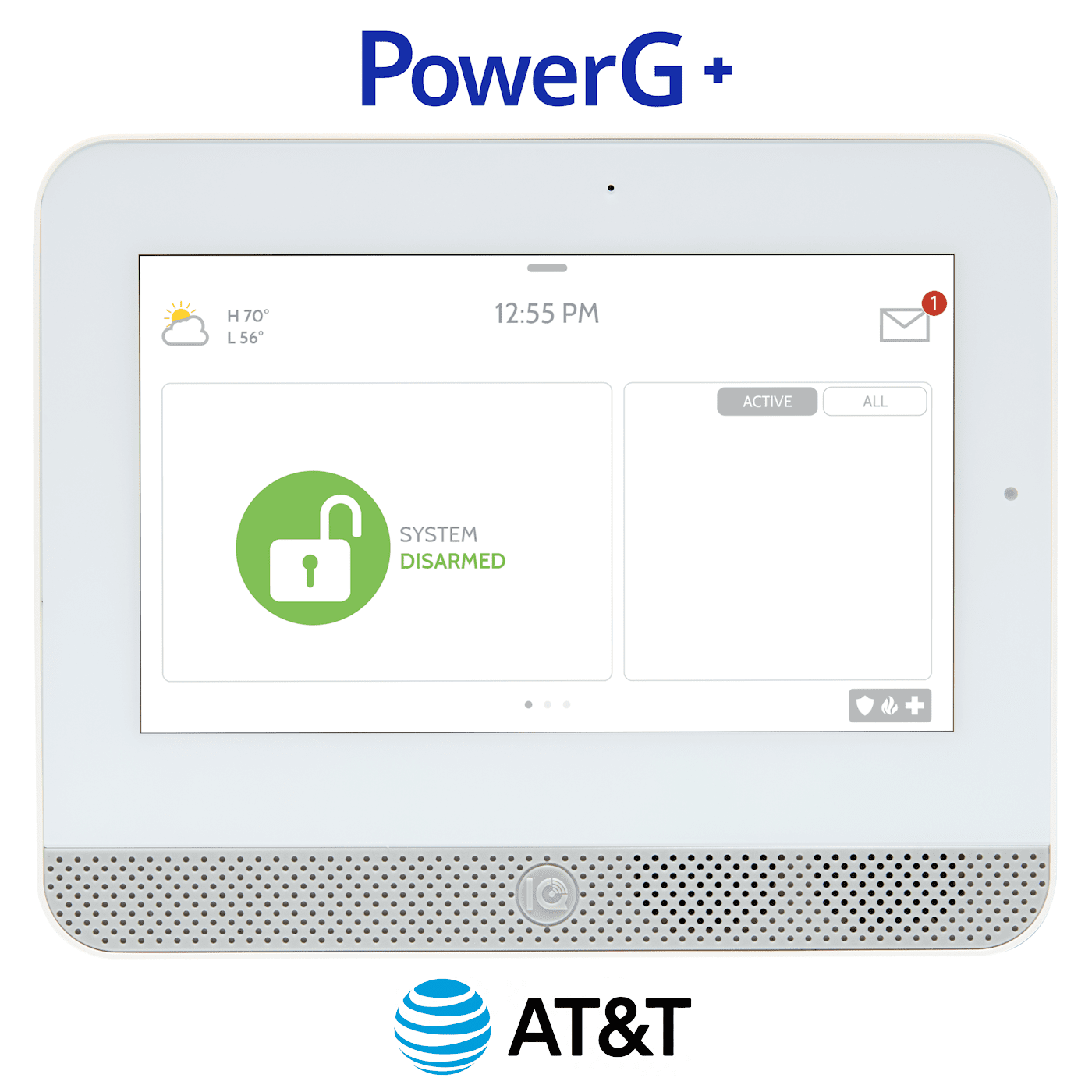

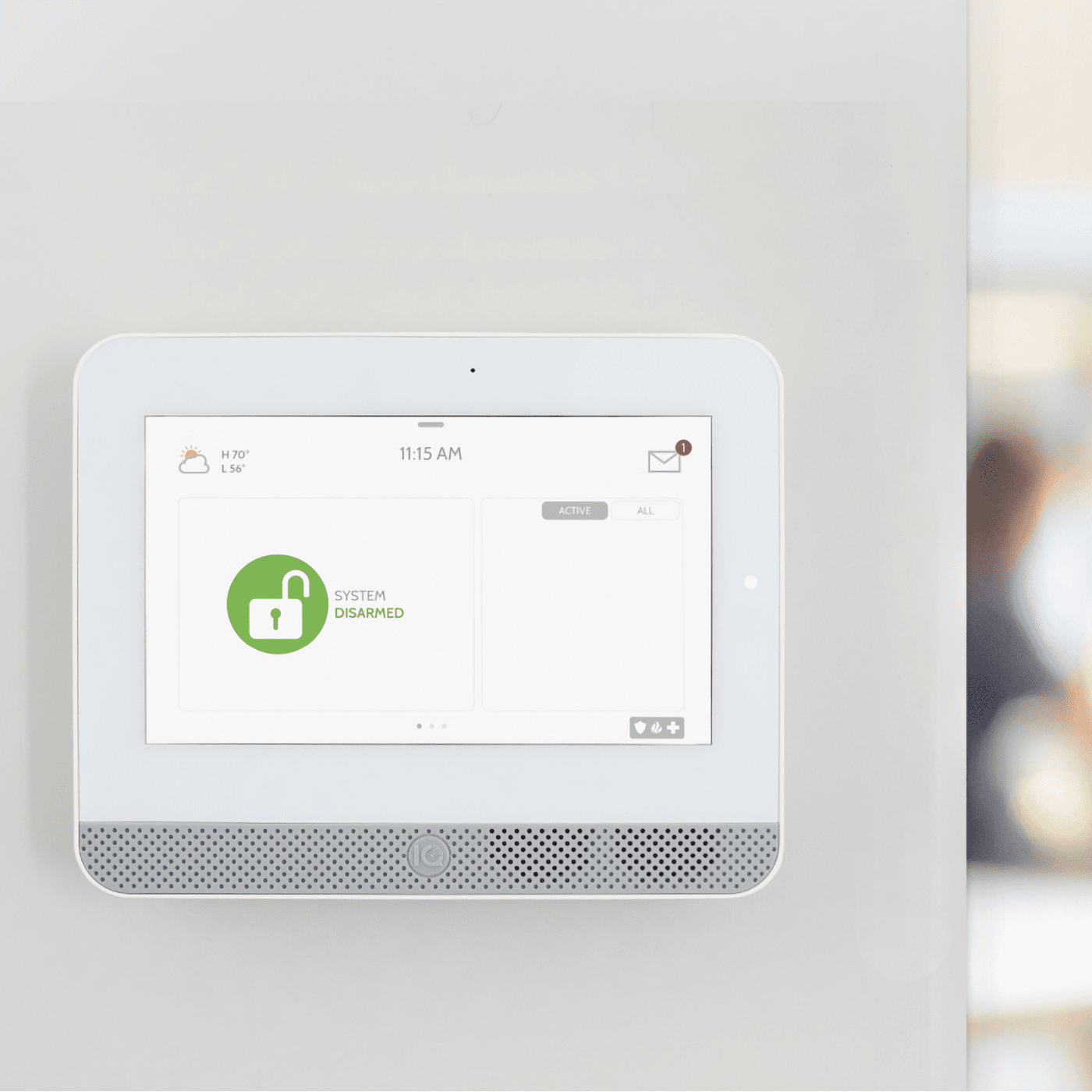

The IQ Panel 5 Hub (Part Number: IQH5018) is an all-in-one wireless 7" touchscreen control panel, that contains a built-in dual path Wi-Fi/cellular AT&T LTE Alarm.com communicator, designed for PowerG+ 915 MHz long-range encrypted security system sensors. Deliver premium performance at an accessible price with the IQ5 Hub, an advanced, all-in-one security control panel designed for modern installations. Built to combine speed, flexibility, and reliability, this security panel offers powerful features making it ideal for residential and light commercial security systems.

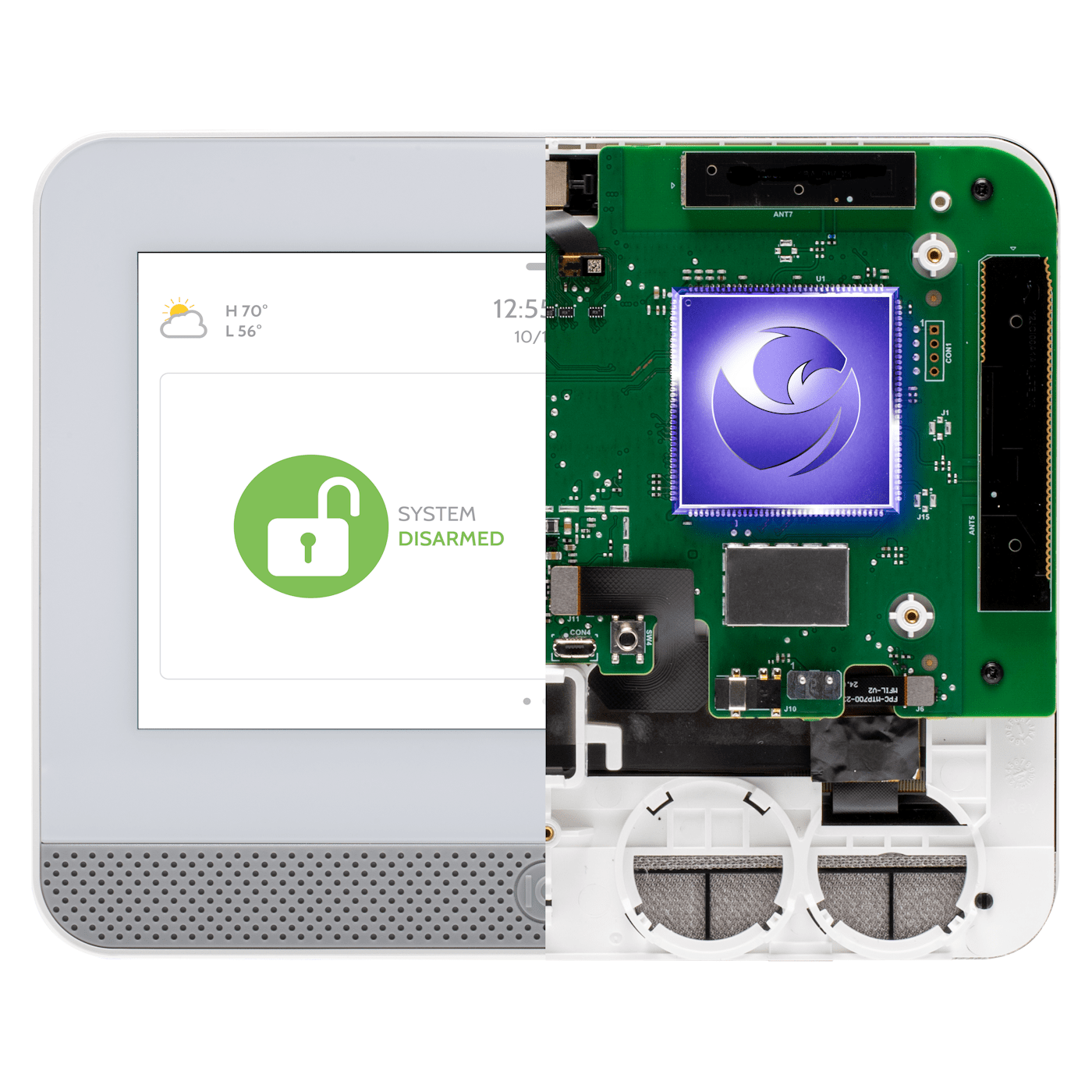

Powered by the cutting-edge Qualcomm Dragonwing™ quad-core processor and running on Android 14, the IQ5 Hub delivers lightning-fast operation, smooth navigation, and long-term platform support. Built-in PowerG+ wireless technology ensures industry-leading range and reliability, while the modular design allows installers to easily customize systems and simplify takeovers with optional legacy radio support.

With dual-path Alarm.com connectivity via AT&T LTE and Wi-Fi, along with Bluetooth 5.0 + LE, the panel ensures dependable communication, seamless smart device integration, and future-ready functionality. The IQ5 Hub combines affordability, innovation, and convenience into a powerful, future-ready security solution - making it an excellent choice for installers and customers who want premium capabilities without premium cost.

Panel Features:

Sleek 7" Touchscreen Interface: Modern, compact design with a responsive touchscreen for intuitive system control.
Powerful Performance: Qualcomm Dragonwing™ processor paired with Android 14 OS delivers fast response times and enhanced stability.
Built-In PowerG+ Wireless: Industry-leading 915 MHz PowerG+ reliability included standard for faster installs and fewer service calls.
Modular & Scalable Design: Add optional legacy 319, 345, or 433 MHz cards, or Ethernet modules à la carte to simplify installations and system takeovers.
Dual-Path Connectivity: Built-in Alarm.com AT&T LTE and Wi-Fi provide reliable communication and redundancy.
Bluetooth 5.0 + LE: Enables seamless device pairing and enhanced smart home integration.
Enhanced Software Experience: Differentiating software delivers a more convenient and customizable user interface, helping users easily manage and discover advanced features.
Future-Proof Technology: Designed to support upcoming AI-driven features and expanded smart device integrations.
Easier Installation: Refined hardware design including improved power supply, tamper detection, and backplate that supports smoother installations and improved overall performance.

* Parts listed above with an asterisk symbol require a subscription to Alarm.com powered by GeoArm.

Qolsys IQH5018 Control Panel Specifications:

Dimensions (H x W x D): 6.1" x 7.5" x 1" (155mm x 191mm x 26mm)
Wi-Fi Network: Wi-Fi 802.11 a/b/g/n/ac dual band 2.4/5Ghz - built-in access point capability
Cellular Network: AT&T LTE CAT4 (Bands 2/25, 4/66, 5/26, 7, 12/17, 13, 14 (non-First Net)
Z-Wave: 800-Series module, Z-Wave Long Range (Up to 167 Devices)
PowerG Automation: Up to 100 Devices
PowerG+ Security: Up to 128 Devices, 915MHz, long range, secure encrypted two-way wireless
Security RF: Up to 128 Devices. Depending on the model; either S-Line encrypted 319.5 MHz, 345 MHz, or 433 MHz
Bluetooth: Bluetooth Low Energy (BLE) 5.0 for Touchless Disarming
Buttons: Hard Button (Single wake/sleep button used for sleep/wake, hard reboot and clean screen cancel)
Microphones: 1 MEMS Microphone
Speakers/Siren: 1 Front-facing 2 watt speaker and 85dB piezo siren
Partitions: Up to 4 partitions
User Codes: Up to 242 users
Power Supply: AC/DC external plug-in adapter, Output: 12vDC 1000mA CC, Input: 100-240VAC 50/60Hz, barrel jack
*Adapter evaluated at 120vAC for UL/cUL
Battery: 18650 - Rechargeable lithium-ion 3,000mAh, rated for over 24 hours (Ningbo Veken Battery Co., Ltd, Model VT27 or Icon Energy System Co. Ltd, Model IAN034NA)
Platform: Android 14
Processor: Qualcomm DragonWing Quad Core SOM (System on a Module) with 32GB of NAND Flash
Flash Memory: Internal Storage, 32GB NAND Flash
LED Indicator: Status LED: Green (Disarmed), Red (Armed), Triple full color RGB LED
Tamper: Dual panel and wall tamper switch with spring release
Mount: SmartMount wall mount included. SmartMount table stand sold sperately.
Weight: 1 kg (2lb 4oz) *Packaged Weight
Operational Temperature: 0°C to 49°C (32°F to 120°F), up to 93% relative humidity, indoor, dry ordinary locations use only
Storage Temperature: -20°C to 50°C (-4°F to 100°F) not evaluated by UL/ULC
UL/ULC Certifications: UL/cUL: Residential fire and burglary and UL/ULC Commercial burglary alarm control unit.
Compliant with standards: UL985, UL1023, UL2610, ULC-S545, ULC-S304
FCC Certifications: 2AAJXQSIQP5 (may contain additional modules with separate FCC ID's)
IC Certifications: 11205A-QSIQP5 (may contain additional modules with separate IC ID's)
NOM, IFETEL Certifications: Certificado No.: Reserved

Qolsys IQH5018 Control Panel Documents:
