IQN5018-319KIT - IQ5 NS Dual-Path Wi-Fi/Cellular AT&T LTE Wireless PowerG and 319.5 MHz Security System (Powered by Alarm.com)

Item# IQN5018-319KIT

List Price: ~~$1,123.67~~

Special Order: $749.12

IQ5 NS Wireless Control Panel (IQN5018)*: IQ5 NS Alarm Battery: IQ5 NS Power Transformer: Alarm.com Dual-Path Wi-Fi/Cellular AT&T LTE Communicator*: S-Line/Legacy 319.5 MHz Wireless Sensor Daughter Card (QC0001-840): PowerG Wireless Door/Window Contact (PG9945): PowerG Wireless Motion Detector (PG9914): Add PowerG Wireless Secondary Keypad (IQKP-915): Add PowerG Wireless Secondary Touchscreen Keypad (IQR-PG):
QTY:

Shipping3-5 Business Days

Returns30-Day Return Window

PaymentSecure Transaction

Please Note: The IQ Panel 5 NS (IQN5018-319KIT) wireless no-screen alarm security system kit is orderable, however it is a special order item from manufacturer. This means shipping timeframes in excess of 5+ business days can be expected.

Description
Specifications
Documents
Kit Includes

IQN5018-319KIT Control Panel Description:

The IQ Panel 5 NS (Part Number: IQN5018-319KIT) is an all-in-one wireless 7" no screen security system kit, that contains a built-in dual path Wi-Fi/cellular AT&T LTE Alarm.com communicator, designed for Legacy 319.5 MHz, S-Line, PowerG, and PowerG+ 915 MHz long-range encrypted security system sensors. The IQ5 NS delivers the full performance and reliability of the IQ Panel 5 platform in a streamlined, screen-free, budget-friendly design. Built for cost-conscious installations without sacrificing power or flexibility, the IQ5 NS is ideal for projects where performance, modularity, and future readiness matter more than an on-panel display.

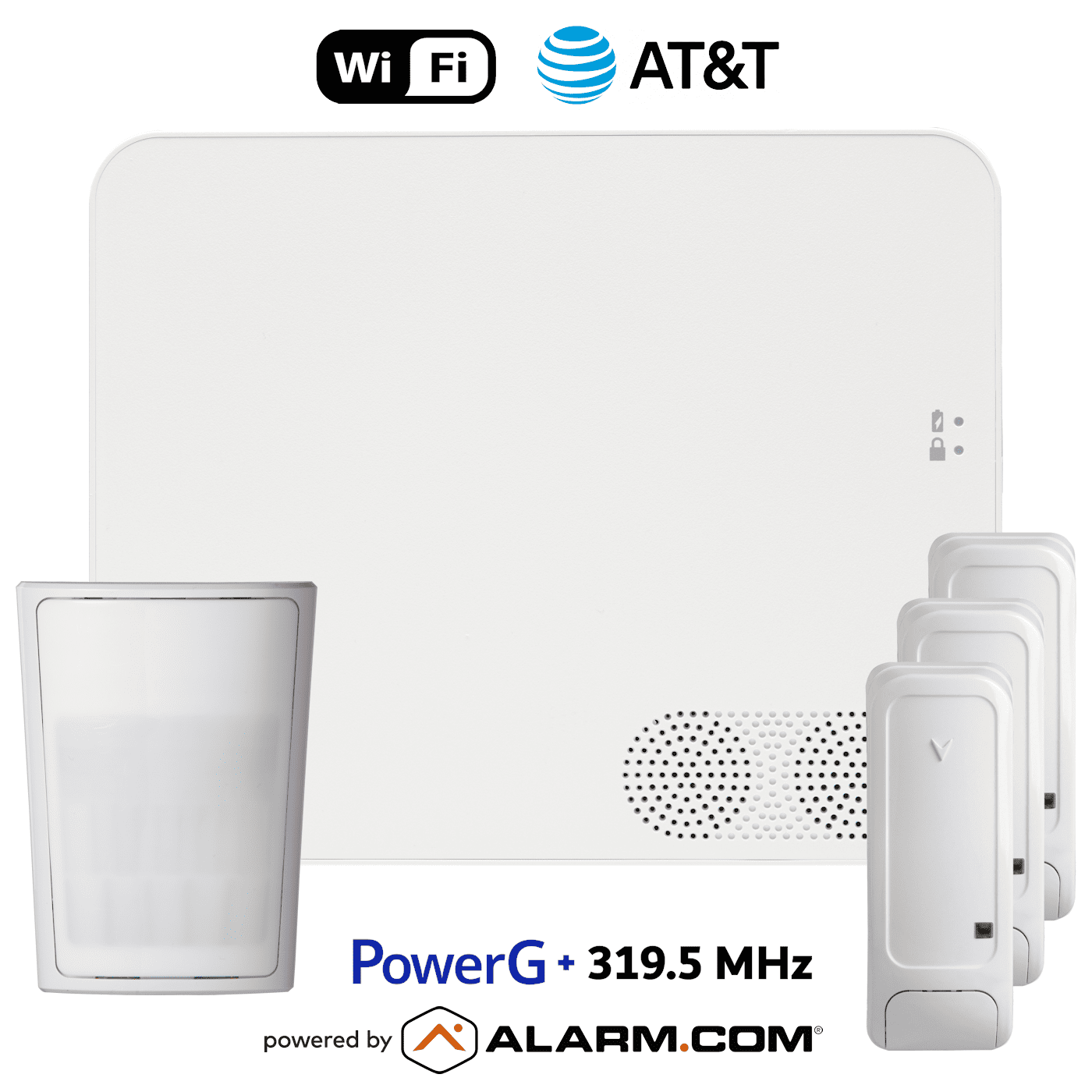

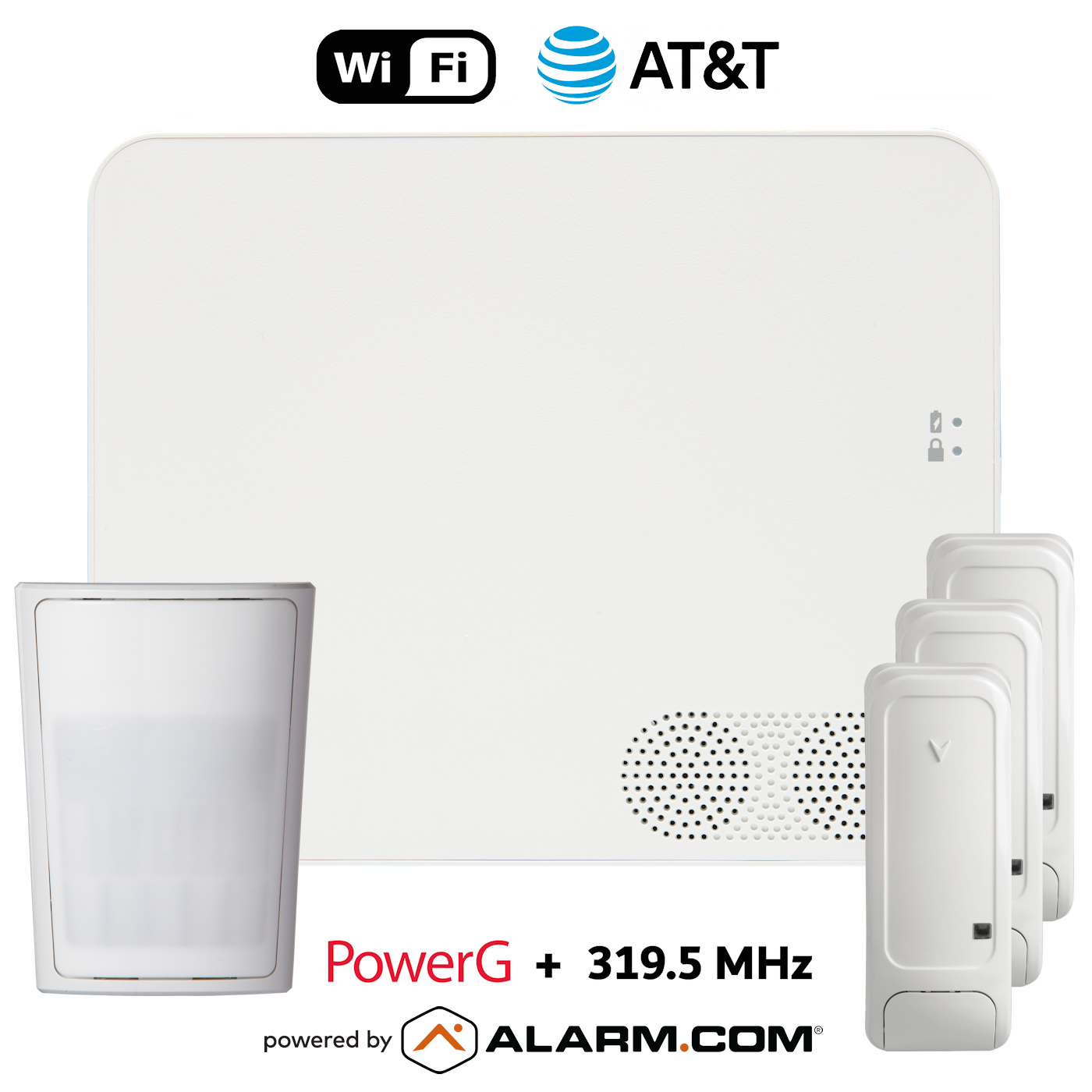

This IQ5 NS wireless security system kit includes; (1) wireless no-screen control panel IQN5018 with built-in Wi-Fi/Cellular Alarm.com AT&T alarm communicator, (3) wireless PowerG door/window contacts PG9945, (1) wireless pet-immune motion detector PG9914, and (1) legacy wireless 319 MHz sensor daughter card QC0001-840. With dual-path alarm communications, primary Wi-Fi that is backed up by cellular AT&T LTE, the IQ5 NS security system provides for redundant signaling that is less susceptible to line tampering.

At its core, the IQ5 NS is powered by the cutting-edge Qualcomm Dragonwing™ processor and runs on Android 14, providing fast operation, enhanced stability, and long-term platform support. With built-in PowerG+ wireless technology, installers get industry-leading range and reliability standard, while SRF modularity allows systems to be customized with only the radios and features required for each installation. The screen-free design reduces hardware cost while still enabling access to the totally refreshed IQ Panel 5 architecture, making this panel a smart choice for scalable, modern security systems.

Panel Features:

IQ Panel 5 Performance, No Screen: Delivers full IQ Panel 5 intelligence in a simplified, cost-effective form factor.
Powerful Chipset: Powered by the Qualcomm Dragonwing™ processor with Android 14 OS for fast performance and future-ready functionality.
Built-In PowerG+ Wireless: Industry-leading 915 MHz PowerG+ range and reliability included standard for dependable sensor communication.
Modular & Scalable Design: Includes Legacy 319 MHz daughter card, and Ethernet modules.
Built-In Connectivity: Alarm.com AT&T LTE cellular and Wi-Fi communicators ensure reliable dual-path system communication.
Bluetooth 5.0 + LE: Supports streamlined device pairing and smart ecosystem integration.
Enhanced Functionalities: Future-proof technology enables upcoming AI-driven features and expanded smart device integrations.
Easier Installation: Refined hardware design including improved power supply, tamper detection, and backplate that supports smoother installs and improved performance.
Expand With Video Surveillance: Full suite of Alarm.com powered video security devices, including indoor and outdoor cameras and smart video doorbells

* This IQ5 NS security system requires a subscription to Alarm.com powered by GeoArm.

IQN5018-319KIT Control Panel Specifications:

Dimensions (H x W x D): 6.1" x 7.5" x 1" (155mm x 191mm x 26mm)
Wi-Fi Network: Wi-Fi 802.11 a/b/g/n/ac dual band 2.4/5Ghz - built-in access point capability
Cellular Network: AT&T LTE CAT4 (Bands 2/25, 4/66, 5/26, 7, 12/17, 13, 14 (non-First Net)
Z-Wave: 800-Series module, Z-Wave Long Range (Up to 167 Devices)
PowerG Automation: Up to 100 Devices
PowerG+ Security: Up to 128 Devices, 915MHz, long range, secure encrypted two-way wireless sensors
Security RF: Up to 128 Devices, including S-Line encrypted and Legacy 319.5 MHz non-encrypted wireless sensors
Bluetooth: Bluetooth Low Energy (BLE) 5.0
Buttons: Hard Button - single button for pairing and troubles/alarm in memory announcements
Speakers/Siren: 1 Front-facing 2 watt speaker and 85dB piezo siren
Partitions: Up to 4 partitions
User Codes: Up to 242 users
Power Supply: AC/DC external plug-in adapter, Output: 12vDC 1000mA CC, Input: 100-240VAC 50/60Hz, barrel jack
*Adapter evaluated at 120vAC for UL/cUL
Battery: 18650 - Lithium-ion 3,000mAh (Ningbo Veken Battery Co., Ltd, Model VT27 or Icon Energy System Co. Ltd, Model IAN034NA)
Platform: Android 14
Processor: Qualcomm DragonWing Quad Core SOM (System on a Module) with 32GB of NAND Flash
Flash Memory: Internal Storage, 32GB NAND Flash
LED Indicator: 2 Status LEDs: Green (Disarmed), Red (Armed), Triple full color RGB LED
Tamper: Dual panel and wall tamper switch with spring release
Mount: SmartMount wall mount included. SmartMount table stand sold sperately.
Weight: 0.9 kg (2lb) *Packaged Weight
Operational Temperature: 0°C to 49°C (32°F to 120°F), up to 93% relative humidity, indoor, dry ordinary locations use only
Storage Temperature: -20°C to 50°C (-4°F to 100°F) not evaluated by UL/ULC
UL/ULC Certifications: UL/cUL: Residential fire and burglary and UL/ULC Commercial burglary alarm control unit.
Compliant with standards: UL985, UL1023, UL2610, ULC-S545, ULC-S304
FCC Certifications: 2AAJXQSIQP5 (may contain additional modules with separate FCC ID's)
IC Certifications: 11205A-QSIQP5 (may contain additional modules with separate IC ID's)
NOM, IFETEL Certifications: Certificado No.: Reserved

IQN5018-319KIT Control Panel Documents:

IQN5018-319KIT Security System Includes:

(1) IQ Panel 5 NS (IQN5018)
(1) Alarm.com AT&T Cellular LTE Alarm Communicator (Built-Into IQ5 NS)
(1) IQ Legacy 319 MHz and/or S-Line Encrypted Wireless Sensor Daughter Card (QC0001-840) (3) PowerG Wireless Door/Window Alarm Contacts (PG9945)
(1) PowerG Wireless Motion Detector (PG9914)

Miscellaneous: Transformer w/Power Cord, Back Up Battery, User Manual
