IQN5017-345KIT - IQ5 NS Dual-Path Wi-Fi/Cellular Verizon LTE Wireless PowerG and 345 MHz Security System (Powered by Alarm.com)

Item# IQN5017-345KIT

List Price: ~~$1,081.23~~

Special Order: $720.82

IQ5 NS Wireless Control Panel (IQN5017)*: IQ5 NS Alarm Battery: IQ5 NS Power Transformer: Alarm.com Dual-Path Wi-Fi/Cellular Verizon LTE Communicator*: Legacy 345 MHz Wireless Sensor Daughter Card (QC0005-840): PowerG Wireless Door/Window Contact (PG9945): PowerG Wireless Motion Detector (PG9914): Add PowerG Wireless Secondary Keypad (IQKP-915): Add PowerG Wireless Secondary Touchscreen Keypad (IQR-PG):
QTY:

Shipping3-5 Business Days

Returns30-Day Return Window

PaymentSecure Transaction

Please Note: The IQ Panel 5 NS (IQN5017-319KIT) wireless no-screen alarm security system kit is orderable, however it is a special order item from manufacturer. This means shipping timeframes in excess of 5+ business days can be expected.

Description
Specifications
Documents
Kit Includes

IQN5017-345KIT Control Panel Description:

The IQ Panel 5 NS (Part Number: IQN5017-345KIT) is an all-in-one wireless 7" no screen security system kit, that contains a built-in dual path Wi-Fi/cellular Verizon LTE Alarm.com communicator, designed for Legacy 319.5 MHz, S-Line, PowerG, and PowerG+ 915 MHz long-range encrypted security system sensors. The IQ5 NS delivers the full performance and reliability of the IQ Panel 5 platform in a streamlined, screen-free, budget-friendly design. Built for cost-conscious installations without sacrificing power or flexibility, the IQ5 NS is ideal for projects where performance, modularity, and future readiness matter more than an on-panel display.

This IQ5 NS wireless security system kit includes; (1) wireless no-screen control panel IQN5017 with built-in Wi-Fi/Cellular Alarm.com Verizon alarm communicator, (3) wireless PowerG door/window contacts PG9945 and (1) wireless pet-immune motion detector PG9914, and (1) legacy wireless 345 MHz sensor daughter card QC0005-840. With dual-path alarm communications, primary Wi-Fi that is backed up by cellular Verizon LTE, the IQ5 NS security system provides for redundant signaling that is less susceptible to line tampering.

At its core, the IQ5 NS is powered by the cutting-edge Qualcomm Dragonwing™ processor and runs on Android 14, providing fast operation, enhanced stability, and long-term platform support. With built-in PowerG+ wireless technology, installers get industry-leading range and reliability standard, while SRF modularity allows systems to be customized with only the radios and features required for each installation. The screen-free design reduces hardware cost while still enabling access to the totally refreshed IQ Panel 5 architecture, making this panel a smart choice for scalable, modern security systems.

Panel Features:

IQ Panel 5 Performance, No Screen: Delivers full IQ Panel 5 intelligence in a simplified, cost-effective form factor.
Powerful Chipset: Powered by the Qualcomm Dragonwing™ processor with Android 14 OS for fast performance and future-ready functionality.
Built-In PowerG+ Wireless: Industry-leading 915 MHz PowerG+ range and reliability included standard for dependable sensor communication.
Modular & Scalable Design: Includes Legacy 345 MHz daughter card, and Ethernet modules.
Built-In Connectivity: Alarm.com Verizon LTE cellular and Wi-Fi communicators ensure reliable dual-path system communication.
Bluetooth 5.0 + LE: Supports streamlined device pairing and smart ecosystem integration.
Enhanced Functionalities: Future-proof technology enables upcoming AI-driven features and expanded smart device integrations.
Easier Installation: Refined hardware design including improved power supply, tamper detection, and backplate that supports smoother installs and improved performance.
Expand With Video Surveillance: Full suite of Alarm.com powered video security devices, including indoor and outdoor cameras and smart video doorbells

* This IQ5 NS security system requires a subscription to Alarm.com powered by GeoArm.

IQN5017-345KIT Control Panel Specifications:

Dimensions (H x W x D): 6.1" x 7.5" x 1" (155mm x 191mm x 26mm)
Wi-Fi Network: Wi-Fi 802.11 a/b/g/n/ac dual band 2.4/5Ghz - built-in access point capability
Cellular Network: Verizon LTE CAT4 (Bands 2/25, 4/66, 5/26, 7, 12/17, 13, 14 (non-First Net)
Z-Wave: 800-Series module, Z-Wave Long Range (Up to 167 Devices)
PowerG Automation: Up to 100 Devices
PowerG+ Security: Up to 128 Devices, 915MHz, long range, secure encrypted two-way wireless sensors
Security RF: Up to 128 Devices, including Legacy 345 MHz non-encrypted wireless sensors
Bluetooth: Bluetooth Low Energy (BLE) 5.0
Buttons: Hard Button - single button for pairing and troubles/alarm in memory announcements
Speakers/Siren: 1 Front-facing 2 watt speaker and 85dB piezo siren
Partitions: Up to 4 partitions
User Codes: Up to 242 users
Power Supply: AC/DC external plug-in adapter, Output: 12vDC 1000mA CC, Input: 100-240VAC 50/60Hz, barrel jack
*Adapter evaluated at 120vAC for UL/cUL
Battery: 18650 - Lithium-ion 3,000mAh (Ningbo Veken Battery Co., Ltd, Model VT27 or Icon Energy System Co. Ltd, Model IAN034NA)
Platform: Android 14
Processor: Qualcomm DragonWing Quad Core SOM (System on a Module) with 32GB of NAND Flash
Flash Memory: Internal Storage, 32GB NAND Flash
LED Indicator: 2 Status LEDs: Green (Disarmed), Red (Armed), Triple full color RGB LED
Tamper: Dual panel and wall tamper switch with spring release
Mount: SmartMount wall mount included. SmartMount table stand sold sperately.
Weight: 0.9 kg (2lb) *Packaged Weight
Operational Temperature: 0°C to 49°C (32°F to 120°F), up to 93% relative humidity, indoor, dry ordinary locations use only
Storage Temperature: -20°C to 50°C (-4°F to 100°F) not evaluated by UL/ULC
UL/ULC Certifications: UL/cUL: Residential fire and burglary and UL/ULC Commercial burglary alarm control unit.
Compliant with standards: UL985, UL1023, UL2610, ULC-S545, ULC-S304
FCC Certifications: 2AAJXQSIQP5 (may contain additional modules with separate FCC ID's)
IC Certifications: 11205A-QSIQP5 (may contain additional modules with separate IC ID's)
NOM, IFETEL Certifications: Certificado No.: Reserved

IQN5017-345KIT Control Panel Documents:

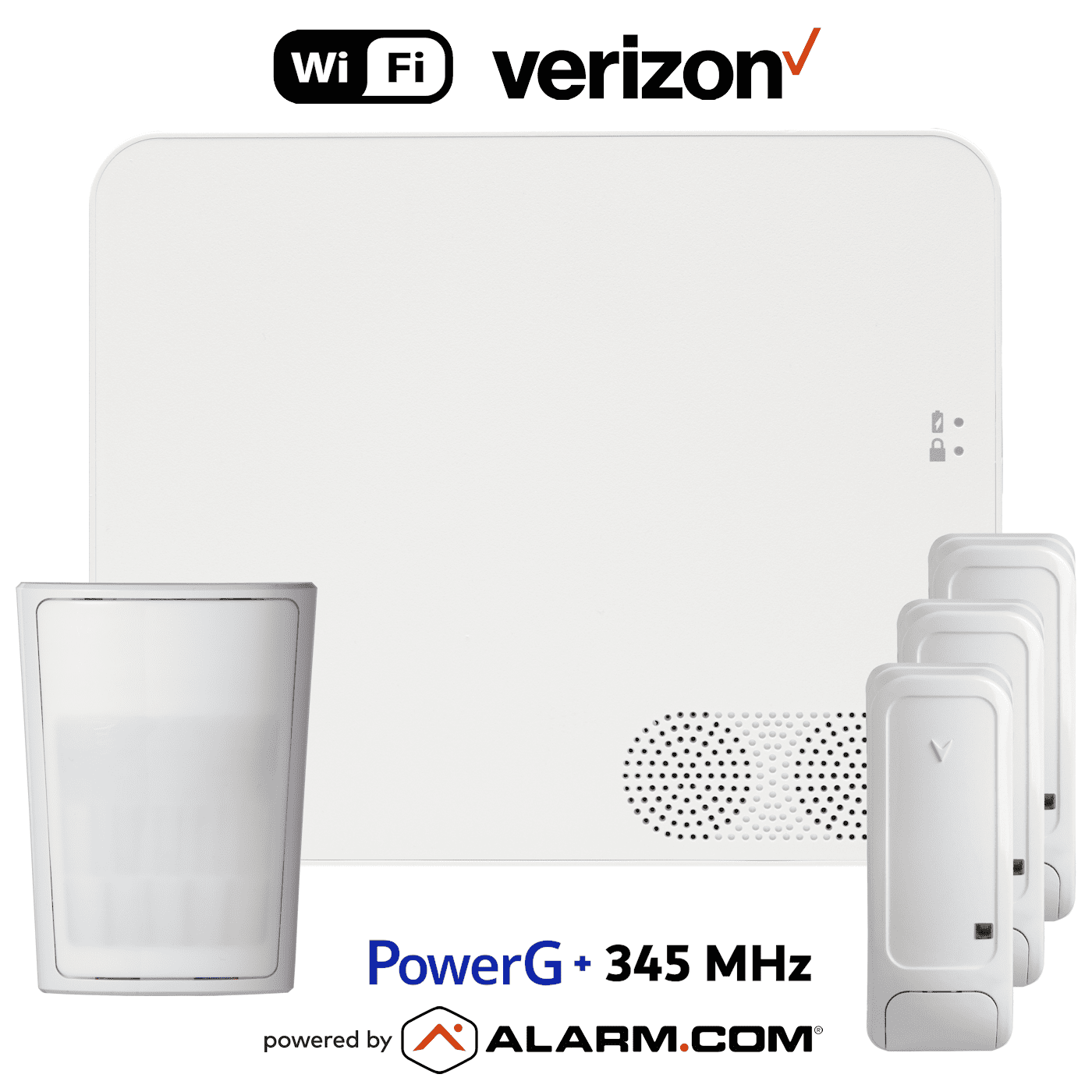

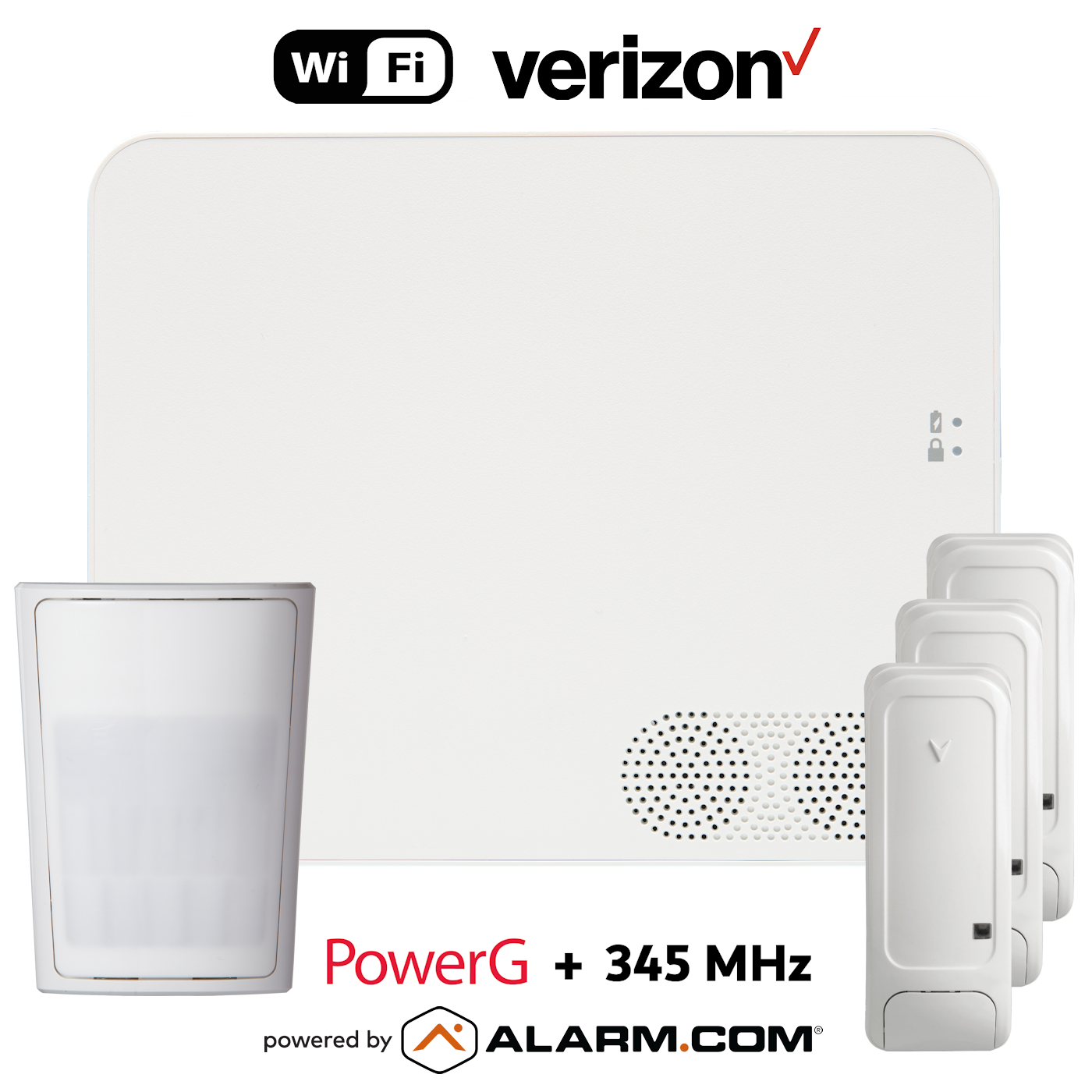

IQN5017-345KIT Security System Includes:

(1) IQ Panel 5 NS (IQN5017)
(1) Alarm.com Verizon Cellular LTE Alarm Communicator (Built-Into IQ5 NS)
(1) IQ Legacy 345 MHz Wireless Sensor Daughter Card (QC0005-840) (3) PowerG Wireless Door/Window Alarm Contacts (PG9945)
(1) PowerG Wireless Motion Detector (PG9914)

Miscellaneous: Transformer w/Power Cord, Back Up Battery, User Manual
