IQN5018 - IQ Panel 5 NS Wireless No Screen Security Alarm Control Panel for PowerG 915 MHz Sensors (Built-In Alarm.com Cellular AT&T LTE and Wi-Fi Communicator)

Item# IQN5018

List Price: ~~$682.40~~

Special Order: $454.94

QTY:

Shipping3-5 Business Days

Returns30-Day Return Window

PaymentSecure Transaction

Please Note: The IQ Panel 5 NS (IQN5018) wireless no-screen alarm control panel is a special order item.

Description
Specifications
Documents

Qolsys IQN5018 Control Panel Description:

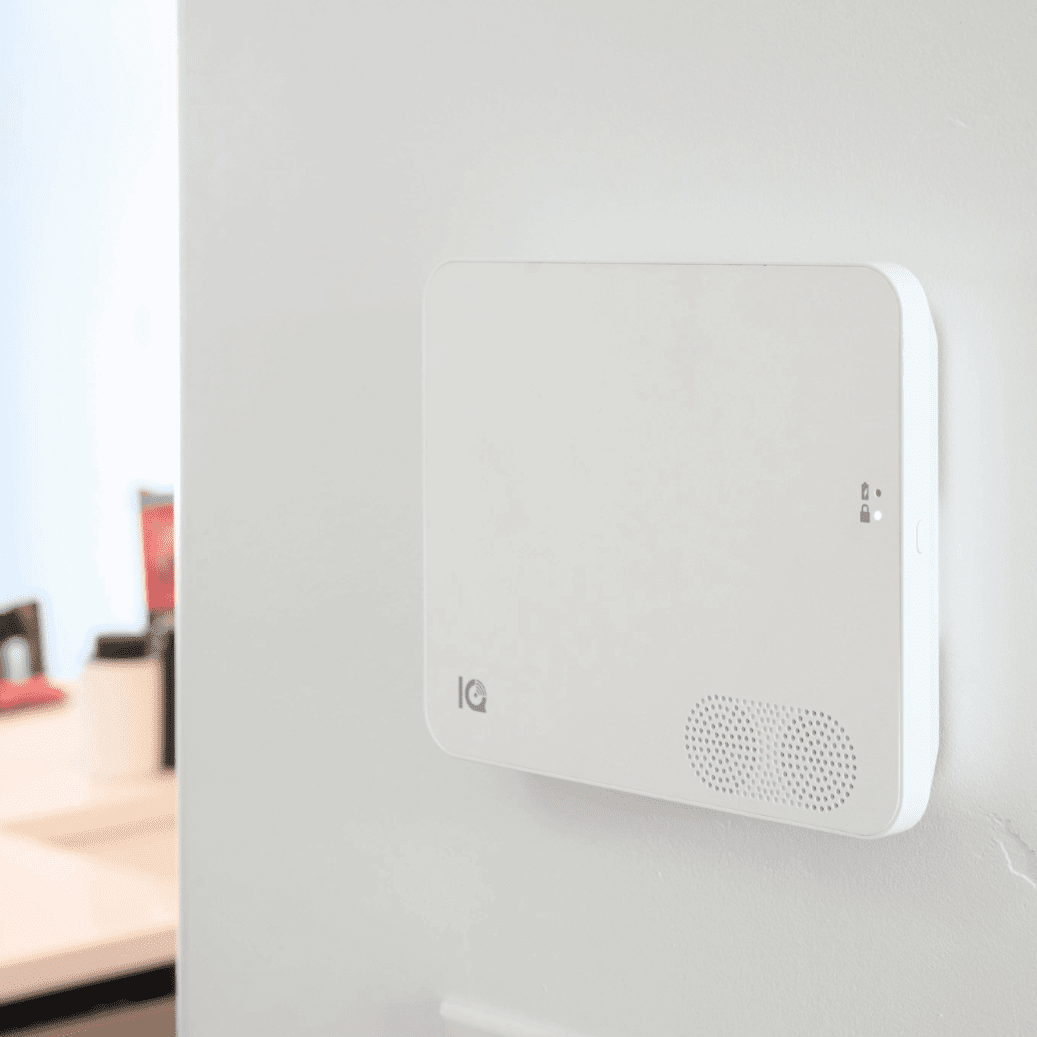

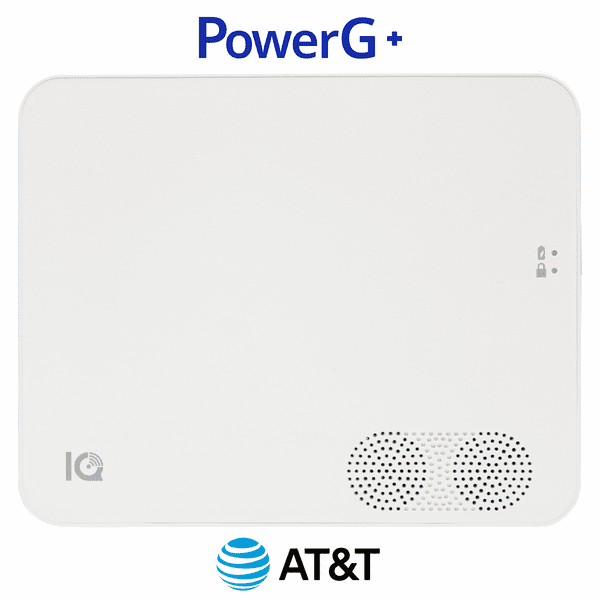

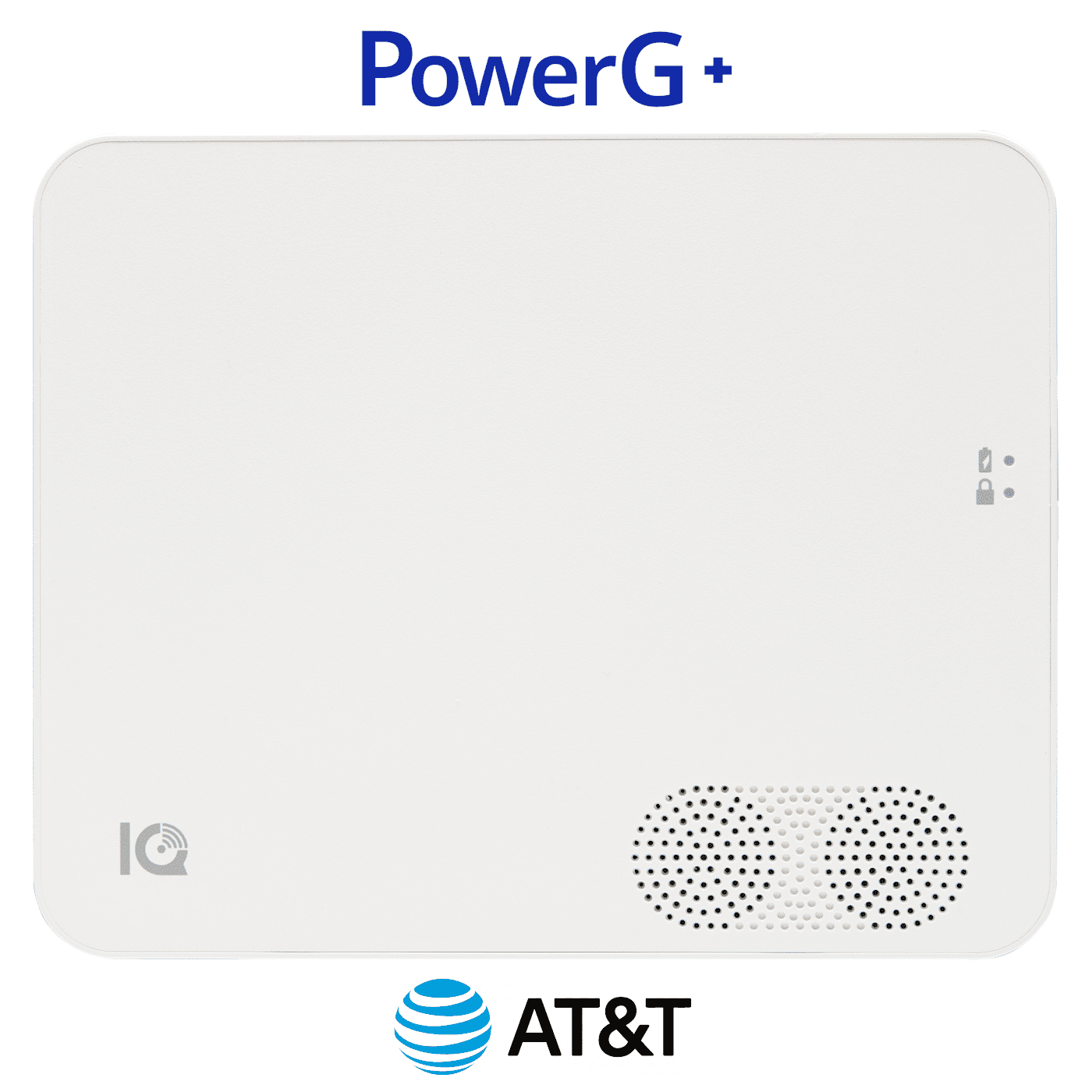

The IQ Panel 5 NS (Part Number: IQN5018) is an all-in-one wireless 7" no screen control panel, that contains a built-in dual path Wi-Fi/cellular AT&T LTE Alarm.com communicator, designed for PowerG+ 915 MHz long-range encrypted security system sensors. The IQ5 NS delivers the full performance and reliability of the IQ Panel 5 platform in a streamlined, screen-free, budget-friendly design. Built for cost-conscious installations without sacrificing power or flexibility, the IQ5 NS is ideal for projects where performance, modularity, and future readiness matter more than an on-panel display.

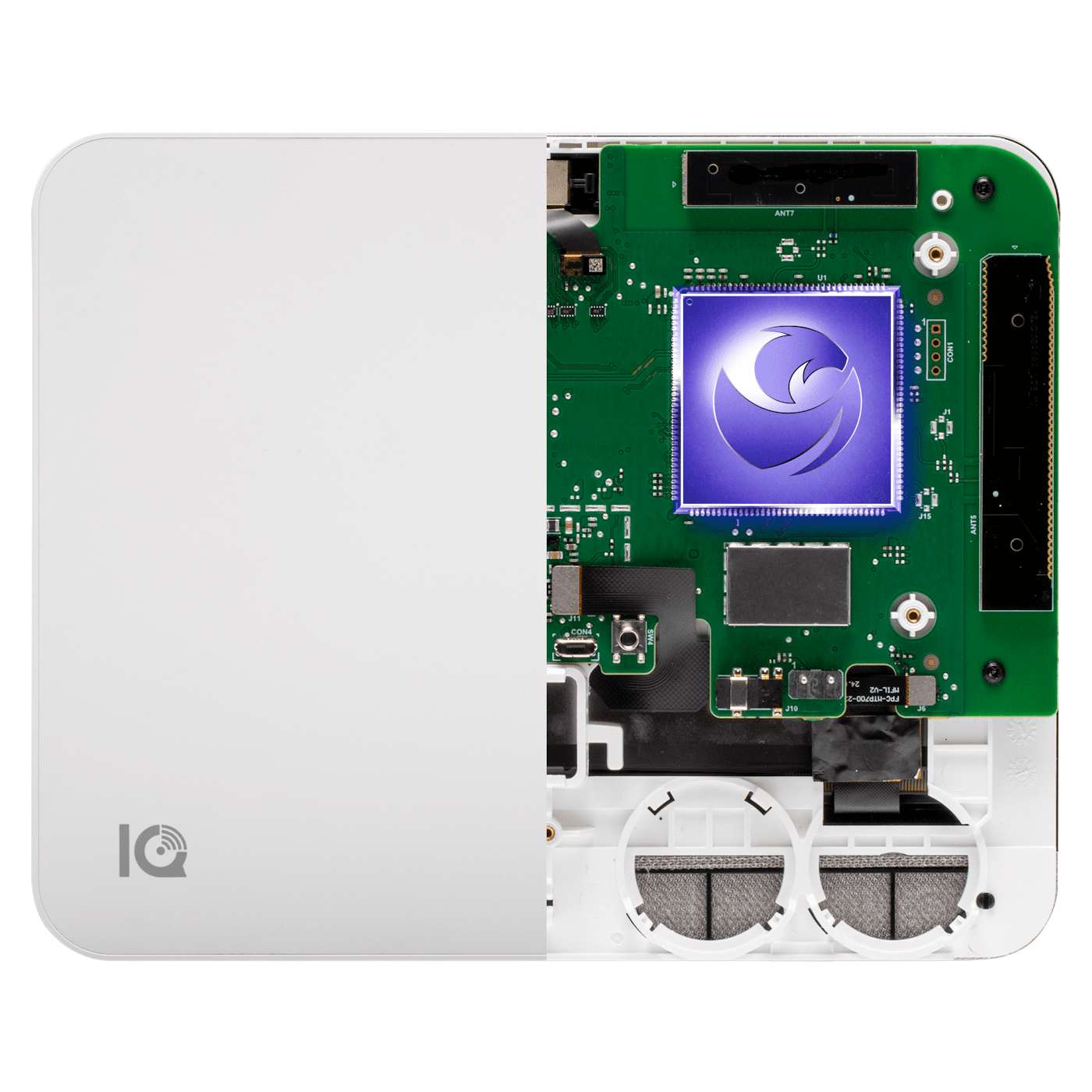

At its core, the IQ5 NS is powered by the cutting-edge Qualcomm Dragonwing™ processor and runs on Android 14, providing fast operation, enhanced stability, and long-term platform support. With built-in PowerG+ wireless technology, installers get industry-leading range and reliability standard, while SRF modularity allows systems to be customized with only the radios and features required for each installation.

The screen-free design reduces hardware cost while still enabling access to the totally refreshed IQ Panel 5 architecture, making this panel a smart choice for scalable, modern security systems.

Panel Features:

IQ Panel 5 Performance, No Screen: Delivers full IQ Panel 5 intelligence in a simplified, cost-effective form factor.
Powerful Chipset: Powered by the Qualcomm Dragonwing™ processor with Android 14 OS for fast performance and future-ready functionality.
Built-In PowerG+ Wireless: Industry-leading 915 MHz PowerG+ range and reliability included standard for dependable sensor communication.
Modular SRF Design: Add optional legacy 319, 345, or 433 MHz radios, or Ethernet cards, à la carte to simplify installations and system takeovers.
Built-In Connectivity: Alarm.com AT&T LTE cellular and Wi-Fi communicators ensure reliable dual-path system communication.
Bluetooth 5.0 + LE: Supports streamlined device pairing and smart ecosystem integration.
Enhanced Functionalities: Future-proof technology enables upcoming AI-driven features and expanded smart device integrations.
Easier Installation: Refined hardware design including improved power supply, tamper detection, and backplate that supports smoother installs and improved performance.

* Parts listed above with an asterisk symbol require a subscription to Alarm.com powered by GeoArm.

Qolsys IQN5018 Control Panel Specifications:

Dimensions (H x W x D): 6.1" x 7.5" x 1" (155mm x 191mm x 26mm)
Wi-Fi Network: Wi-Fi 802.11 a/b/g/n/ac dual band 2.4/5Ghz - built-in access point capability
Cellular Network: AT&T LTE CAT4 (Bands 2/25, 4/66, 5/26, 7, 12/17, 13, 14 (non-First Net)
Z-Wave: 800-Series module, Z-Wave Long Range (Up to 167 Devices)
PowerG Automation: Up to 100 Devices
PowerG+ Security: Up to 128 Devices, 915MHz, long range, secure encrypted two-way wireless
Security RF: Up to 128 Devices. Depending on the model; either S-Line encrypted 319.5 MHz, 345 MHz, or 433 MHz
Bluetooth: Bluetooth Low Energy (BLE) 5.0
Buttons: Hard Button - single button for pairing and troubles/alarm in memory announcements
Speakers/Siren: 1 Front-facing 2 watt speaker and 85dB piezo siren
Partitions: Up to 4 partitions
User Codes: Up to 242 users
Power Supply: AC/DC external plug-in adapter, Output: 12vDC 1000mA CC, Input: 100-240VAC 50/60Hz, barrel jack
*Adapter evaluated at 120vAC for UL/cUL
Battery: 18650 - Lithium-ion 3,000mAh (Ningbo Veken Battery Co., Ltd, Model VT27 or Icon Energy System Co. Ltd, Model IAN034NA)
Platform: Android 14
Processor: Qualcomm DragonWing Quad Core SOM (System on a Module) with 32GB of NAND Flash
Flash Memory: Internal Storage, 32GB NAND Flash
LED Indicator: 2 Status LEDs: Green (Disarmed), Red (Armed), Triple full color RGB LED
Tamper: Dual panel and wall tamper switch with spring release
Mount: SmartMount wall mount included. SmartMount table stand sold sperately.
Weight: 0.9 kg (2lb) *Packaged Weight
Operational Temperature: 0°C to 49°C (32°F to 120°F), up to 93% relative humidity, indoor, dry ordinary locations use only
Storage Temperature: -20°C to 50°C (-4°F to 100°F) not evaluated by UL/ULC
UL/ULC Certifications: UL/cUL: Residential fire and burglary and UL/ULC Commercial burglary alarm control unit.
Compliant with standards: UL985, UL1023, UL2610, ULC-S545, ULC-S304
FCC Certifications: 2AAJXQSIQP5 (may contain additional modules with separate FCC ID's)
IC Certifications: 11205A-QSIQP5 (may contain additional modules with separate IC ID's)
NOM, IFETEL Certifications: Certificado No.: Reserved

Qolsys IQN5018 Control Panel Documents:
