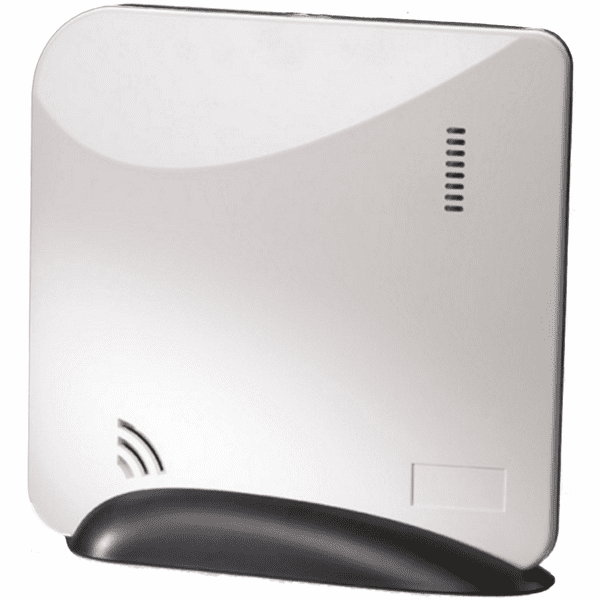

RE6100S-XX-Z - IpDatatel Resolution Z-Wave Home Automation Receiver

RE6100S-XX-Z - IpDatatel Resolution Z-Wave Home Automation Receiver
Please Note: The IpDatatel RE6100S-XX-Z home automation Z-Wave receiver has been discontinued without replacement.

IpDatatel RE6100S-XX-Z Product Description:


The IpDatatel Resolution RE6100S-XX-Z is a home automation Z-Wave receiver. The RE6100S-XX-Z receiver is needed to add Z-Wave home automation devices (such as lights and locks) with the IpDatatel communicators.

Product Features:

  • Simple Installation
  • Included Z-Wave Card
  • Up to 96 zones
  • Control from a user's mobile device
  • Industry-leading wireless range
  • 12-Volt power adapter
  • 6-foot Ethernet cable
  • Table-top mounting base
  • A screw to secure the cover (required for UL installations)
  • 5 year warranty

IpDatatel RE6100S-XX-Z Product Specifications:


  • Dimensions: 8.8" H x 8.9" W x 2.8" D
  • Operating Temperature: 14°F to 86°F with battery (-30°F to 140°F without battery)
  • Storage Temperature: -30°F to 140°F without battery
  • Humidity: 0-95% non-condensing
  • Weight: 1.87 pounds
  • Power Supply: Input 100-240VAC; Output: Class 2 Transformer; Input 100-240VAC; Output 12VDC 1.0Amps.
  • Back-up Battery: 6.0VDC, 2500mAh NIMH
  • Back-up Time: 24 hours Hours Fully Charged
  • Input Zones: 96 Wireless Zones
  • Siren: 90dBa
  • Wireless Siren Support Built-In: Transmitter for Resolution Wireless Siren
  • Ethernet: 10/100 Mbps Ethernet RJ-45
  • WiFi (optional): 802.11 b/g/n with WPS
  • GSM (optional): 3G (Primary or Secondary Configuration)
  • CDMA (optional): 3G (Primary or Secondary Configuration)
  • FCC: Part 15, Part 22
  • UL: 985, 1023, C-UL, CSFM
  • Sensor Radio: Crystal with Encryption
  • RF Specifications: 433 MHz 433 MHz; 115dBm Receiver Sensitivity
  • Range: 1500' Open Air Range
  • Control Bus Radio Type: Bluetooth® Low-Energy (BLE)
  • Control Bus Radio Frequency: 2.4GHz
  • Control Bus Radio Range: 300 feet open air range on Control Bus Radio

IpDatatel RE6100S-XX-Z Product Compatibility:


• IpDatatel BAT LTE
• IpDatatel BAT CDMA
• IpDatatel BAT CDMA-WIFI
• IpDatatel CAT CDMA
• IpDatatel CAT XT
• IpDatatel BAT WIFI
