Item# HS2LCDWFPV9

Please Note: The DSC HS2LCDWFP9 full-message LCD wireless alarm keypad with PowerG transformer, prox support and voice prompting has been discontinued.

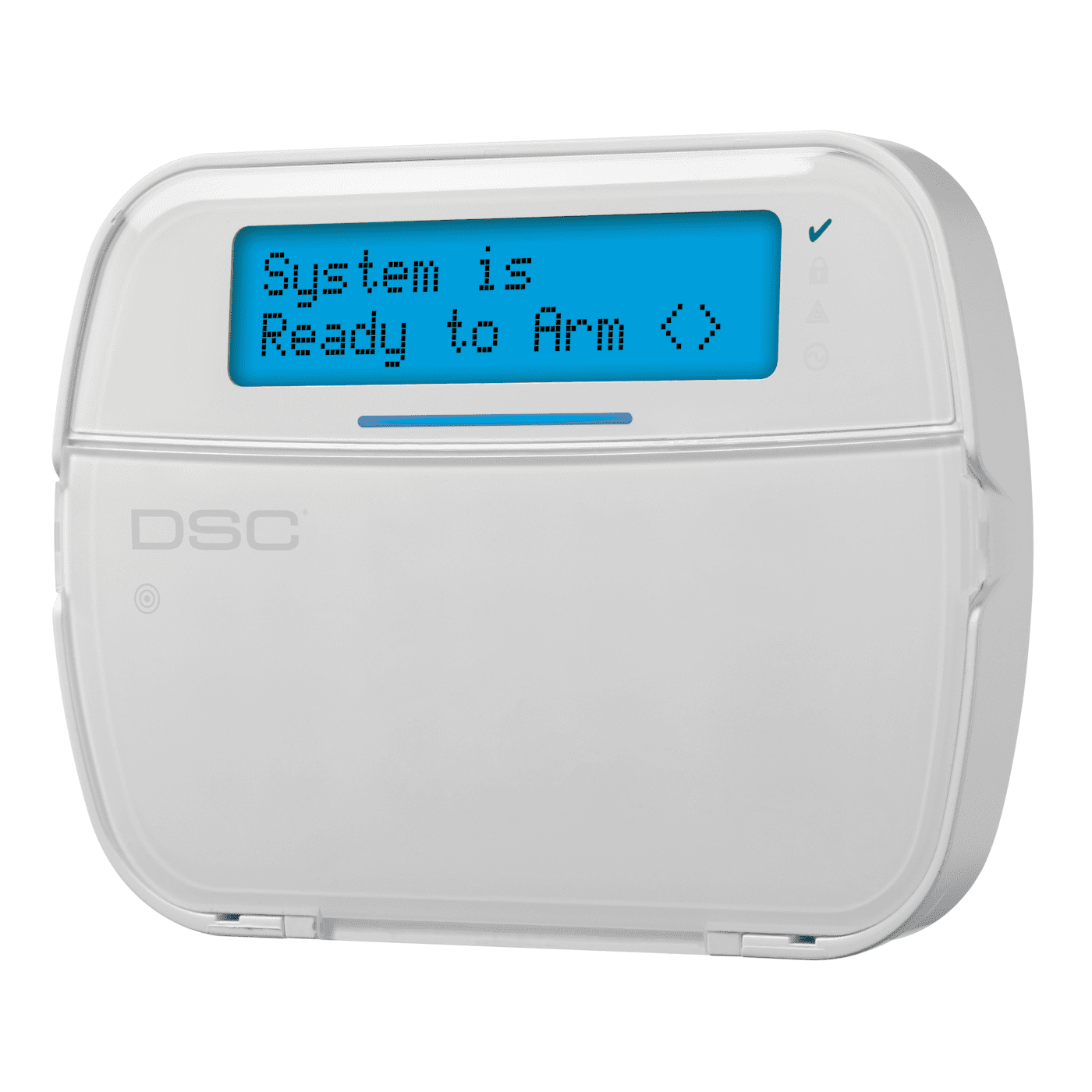

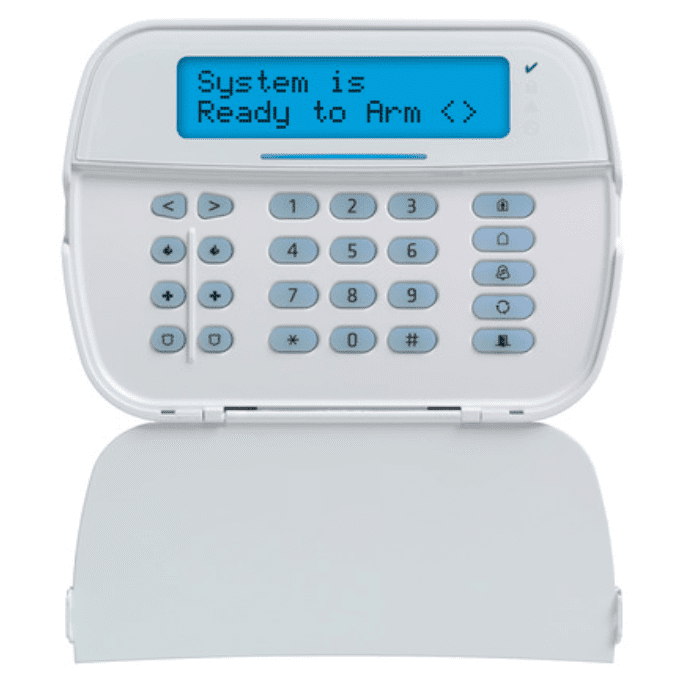

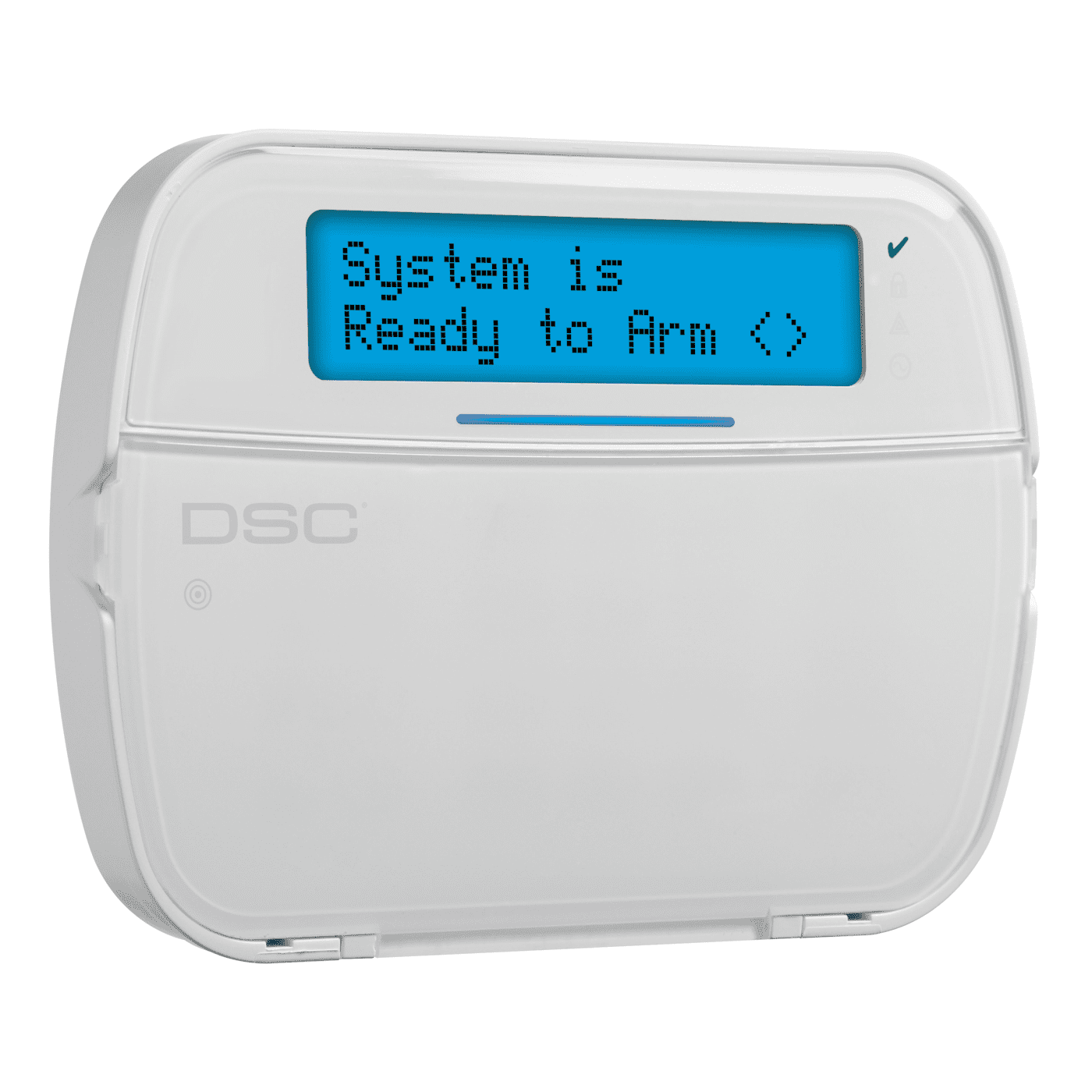

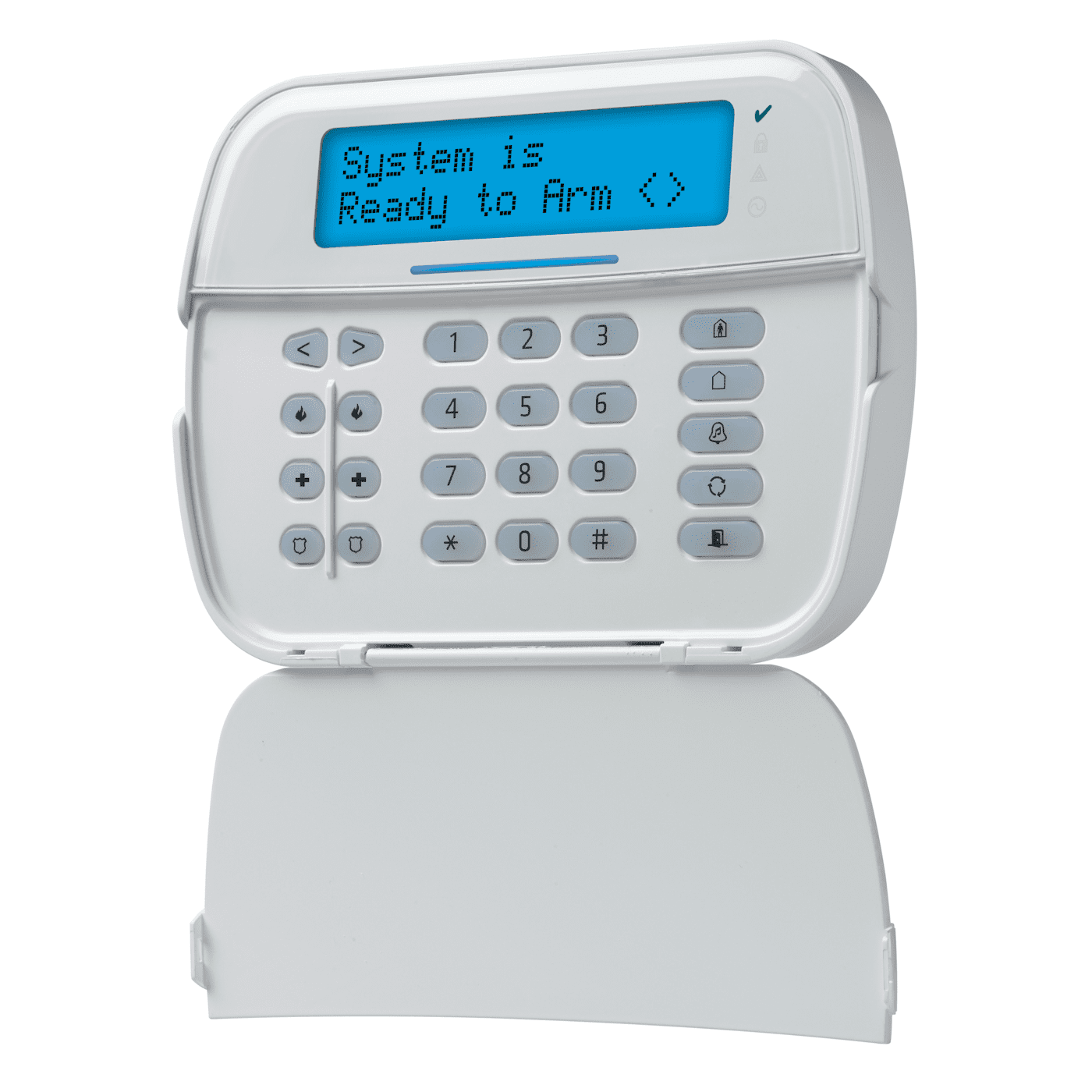

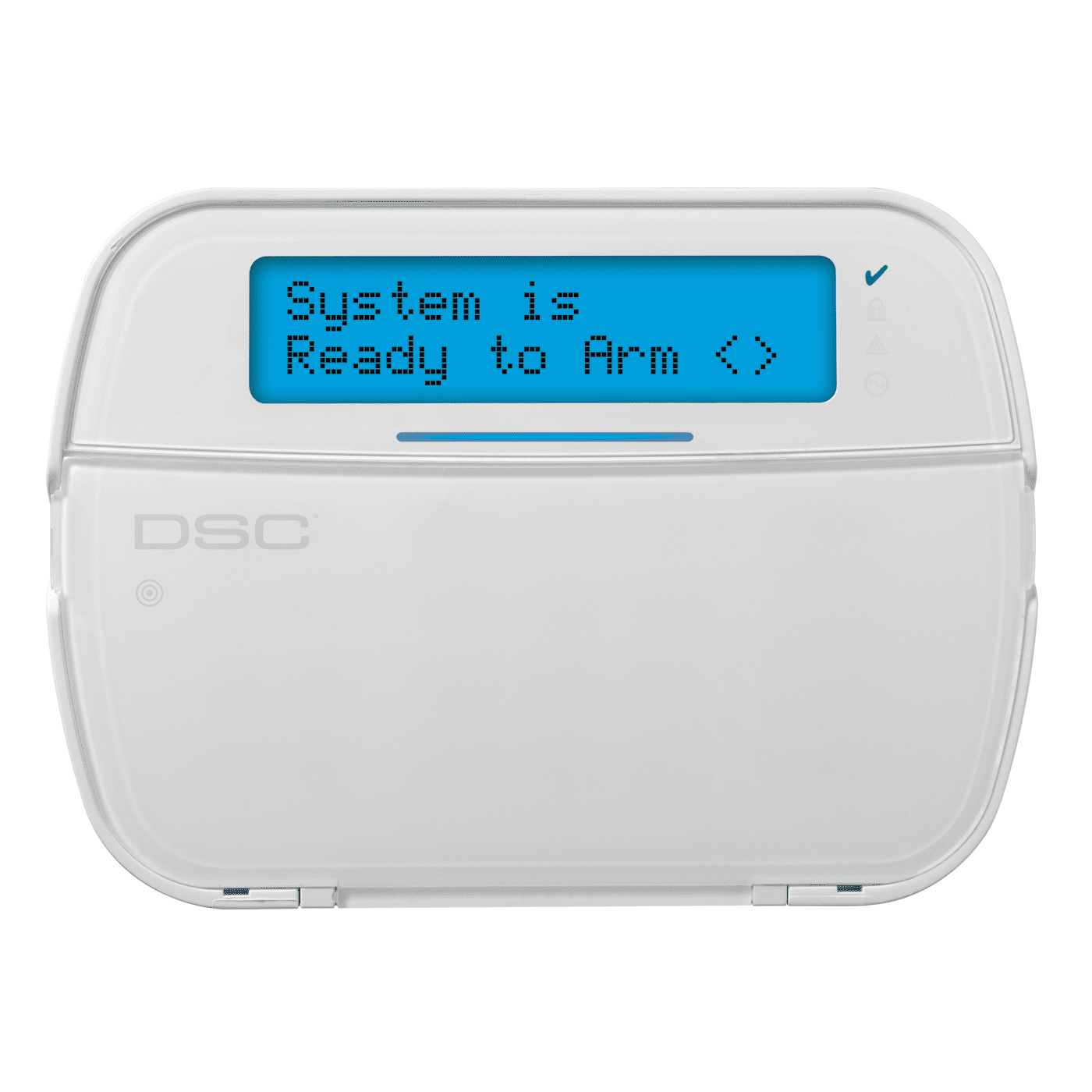

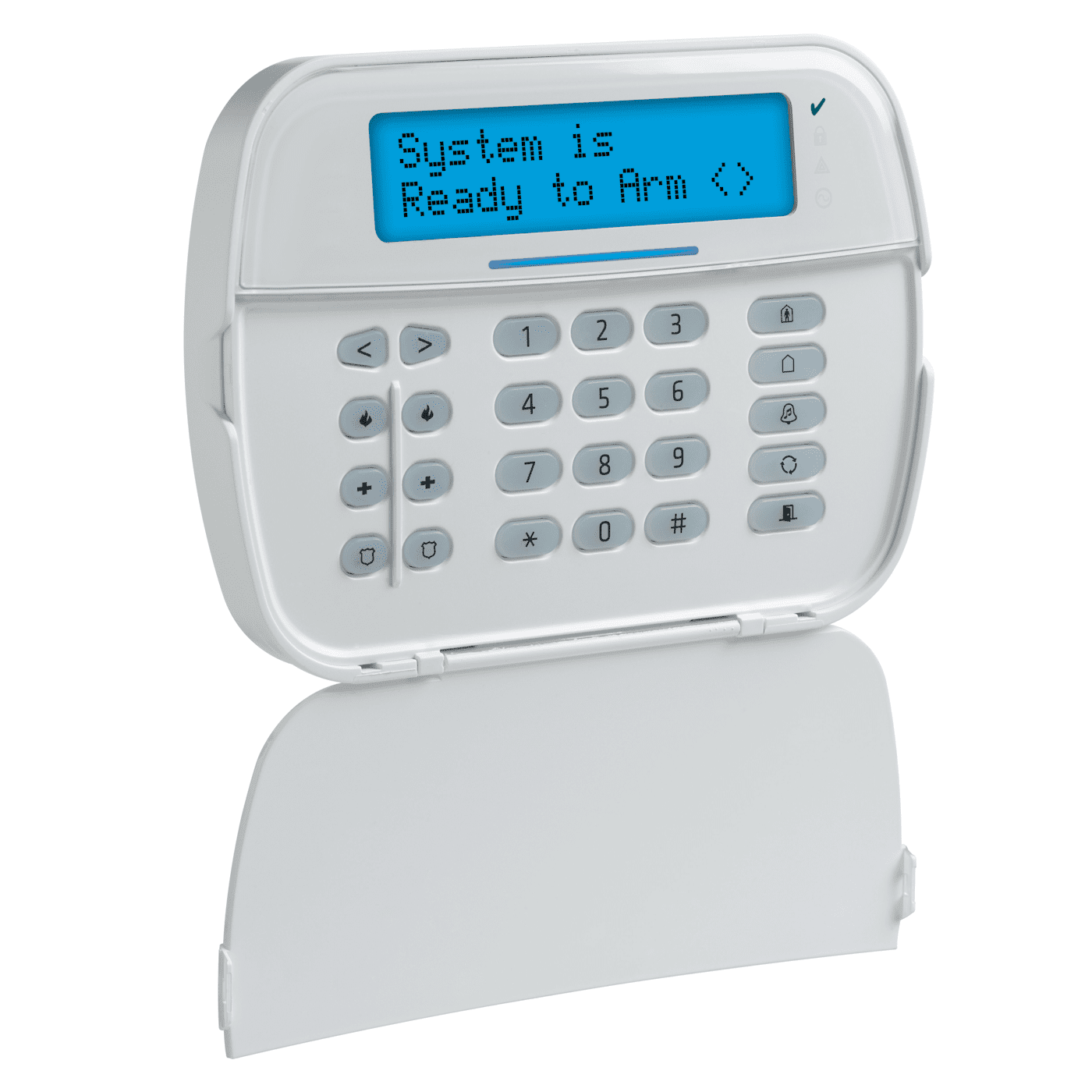

DSC HS2LCDWFPV9 Product Description:


The DSC HS2LCDWFPV9 is a hardwired full-message LCD alarm keypad with prox support, voice prompts and a wireless PowerG receiver. The HS2LCDWFPV9 wireless verbal annunciation keypad is compatible with wireless transceivers HSM2HOST and HS2LCDRF keypads. Perfect for home or business security, you can add up to 128 zones including wireless PowerG encrypted sensors to the keypad.

Mount the HS2LCDWFPV9 keypad where it is accessible from designated points of entry and exit. Once a dry and secure location has been selected, perform the following steps to mount the keypad. Take note, that this keypad is not to be connected to a receptacle that is controlled by a switch.

The proximity tag can be used to perform any keypad function that would normally require a user access code. The tag is to be presented to the center left face of the keypad. While the keypad is running off AC, the transceiver is always on to detect any prox tag approaching. While the keypad is running on battery and in sleep mode, the user can press any key to wake the keypad, then present the prox tag.

And the voice chime/voice prompt speaks the zone labels programmed for zone openings/closings. You can change the volume level on the keypad.

Product Features:

  • 2x16 full message display
  • Intuitive clock programming
  • Multiple door chime
  • Verbal Annunciation
  • Blue display
  • White keymat backlight
  • Displays outdoor temperature
  • Installer programming
  • Multi-language support
  • 5 programmable function keys
  • Fire, medical and panic keys
  • Tamper switch
  • Proximity with MPT mini prox tags
  • Front and rear mount tamper
  • Wire channel
  • Wall mount tamper (connected when installed in UL commercial applications)
  • Easy-to-install mounting hinge
  • Surface or single-gang box mount
  • Ready (Green LED), Armed (Red LED), Trouble/RF Jam (Yellow LED), AC (Green LED)
  • Backed by DSC's 1-year limited manufacturer's warranty

DSC HS2LCDWFPV9 Product Specifications:


  • Dimensions (L x W x D): 6 1/16" x 4 7/16" x 1" in (168 mm x 122 mm x 25 mm)
  • Weight (batteries included): 370g
  • Power Adapter output voltage: 9.0Vdc @ 1.25A. Models - US/Latin America: HK-XX11-U09N (UL), Canada: HK-XX11-U09NC (ULC), EU: HK-XX11-U09EU, UK: HK-XX11-U09NGB, AUS./NZ, China: HK-XX11-U09NAU limited power supply, acceptable to the authority having jurisdiction
  • Battery: 4 AA, 1.5V, Energizer alkaline consumer-grade (E91)
  • Low Battery Indication: 4.5V
  • Current Draw (HS2LCDWF): 30mA (min)/105mA (max)
  • Frequency: : 433MHz (Brazil, China, Aus.(CE), NZ (NA), South Africa (ICASA), MEA, India(WPC)
    868MHz (EN + Local, MEA (CE))
    912-919MHz (NA/LATAM, Argentina)
  • Operating Temperature: 14°F to 131°F (-10°C to 55°C), UL/ULC: 32°F to +120°F (0°C to 49°C)
  • Humidity: 93% RH non-condensing
  • Plastic Enclosure Rating: IP30, IK04
  • Approvals: FCC/IC, UL/ULC, SIA CP-01 CSFM

DSC HS2LCDWFPV9 Product Includes:


    HS2LCDWFPV - Prox Tag with verbal annunciation
  • 1 HS2LCDWF wall bracket
  • 1 installation manual
  • 1 inner door sticker
  • 4 AA batteries
  • 1 hardware pack
  • 1 prox tag

DSC HS2LCDWFPV9 Product Compatibility:


  • DSC PowerSeries HS2016 Neo Control Panels
  • DSC PowerSeries HS2032 Neo Control Panels
  • DSC PowerSeries HS2064 Neo Control Panels
  • DSC PowerSeries HS2128 Neo Control Panels
