Honeywell VISTA-128BPT Control Panel:
The Honeywell VISTA-128BPT is a hybrid commercial security system kit with included 6160RF wireless RF 345 MHz alphanumeric programming alarm keypad that is designed for Alula tri-path (ethernet/wifi/cellular AT&T LTE) alarm communications to the GeoArm central monitoring station. The VISTA-128BPT is a high-capacity, feature-rich, 128-zones control panel paired with the Alula universal tri-path communicator delivers Alula app interactive services for medium to large sized commercial businesses.
The VISTA 128BPT control panel comes with 9 on-board hardwired zones, up to 119 polling loop expansion zones (V-Plex or Multiplex), and up to 127 wireless expansion zones. Additionally, the VISTA 128BPT supports up to 8 partitions, 150 user codes and 20 schedules. For more hardwired zones, just add the Honeywell 4219 hardwired 8-zone expansion module to your VISTA 128BPT security system. With the VISTA 128BPT panel you get remote programming capability, graphic keypad support and better false alarm prevention. The VISTA 128BPT's installation advantages, innovative end-user benefits and robust system capacity make the value-priced security system an ideal choice for most commercial business owners.
The VISTA 128BPT security system is backed by Honeywell's 2-year limited manufacturer's warranty and once upgraded with a Honeywell wireless alarm receiver is compatible with the full line of Honeywell 5800-Series wireless security products. GeoArm and Honeywell give you the options you need to fully customize your security system.
To complete your hybrid tri-path security system installation, first wall-mount the VISTA 128BPT control panel near an electrical outlet and then attach the zone wiring. Next, wall-mount the included 6160RF keypad and wire it into the VISTA 128BPT control panel. Finally, connect the Alula BAT-CONNECT-A tri-path internet/wifi/cellular AT&T cellular LTE alarm communicator to the VISTA 128BPT control panel. You will need an Alula dual-path alarm monitoring account activated to work with GeoArm's central station.
With an Alula alternative tri-path communicator in place (such as the BAT-CONNECT-A), you would no longer need traditional phone service at the property to monitor your VISTA 128BPT hybrid security system. The alternative communicator would also allow you to upgrade to GeoArm's Alula interactive alarm monitoring services, which enables you to receive important alerts, keep a close eye on your home and control your security system remotely via the internet and/or mobile devices you use each and every day. Isn't it time you got connected? Save money and take control of your commercial business security with GeoArm.
Product Features:
- Provides nine style-B hardwired zones
- Supports up to 119 additional zones using a built-in polling (V-Plex®, multiplex) loop interface
- Supports up to 127 wireless zones using up to two 5800 series wireless receivers (fewer if using hardwire and/or polling loop zones)
- Provides one power-limited bell circuit delivering 1.7Amp (max) at 12VDC
- Provides the ability to control eight separate partitions independently, each functioning as if it had its own separate control
- Accommodates 150 user codes with seven authority levels
- Accommodates 32 keypad macro commands per system
- Keeps a log of up to 512 events
- Supports up to 16 compatible two-wire smoke detectors on zone 1
- Zone 7 may be used for keyswitch arming/disarming
- Integrates with WIN-PAK access control systems to provide increased users, event log and scheduling
- Supports V-Plex addressable VISTAKEY access control (up to eight doors and 250 cards)
- Easily programmed and maintained by Compass Windows-based downloader
- Supports up to 96 programmable outputs
- Programmable to meet SIA false alarm prevention specifications. To meet UL approval for ANSI/SIA CP-01-2010, order part number V128BPTSIA
- Supports up to six touchscreen Advanced User Interface (AUI) devices (6272 or later)
- Smoke detector reset at keypad
- Quick exit
- Group bypass
- Arm faulted
- Event arming
- Carbon monoxide (CO) zone type support
- Expanded high-speed RS-232 capability for third party interface and automation
- Supports V-Plex Smart Contact feature for improved responsiveness on systems with many V-Plex zones
Honeywell VISTA-128BPT Product Documents:
• Quick Guide to User Functions for Honeywell VISTA-128BPT Control Panel (Part 1 of 2)
• Quick Guide to User Functions for Honeywell VISTA-128BPT Control Panel (Part 2 of 2)
• User Guide for Honeywell VISTA-128BPT Control Panel
• Owners Manual for Honeywell VISTA-128BPT Control Panel
• Data Sheet for Honeywell VISTA-128BPT Control Panel
Honeywell VISTA-128BPT Product Specifications:
Agency Listing to the Following Standards:
- UL609 Grade A Local Mercantile Premises and Mercantile Safe and Vault
- UL1610 Grades A, AA Central Station
- UL365 Grades A, AA Police Connect
- UL985 Household Fire
- UL1023 Household Burglar Alarm California State Fire Marshall (CSFM)
- UL1635 - Digital Alarm Communicator System Units
- CAN/ULC - S303
- CAN/ULC - S304
- CAN/ULC - S545
- CAN/ULC - S1023
- For commercial burglary attack proof requirements, use N5873V4BE attack proof enclosure provided in VISTA-ULKT kit
Electrical:
- Voltage Input: From Honeywell Home No. 1361 Plug-In Transformer or 1361X10 transformer (for X-10 installations) rated 16.5VAC, 40 VA
- Use 1361CN plug-in transformer for Canada
- Alarm Sounder Output: 10VDC-13.8VDC, 1.7 amps max., (UL1023, UL609 installations); 750mA less aux. current draw (UL985 installations)
- Auxiliary Power Output: 9.6VDC13.8VDC, 750mA max. For UL installations, the accessories connected to the output must be UL Listed, and rated to operate in the above voltage range
- Backup Battery: 12VDC, 4AH or 7AH sealed-lead acid. YUASA NP4-12 (12V, 4AH) or NP7-12 (12V, 7AH) recommended
- Standby Time: Four hours min. with 750mA aux. load using 7AH battery
- Circuit Protectors: PTC circuit breakers are used on battery input to protect against reverse battery connections and on alarm sounder output to protect against wiring faults (shorts). A solid state circuit breaker is used on auxiliary power output to protect against wiring faults (shorts).
Main Dialer:
- Formats Supported: ADEMCO Contact ID with support for four-digit and tendigit accounts and ADEMCO 4 + 2 Express
- Line Seize: Double Pole
- Ringer Equivalence: 0.7B
- Dimensions: 12.5"W X 14.5"H x 3.0" D
Cabinet Dimensions:
Additional Information:
Basic Hardwired Zones:
Provides nine style-B hardwired zones with the following characteristics:
• EOLR supervision (optional for zones 2-8) supporting N.O. or N.C. sensors (EOLR supervision required for fire and UL burglary installations)
• Individually assignable to one of eight partitions
• Up to 16 two-wire smoke detectors on zone 1
• Four-wire smoke or heat detectors on zones 1-8 (power to four-wire smoke detectors must be supervised with an EOL device). Listed for residential fire only.
Polling Loop Expansion:
Supports up to 119 additional zones using a built-in polling (V-Plex, multiplex) loop interface. Current draw can total up to 128mA. Polling loop zones have the following characteristics:
• Must use V-Plex devices
• Supervised by control panel
• Individually assignable to one of eight partitions
• Supports VSI Module
• Supports 4297 Expander Module
• Maximum wiring distance = 12,000 feet
Wireless Expansion:
Supports up to 127 wireless zones using up to two 5800 Series wireless receivers (fewer if using hardwire and/or polling loop zones).
Wireless zones have the following characteristics:
• Supervised by control panel for check-in signals (except certain nonsupervised transmitters)
• Tamper protection for supervised transmitters
• Individually assignable to one of eight partitions
Scheduling:
Provides the following scheduling capabilities:
• Open/close schedules (for control of arming/disarming and reporting)
• Holiday schedules (allows different time windows for open/close schedules)
• Timed events (for activation of relays, auto-bypassing and unbypassing, auto-arming and disarming, etc.)
• Access schedules (for limiting system access to users by time)
• End user output programming mode (provides 20 timers for output control)
Eight Partitions:
Provides the ability to control eight separate areas independently, each functioning as if it had its own separate control. Partitioning features include:
• A Common Lobby partition (1-8), which can be programmed to arm automatically when the last partition that shares the common lobby is armed, and to disarm when the first partition that shares the common lobby is disarmed
• A Master partition (9), used strictly to assign keypads for the purpose of viewing the status of all eight partitions at the same time (master keypads)
• All zones assignable to one of eight partitions
• Keypads assignable to one of eight partitions or to Master partition 9 to view system status
• Ability to assign relays to one or all eight partitions
• Ability to display fire and/or burglary and panic and/or trouble conditions at all other partitions’ keypads (selectable option)
• Individually programmable account number, entry delay and exit delay by partition
Honeywell VISTA-128BPT Accessories Information:
Auxiliary Devices:
• 4204 - Relay Module, four form C contacts
• 5881 Series - RF Receiver supporting 5800 wireless detectors
• 6160 - Alpha Keypad/Annunciator
• 6220S - System Printer
Manual Pull Stations:
• 5140MPS-1
• 5140MPS-2
V-Plex (addressable) Devices:
• 4101SN Single Relay/Zone Module
• 4190SN Remote Point Module - two zones
• 4193SN Two-zone Serial Interface Module
• 4208EX - Eight-zone expander for ULC commercial installations
• 4208SN Loop Expansion Module - eight zones
• 4209U Group Zoning Module - two/four zones
• 4293SN One-zone Serial Interface Module
• 4297 Isolation/Extender Module
• VSI Short/Overload Isolation Module
• 5193SD
• 5193SDT
Passive Infrared Detectors:
• IS2500SN
• DT7500SN
V-Plex (addressable) Contacts:
• 4939SN-WH
• 4944SN-WH
• 4959SN
V-Plex Glassbreak Detectors:
• FG1625SN
VISTA Interactive Phone Module:
• 4286 VIP Module
Access Control:
• VISTAKEY V-Plex (addressable) Access Control
• VISTAKEY-SK Starter Kit
• VISTAKEY-EX Expansion Kit
Wireless Devices:
• 5804 - Wireless Key
• 5804BD - Bidirectional Key
• 5804BDV - Bidirectional Key with voice
• 5816 - Door/Window Transmitter
• 5819 - Shock Sensor
• 5827BD - Bidirectional Keypad
• 5853 - Glassbreak Detector
• 5898 - Wireless DUAL TEC Motion Sensor
• 5800PIR-OD - Outdoor Motion Sensor
• 5870API - Asset Protection Device
• 5800PIR/5800PIR-RES/5800PIR-COM - Wireless Motion Detectors
• 5800CO (5800COA - Canada) - Wireless Carbon Monoxide Detector
• 5800RP - Wireless Repeater
• 5808W3 (5808W3A - Canada) - Wireless Smoke Detector
• 5809 - Wireless Heat Detector
Commercial Listed Wireless Devices:
• 5817CB - Commercial UL Burglary, Universal Contact Monitoring Transmitter*
• 5869 - Commercial UL Wireless Hold-up Button*
• 5881ENHC and 5883H Receivers* (When used with 5881ENHC and/or 5883H receiver.)

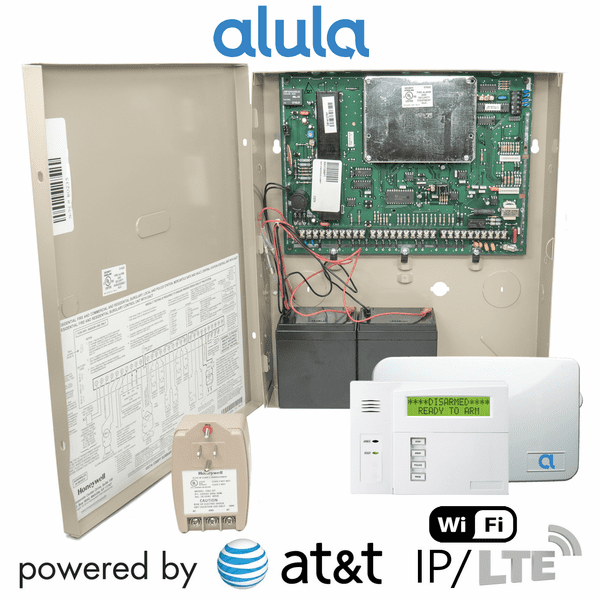

Honeywell VISTA-128BPT Kit Includes:

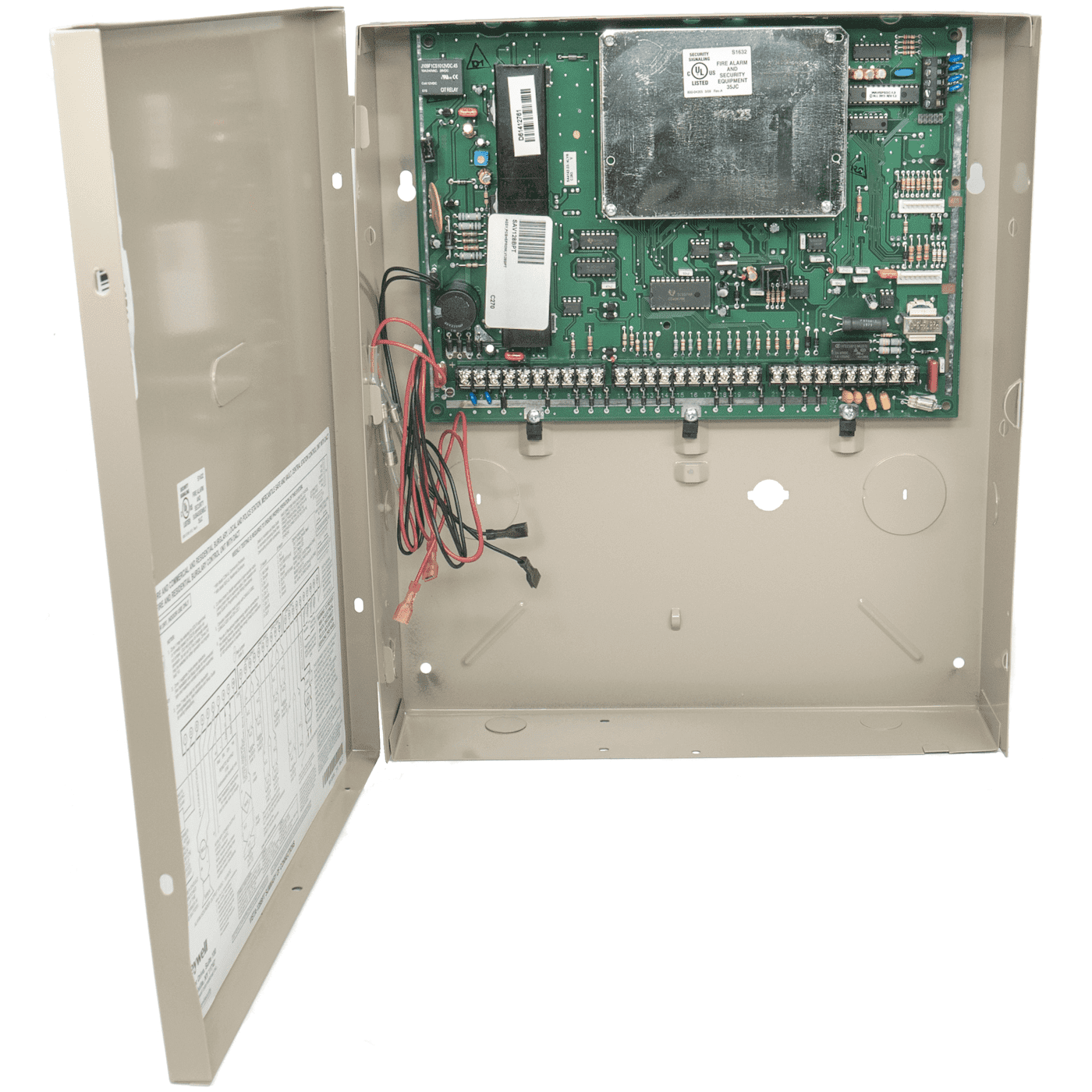

(1) Honeywell VISTA-128BPT Commercial Intrusion Alarm Control Panel (VISTA-128BPT)

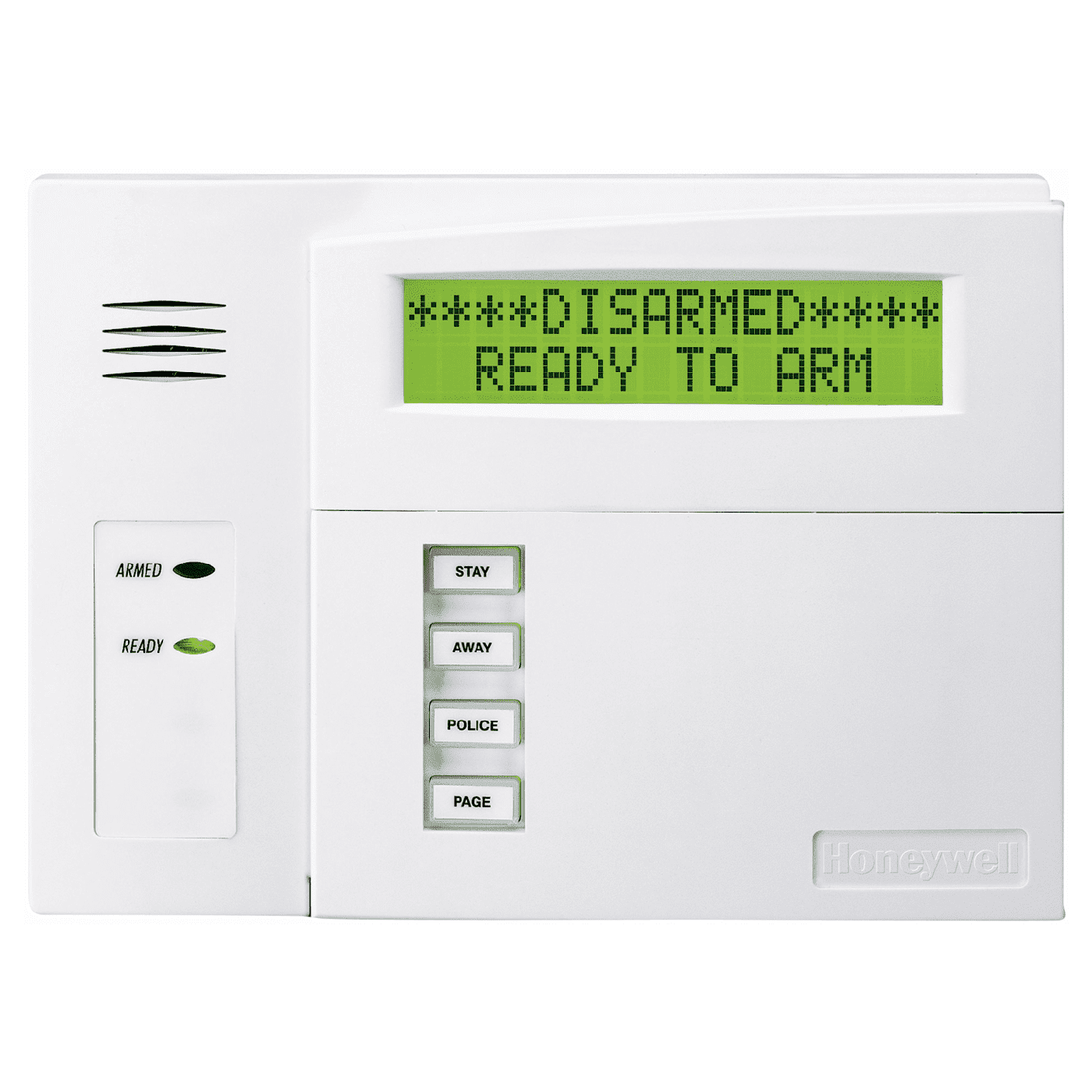

(1) Honeywell 6160RF Programming Alarm Keypad with Wireless 345 MHz Receiver
(2) UltraTech IM-1250F1 Backup Alarm Battery (12V @ 5.0 Ah)
(1) AC Power Control Panel Transformer (16.5VAC @ 40VA)

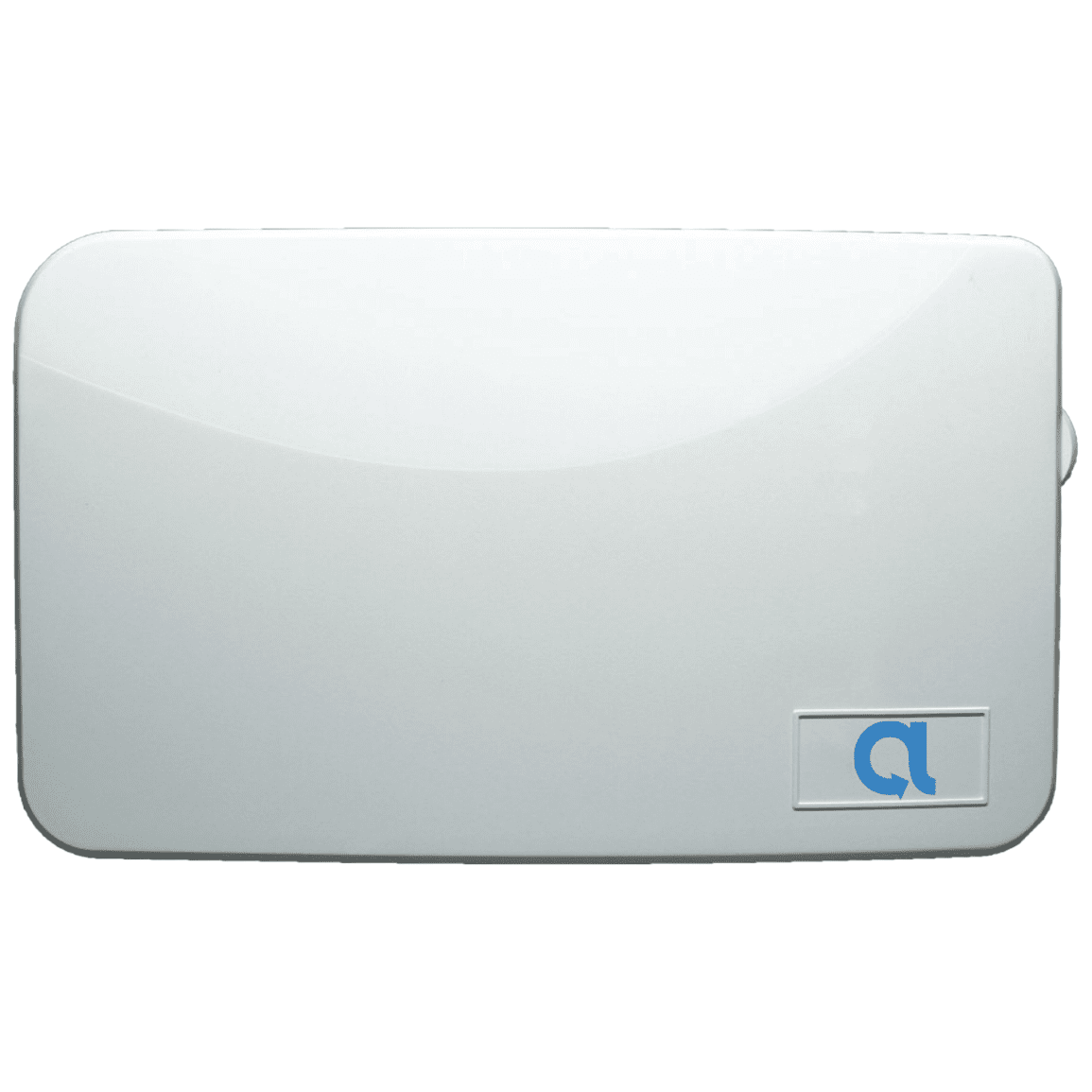

(1) Alula BAT-CONNECT-A Tri-Path Alarm Communicator (Ethernet/Wifi/Cellular AT&T LTE)
Miscellaneous Items: User Guide Manual
