Item# TG4LV

Please Note: The Telguard TG4LV universal primary/backup cellular Verizon LTE alarm communicator has been discontinued and replaced by the TG4LV002 model number.

Telguard TG4LV Product Description:

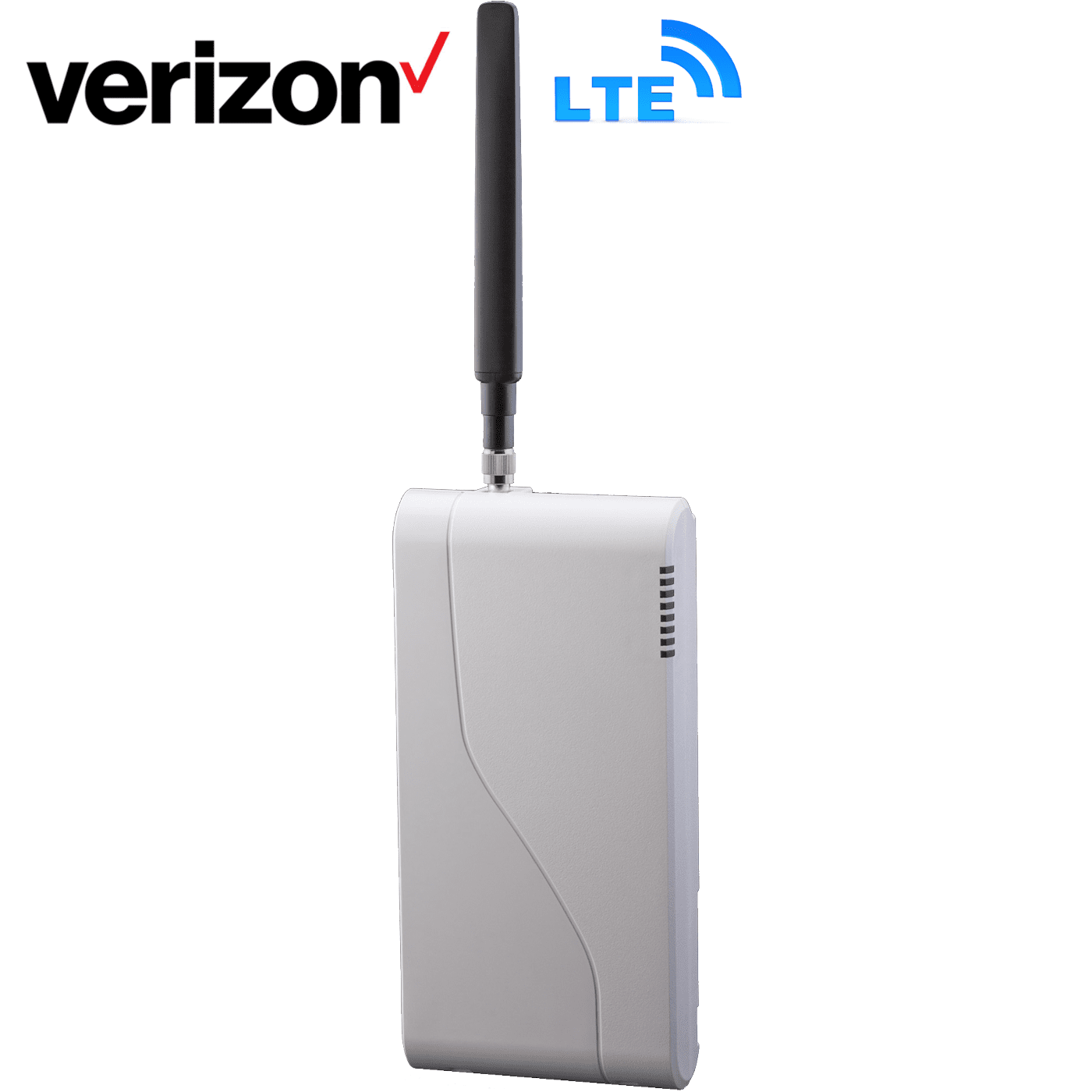

The Telguard TG4LV is a universal primary or backup cellular Verizon LTE alarm communicator intended for residential and commercial security. Telguard model TG-4 LTE-V transmits alarm signals over the nationwide Verizon LTE network if the telephone line or data network has been disrupted, compromised or when there is no wire line service available.

The TG-4 LTE-V, the ideal solution for light commercial, business and residential applications, transmits full data from security and fire systems to the GeoArm central monitoring station.

The TG-4 LTE-V communicator allows full data reporting for unlimited point-to-point signal details and maximum transmitting power for superior in-building penetration. The TG4LV is easy to install, economical, and UL Listed.

With HomeControl Flex, end users utilize a mobile app for Android, and iPhone smartphones to remotely arm their system with prebuilt automation rules. The free app comes ready to activate with the TG-4 LTE-V when installed in primary mode, for all new installations and retrofits.

Additionally, end users have the option to include video capabilities with Arlo Wire-free HD Cameras, enabling remote viewing of event triggered clips, images and live video from anywhere, on a smartphone, computer or tablet.

Product Features:

  • Certified for use on the Verizon LTE network for long, sunset-free installation.
  • Serves as either primary or backup alarm communicator.
  • Features HomeControl Flex™ for remote arming and disarming when installed in primary mode.
  • Falls back to 3G/4G if an LTE network is not available, for extended network coverage.
  • Panel downloading with the Telguard Virtual Modem.
  • 128 bit AES alarm signals ensure authentication and security.
  • Automatic self-test (daily, weekly or monthly).
  • Two programmable supervisory trip outputs.
  • Available trip input for reporting trouble conditions independent of the alarm panel.
  • Supports virtually all alarm formats (Contact ID, SIA2, and others) using dial capture for universal panel compatibility.

Telguard TG4LV Product Specifications:

  • Transmit Power Consumption: 200 mW in all bands
  • Transformer Supplied: 12VAC, 800mA UL listed plug-in
  • 12VDC/Battery Consumption: <32mA (Standby), 250mA (Transmission)
  • Radio Transceiver LTE Bands: 4 & 13
  • Radio Transceiver Antenna: 9" dipole with a max gain of 2dBi, 12 ft of cable and universal mounting bracket
  • Certifications: FCC part 15, 22, 24, 27 & 68 compliant
  • Dimensions: 9.5" H x 4.5" W x 1.75" D
  • Shipping Weight: 5 lbs (with transformer)
  • Operating Environment: 0°C to +49°C; Up to 85% humidity (non-condensing)
