TG-4 LTE-A - Telguard TG4LA Cellular Primary/Backup LTE Alarm Communicator (for AT&T)

TG-4 LTE-A - Telguard TG4LA Cellular Primary/Backup LTE Alarm Communicator (for AT&T)
TG-4 LTE-A - Telguard TG4LA Cellular Primary/Backup LTE Alarm Communicator (for AT&T)
Item# TG4LA
List Price: $436.86
Your Price: $291.24
Availability: In Stock
QTY:

Telguard TG4LA Product Description:

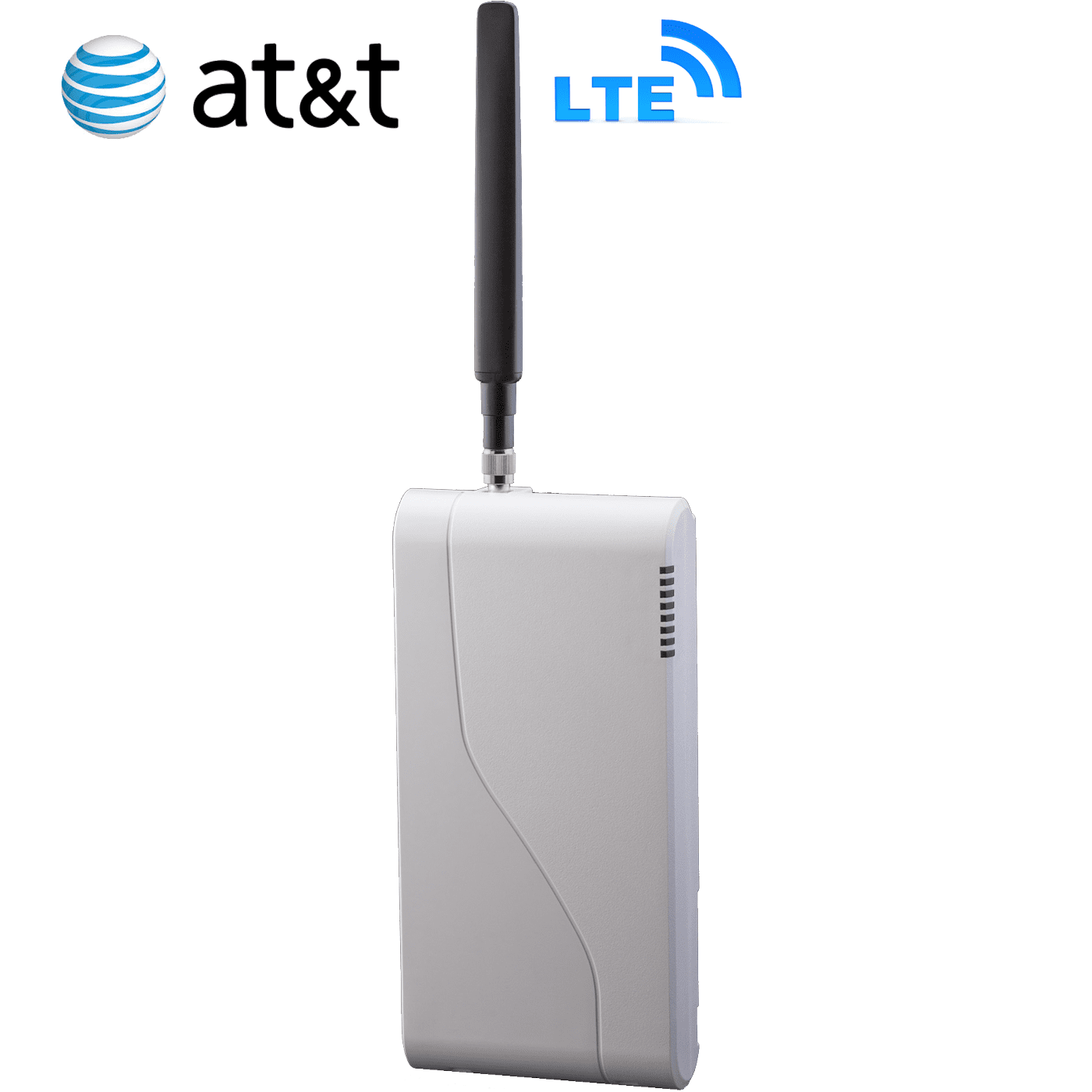

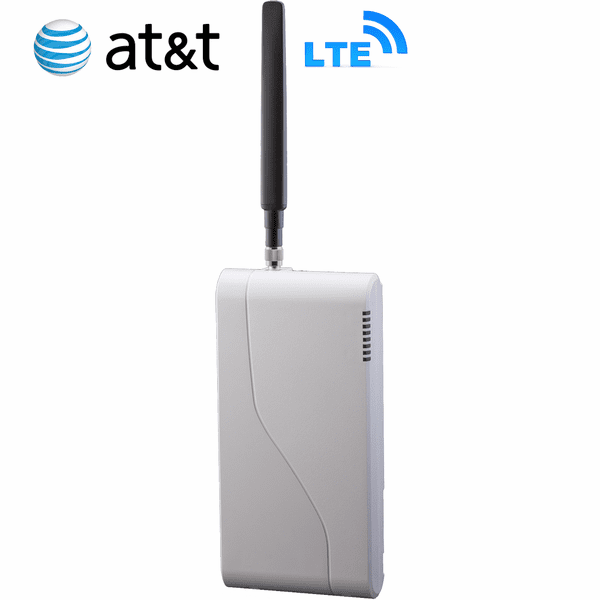

The Telguard TG4LA is a universal primary or backup cellular AT&T LTE alarm communicator intended for residential and commercial security. Telguard model TG-4 LTE-A transmits alarm signals over the nationwide AT&T LTE network if the telephone line or data network has been disrupted, compromised or when there is no wire line service available.

The TG-4 LTE-A, the ideal solution for light commercial, business and residential applications, transmits full data from security and fire systems to the GeoArm central monitoring station.

The TG-4 LTE-A communicator allows full data reporting for unlimited point-to-point signal details and maximum transmitting power for superior in-building penetration. The TG4LA is easy to install, economical, and UL Listed.

With HomeControl Flex, end users utilize a mobile app for Android, and iPhone smartphones to remotely arm their system with prebuilt automation rules. The free app comes ready to activate with the TG-4 LTE-A when installed in primary mode, for all new installations and retrofits.

Additionally, end users have the option to include video capabilities with Arlo Wire-free HD Cameras, enabling remote viewing of event triggered clips, images and live video from anywhere, on a smartphone, computer or tablet.

Product Features:

  • Certified for use on the AT&T LTE network for long, sunset-free installation.
  • Serves as either primary or backup alarm communicator.
  • Features HomeControl Flex™ for remote arming and disarming when installed in primary mode.
  • Falls back to 3G/4G if an LTE network is not available, for extended network coverage.
  • Panel downloading with the Telguard Virtual Modem.
  • 128 bit AES alarm signals ensure authentication and security.
  • Automatic self-test (daily, weekly or monthly).
  • Two programmable supervisory trip outputs.
  • Available trip input for reporting trouble conditions independent of the alarm panel.
  • Supports virtually all alarm formats (Contact ID, SIA2, and others) using dial capture for universal panel compatibility.

Telguard TG4LA Product Specifications:


  • Transmit Power Consumption: 200 mW in all bands
  • Transformer Supplied: 12VAC, 800mA UL listed plug-in
  • 12VDC/Battery Consumption: <32mA (Standby), 250mA (Transmission)
  • Radio Transceiver LTE Bands: 4 & 17
  • Radio Transceiver 3G Bands: 2 & 5
  • Radio Transceiver Antenna: 8" dipole with a max gain of 3dBi
  • Certifications: FCC part 15, 22, 24, 27 & 68 compliant
  • Dimensions: 9.5" H x 4.5" W x 1.75" D
  • Shipping Weight: 5 lbs (with transformer)
  • Operating Environment: 0°C to +49°C; Up to 85% humidity (non-condensing)
