QS1134-840 - Qolsys IQ Wireless S-Line Recessed Door/Window Alarm Contact

QS1134-840 - Qolsys IQ Wireless S-Line Recessed Door/Window Alarm Contact
QS1134-840 - Qolsys IQ Wireless S-Line Recessed Door/Window Alarm Contact
Item# QS1134-840
List Price: $63.73
Your Price: $42.49
Availability: In Stock
QTY:

Qolsys QS1134-840 Mini Contact Description:


The Qolsys QS1136-840 IQ Recessed-S is our most powerful S-line sensor ever, leveraging the proprietary S-Line Technology to encrypt signal is sent to a S-Line compatible Qolsys IQ control panel. The IQ Recessed-S is installed in the core of your door, making it aesthically pleasing in any room entrance. Create rules such as "when door opens, turn on the light" or "if door left open, adjust my thermostat to save energy until it is closed again." With the longest and most powerful range of our S-Line, you want to make sure the IQ Recessed-S makes it into every door you own.

Product Features:

  • Encrypted S-Line sensor technology protects signals sent to the compatible panel (while still providing support for legacy 319.5 systems)

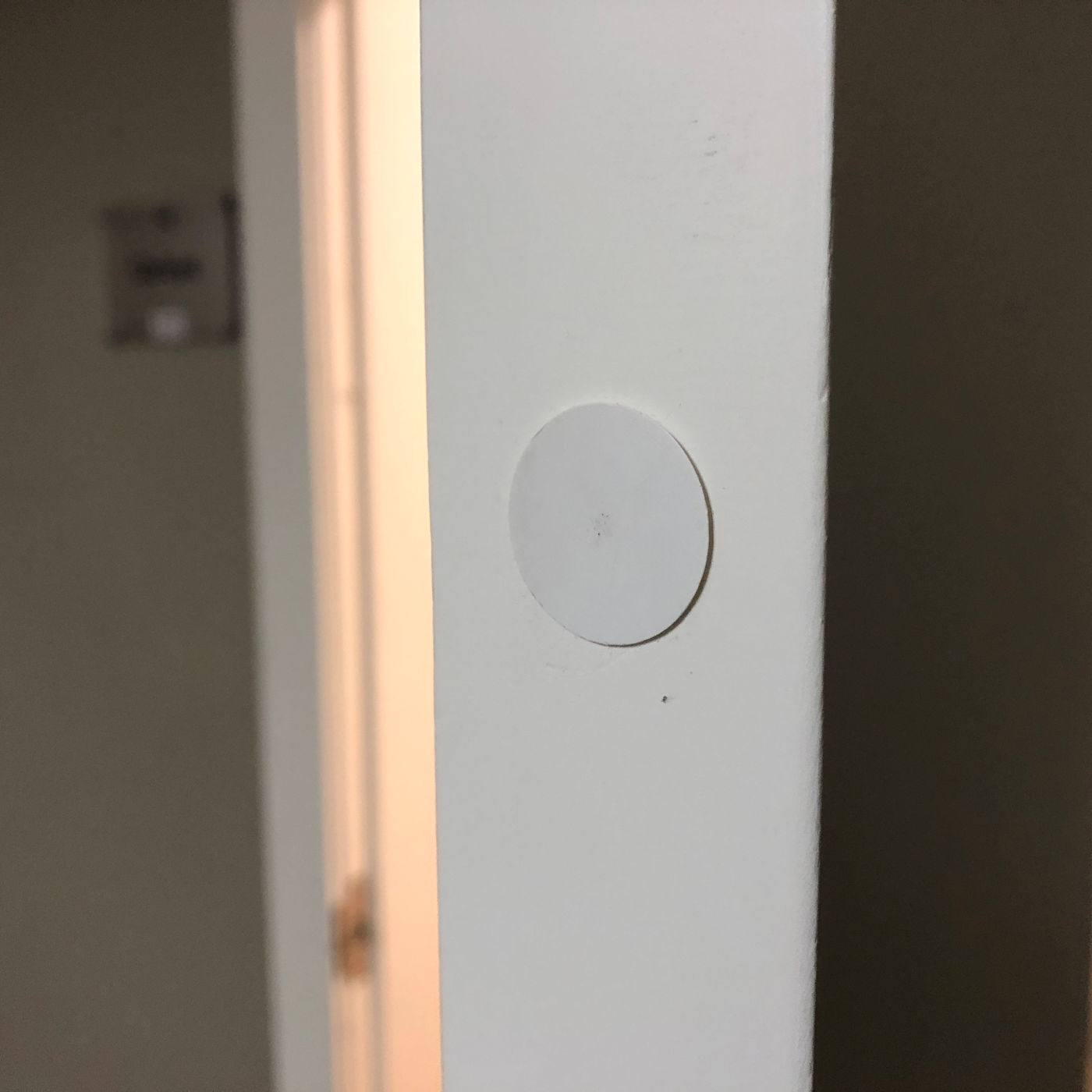

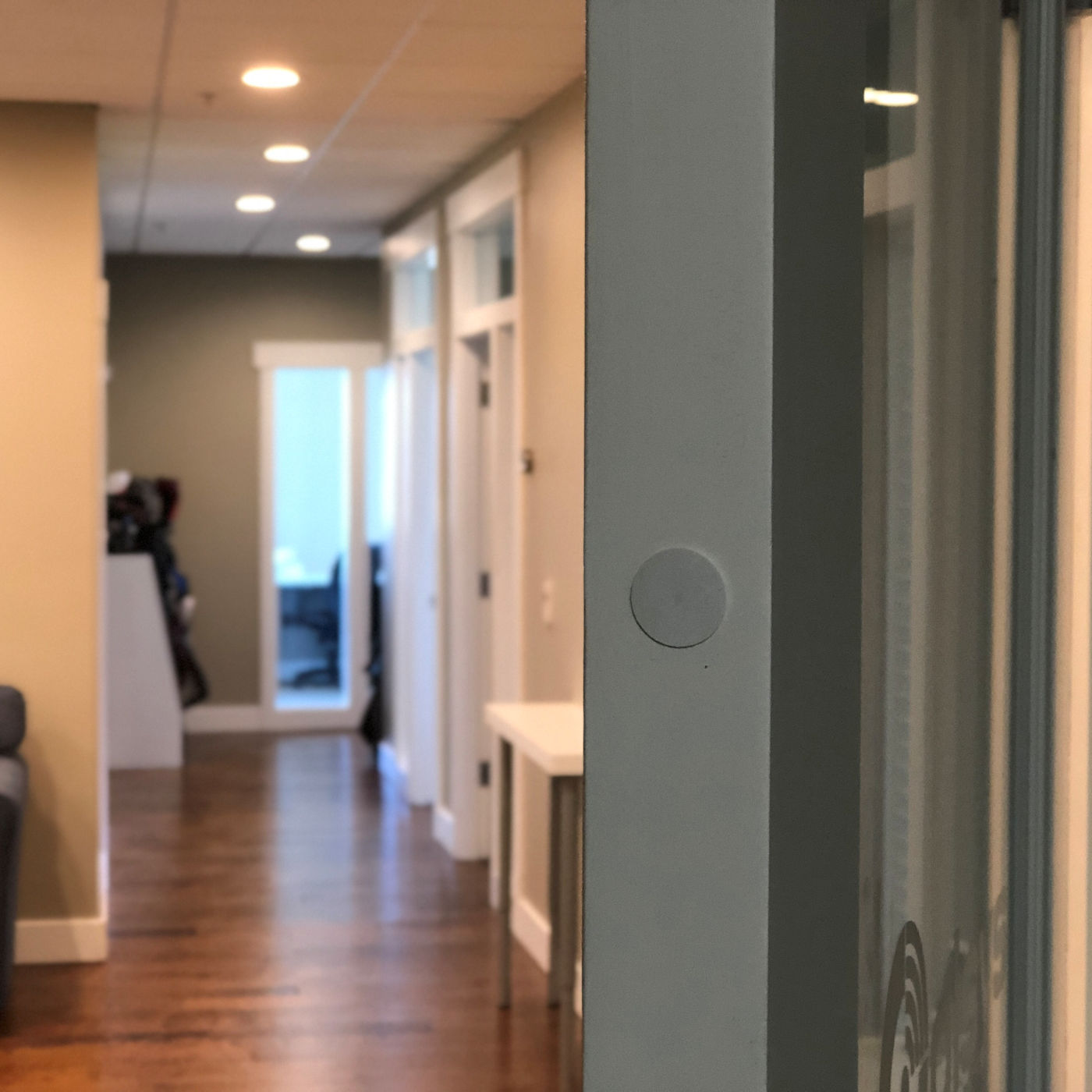

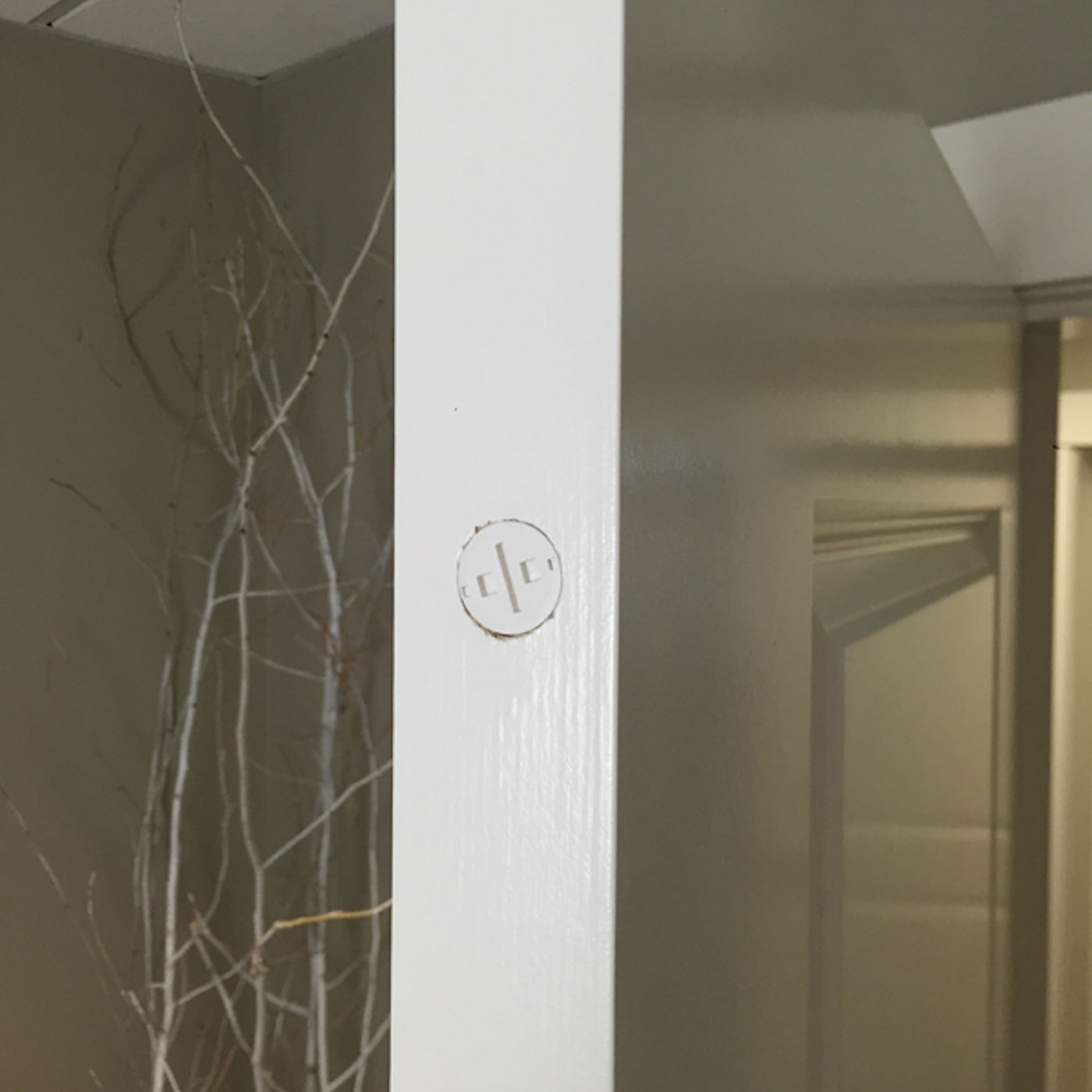

  • Placed in the core of your door for an almost invisible installation
  • Powerful earth magnet for a strong connection

Qolsys QS1134-840 Product Specifications:


  • Sensor: 2.25"D x 0.75"H
  • Wireless signal range: 600ft (200M), open air.
  • Code outputs: tamper, tamper restore, alarm, alarm restore, low battery.
  • Transmitter frequency: SECURE 319.5 MHz (S-Line)
  • Unique code ID
  • Supervisory keep-alive interval: 70 minutes
  • RF Peak field strength: typical 36000 uV/m at 3m
  • Operating Temperature: -10°C - 50°C
  • Relative Humidity: 5-95%
  • Non-Condensing Storage Temperature: -40°C - 80°C
  • Average Battery Life: 5 years with 3V Lithium (x2)
  • Battery Replacement: 3V CR2 (x1)

Qolsys QS1134-840 Product Compatibility:


  • Qolsys IQ Panel 2 (Model Numbers: QS9201-1200-840, QS9202-1200-840)
  • Qolsys IQ Panel 2+ (Model Numbers: QS9201-1208-840, QS9202-1208-840)
  • Qolsys IQ Panel 4 (Model Numbers: IQP4001, IQP4004, IQP4007)
  • Qolsys IQ Hub (Model Numbers: QS9301-1200-840, QS9302-1200-840, QS9307-1200-124)
  • Qolsys IQ4 Hub (Model Number: IQPH051)
