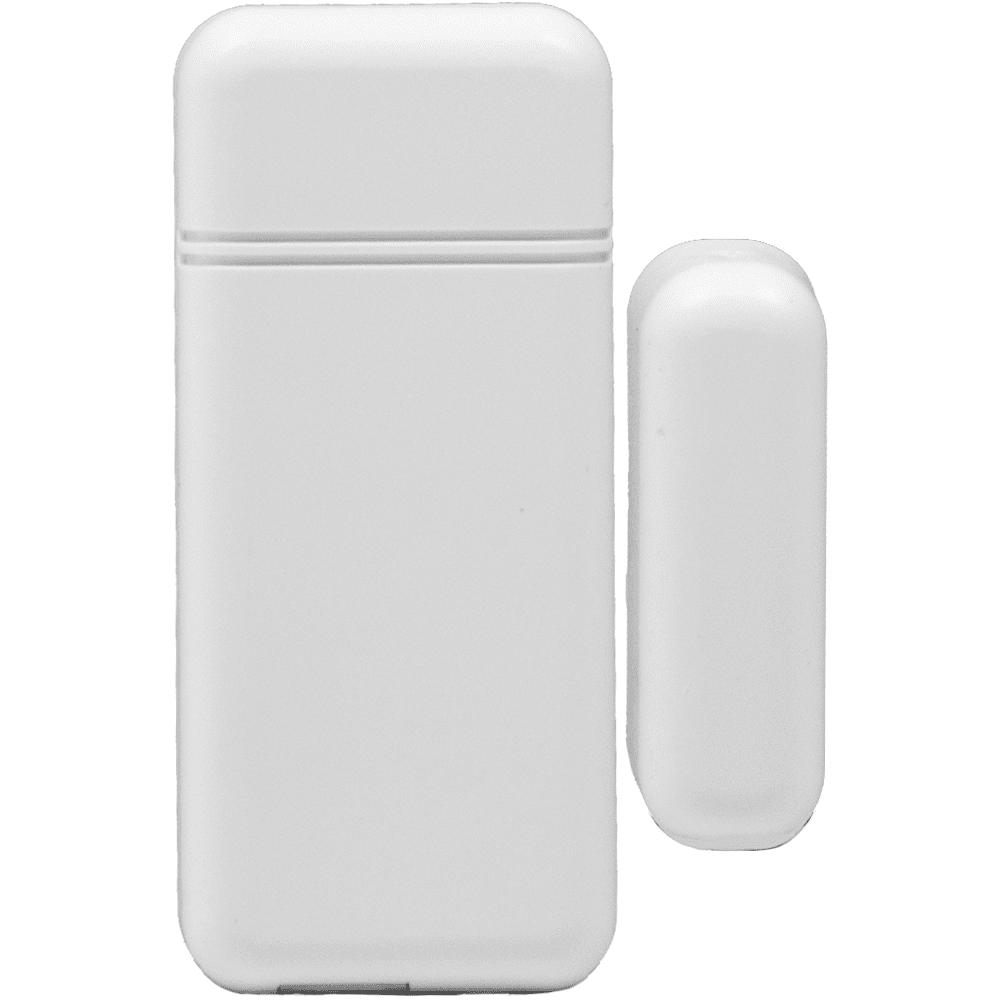

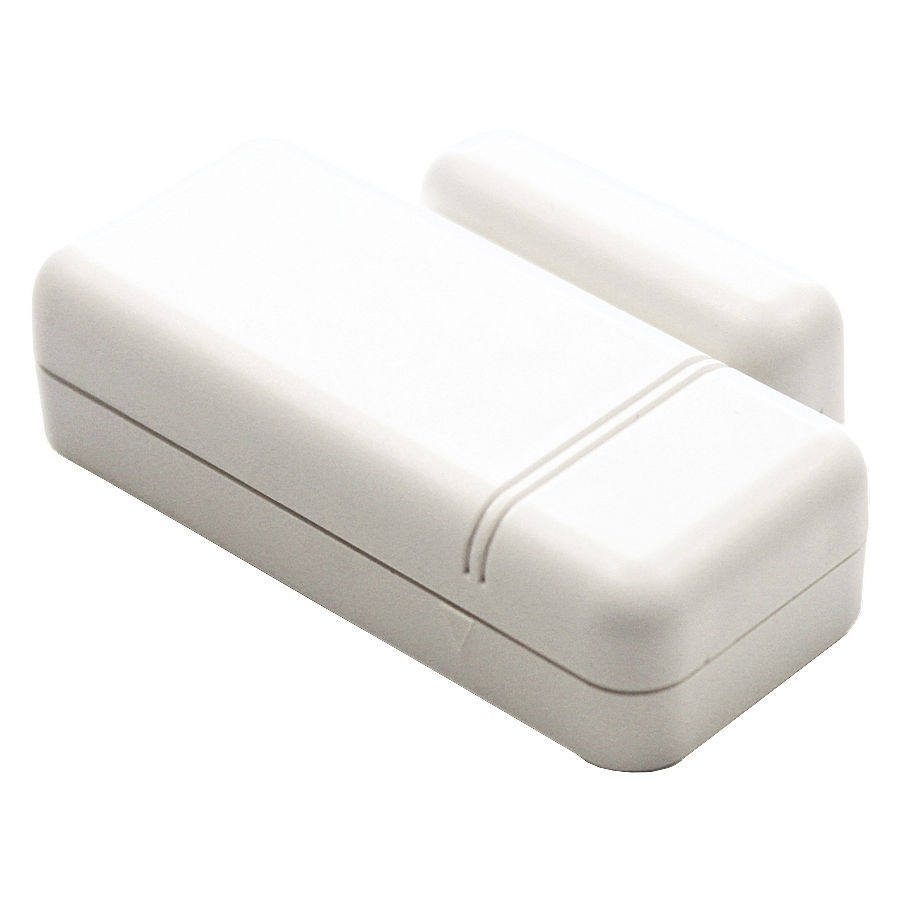

Qolsys QS1137-840 Product Description:

The Qolsys QS1137-840 IQ Mini-S is an extended, S-Line encrypted, mini door/window sensor that can be placed on anything that opens or closes. The QS1137-840 IQ Mini DW-EXT-S door/window sensor is designed to securely connect to a S-Line compatible Qolsys IQ control panel, while still providing backwards compatibility for legacy 319.5 systems. The IQ Mini DW-EXT-S is shipped with double batteries up to 8-10 year battery life, a rare earth magnet for more flexibility when installing on tricky moulding or other openings. With the QS1137-840 you now can create automation rules like "turn on light when door is opened" or "adjust thermostat if window left open".

Product Features:

Encrypted S-Line sensor technology protects signals sent to the compatible panel (while still providing support for legacy 319.5 systems)

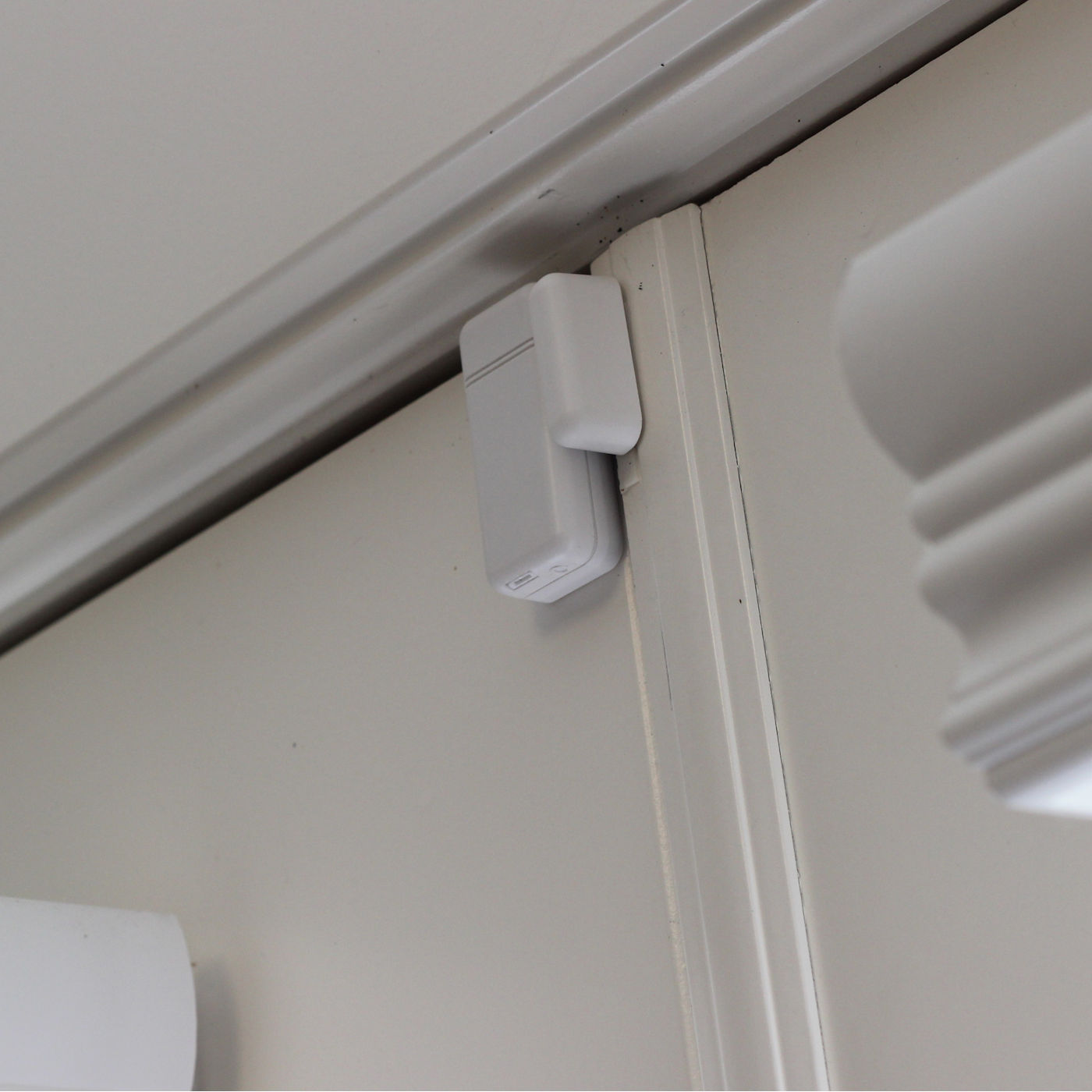

Can be easily mounted on doors or windows with included adhesive
Aesthetically pleasing white-color
Alerts IQ Panel if moved more than 1"
Can be programmed as "Safety Sensor" for medicine cabinets, chemical storage, safes or storage closets
Using Alarm.com you can get a text if your door or window is left open
Create automation rules like "turn on light when door is opened" or "adjust thermostat if window left open"
Requires two (2) 3V CR2032 Batteries
The built-in tamper switch triggers an alert if the cover is removed
Create custom names for each sensor, determine unique chime type, choose voice prompts on or off

Qolsys QS1137-840 Product Specifications:

Sensor: 2.25"H x 1"W x .5"D
Wireless signal range: 600ft (200M), open air.
Code outputs: tamper, tamper restore, alarm, alarm restore, low battery.
Transmitter frequency: SECURE 319.5 MHz (S-Line)
Unique code ID
Supervisory keep-alive interval: 70 minutes
RF Peak field strength: typical 36000 uV/m at 3m
Operating Temperature: -10°C - 50°C
Relative Humidity: 5-95%
Non-Condensing Storage Temperature: -40°C - 80°C
Average Battery Life: 5 years with 3V Lithium (x2)
Battery Replacement: Panasonic CR2032, Energizer CR2032, Duracell DL2032

Qolsys QS1137-840 Product Documents:

• Quick Guide for Qolsys QS1137-840 Extended Mini S-Line Door/Window Contact

Qolsys QS1137-840 Product Compatibility:

Qolsys IQ Panel 2 (Model Numbers: QS9201-1200-840, QS9202-1200-840)
Qolsys IQ Panel 2+ (Model Numbers: QS9201-1208-840, QS9202-1208-840)
Qolsys IQ Panel 4 (Model Numbers: IQP4001, IQP4004, IQP4007)
Qolsys IQ Hub (Model Numbers: QS9301-1200-840, QS9302-1200-840, QS9307-1200-124)
Qolsys IQ4 Hub (Model Number: IQPH051)
