600-1048-XT-LTE-AT - GE Interlogix Simon XT/XTi/XTi-5/XTi-5i Cellular AT&T LTE Alarm Communicator (Powered by Alarm.com)

Please Note: The Alarm.com 600-1048-XT-LTE-AT cellular AT&T LTE alarm communicator (for the Simon XT/XTi/XTi-5/XTi-5i panels) has been discontinued and replaced by the XT-512-US-AT model number.

Description
Specifications
PDF Documents
Tools Needed

Interlogix 600-1048-XT-LTE-AT Product Description:

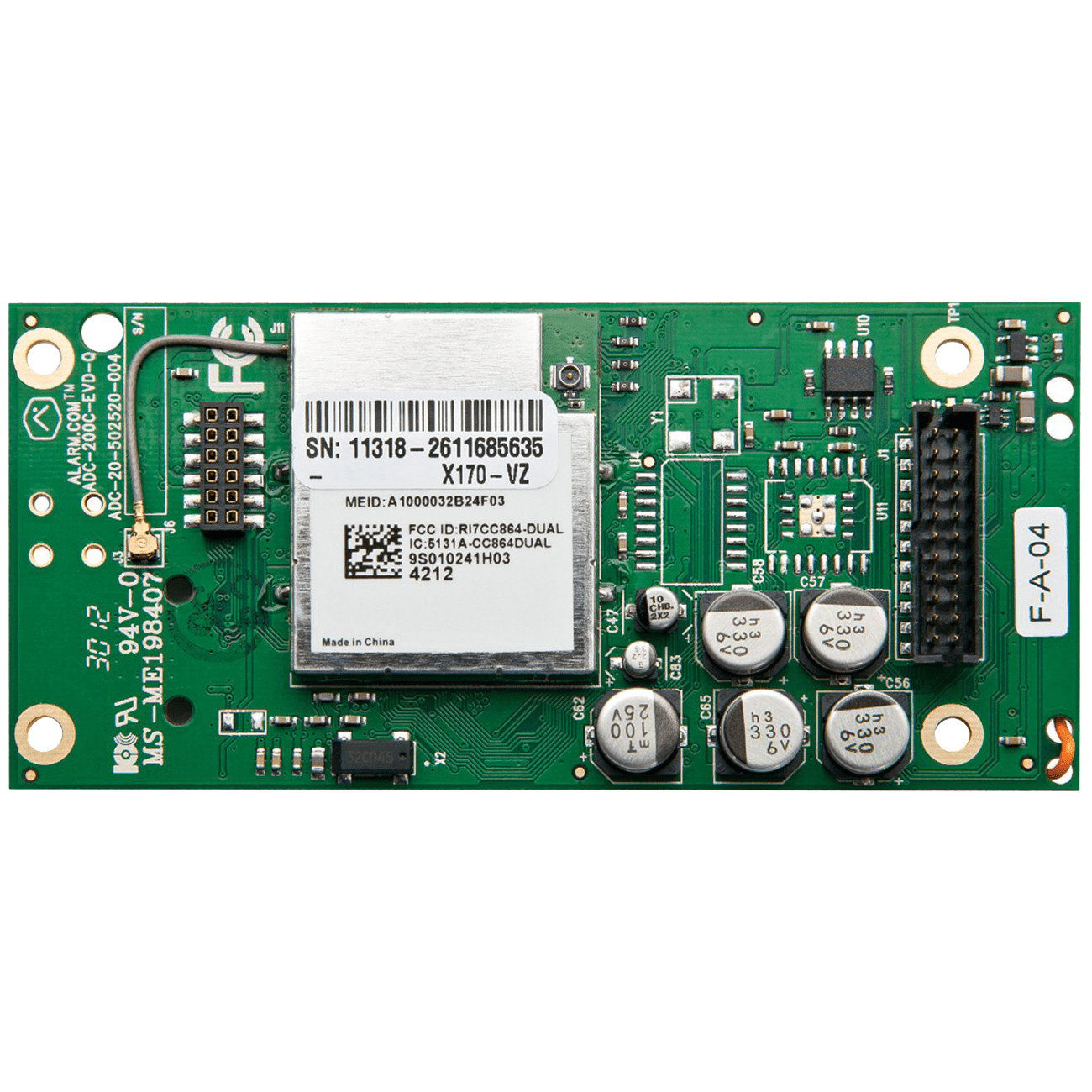

The Alarm.com 600-1048-XT-LTE-AT is a cellular AT&T LTE alarm communicator designed for use with the Simon XT, Simon XTi, Simon XTi-5 and Simon XTi-5i control panels. The 600-1048-XT-LTE-AT enables wireless reporting of all alarms and other system events from the Interlogix Simon XT/XTi/XTi-5/XTi-5i control panel(s) using the AT&T LTE wireless (cellular) network to the GeoArm central monitoring station.

The module can be used as the primary communication path for all alarm signaling, or as a backup to a telephone line connection to the GeoArm central monitoring station. The wireless alarm signaling and routing service is operated by Alarm.com. The 600-1048-XT-LTE-AT LTE communicator also features integrated support for Alarm.com's emPower™ solution with built-in Z-Wave capabilities and for Alarm.com's Image Sensor through the built-in Image Sensor radio. Two-Way Voice is conducted over the AT&T LTE network, however, this feature is not supported by GeoArm. The 600-1048-XT-LTE-AT module interfaces with the Simon XT (version 1.3 and up), Simon XTi, Simon XTi-5, Simon XTi-5i panel boards, fits into a special compartment inside the panel, and is powered by the control panel and panel battery.

Product Features:

Easy to Install
Secure Wireless Signaling via AT&T LTE Cellular Towers
Remotely programmable via Alarm.com's Remote Toolkit
Enables Alarm.com interactive monitoring and alerting for end users
Integrated support for Alarm.com emPower home automation and energy management platform
Compatible with Alarm.com Image Sensor (additional hardware required)
Compatible with Simon XT, XTi and XTi-5 panels

Interlogix 600-1048-XT-LTE-AT Product Specifications:

Dimensions (H x W): 4.06" x 1.87"
Compatibility: Simon XT panels with software versions 1.3 and later, Simon XTi, Simon XTi-5, Simon XTi-5i
Power Requirements: 6V nominal
Standby Current: 30mA (10mA in PowerSave Mode)
Peak Current: 1.7A
Operating Temperature Range: 32°F to 120°F (0°C to 49°C)
Storage Temperature Range: -30°F to 140°F (-34°C to 60°C)
Max. Relative Humidity: 90% (non-condensing)
Cellular Network: LTE - AT&T, 3G HSPA - AT&T
Listings: FCC ID: YL6-143470L, IC: 9111A-143470L
