60-924-RF-TS5-2 - GE Interlogix Simon XTi-5 Wireless Talking Touchscreen Alarm Keypad (Version 2)

60-924-RF-TS5-2 - GE Interlogix Simon XTi-5 Wireless Talking Touchscreen Alarm Keypad (Version 2)
60-924-RF-TS5-2 - GE Interlogix Simon XTi-5 Wireless Talking Touchscreen Alarm Keypad (Version 2)
Item# 60-924-RF-TS5-2

Please Note: The Interlogix 60-924-RF-TS5-2 Simon XT/XTi-5 Version 2 wireless talking touchscreen keypad has been discontinued without replacement.

GE Interlogix 60-924-RF-TS5-2 Product Description:

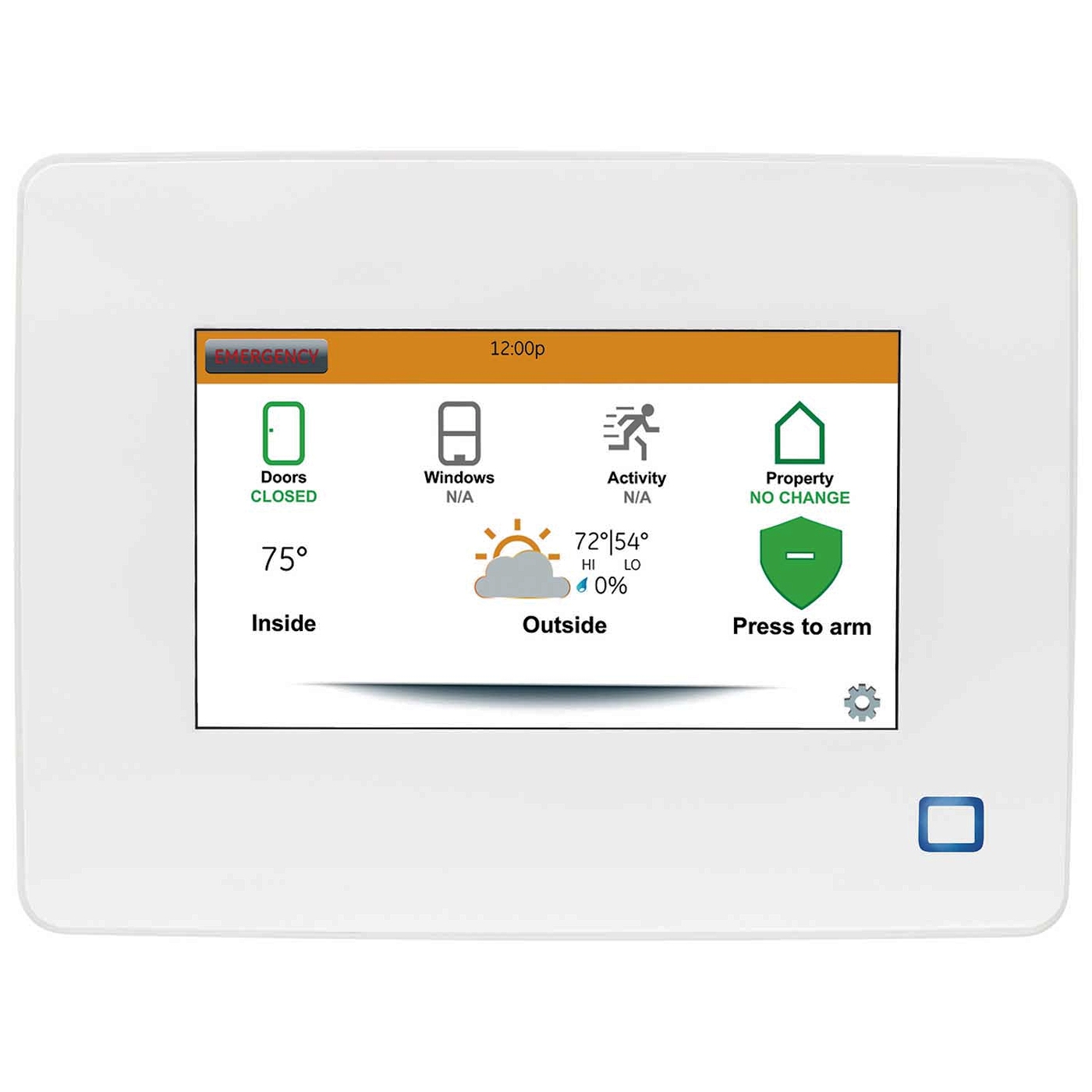

The GE Interlogix 60-924-RF-TS5-2 Simon 5" TouchScreen is a color LCD screen featuring a user-friendly interface that complements Simon security systems for safety and peace of mind. The easy to use touch screen provides system owners with at-a-glance home status information, allowing easy and convenient control of Simon systems. This 60-924-RF-TS5-2 touch screen is the ideal solution for providing additional points of control throughout the home. Up to four touch screens can be installed in one home for maximum convenience.

Simon 5" TouchScreens quickly and seamlessly connect to the Simon panel using the GE Interlogix wireless 319.5MHz protocol. Each touch screen comes with both a wall plate and table top stand to accommodate wall mounting or table top installations. They also have a built-in rechargeable battery that provides backup power in case of power outages. An integrated speaker provides voice, chime and siren notifications, alerting system owners of trouble and alarm conditions.

In addition to controlling the alarm features of the Simon system, when installed with a Simon XTi-5i panel that is equiped with Alarm.com®, Simon 5" TouchScreens offer a selectable user interface which matches the mobile interactive service application in color, style, and icons. It also allows for control over functions including Z-Wave wireless lighting control devices, thermostats for home HVAC systems, door locks, and garage doors. Alarm.com also enables additional lifestyle-enhancing information such as the current outdoor temperature and a four-day weather forecast right on the screen.

Product Features:

  • 5-inch color LCD screen with user interface (UI) delivers at-a-glance status of home and property
  • Uses the panel's wireless 319.5MHz RF to interconnect to the panel
  • Selectable user interface (requires Simon XTi-5 Version 2 panel)
  • Compatible with Simon panels for added control of security system features
  • Supports 40 Zone (Simon XT, Simon XTi, Simon XTi-5 version 1) and 80 Zone (Simon XTi-5 Version 2)
  • Actionable status icons (Identify door/window open, Last motion detected, "My property" icon status covers all non-window, non-door, non-interior motion changes)
  • Alarm.com compatible for advanced interactive services (Optional HVAC, lighting, and lock control devices with programmable options help promote energy savings, Four-day weather forecast adds value and lifestyle convenience, Z-Wave door lock support and indicator status, Z-Wave garage door support (requires Simon XTi-5i panel)
  • Access code feature setting for "Secure" vs. "Less Secure" touch screen location
  • Built-in rechargeable NiMH battery
  • Up to four touch screens may be added to a Simon system
  • Regulatory listed

GE Interlogix 60-924-RF-TS5-2 Product Specifications:


  • Compatibility: Simon XT (v1.3 and later), Simon XTi, Simon XTi-5, Simon XTi-5i
  • Optimized For: Simon XTi-5i Panel (supports 80 zones, selectable GUI,remote firmware upgrade)
  • Power consumption: Input: 100-120VAC, 250mA; Output: 6VDC, 1000mA
  • Backup Batteries: 3.6VDC, 600mAh, NiMH
  • Dimensions (W x H x D): 6.7 x 5.0 x 0.8 in. (170 x 127 x 20mm)
  • Operating temperature: 32°-104°F (0°-40°C)
  • Maximum humidity: 85% (non-condensing)
