Honeywell Home VISTA 15P Tri-Path Ethernet/WiFi/Cellular AT&T LTE Hybrid Security System (Powered by Alula)

* Parts listed above with an asterisk symbol require a subscription to Alula powered by GeoArm.

▼ Compatible Hardwired Security Sensors ▼

Description
PDF Documents
Specifications
Kit Includes

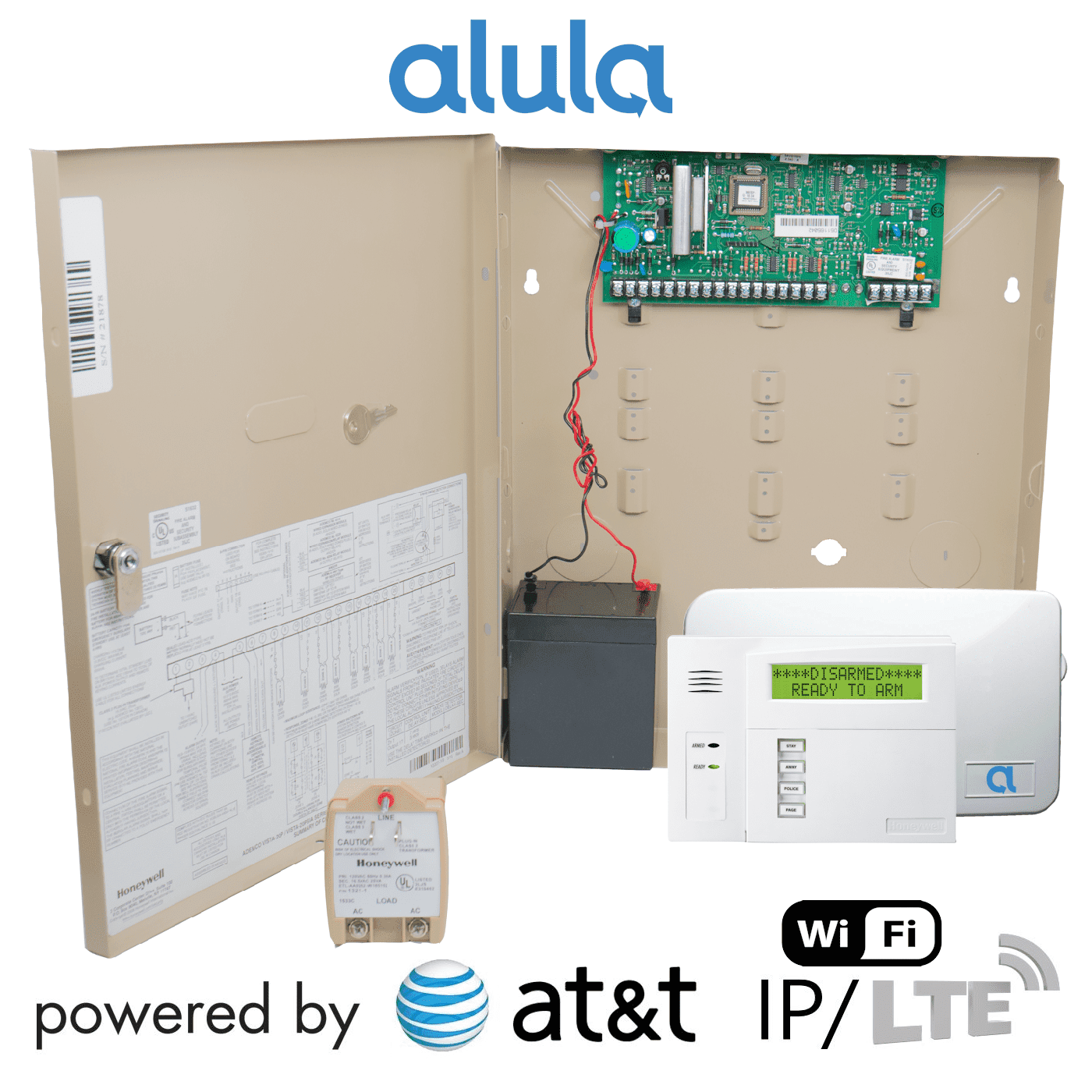

Honeywell VISTA 15P Kit Description:

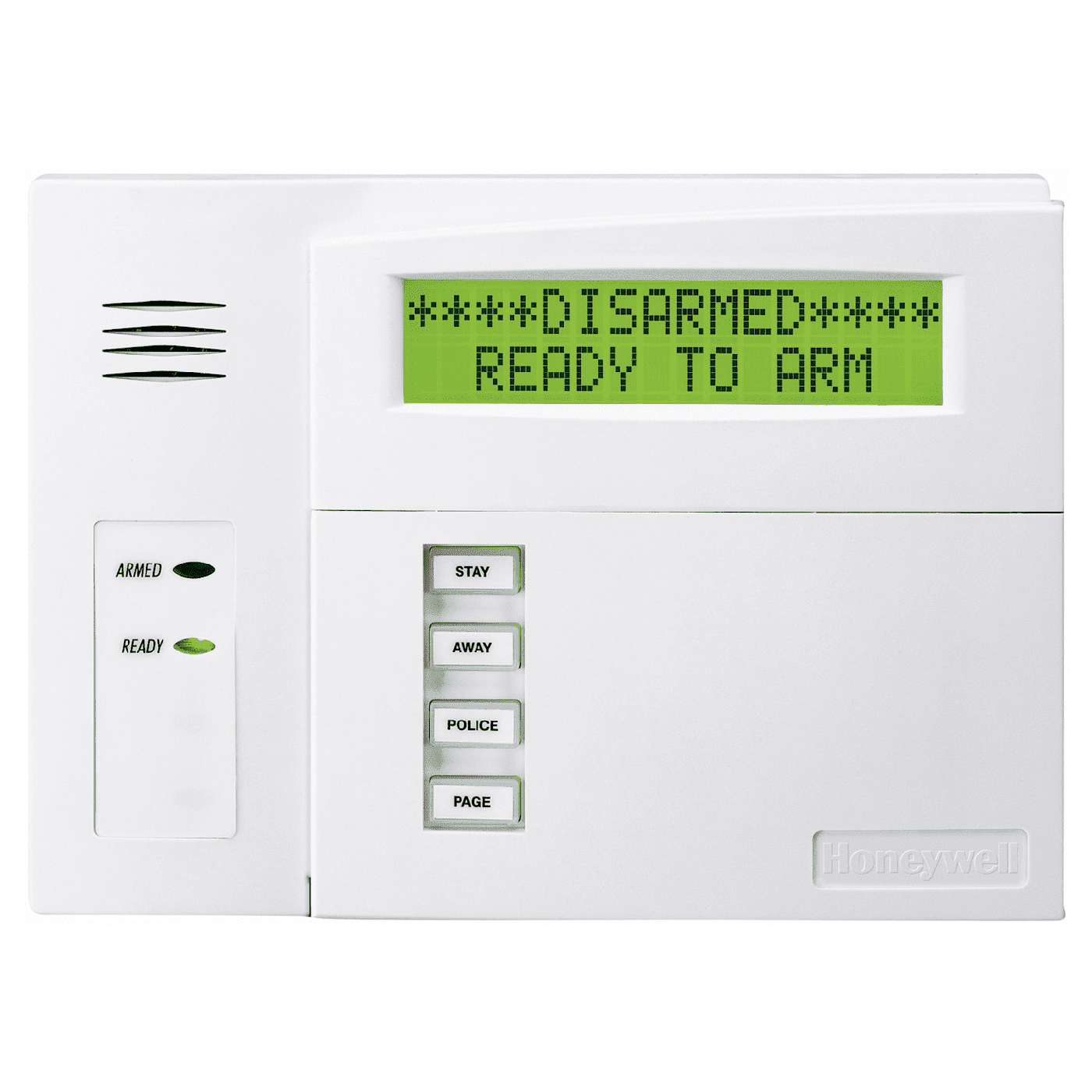

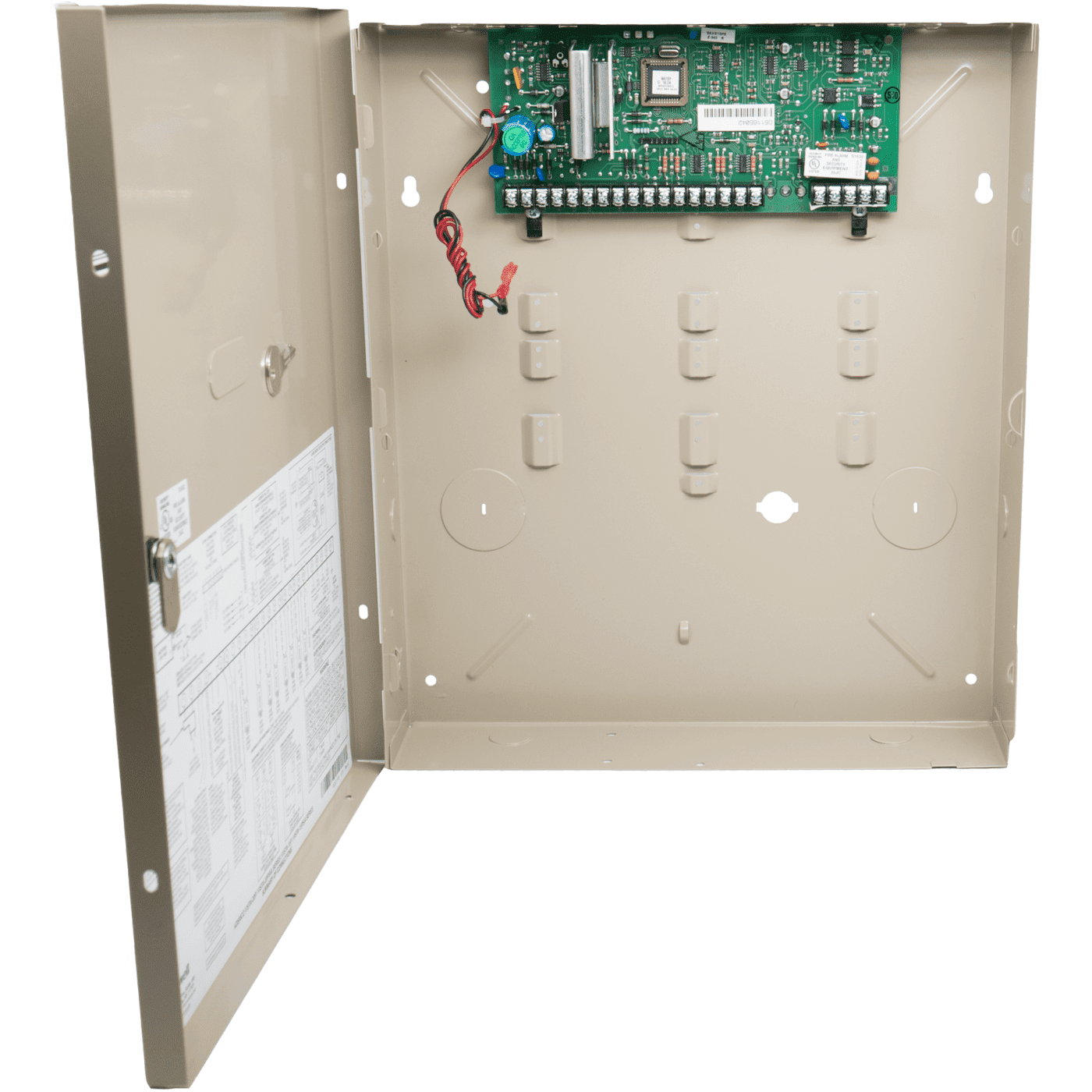

The Honeywell VISTA 15P hybrid tri-path security system kit with an included 6160RF hardwired keypad and wireless receiver, and Alula (internet, wifi and cellular AT&T LTE) alarm communicator which is perfect for small business and home security. The VISTA 20P is a high-capacity, feature-rich, 32-zones hybrid control panel that delivers more value and triple path redundant communications for the end user.

The VISTA 15P comes with 6 on-board hardwired zones, up to 16 hardwired zones with expansion (6 on-board + 16 expansion = 22 total hardwired zones) and up to 26 wireless expansion zones (using the 6160RF keypad's wireless receiver). Also, the VISTA 15P supports up to 8 wireless keyfobs, up to 32 user codes and up to 8 schedules. With the VISTA 15P you can have remote programming capability and graphic keypad support. The VISTA 15P's installation advantages, innovative end-user benefits and robust system capacity make the value-priced security system an ideal choice for most home and business owners.

The VISTA 15P tri-path hybrid security system is backed by Honeywell's 2-year limited manufacturer's warranty and once upgraded with a Honeywell wireless alarm receiver is compatible with the full line of Honeywell 5800-Series wireless security products. GeoArm, Honeywell and Alula provide the options you need to fully customize your hybrid security system.

VISTA 15P Security System Applications:

Homes
Townhomes
Apartments/Condos
Offices
Retail Spaces
Small Businesses
Warehouses
Convenience Stores
Gas Stations
Churches

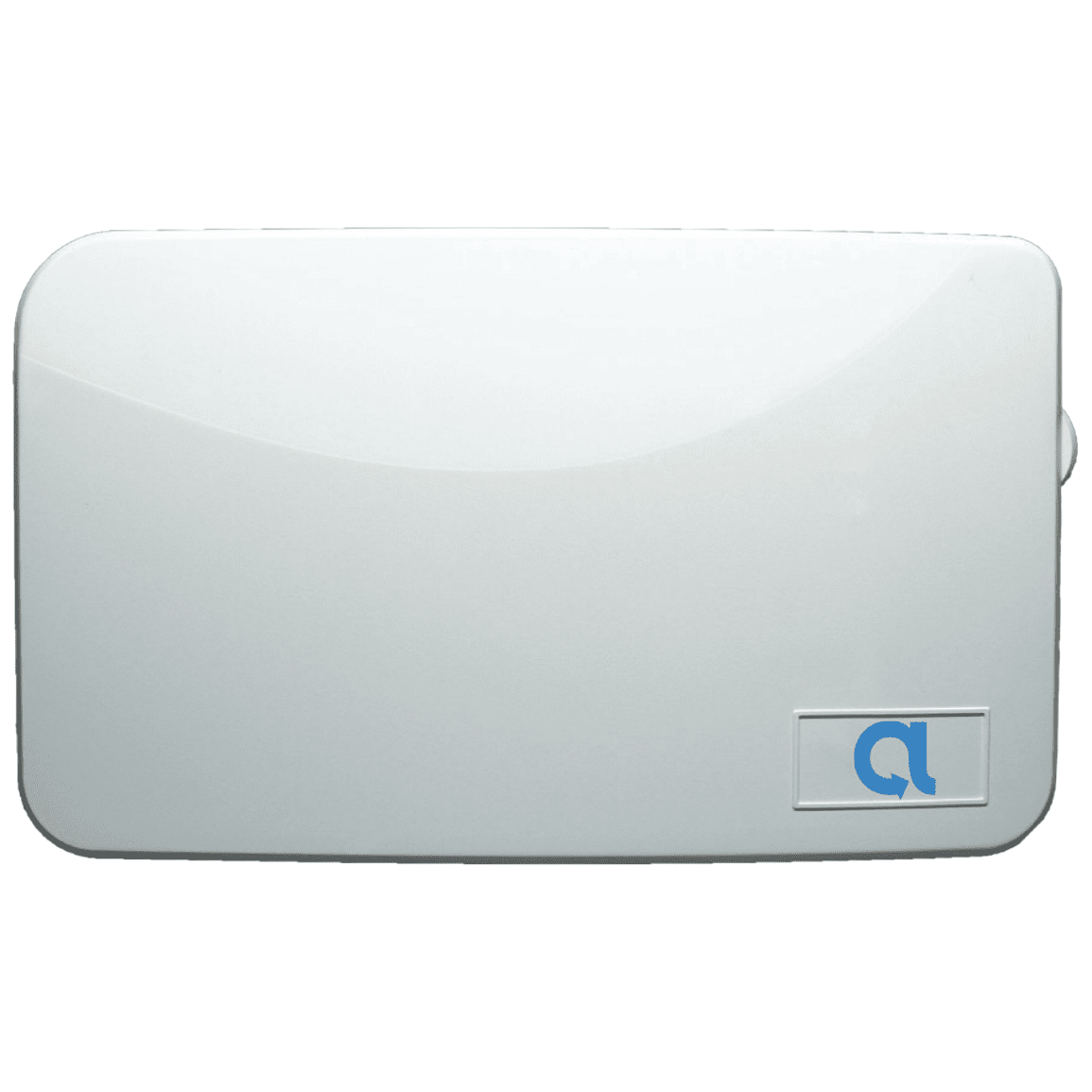

When designing your system, keep in mind that the Honeywell VISTA 15P security system supports up to thirty-two (32) total zones with expansion modules but only supports twenty-two (22) hardwired zones with expansion. You should add the Honeywell 4219 hardwired 8-zone expansion modules if you want to add more than six (6) hardwired zones to your VISTA 15P security system. This VISTA 15P security system kit comes equipped to send its alarm signals multiple internet or cellular networks. The Honeywell-Compatible Alula BAT-CONNECT-A tri-path alarm communicator sends your alarm signals over the primary internet/wifi communication paths, and if down, over the backup cellular AT&T LTE communication path to the GeoArm central monitoring station.

With an Alula universal alarm communicator in place, you would no longer need traditional phone service at the property to monitor your security system. The alternative communicator would also allow you to upgrade to GeoArm's Alula interactive alarm monitoring services. Once the Alula communicator is activated for monitoring you can receive important alerts, keep a close eye on your home and control your security system remotely via the internet and/or mobile devices you use each and every day. Isn't it time you got connected? Save money and take control of your business or home security with GeoArm.

Honeywell VISTA 15P Kit Documents:

• User Guide for Honeywell VISTA 15P Control Panel
• Quick Installation Guide for Honeywell VISTA 15P Control Panel
• Installation/Setup Guide for Honeywell VISTA 15P Control Panel
• Programming Guide for Honeywell VISTA 15P Control Panel

Honeywell VISTA 15P Kit Specifications:

•VISTA 15P has the installation flexibility & expandability to be used in simple configurations, complex installs and everything in between.
  -Six hardwired zones
  -Expands to 32 total zones (up to 26 wireless and/or 22 hardwired zones)
  -16 user codes
  -48 event log with date/time stamp
  -Two-wire or four-wire smoke detectors
  -Fast and easy E2 programming mode

•Security & False Alarm Reducing Enhancements

•VISTA 15P has incorporated SIA false alarm reducing requirements with the latest technology.
  -Exit delay reset
  -Alarm cancel verification
  -Unvacated "Auto-Stay"
  -Cross zoning/alarm verification
  -Short vs. open detection & reporting
  -Arming level increase
  -Telephone-line monitor

•Valuable End User System Features

•VISTA 15P offers your customers a choice of system features that add value to any install.
  -Easy-to-use single button operation
  -Arm Away, Arm Stay, Arm Night, Page
  -Quick exit, Quick Arm
  -X-10 control & 4 relays supported for home management
  -Enhanced paging capabilities
  -24-hour monitoring zone
  -Compatible keypad family

•Wide Selection of Easy to Use End User Interface Devices

•With superior wireless remote control, phone operation and choice of keypads, VISTA 15P can be easily operated to fit your customers needs.
  -Wireless remote control
  -5804 - Four button, fully programmable key
  -5804BD - Four button, fully programmable key with status feedback for added security
  -5827BD - Wireless keypad with status feedback
  -Phone Control 4285 - Turns any touch-tone phone into a voice response keypad
