RE613 - Alula Wireless Carbon Monoxide Detector (for Connect+ Panel)

RE613 - Alula Wireless Carbon Monoxide Detector (for Connect+ Panel)
Please Note: The Alula RE613 carbon monoxide detector has been discontinued and replaced by the RE615 model number.

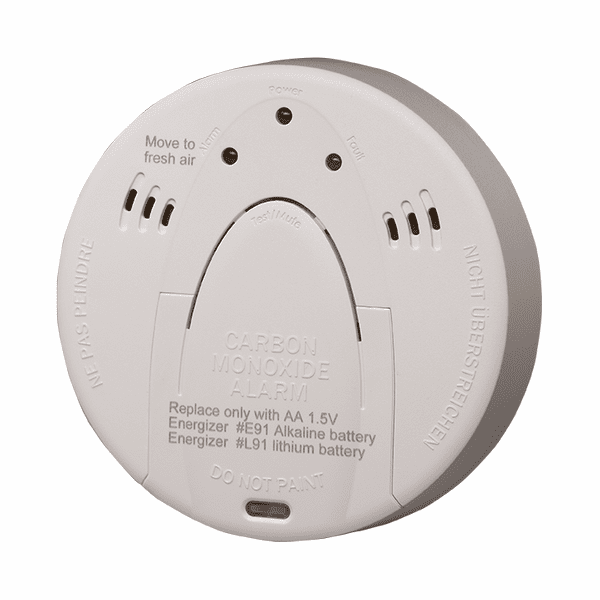

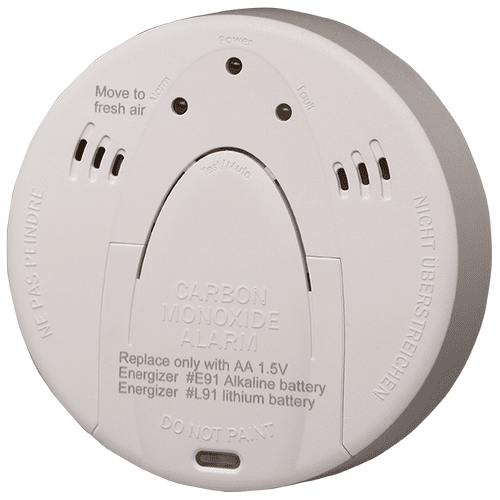

Alula RE613 Product Description:


The Alula RE613 is a Connect+ encrypted, wireless carbon monoxide detector. The RE613 CO detector delivers 70-400ppm detection, meeting UL2034 specifications. Also, the RE613 has a long range sensor and built-in temporal 4 sounder that provides maximum performance for DIYer's.

Carbon monoxide, also known as "CO" by the chemical form, is considered to be a highly dangerous poisonous gas, because it is colorless, odorless or tasteless and very toxic. In general, biochemistry phenomena have shown that the presence of CO gas inhibits the blood's capacity to transport oxygen throughout the body, which can eventually lead to brain damage. In any enclosed space (home, office) even a small accumulation of CO gas can be quite dangerous.

To install the RE613 CO detector, please mount the sensor on a ceiling or on the wall. Please take note, since CO gas moves freely in the air, the suggested location is in or as near as possible to sleeping areas of the home. The human body is most vulnerable to the effects of CO gas during sleeping hours. For maximum protection, as CO alarm should be located outside primary sleeping areas or on each level of your home. The electronic sensor detects carbon monoxide, measures the concentration and sounds a loud alarm before a potentially harmful level is reached.

Do not install the CO detector in these scenarios; where the normal ambient temperature may drop below 32°F (0°C) or exceed 120°F (49°C), near paint thinner fumes, within 5 feet (1.5 meter) of open flame appliances such as furnaces, stoves and fireplaces, in exhaust streams from gas engines/vents/flues/chimneys, close proximity to an automobile exhaust pipe, keep the CO alarm away from excessively dirty, dusty or greasy areas such as kitchens and garage.

To enroll the RE613 CO detector, begin by placing your panel in enrollment mode. Then press and hold the TEST button until you hear the sounder beep. To test the CO alarm is enrolled into the panel, simply press and hold the TEST button until you hear the sounder beep.

Product Features:

  • Highly reliable CO detector
  • Sleek design
  • Wall tamper
  • Strong, reliable RF signal
  • Low battery indication
  • 5 year warranty

Alula RE613 Product Specifications:


  • Dimensions: 4.9 inch Diameter, 1.4 inch High
  • CO Sensitivity: 70ppm at 60-120 minutes, 150ppm at 10-50 minutes, 400ppm at 4-15 minutes
  • CO Sensing Technology: Electrochemical
  • Operating Temperature: 32°F to 120°F (0°C to 49°C), Long Term
  • Maximum Humidity: 0 - 95% non-condensing relative humidity
  • Alarm Sound: Temporal Three
  • Replacement Battery: 3 Energizer Alkaline AA (#E91), 3 Energizer Lithium AA (#L91)
  • Frequency: 433.92 MHz
  • System Compatibility: RE6100 series panels with capacity of up to 96 zones
  • Certification: UL2034 Single Station Carbon Monoxide Alarm
