Product Features:

• Professional-Grade Wireless Security Platform - Designed for advanced intrusion protection, system takeovers, and automation in both residential and commercial applications.
• Built-In Multi-Path Communicator - Includes secured and supervised multi-carrier SIM cellular, Wi-Fi®, and Ethernet connections for maximum reliability and redundancy.
• Multi-Frequency Sensor Compatibility (319/345/433 MHz) - Integrated receiver supports a wide range of legacy wireless sensors from major brands, simplifying system takeovers and upgrades.
• Encrypted Long-Range Wireless Receiver - Provides secure, extended coverage across homes, offices, or multi-building sites using Alula's advanced encryption technology.
• Integrated Sensor Translator - Seamlessly integrates with existing systems without replacing legacy transmitters, reducing installation time and costs.
• Flexible System Design - No need to mount the panel on an entry wall - control the system via wireless touchpads or the Alula Interactive App for ultimate installation flexibility.
• Supports Up to Eight Partitions - Manage and secure multiple areas or buildings from a single control panel, ideal for multi-tenant or commercial environments.
• Local Programming via Touchpad Pro Keypad - Configure zones, users, and settings directly on the Touchpad - no laptop or programming cable required.
• Audible System Announcements - The RE667X-PRO Slimline Touchpad provides voice alerts for arming/disarming, sensor activity, environmental conditions, and Z-Wave® device events.
• Z-Wave® Smart Home Integration - Supports automation for lighting, door locks, thermostats, and more, all controllable from the Touchpad or mobile app.
• Two-Way Audio with Alula Doorbell Cameras - Communicate directly with visitors through the Touchpad interface when connected with compatible Alula video devices.
• Wireless Arming and Control - Enable secure system operation via multiple Touchpads or mobile devices - no wired keypads required.
• Expandable Wireless Ecosystem - Fully compatible with Alula's range of sensors, cameras, and automation modules for system scalability.
• Secure and Supervised Communication - All communication paths are monitored and encrypted to prevent tampering and ensure dependable operation.
• Ideal for Takeovers and New Installs - Designed for easy adoption in retrofit applications while maintaining the flexibility and reliability needed for new system installations.
• Professional or Self-Monitoring Options - Compatible with GeoArm 24/7 central station monitoring or DIY self-dispatch via the Alula Interactive App.

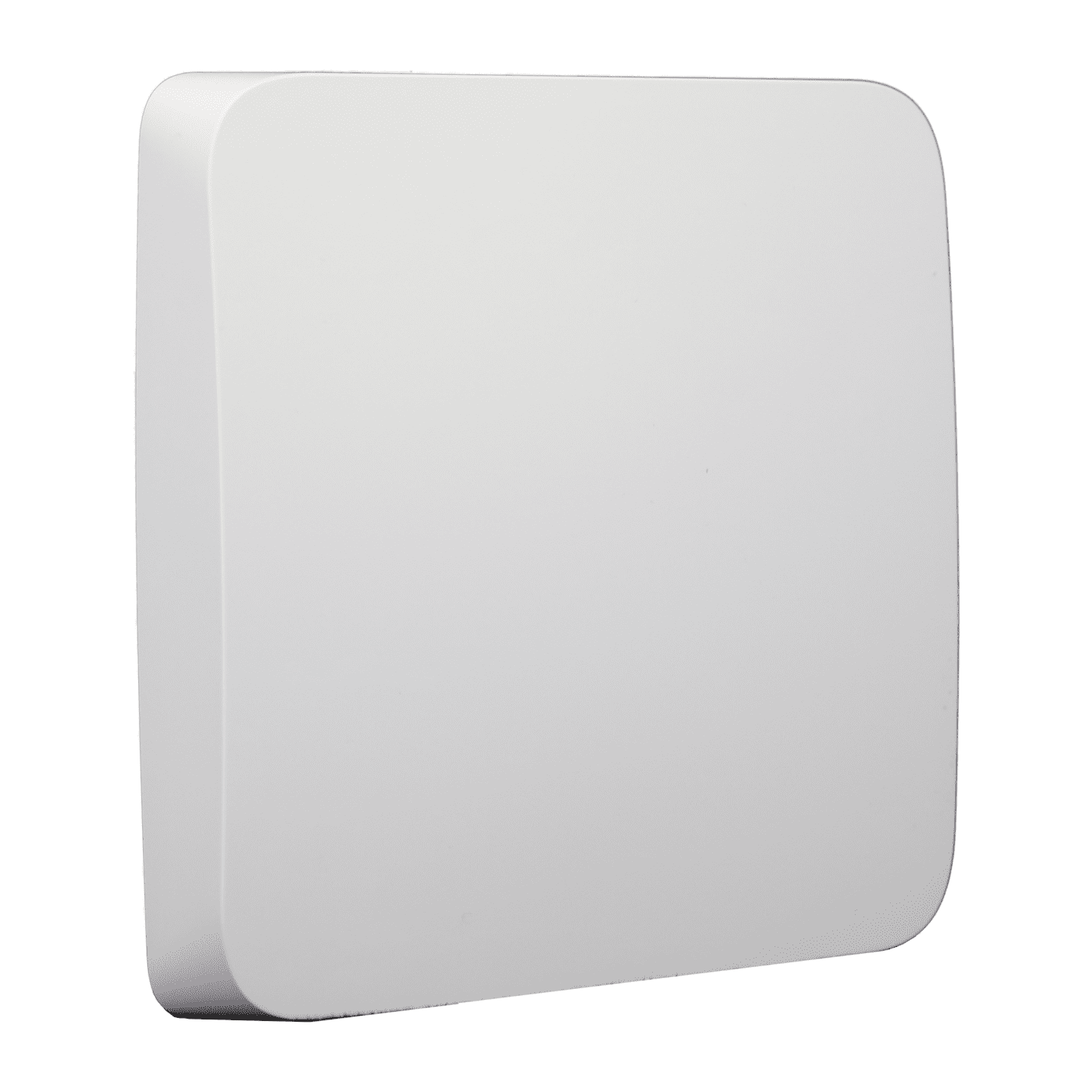

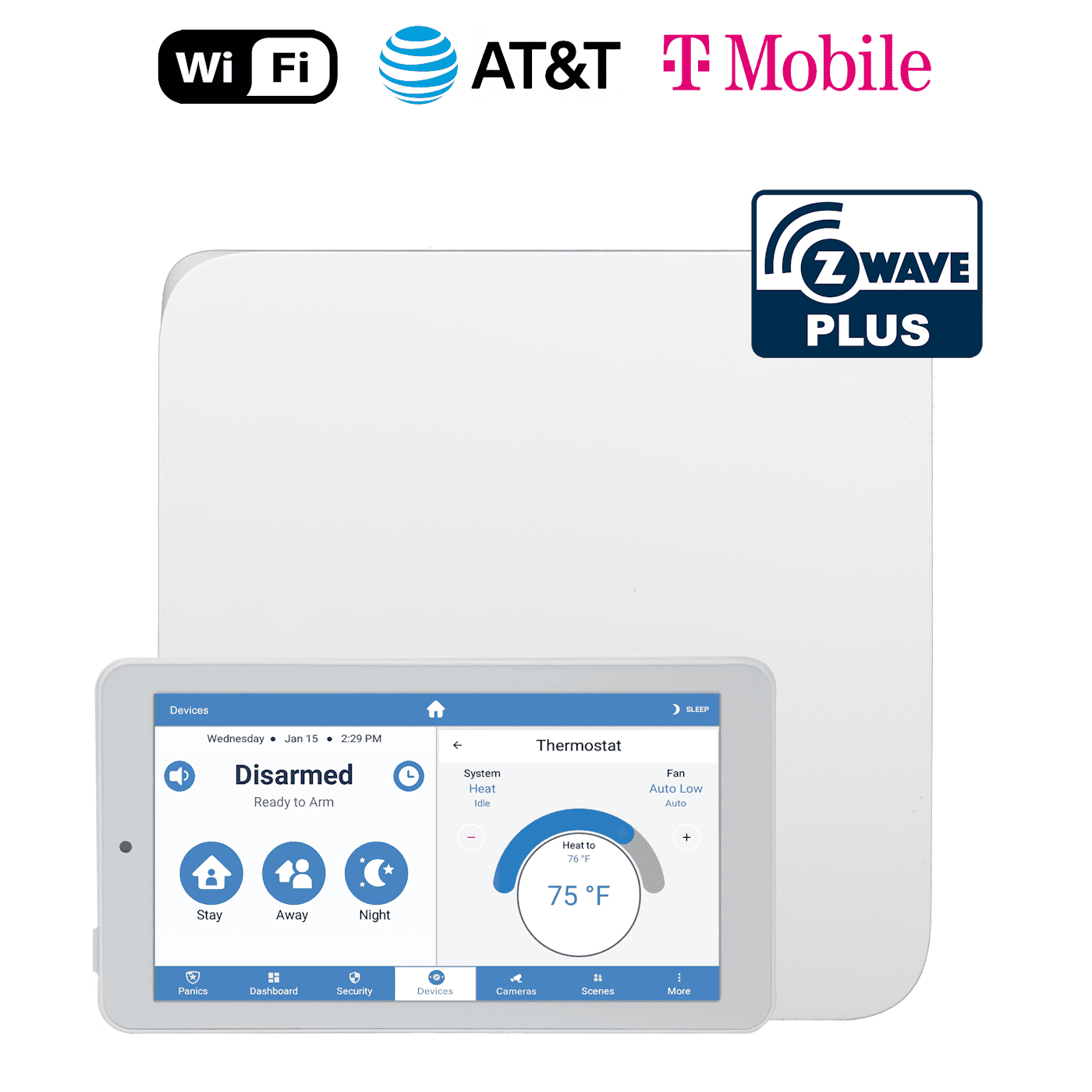

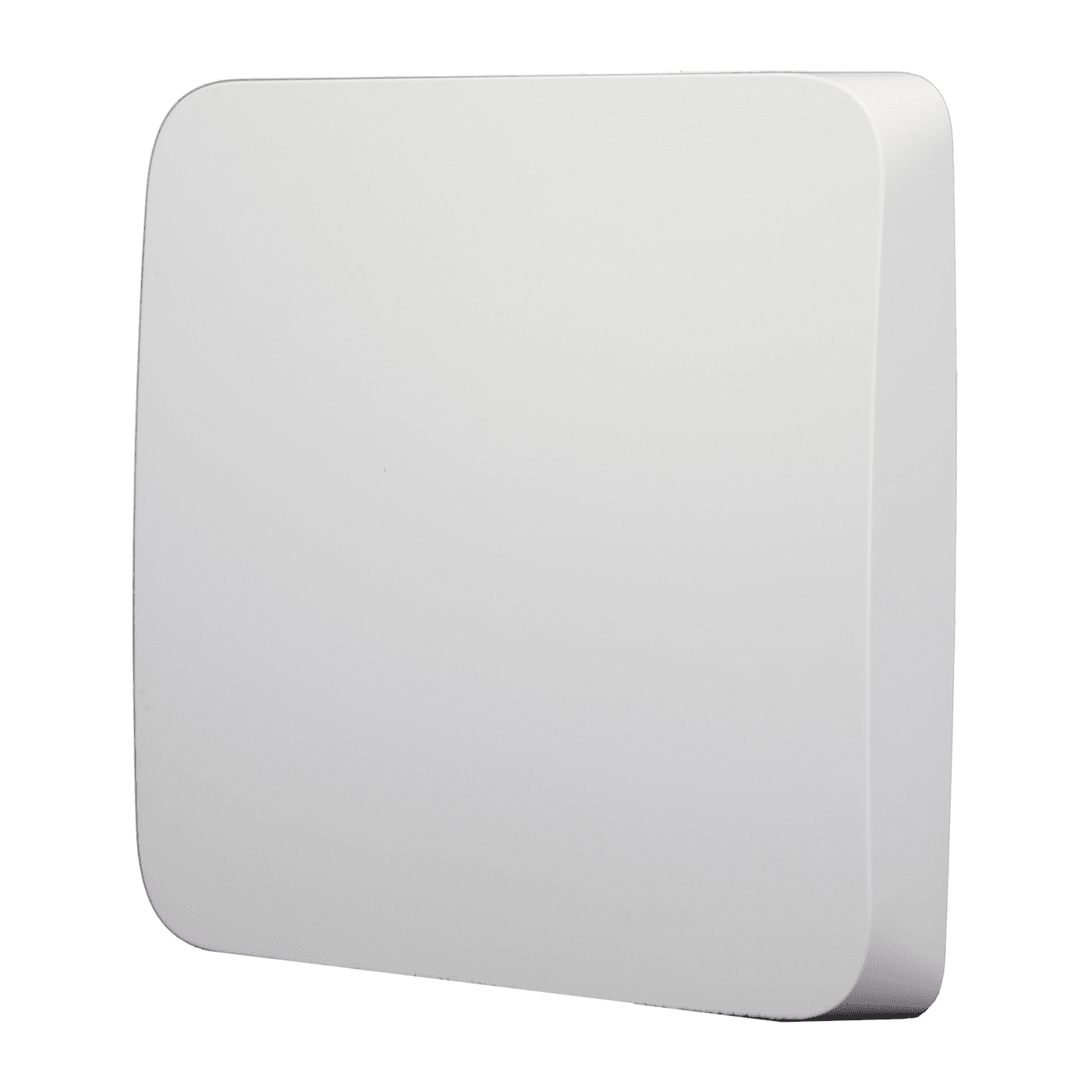

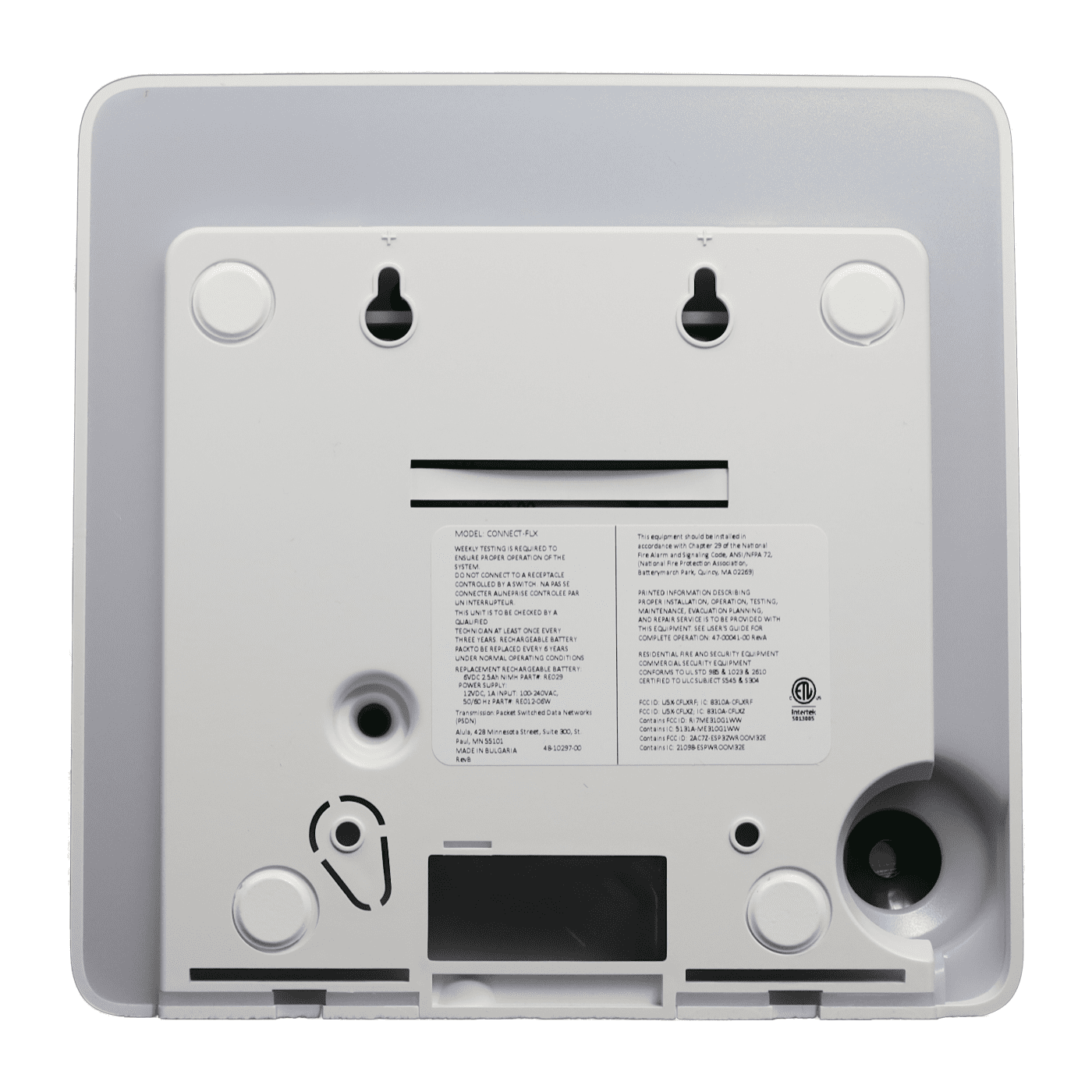

CONNECT-FLX Panel/Communicator

Physical

• Housing Dimensions: 6 x 6 x1.28 in (15.21 x 15.21 x 3.25 cm)
• Weight: 16.5 Ounces (467 grams)
• Mounting Fastener: #6 or #8 screws (included)

Environment

• Operating Temperature: 32 to 120°F (0 to 49°C)
• Storage Temperature: -4 to 86°F (-20 to 30°C)
• Maximum Humidity: 85% non-condensing relative humidity

Device Specifications

• Communication: Cellular, Wi-Fi®, Ethernet
• Users: 50 Users
• Zones: 96
• Partitions: 8
• Interface Devices: Up to 4 Touchpads, up to 8 PINPads
• Sensor Frequencies: 433.92MHz, 345MHz, 319.5MHz
• Power Supply Number: 12V Input Provided: RE012-6(W) (US)

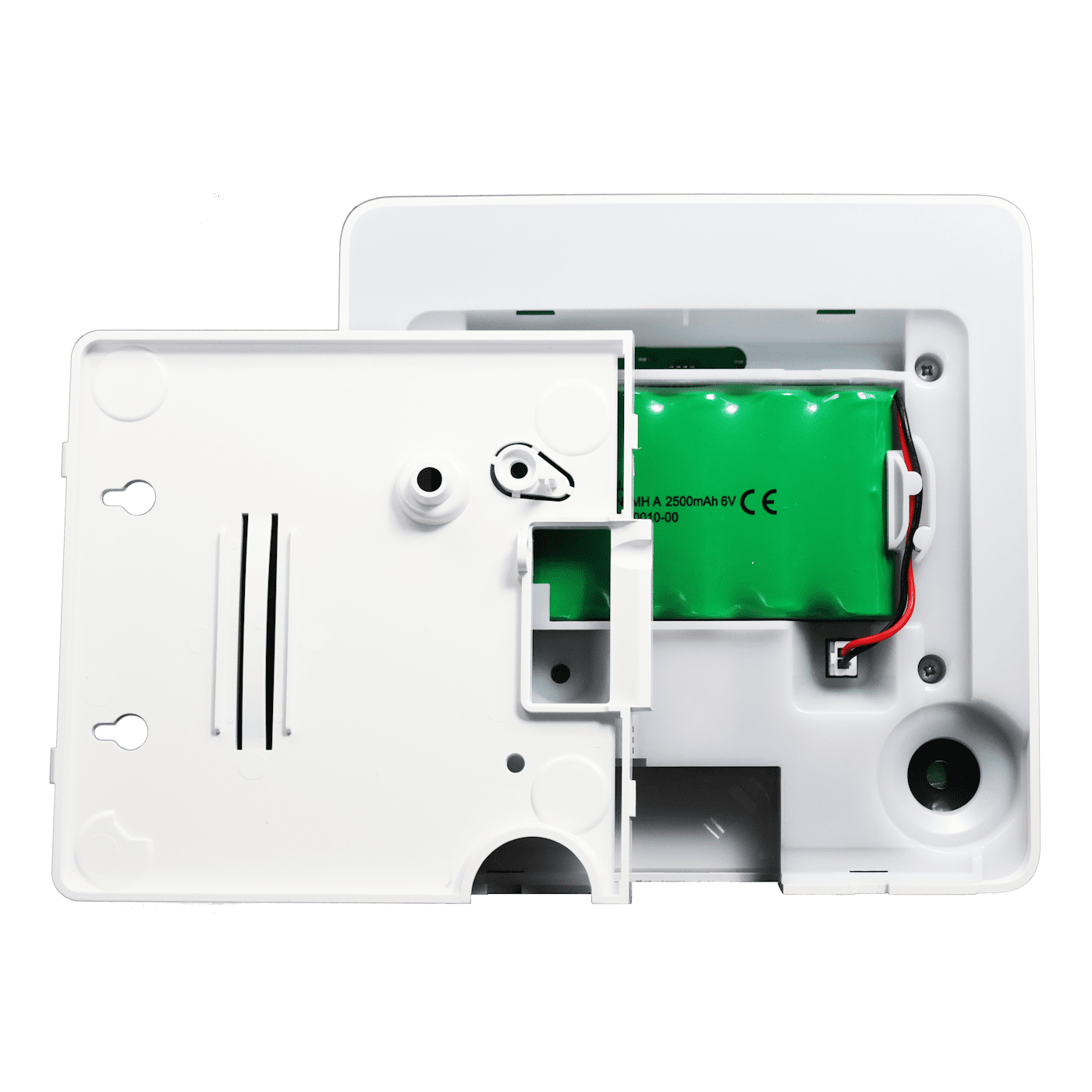

• Battery Part Number: RE029
• Battery Backup: 24 hours
• Tamper Indications Sensors: Cover opening, wall removal

Certifications

• CONNECT-FLX: UL 985, UL 1023, UL 2610 FCC, IC ULC-S304, ULC-S545
• Warranty: 5 years

RE667X-PRO Touchscreen Keypad

• Wall-Mount Dimensions: 4.27" x 7.42" x 1.60" in
• Tabletop Stand Dimensions: 3.60" x 7.42" x 4.58" in
• Weight: 20.64 oz
• Color: White
• Pilot Hole for Screw into Wood: 1/8in (3mm)
• Pilot Hole for Wall Anchor: 3/16in (4.7mm)
• Mounting Fasteners: #6 screws & 4 wall anchors (included)
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• Maximum Humidity: 85% non-condensing relative humidity
• Battery Life: 4 hours
• Power Transformer Input: 100-240V AC, 50/60Hz, 0.5A
• Power Transformer Output: 12VDC, 1A
• Power Transformer Part Number: RE012-6
• Terminal Block Wire Gauge: 16-24 AWG
• Wireless Range: 300 feet in open air
• Screen Resolution: 1024 x 600 pixels
• Screen Size: 7 inches diagonally
• WiFi DeviceLink: RE926RX Not Included (only needed for Connect+)
• Certification: FCC, IC, RCM

CONNECT-FLX-M Communicator/Panel

• Installation Guide - Alula Connect-FLX Dual-Path IP/Cellular LTE Alarm Communicator and Security Panel (CONNECT-FLX-M)

RE667X-PRO Touchscreen Keypad

• Data Sheet - Alula Wireless Slimline Touchpad Alarm Keypad (RE667X-PRO)
• Installation/Operation Manual - Alula Wireless Slimline Touchpad Alarm Keypad (RE667X-PRO)
• Alula Security App and Touchscreen Interface User Guide - Alula Wireless Slimline Touchpad Alarm Keypad (RE667X-PRO)

• (1) CONNECT-FLX Panel/Communicator
• (1) RE667X-PRO Touchscreen Keypad
• Rechargeable backup battery
• 12-Volt power adapter
• 6-foot Ethernet cable
• Wall mounting plate
• Installation guide
