RE620 - Alula Wireless Repeater (for Connect+ Panel)

RE620 - Alula Wireless Repeater (for Connect+ Panel)
RE620 - Alula Wireless Repeater (for Connect+ Panel)
Item# RE620
List Price: $125.01
Your Price: $83.34
Availability: In Stock
QTY:

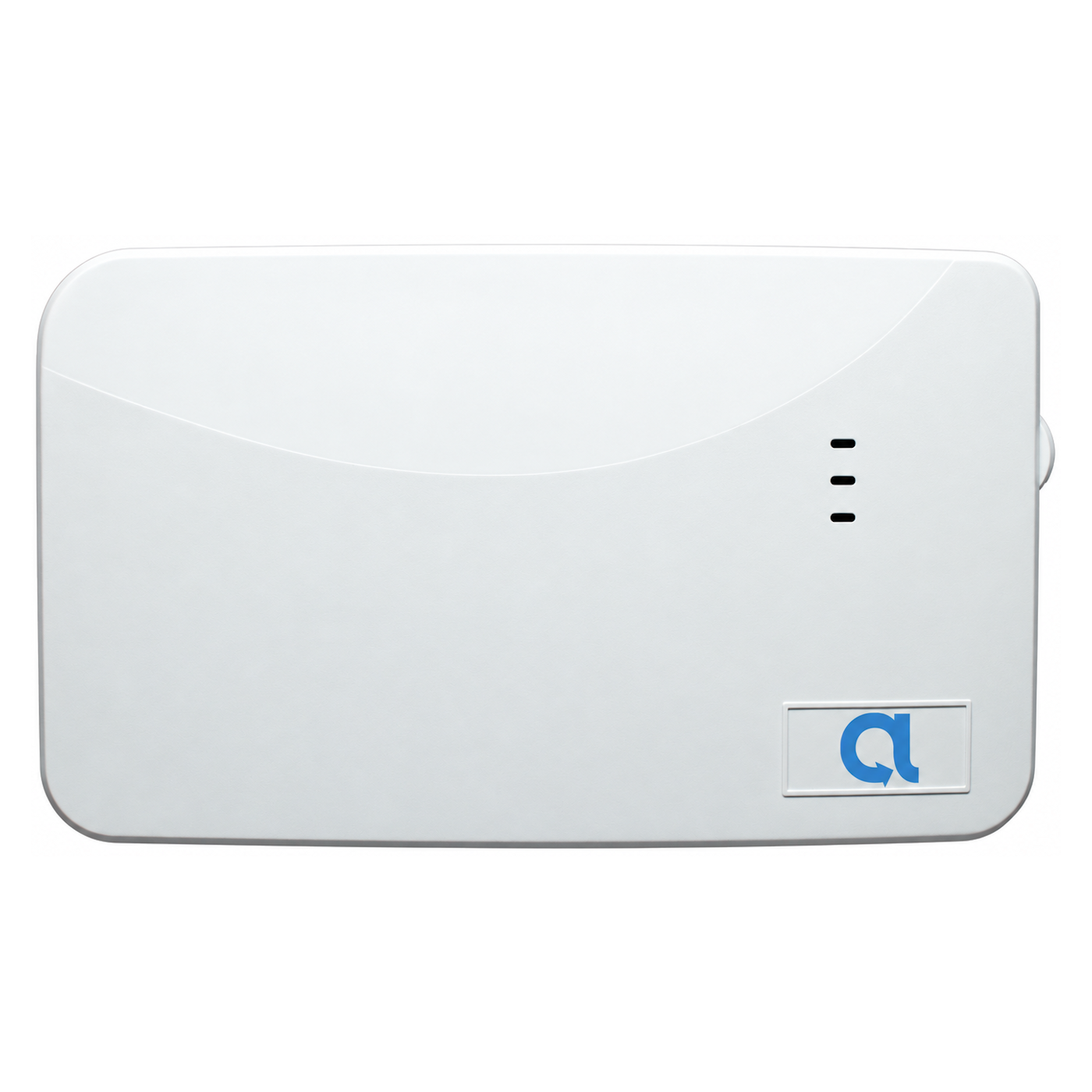

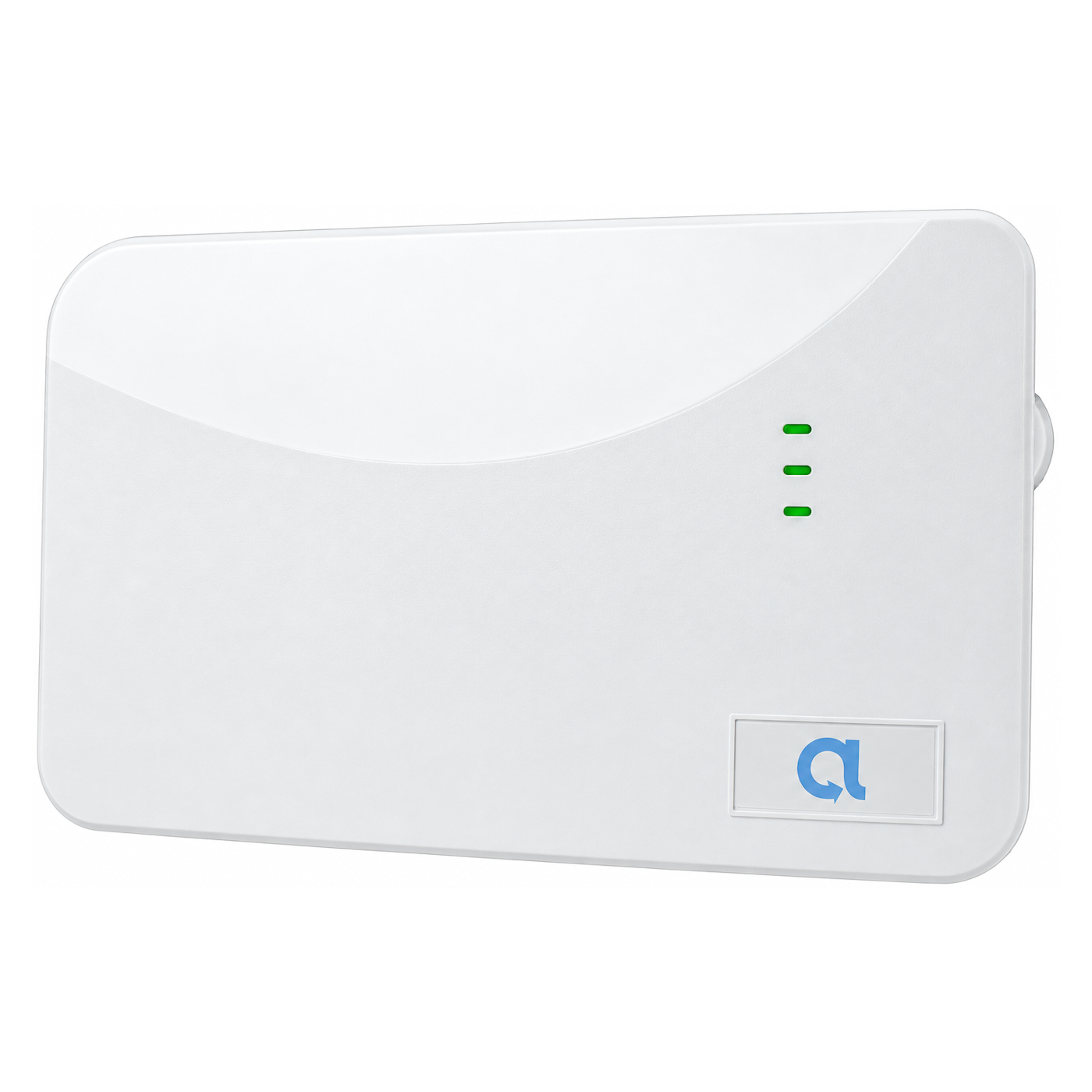

Alula RE620 Product Description:


The Alula RE620 is a Connect+ encrypted, wireless repeater. The RE620 repeater is a battery backed up device that extends the wireless range of Connect+ sensors.

To enroll the RE620 repeater, begin by placing the panel into wireless enrollment mode and then tampering the repeater. Alternatively, the repeater can be enrolled using the HeliLink app or by entering its 8-character serial number on the interactive GeoArm web portal.

To install the RE620 repeater, please mount the equipment in the desired location using the mounting screw holes. Then connect the power supply to the repeater.

To learn sensors, simply place the repeater into configuration mode and trip the desired sensors. Please take note that the Connect+ repeater will only function with Connect+ sensors. The RE620 board will not support any other sensors.

Product Features:

  • Extends Wireless Cryptix™ Sensor Range
  • Rechargeable Backup Battery
  • Cover and Wall Tamper
  • 5 year warranty

Alula RE620 Product Specifications:


  • Dimensions: 8.5 x 1.0 x 1.3 inches (21.6 x 2.5 x 3.3 cm)
  • Weight with Battery: 16 ounces (454 g)
  • Mounting Screws: #4 or #6 (Not Included)
  • Operating Temperature: 32°F to 120°F (0°C to 49°C)
  • Maximum Humidity: 85% non-condensing relative humidity
  • 12VDC Power Output: 10.2VDC to 13VDC, 150mA Max
  • Battery Specifications: 6VDC 800mAh NiMH
  • Transmitted Indications: Low Battery, Cover Tamper, Wall Tamper, Supervision
  • Certification: FCC, IC
