CONNECT-FLX-M-Z - Alula Connect-FLX Dual-Path IP/Cellular LTE Alarm Communicator and Security Panel with Z-Wave Automation Hub (Compatible with 319/345/433 MHz Wireless Frequencies)
Please Note: The Alula CONNECT-FLX-M-Z dual-path alarm communicator and security panel, with Z-Wave hub, is a special order item.
Alula CONNECT-FLX-M-Z Product Description:
The Alula CONNECT-FLX-M-Z Connect-FLX Dual-Path IP/Cellular LTE Alarm Communicator and Security Panel is a professional-grade wireless control system built to deliver advanced security and automation in a single intelligent platform. Designed for modern installations, it combines LTE cellular, Wi-Fi®, and Ethernet communication channels with a built-in Z-Wave® automation hub - offering fast, secure, and supervised connectivity across all devices and applications.
The Connect-FLX-M-Z is engineered for flexibility and performance. Its long-range encrypted wireless receiver ensures reliable communication across large properties, while the integrated multi-frequency sensor translator (supporting 319/345/433 MHz) simplifies system upgrades by allowing direct integration with existing sensors from GE, Honeywell, DSC, 2GIG, and Napco. This makes Connect-FLX an excellent solution for both new system installations and legacy takeovers, dramatically reducing installation time and cost.
With wireless arming stations and mobile control options, there's no need to mount the control panel at an entry point - installers can locate it wherever internet and power connections are most convenient. Each system comes standard with a wireless translator and full compatibility with the Alula Interactive App, giving users total control from anywhere. When paired with the Slimline Touchpad, users receive audible system and zone status updates, including notifications for arming/disarming, sensor activity, and Z-Wave device events. Integration with Alula Doorbell Cameras adds two-way audio capability, enabling direct conversations with visitors at the door.
Bridging professional security and smart automation, the Alula Connect-FLX-M-Z redefines what a wireless control panel can do. It delivers enterprise-level security performance, smart home automation control, and cloud-managed convenience, all within one unified, encrypted, and easy-to-install system - making it the perfect choice for residential, multi-family, and commercial security applications.
Product Features:
- Professional-Grade Security Platform - Combines advanced intrusion protection, automation control, and smart communication in one integrated system.
- Dual-Path Connectivity - Features LTE cellular and IP (Wi-Fi®/Ethernet) connections for reliable, redundant communication to ensure uninterrupted monitoring.
- Multi-Frequency Wireless Receiver (319/345/433 MHz) - Built-in multi-band compatibility allows seamless takeover of existing wireless sensors from GE, Honeywell, DSC, 2GIG, and Napco.
- Integrated Wireless Translator - Simplifies retrofitting by reusing compatible legacy sensors without the need for additional hardware.
- Long-Range Encrypted Wireless Performance - Provides extended site coverage and secure, tamper-resistant signal transmission.
- Flexible Installation Options - Wireless arming stations and mobile app control eliminate the need to mount the panel on an entry wall, allowing placement near power and internet connections.
- Wi-Fi®, Ethernet, and LTE Communication - Standardized multi-carrier and supervised network options ensure consistent connection to monitoring stations.
- Slimline Touchpad Compatibility - Offers intuitive system control and voice announcements for arming/disarming, sensor activity, and environmental status.
- Audible System Notifications - The optional RE667X-PRO Slimline Touchpad provides voice alerts for arming/disarming, sensor activity, environmental conditions, and Z-Wave® device events.
- Two-Way Audio Support - Enables live communication with visitors when paired with an Alula Doorbell Camera.
- Two-Way Audio with Alula Doorbell Cameras - Communicate directly with visitors through the Touchpad interface when connected with compatible Alula video devices.
- Z-Wave® Smart Home Integration - Connects and automates lighting, locks, thermostats, and more for complete home control.
- Ideal for System Takeovers - Designed to make upgrading existing systems quick and cost-effective without sensor replacement.
- Secure and Supervised Communication - Continuous supervision of all network paths ensures maximum reliability and protection.
- Scalable System Architecture - Suitable for residential, commercial, and multi-building installations requiring multiple partitions or extended coverage.
- Professional or DIY Monitoring Options - Compatible with both GeoArm 24/7 central station monitoring or self-monitoring through the Alula Interactive App.
* Items listed above with an asterisk symbol require a subscription to Alula powered by GeoArm.
Alula CONNECT-FLX-M-Z Product Specifications:
CONNECT-FLX Panel/Communicator
Physical
- Housing Dimensions: 6 x 6 x1.28 in (15.21 x 15.21 x 3.25 cm)
- Weight: 16.5 Ounces (467 grams)
- Mounting Fastener: #6 or #8 screws (included)
Environment
- Operating Temperature: 32 to 120°F (0 to 49°C)
- Storage Temperature: -4 to 86°F (-20 to 30°C)
- Maximum Humidity: 85% non-condensing relative humidity
Device Specifications
- Communication: Cellular, Wi-Fi®, Ethernet
- Users: 50 Users
- Zones: 96
- Partitions: 8
- Interface Devices: Up to 4 Touchpads, up to 8 PINPads
- Automation Frequency: Z-Wave
- Sensor Frequencies: 433.92MHz, 345MHz, 319.5MHz
- Power Supply Number: 12V Input Provided: RE012-6(W) (US)
- Battery Part Number: RE029
- Battery Backup: 24 hours
- Tamper Indications Sensors: Cover opening, wall removal
Certifications
- CONNECT-FLX: UL 985, UL 1023, UL 2610 FCC, IC ULC-S304, ULC-S545
- Warranty: 5 years
Alula CONNECT-FLX-M-Z Product Includes:
- (1) CONNECT-FLX-Z Panel/Communicator with Z-Wave Automation Hub

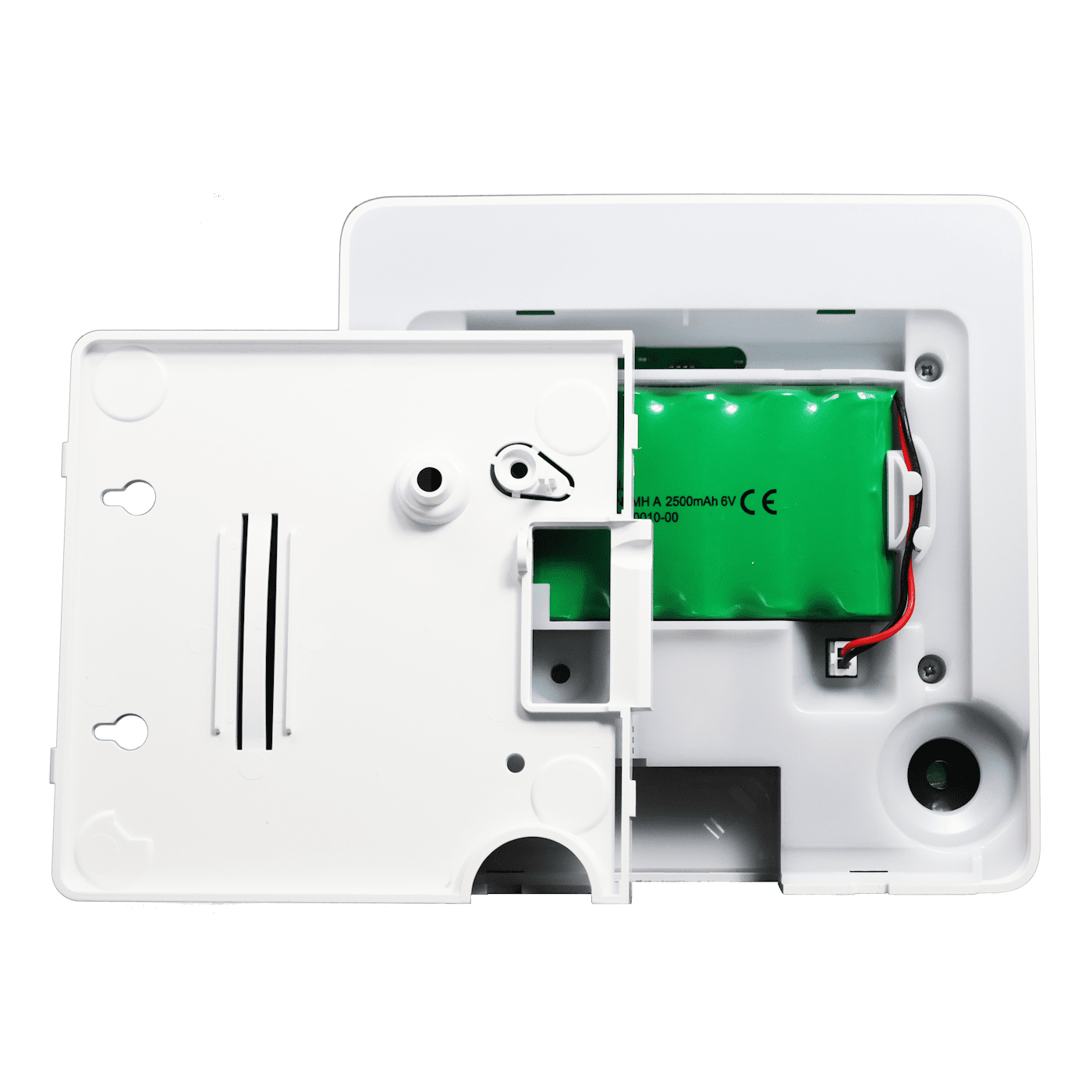

- Rechargeable backup battery
- 12-Volt power adapter
- 6-foot Ethernet cable
- Wall mounting plate
- Installation guide
