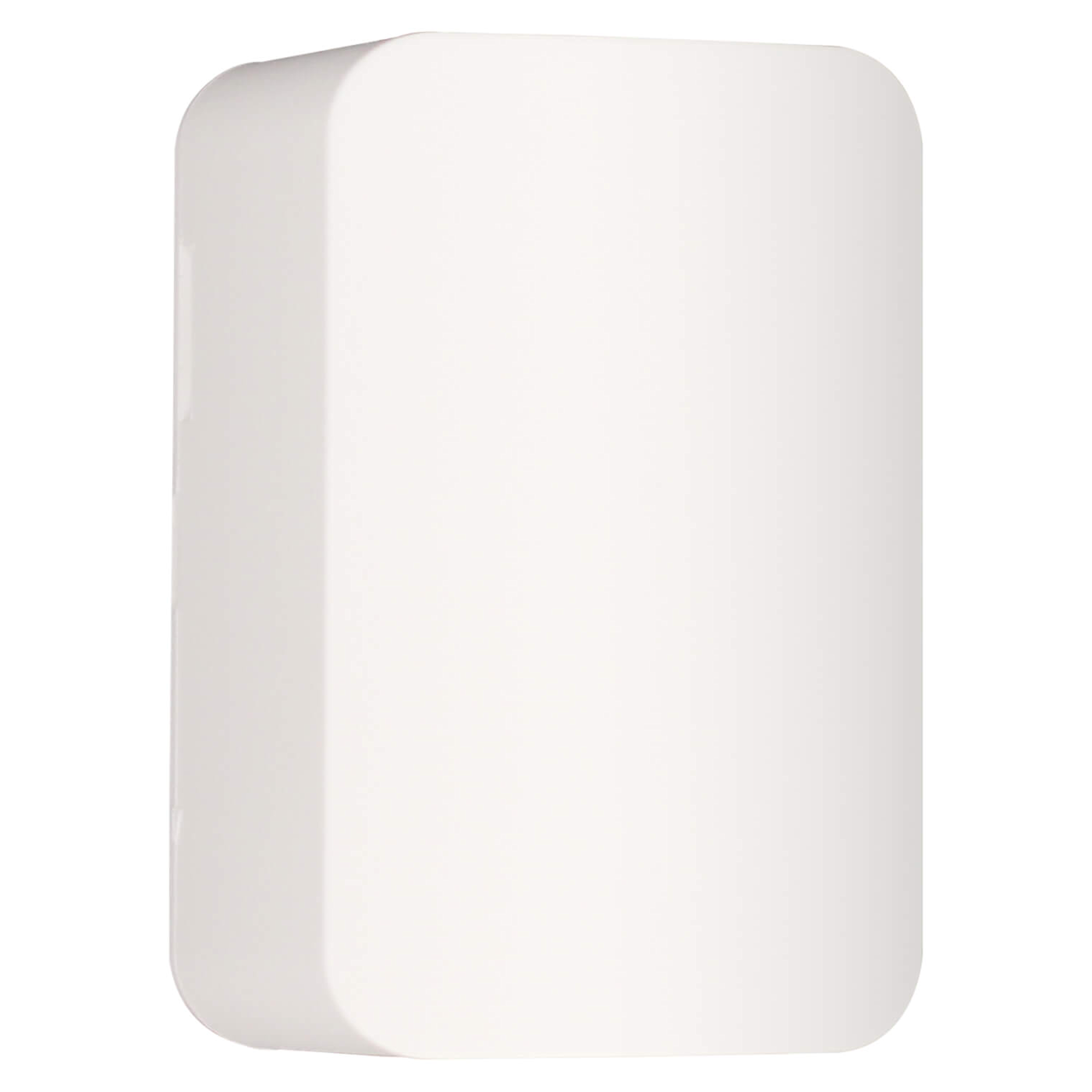

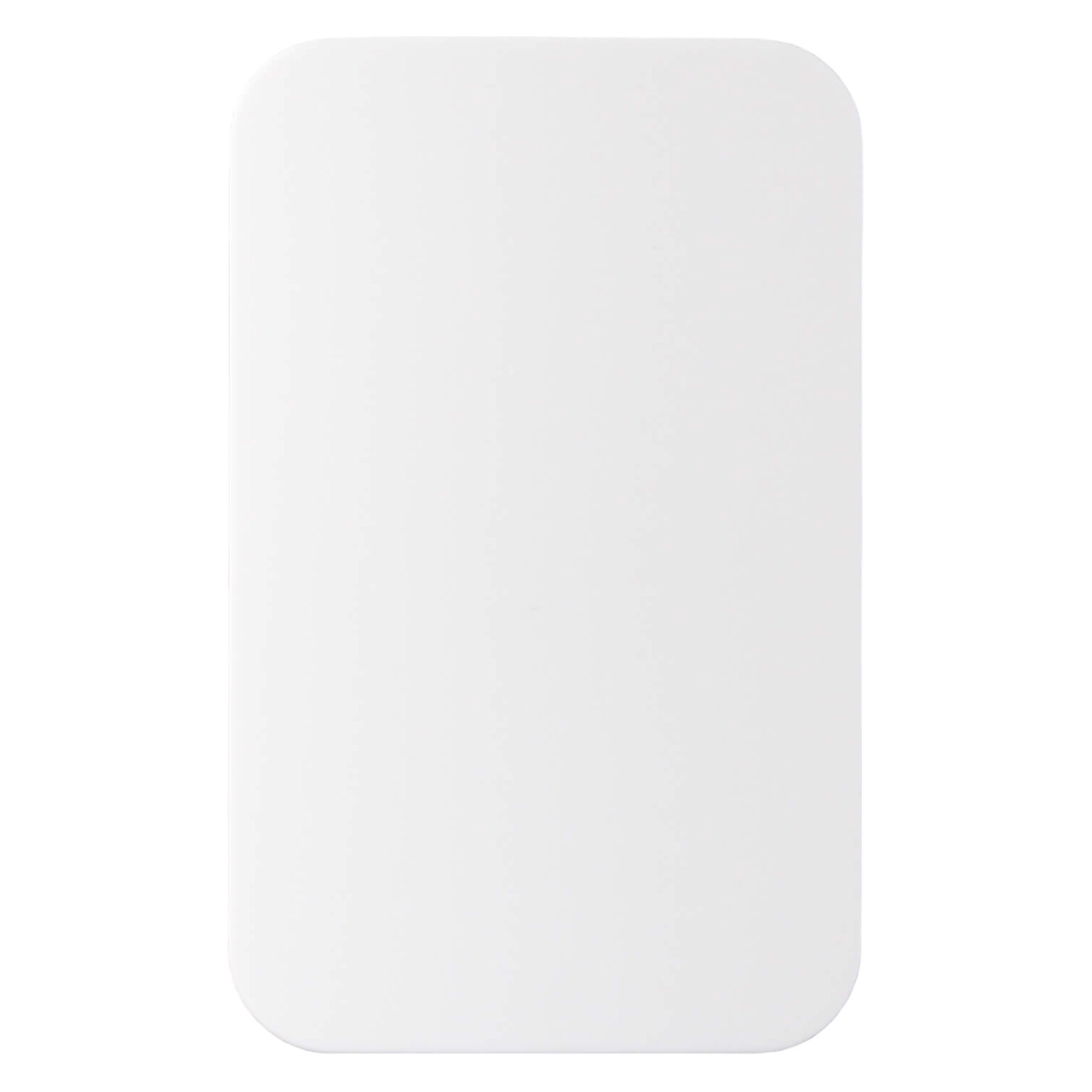

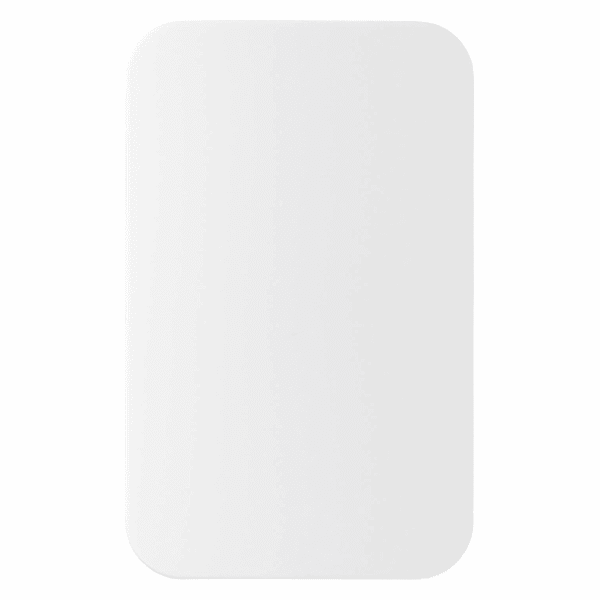

2GIG-TILT100-345 - 2GIG Wireless 345S Series Garage Door Tilt Sensor
Please Note: The 2GIG TILT100-345 (2GIG-TILT100-345) wireless 345S series tilt sensor is a special order item.
2GIG-TILT100-345 Product Description:
The 2GIG-TILT100-345 wireless tilt sensor is a versatile and reliable detection device designed to monitor the position of tilting assets such as garage doors, mailboxes, pet doors, storm cellar doors, and more. Ideal for both residential and light commercial applications, the 2GIG TILT100-345 compact sensor helps ensure property awareness and automation convenience within any 2GIG security system.
Operating on the 345 MHz frequency, the TILT100-345 communicates directly with the 2GIG control panel. When the monitored object is tilted beyond 45 degrees, the sensor sends an alert signal to the panel and transmits a restore signal when the object returns to its normal vertical position.
As part of the advanced 2GIG 345S Series, this sensor features an on-off switchable encryption mode, allowing installers to choose between encrypted or non-encrypted operation for maximum flexibility. It is fully compatible with the entire 2GIG ecosystem, including the 2GIG EDGE, GC Touch, and earlier 2GIG security panels.
Engineered for long-term performance, the TILT100-345 includes a built-in tamper switch to detect cover removal and low-battery supervision for maintenance alerts. Powered by a single long-life lithium battery, the sensor delivers up to 10 years of reliable operation, providing a low-maintenance, professional-grade solution for motion and tilt detection.
Product Features:
- Tilt Detection - Sends an alert when tilted beyond 45° and a restore signal when returned upright.
- Versatile Monitoring - Ideal for garage doors, mailboxes, pet doors, and storm cellar doors.
- Wireless Communication - Operates on the 345 MHz frequency for reliable signal transmission.
- Switchable Encryption - Onboard switch enables encrypted or non-encrypted communication modes.
- Full System Compatibility - Works with 2GIG EDGE, GC Touch, and legacy 2GIG panels.
- Tamper Protection - Built-in tamper switch alerts the system if the cover is removed.
- Low Battery Supervision - Sends automatic alerts when battery levels are low.
- Long Battery Life - Up to 10 years of continuous operation using a single lithium cell.
- Fully Supervised Wireless Design - Monitors status, signal, and battery for dependable performance.
- Compact, Professional Design - Easy to install and ideal for both residential and light commercial use.
2GIG-TILT100-345 Product Specifications:
- Model Number: 2GIG-TILT100-345
- Product Type: Wireless Tilt Sensor
- Dimensions (L x W x H): 2.3" x 1.0" x 0.75" (5.8 cm x 2.5 cm x 1.9 cm)
- Transmitter Frequency: 345 MHz
- Series: 345S Series
- Compatibility: 2GIG EDGE, GC Touch, GC2e, GC3e, and legacy 2GIG systems or 345 MHz compatible systems
- Code Outputs: Alarm; Alarm Restore; Supervisory; Tamper; Tamper Restore; Low Battery
- Encryption: On/off switchable (supports encrypted and non-encrypted communication modes)
- Supervision: Fully supervised for tamper and low-battery reporting
- Supervisory Interval: 70 Minutes
- Tamper Protection: Built-in cover tamper switch
- External Input: Accepts NC or NO dry contact devices
- Housing Material: High-impact ABS plastic enclosure for indoor use
- Operating Temperature: 32° to 120°F (0° to 49°C)
- Relative Humidity: 15 to 85%, non-condensing
- Mounting Type: Surface-mounted (vertical orientation recommended)
- LED Indicator: Transmit/activity indicator
- Batteries (Installed): One 3V CR2450 Lithium Battery
- Battery Life: Up to 10 years
- Warranty: 2 years limited manufacturer's
- Certifications: FCC, IC, ETL Listed
2GIG-TILT100-345 Product Compatibility:
- 2GIG EDGE
- GC Touch
- GC2e
- GC3e
- Legacy 2GIG Systems
- Other 345 MHz Compatible Systems
