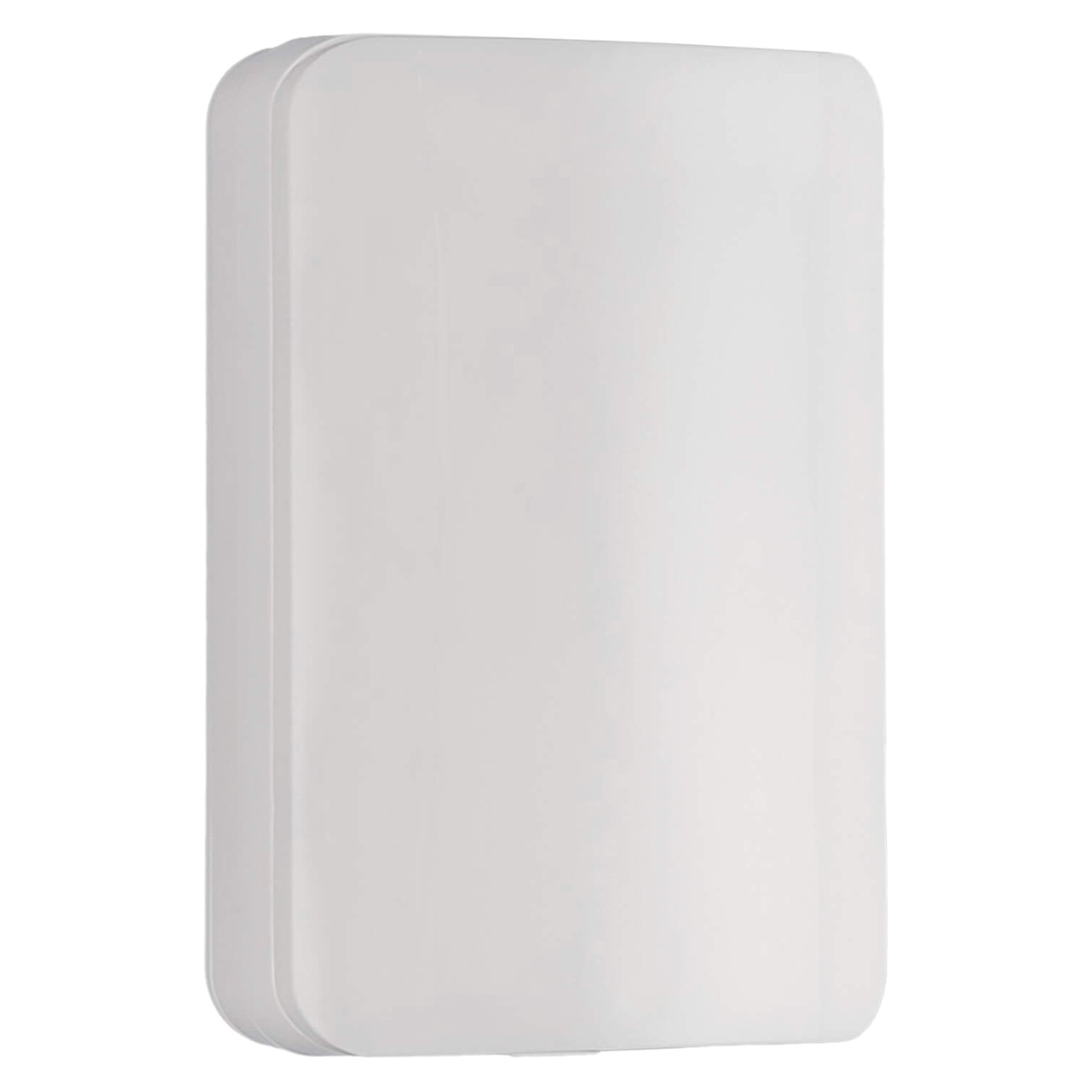

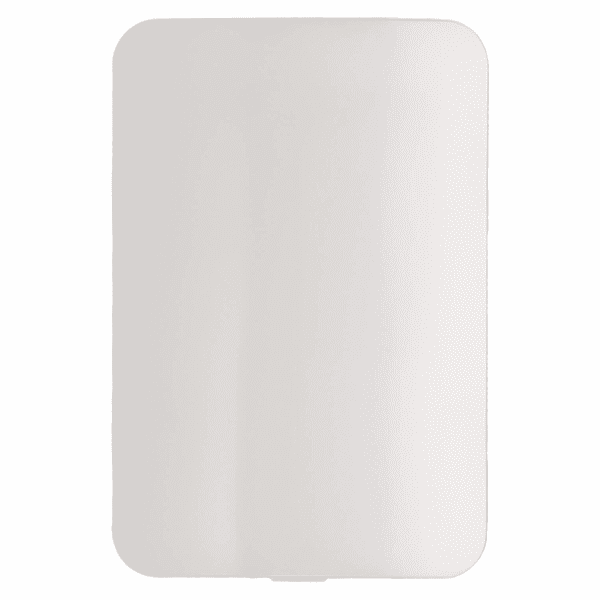

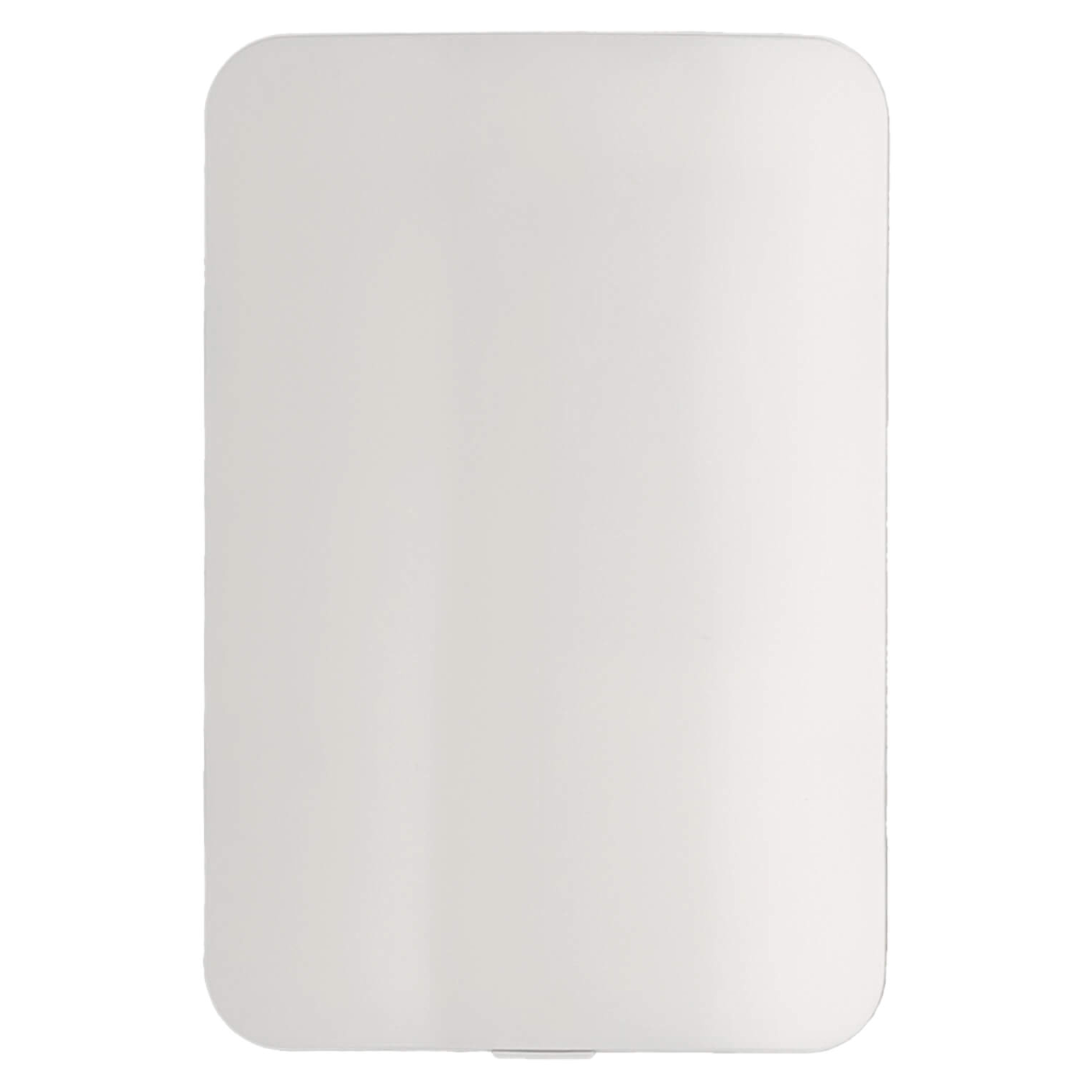

2GIG-PIR100-345 - 2GIG Wireless 345S Series PIR Motion Detector
2GIG-PIR100-345 Product Description:
The 2GIG-PIR100-345 is a versatile, wall-mounted passive infrared (PIR) motion detector engineered for reliable motion detection in residential and commercial environments. Part of the advanced 345S Series, the 2GIG PIR100-345 motion detector combines performance, flexibility, and installer convenience - making it an ideal choice for professional security installations.
Operating on the 345 MHz frequency, the PIR100-345 ensures seamless compatibility with the entire 2GIG ecosystem, including 2GIG EDGE, GC Touch, and earlier 2GIG control panels. The detector features a unique onboard encryption switch, allowing installers to easily toggle between encrypted and non-encrypted modes - reducing inventory needs by allowing a single model to serve multiple system configurations.
Providing wide-angle motion coverage up to 30 feet deep by 50 feet wide, the PIR100-345 delivers comprehensive room protection with consistent, accurate detection. To further enhance reliability, the device includes adjustable pet immunity, which can be configured to ignore animals up to 85 pounds, minimizing false alarms in homes with pets.
With a battery life of up to seven years, fully supervised wireless communication, and proven field reliability, the 2GIG-PIR100-345 stands out as a durable, low-maintenance motion detection solution that integrates seamlessly into any modern security system.
Product Features:
- Wide-Angle PIR Coverage - Detects motion up to 30 ft deep by 50 ft wide.
- Switchable Encryption - Onboard toggle for encrypted or non-encrypted communication.
- Compatible With 2GIG Systems - Works with 2GIG EDGE, GC Touch, and earlier control panels.
- Pet Immunity Option - Adjustable settings to ignore pets up to 85 lbs (38.5 kg).
- High Sensitivity Mode - Default configuration ensures maximum detection accuracy.
- Fully Supervised Wireless Communication - Monitors tamper and battery status for reliable operation.
- Long Battery Life - Up to 7 years of continuous operation.
- Professional-Grade Design - Compact, wall-mounted form factor built for residential and commercial use.
- Reduces Inventory Complexity - One SKU supports both encrypted and non-encrypted installations.
2GIG-PIR100-345 Product Specifications:
- Model Number: 2GIG-PIR100-345
- Product Type: Wireless Passive Infrared (PIR) Motion Detector
- Dimensions (L x W x H): 3.53" x 2.35" x 1.63" (5.4 x 6 x 4.1 cm)
- Weight: 3.5 oz (98 g)
- Transmitter Frequency: 345 MHz
- Wireless Signal Range: 350 ft (106.7m), open air with Wireless Control Panel
- Series: 345S Series
- Code Outputs: Alarm, Alarm Restore, Tamper, Tamper Restore, Supervisory, Low Battery
- Detection Method: Passive Infrared (PIR) sensing
- Detection Angle: 90° wide-angle coverage
- Pet Immunity: Up to 85 lbs (38.5 kg)
- Sensor Range: 30 ft. (9.1m) x 50 ft. (15.2 m) coverage area
- Mounting Type: Wall-mounted
- Suggested Mounting Height: 7.5 ft. (2.3 m)
- Horizontal Sensing Angle: 100° Maximum Spread
- Encryption: On/off switchable (encrypted and non-encrypted modes)
- Compatibility: 2GIG EDGE, GC Touch, GC2e, GC3e, and legacy 2GIG systems or 345 MHz compatible systems
- Sensitivity Modes: High Sensitivity (default), Adjustable pet immunity
- Supervision: Fully supervised with tamper and low-battery monitoring
- Supervisory Interval: 70 Minutes
- LED Indicators: Motion detection and status
- Housing Material: Durable ABS Plastic
- Color: White
- Installation Environment: Indoor, residential and light commercial
- Operating Temperature: 32° to 120°F (0° to 49°C)
- Relative Humidity: 5% to 90%, Non-condensing
- Battery (Included): One CR 123A 3V or equivalent Lithium Battery
- Battery Life: Up to 7 Years (typical use)
- Warranty: 2 years limited manufacturer's
- Certifications: ETL, FCC, and IC
2GIG-PIR100-345 Product Compatibility:
- 2GIG EDGE
- GC Touch
- GC2e
- GC3e
- Legacy 2GIG Systems
- Other 345 MHz Compatible Systems
