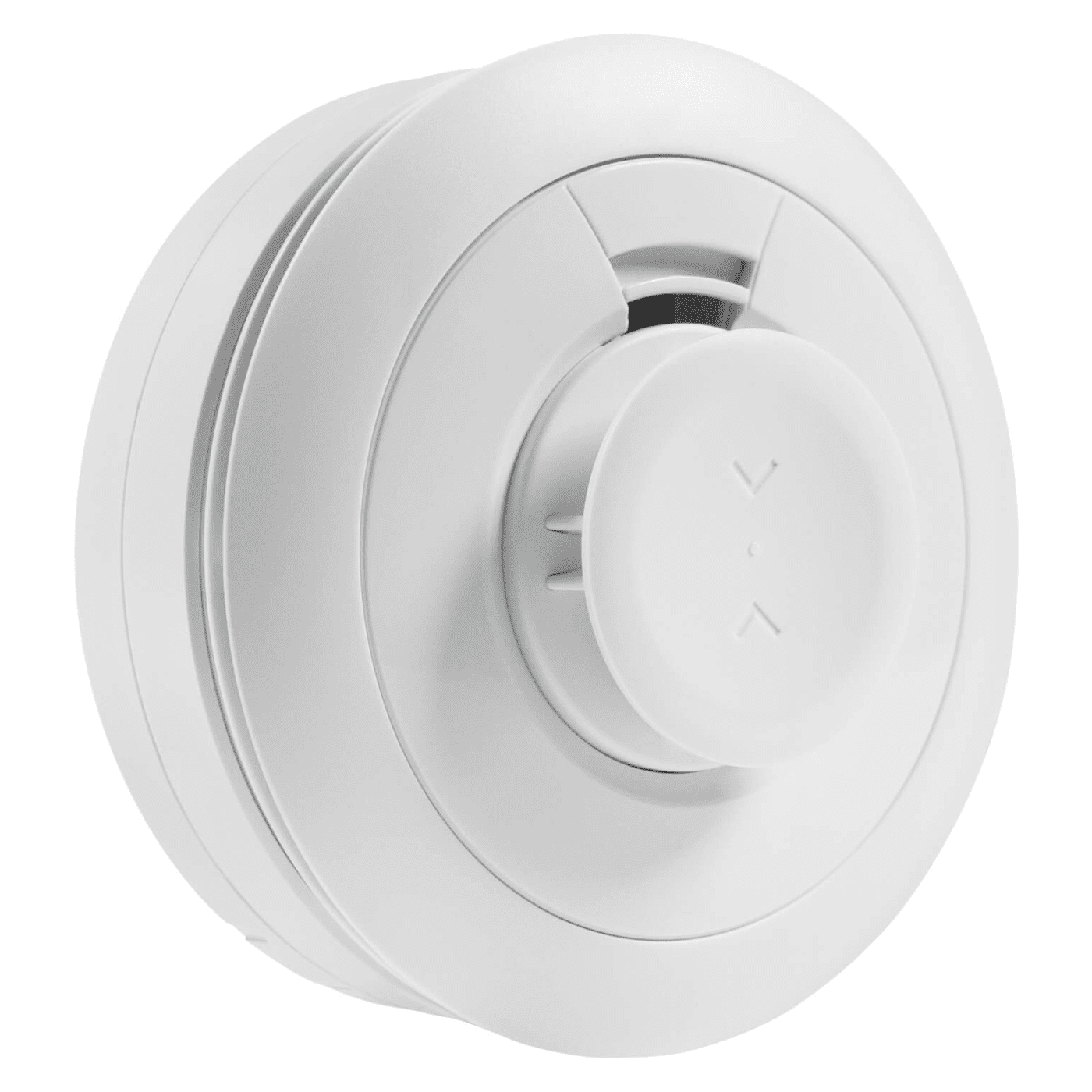

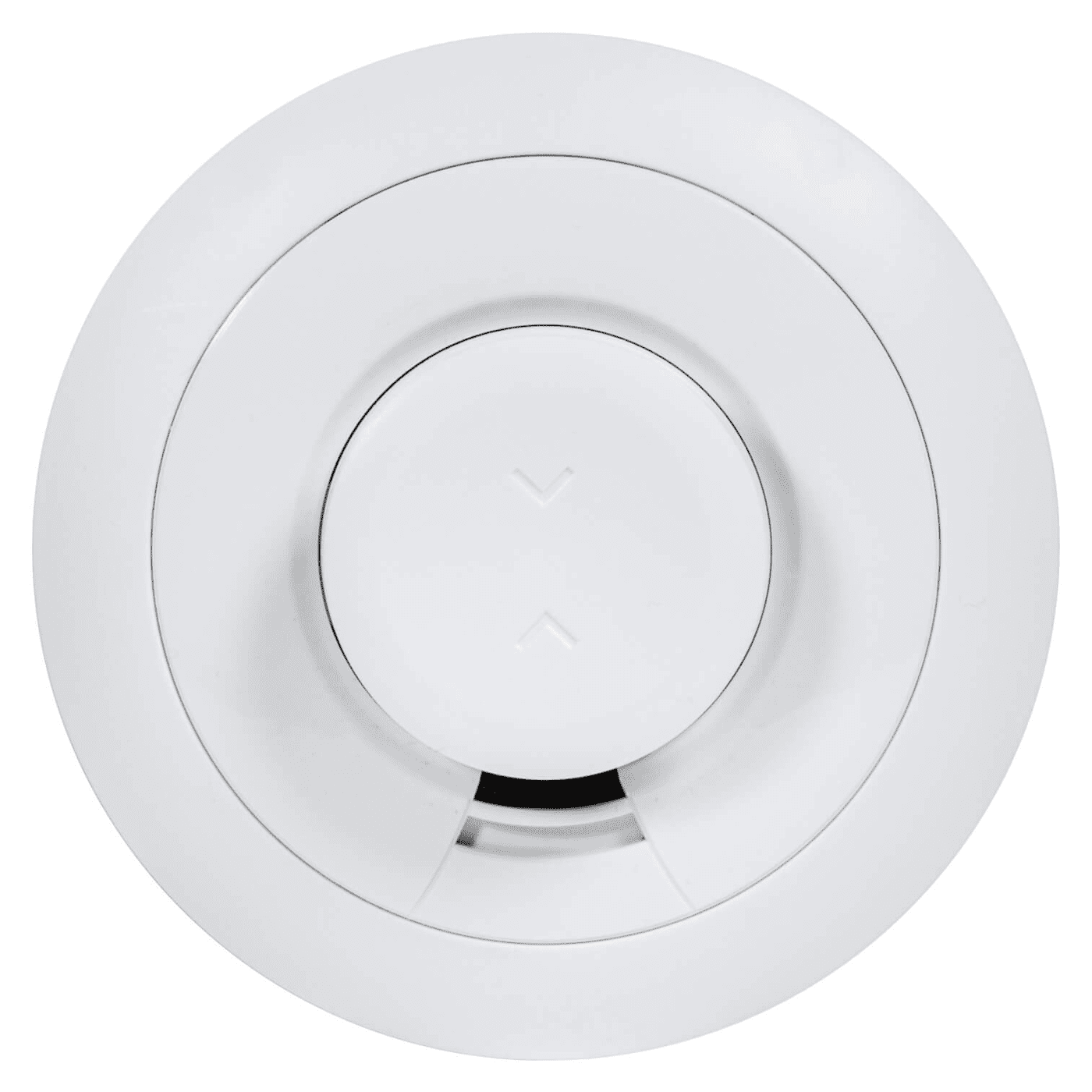

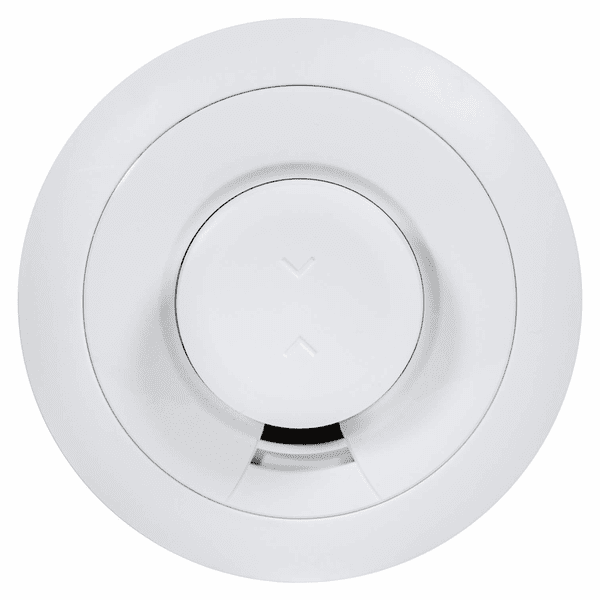

2GIG-SMKT100-345 - 2GIG Wireless 345S Series Combo Smoke, Heat and Freeze Detector
2GIG-SMKT100-345 Product Description:
The 2GIG-SMKT100-345 is a multi-function wireless smoke, heat, and freeze detector engineered to provide comprehensive life safety protection for residential and commercial environments. Designed to detect potential fire issues earlier and with greater accuracy, this intelligent device ensures timely alerts in the event of smoke, excessive heat, or freezing conditions.
Using advanced detection algorithms and a sophisticated photoelectric optical sensor, the SMKT100-345 distinguishes real fire and smoke events from everyday activities like cooking, significantly reducing nuisance alarms. It meets the rigorous UL217 8th Edition and UL268 7th Edition standards, ensuring high-performance detection of smoke from both natural and synthetic materials commonly found in modern furnishings.
Part of the 2GIG 345S Series, the detector features an onboard switch for encrypted or non-encrypted communication, simplifying installation and inventory management for professional installers. It seamlessly integrates with 2GIG EDGE, GC Touch, and earlier 2GIG control panels, providing reliable compatibility across the 2GIG ecosystem.
In addition to smoke detection, the SMKT100-345 offers multi-level temperature monitoring, including a fixed high-heat alert at 134°F, a freeze alert at 40°F, and a rate-of-rise detection function for rapid temperature increases. With a projected 10-year battery life, the device delivers long-term reliability, reduced maintenance, and consistent protection.
Product Features:
- Triple Detection Functionality - Detects smoke, heat, and freeze conditions in one compact device.
- Advanced Photoelectric Optical Sensor - Enhances smoke detection accuracy while reducing nuisance alarms.
- Early Fire Detection - Provides timely alerts for smoke and heat from both natural and synthetic materials.
- Meets UL Standards - Certified to UL217 8th Edition and UL268 7th Edition for advanced fire detection performance.
- Reduces False Alarms - Designed to minimize triggers from everyday cooking or steam.
- Temperature Alerts - Activates alerts for:
High Heat: 134°F (57°C) fixed threshold
Freeze Condition: 40°F (4.4°C) low-temperature alert
Rate-of-Rise Detection: Detects rapid temperature increases - Switchable Encryption - Easily toggle between encrypted or non-encrypted communication modes.
- 345S Series Compatibility - Works seamlessly with 2GIG EDGE, GC Touch, and legacy 2GIG panels.
- Fully Supervised Wireless Operation - Provides tamper detection and low-battery notifications for reliability.
- Long Battery Life - Up to 10 years of dependable operation for reduced maintenance.
- Flexible Installation - Simple ceiling or wall mounting options for residential or commercial environments.
- Professional Grade Design - Ideal for integrators and security installers seeking high performance and durability.
2GIG-SMKT100-345 Product Specifications:
- Dimensions (D x W x H): 4.7" x 2.3" (120 x 58 mm)
- Weight: 0.46 lbs
- Transmitter Frequency: 345 MHz
- Wireless Signal Range: 350 ft (106.7m), open air with Wireless Control Panel
- Series: 345S Series
- Detection Functions: Smoke, fixed temperature heat, rate-of-rise heat, and freeze
- Detection Method: Advanced algorithms for synthetic and natural materials
- Smoke Sensitivity: Meets UL requirements for photoelectric smoke detection
- Sensor Type: Photoelectric optical smoke sensor
- Encryption: On/off switchable (encrypted and non-encrypted modes)
- Audible Alarm: >85dB (A) at 10ft (3m) minimum
- Heat Detection: Fixed temperature at 134°F (57°C) and rate-of-rise detection
- High Temperature Level: 134°F ± 4°F
- High Temperature Rate of Rise: Temperature above 104°F and increases 15°F or more in one minute
- Freeze Detection: Alerts at 40°F (4.4°C)
- Low Temperature Level: 40°F ± 4°F. Reset at 45°F ± 4°F
- Mounting Options: Wall or ceiling
- Compatibility: 2GIG EDGE, GC Touch, GC2e, GC3e, and legacy 2GIG systems or 345 MHz compatible systems
- Supervision: Fully supervised with tamper and low-battery monitoring
- Supervisory Interval: 70 Minutes
- LED Indicators: Status, alarm, and low battery
- Housing Material: Durable ABS Plastic
- Color: White
- Installation Environment: Residential and light commercial
- Operating Temperature: -40° to 100°F (4.4° to 37.8°C)
- Relative Humidity: 15% to 95%, Non-condensing
- Batteries (Included): 2 x Long-life 3V lithium battery (CR123A or equivalent)
- Battery Life: Up to 10 Years (typical use)
- Warranty: 2 years limited manufacturer's
- Regulatory Listing: UL268 7th Edition, CAN/ULC S529 7th Edition, CSFM
2GIG-SMKT100-345 Product Compatibility:
- 2GIG EDGE
- GC Touch
- GC2e
- GC3e
- Legacy 2GIG Systems
- Other 345 MHz Compatible Systems
