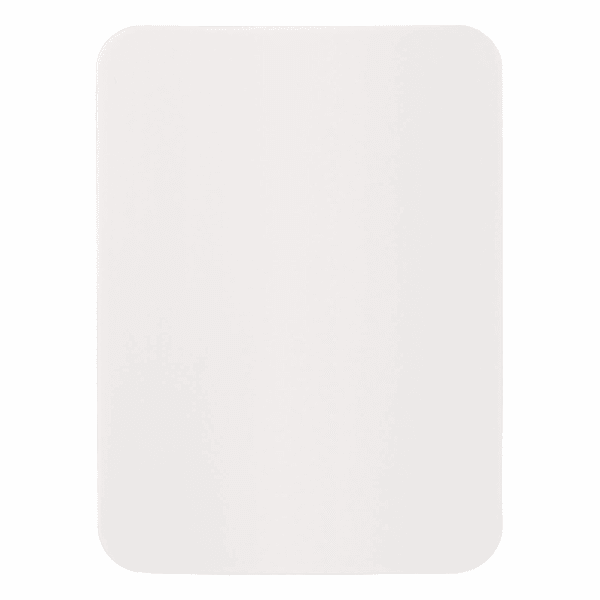

2GIG-TAKE100-345 - 2GIG Hardwired to Wireless 345S Series Takeover Module
Please Note: The 2GIG TAKE100-345 (2GIG-TAKE100-345) hardwired to wireless 345S series takeover module is a special order item.
2GIG-TAKE100-345 Product Description:
The 2GIG-TAKE100-345 wireless hardwire takeover module gives professional installers a simple and efficient way to upgrade existing 12-volt prewired security systems into a modern 2GIG wireless solution. This powerful 2GIG TAKE100-345 module converts traditional hardwired zones into 345 MHz wireless zones, providing a seamless transition to next-generation smart security technology.
Each 2GIG-TAKE100-345 module supports up to eight hardwired loops, allowing for straightforward integration of legacy systems into the 2GIG wireless ecosystem. For larger installations, additional modules can be added to expand system capacity and maintain full zone coverage.
Designed for installer flexibility, the module can be powered directly from the existing alarm panel's 12V DC power supply and backup battery, ensuring continuous operation even during power outages. It also includes an onboard charging circuit with an LED status indicator for easy diagnostics. The built-in auxiliary 500 mA output can power wired motion or glass break sensors, eliminating the need for separate power supplies.
As part of the 2GIG 345S Series, the TAKE100-345 features a switchable encryption mode - defaulting to non-encrypted communication but easily configured for encrypted operation with compatible control panels such as the 2GIG EDGE, GC Touch, and earlier 2GIG panels.
Engineered for indoor use, the module is not designed for carbon monoxide (CO) or fire detection zones, and it does not support end-of-line resistors. With its reliable performance, installer-friendly design, and robust compatibility, the 2GIG-TAKE100-345 is the ideal solution for converting wired systems to wireless security.
Product Features:
- Easily Converts Hardwired Zones to Wireless - Supports up to 8 hardwired loops per module.
- Expandable Design - Add additional modules for larger installations and more zones.
- Switchable Encryption - Choose between non-encrypted or encrypted communication for flexible system setup.
- Power Integration - Uses the existing alarm panel's 12V power supply and backup battery.
- Onboard Charging Circuit - Includes status LED for quick visual diagnostics.
- Auxiliary Power Output - Provides up to 500 mA for powering wired motion or glass break sensors.
- Full 2GIG Compatibility - Works seamlessly with 2GIG EDGE, GC Touch, and legacy 2GIG panels.
- Indoor Use Only - Not intended for CO or fire detection zones.
- No End-of-Line Resistor Support - Simplifies installation for standard alarm loops.
- Professional-Grade Design - Built for reliability, flexibility, and easy integration.
2GIG-TAKE100-345 Product Specifications:
- Model Number: 2GIG-TAKE100-345
- Product Type: Hardwired-to-Wireless Takeover Module
- Dimensions (L x W x H): 3.53" (89.7mm) x 2.56" (65.0mm) x 1.22" (31.0mm)
- Weight: 3.21 oz (90.9g)
- Transmitter Frequency: 345 MHz
- Series: 345S Series
- Function: Converts existing hardwired zones into 2GIG wireless zones
- Input Voltage: 16.5, 20VAC
- Power Input: 12V DC from existing alarm panel
- Backup Battery: Uses existing panel's backup battery
- Encryption: On/off switchable (encrypted and non-encrypted communication modes)
- Compatibility: 2GIG EDGE, GC Touch, GC2e, GC3e, and legacy 2GIG systems or 345 MHz compatible systems
- Supervision: Fully supervised wireless operation
- LED Indicators: Power and status indication

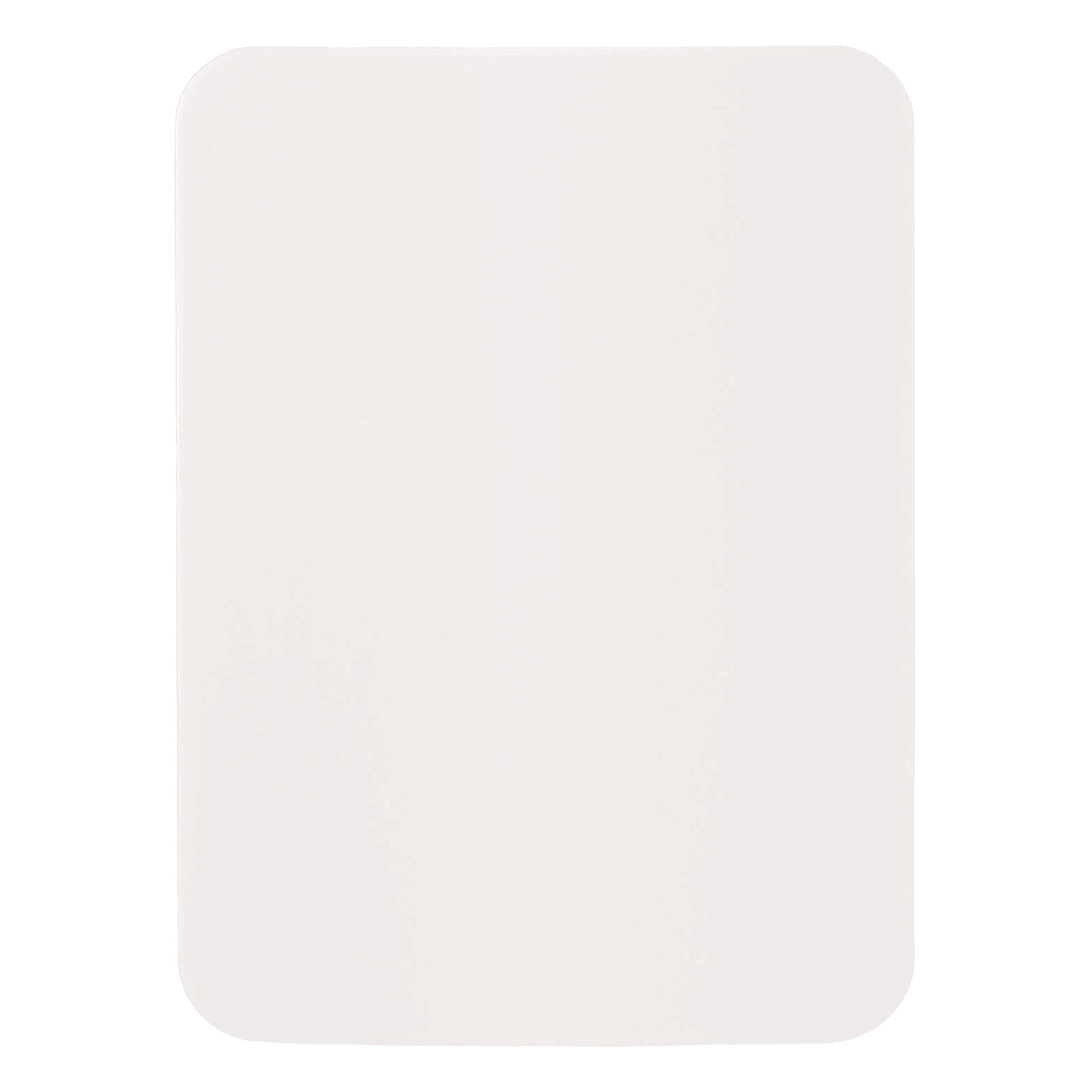

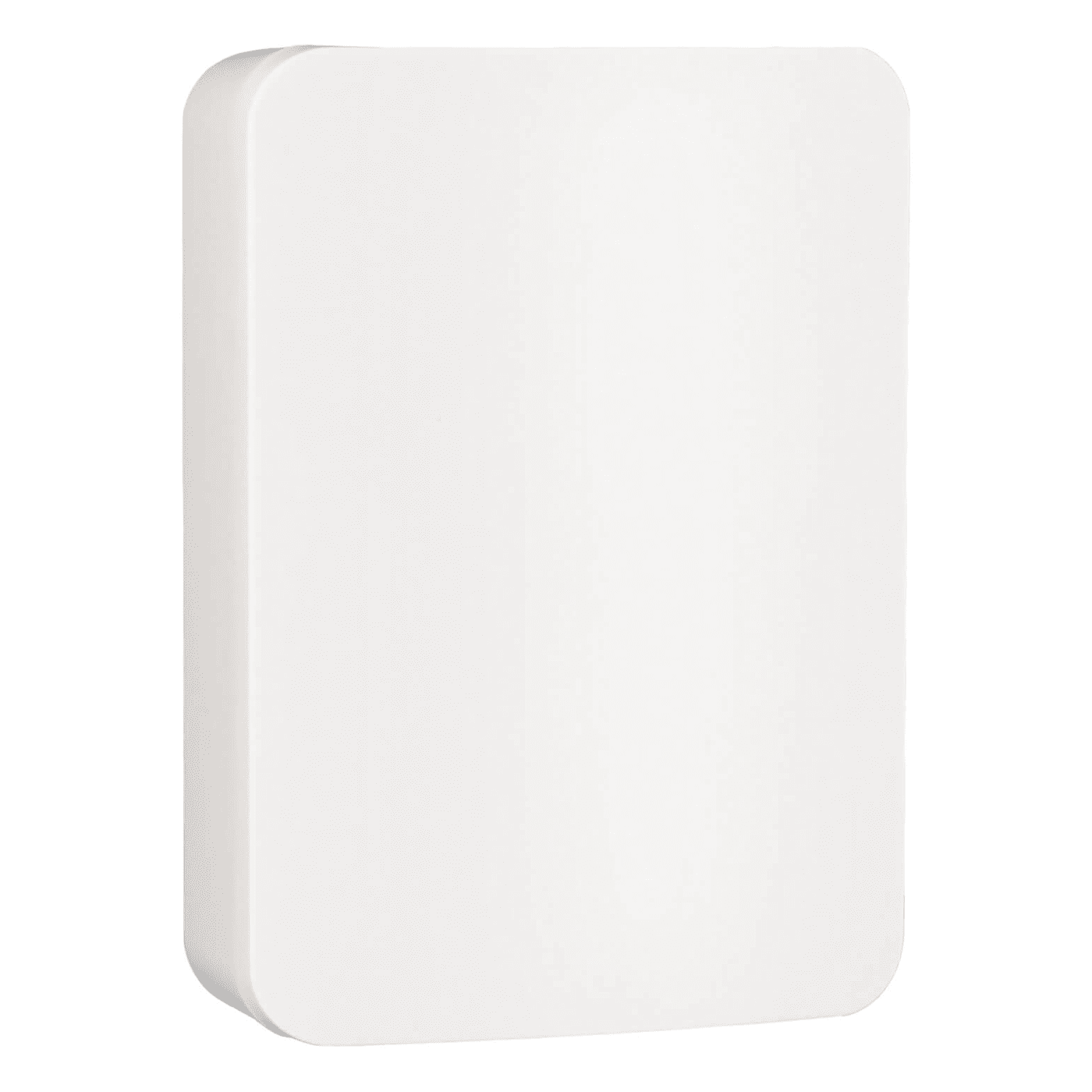

- Housing: Compact plastic enclosure (indoor use only)
- Color: White, black button
- End-of-Line Resistor Support: Not supported
- CO/Fire Zone Support: Not supported (security zones only)
- Mounting Type: Panel-mounted or wall-mounted inside protected enclosure
- Operating Temperature: 32° to 120°F (0° to 49°C)
- Relative Humidity: 5 to 95%, non-condensing
- AC Barrel Connector: DC power barrel plug, type A: 5.5mm OD, 2.1 mm ID
- Input Voltage: 9-16VDC or 16.5-20VAC
- Aux Output: 10-16V, 500mA
- Supported Zones: 8 wired zones; 1 self-monitor zone
- Warranty: 2 years limited manufacturer's
- Certifications: ETL, FCC, Industry Canada
2GIG-TAKE100-345 Product Compatibility:
- 2GIG EDGE
- GC Touch
- GC2e
- GC3e
- Legacy 2GIG Systems
- Other 345 MHz Compatible Systems
