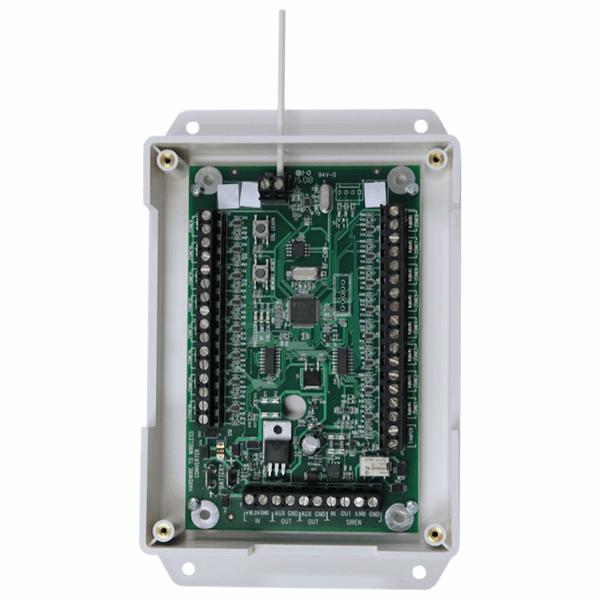

QS7133-840 - Qolsys IQ 16-F Hardwired-to-Wireless Security Sensor and Smoke Detector Translator (w/Small Enclosure)

Description
Specifications
Documents
Compatible

Qolsys QS7133-840 Product Description:

The Qolsys QS7133-840 (aka IQ Hardwire 16-F) is a S-Line translator with small enclosure that allows you to encrypt and connect up to 16 hardwired zones wirelessly to any S-Line compatible Qolsys IQ control panel. The QS7133-840 is a cost effective way of integrating hardwired security and smoke detector zones with the compatible IQ panel.

It includes backup battery charging, 500mA of 12 volt auxiliary power, an onboard siren relay, built-in status LED's for each zone and support for up to 10 two-wire smoke detectors. Normally Open and Normally Closed contacts are supported as well as powered zones like motion sensors and glass break detectors.

Product Features:

Encrypted S-Line sensor technology protects signals sent to the compatible panel (while still providing support for legacy 319.5 systems)
Supports up to ten two wire smoke detectors - 1 two-wire smoke loop, 10 detectors maximum, only supports System Sensor® smokes *2W-B, 2WT-B, 2WTA-B (*Detector models should not be mixed.)
LED lighted zones for ease of "learn-in" installation/troubleshooting
EOL supervision using 4.7K Ohm resistors (included)
Up to 500 Milliamps of power for hardwired motion detectors, glass break detector, and/or sirens
Charging circuit for back-up battery, fully supervised with power outage recovery

Qolsys QS7133-840 Product Specifications:

Dimensions: 5.5 x 3.5 inches
Backup batteries: 12VDC, 5AH Max (optional)
Input voltage: 16VDC Plug-In Transformer
Operating Temperature: 32°F to 122°F (0°C to 50°C)
Humidity: 95&per; RH Max
EOL Supervision: 4.7K Ohm
Input Zones: 15 N/O or N/C
Smoke Zone: 1 two-wire smoke loop, 10 detectors max. Support for System Sensor® 2W-B, 2WT-B*
Auxiliary Voltage Output: 12VDC @ 500mA Max
Tamper Zone: Used for case tamper, no resistor
Relay Contact: 60VDC/1A Max drives siren or other device

Qolsys QS7133-840 Product Documents:

• Quick Installation Guide for Qolsys QS7133-840 Hardwired 16-F Translator

Qolsys QS7133-840 Product Compatibility:

Qolsys IQ Panel 2 (Model Numbers: QS9201-1200-840, QS9202-1200-840)
Qolsys IQ Panel 2+ (Model Numbers: QS9201-1208-840, QS9202-1208-840)
Qolsys IQ Panel 4 (Model Numbers: IQP4001, IQP4004, IQP4007)
Qolsys IQ Hub (Model Numbers: QS9301-1200-840, QS9302-1200-840, QS9307-1200-124)
Qolsys IQ4 Hub (Model Number: IQPH051)
