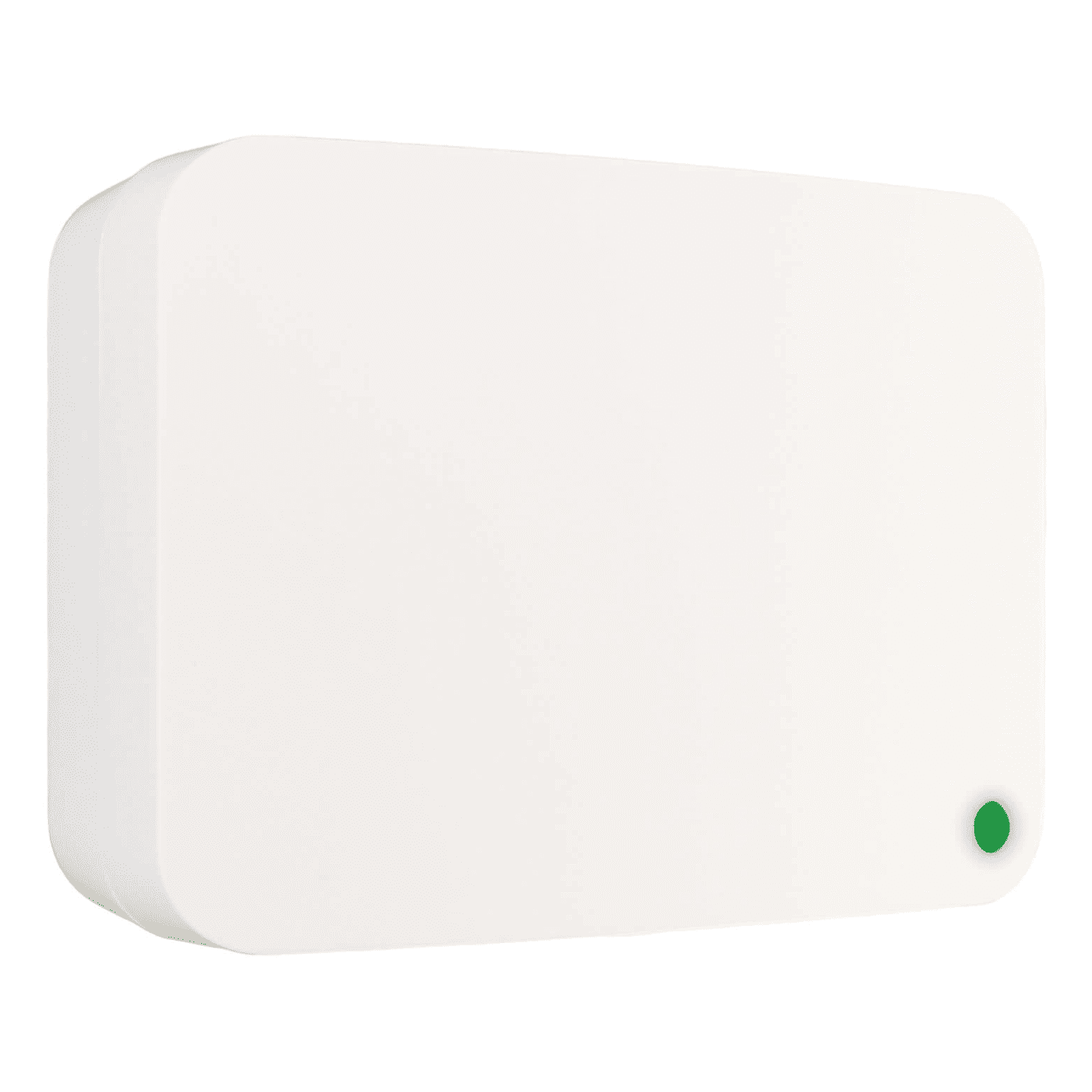

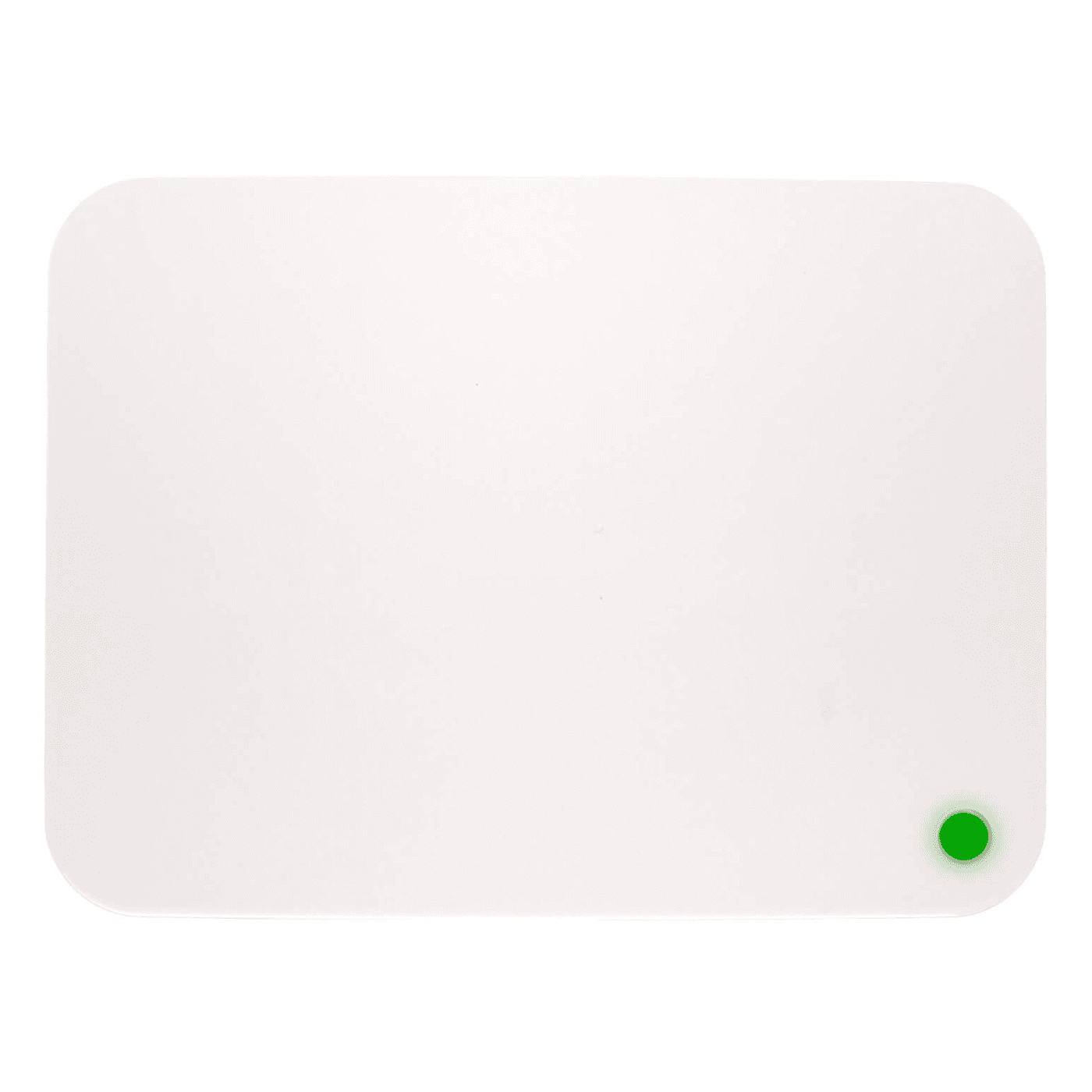

2GIG-RPTR100-345 - 2GIG Wireless 345S Series Alarm Repeater (for 345 MHz Frequency)
2GIG-RPTR100-345 Product Description:
The 2GIG-RPTR100-345 wireless 345S series alarm repeater is designed to extend the communication range of 2GIG security systems, providing greater flexibility and reliability in wireless sensor placement - especially in large homes, offices, or commercial environments.
Operating at 345 MHz, this repeater enhances signal strength and coverage by repeating both 2GIG and Honeywell wireless sensor signals back to 2GIG control panels. It's a true plug-and-play device, automatically beginning signal repetition as soon as it's powered on, allowing for a quick and efficient installation process for professional installers.
Ideal for expanding system coverage, the RPTR100-345 ensures reliable communication in environments where distance or structural obstacles might otherwise cause signal drop-offs. Its rechargeable backup battery provides up to 24 hours of power during AC outages, ensuring uninterrupted protection even when the main power source is lost.
For advanced monitoring, the repeater supports optional zone programming, allowing supervision of Tamper, AC Loss, and Low Battery conditions for added system reliability and oversight.
Engineered for professional-grade performance, the 2GIG-RPTR100-345 is a dependable and efficient solution for extending the reach and performance of any 2GIG wireless security installation.
Product Features:
- Extends Wireless Range - Increases signal distance between sensors and control panels.
- Repeats 2GIG & Honeywell Signals - Compatible with both 2GIG and Honeywell 345 MHz devices.
- Plug-and-Play Setup - Begins repeating signals immediately upon powering on.
- Ideal for Large Installations - Enables flexible sensor placement for large homes or buildings.
- Rechargeable Backup Battery - Provides up to 24 hours of power during AC outages.
- Optional Zone Programming - Monitors Tamper, AC Loss, and Low Battery conditions.
- Reliable Communication - Reduces signal interference and ensures consistent sensor performance.
- Professional Grade Design - Built for security installers and system integrators.
- Fully Compatible - Works with 2GIG EDGE, GC Touch, and earlier 2GIG control panels.
- Simple Installation - Compact design with wall-mount or plug-in flexibility.
2GIG-RPTR100-345 Product Specifications:
- Model Number: 2GIG-RPTR100-345
- Product Type: Wireless Alarm Signal Repeater
- Dimensions (L x W x H): 3.53" (89.7mm) x 2.56" (65.0mm) x 1.22" (31.0mm)
- Weight (without battery): 125 g (4.4 oz.)
- Transmitter Frequency: 345 MHz
- Series: 345S Series
- Supported Devices: Repeats signals from both 2GIG and Honeywell 345 MHz sensors
- Compatibility: 2GIG EDGE, GC Touch, GC2e, GC3e, and legacy 2GIG systems or 345 MHz compatible systems
- Setup Type: Plug-and-play (automatic signal repetition upon power-up)
- Supervised Conditions: Optional zone programming for Tamper, AC Loss, and Low Battery
- Backup Battery: Rechargeable battery, provides up to 24 hours of backup operation
- Charging Circuit: Integrated with status LED indicators
- Operating Range: Extends effective wireless communication up to hundreds of feet depending on environment
- LED Indicators: Power, signal transmission, and supervision status
- Installation Type: Wall-mounted or plug-in installation
- Housing Material: High-impact ABS plastic enclosure
- Operating Temperature: 14° to 131°F (-10° to 55°C)
- Relative Humidity: 5 to 85%, non-condensing
- Power Type: Remotely powered by AC adapter, with internal battery backup
- AC Adapter Nominal Input Voltage: 100-240 VAC, 50/60 Hz adapter (included)
- AC Adapter Nominal Output Voltage: 14 VDC
- Warranty: 2 years limited manufacturer's
- Certifications: FCC, IC, ETL Listed
2GIG-RPTR100-345 Product Compatibility:
- 2GIG EDGE
- GC Touch
- GC2e
- GC3e
- Legacy 2GIG Systems
- Other 345 MHz Compatible Systems
