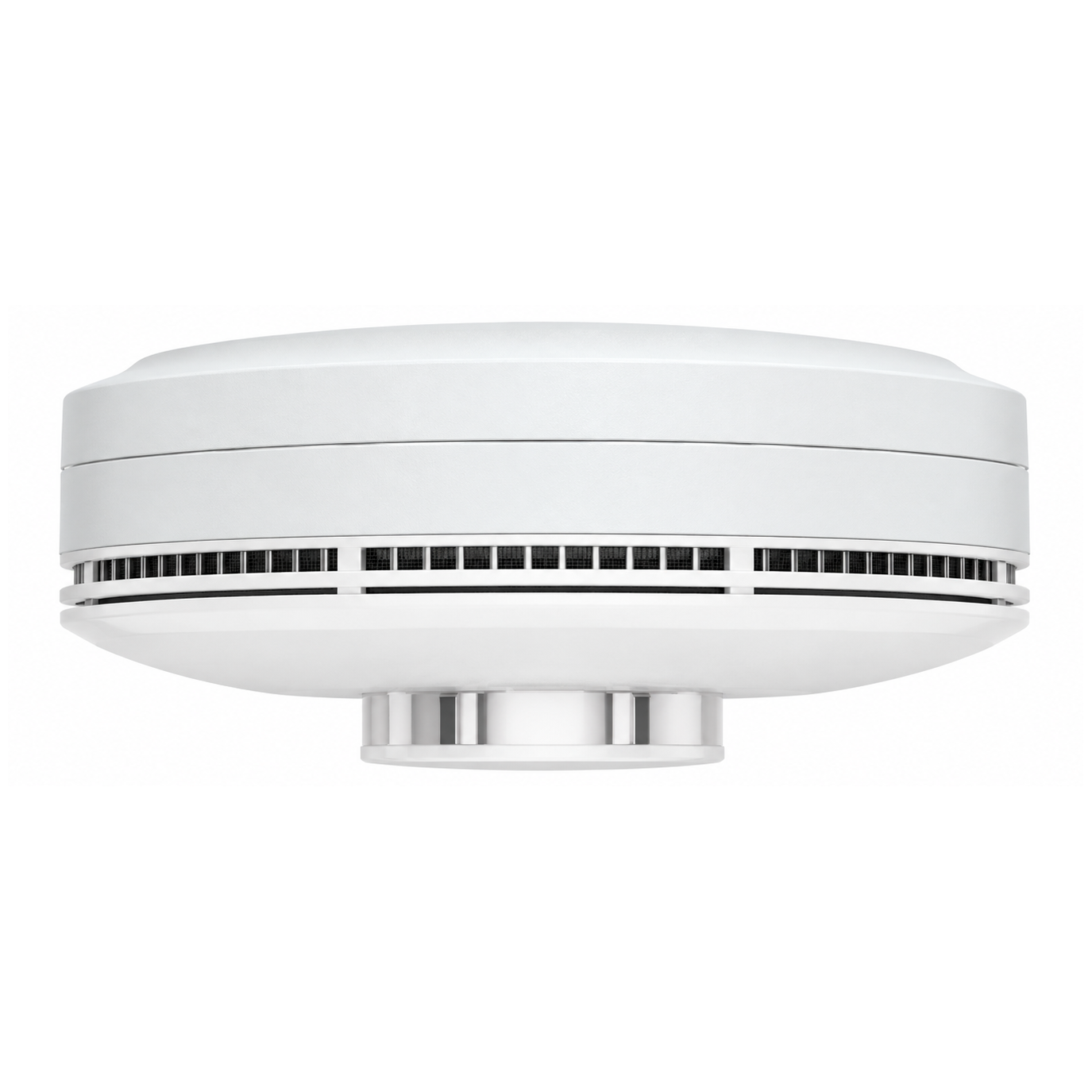

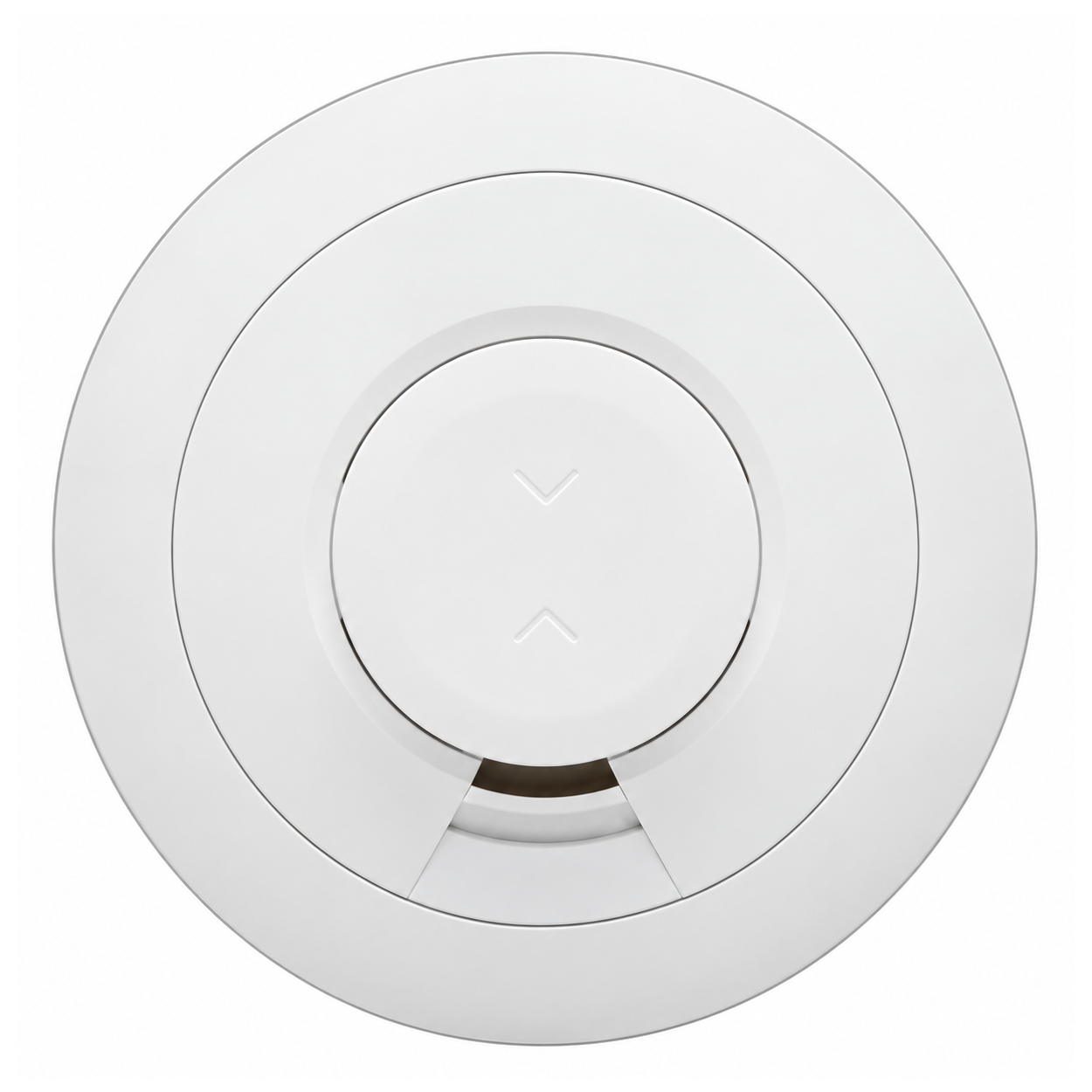

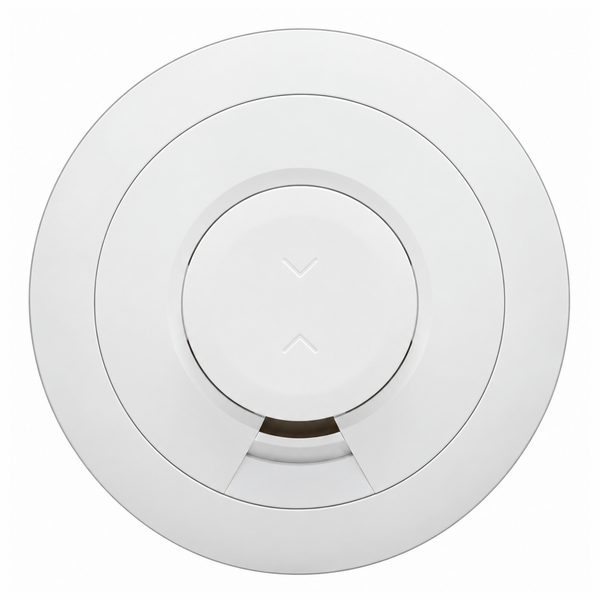

QS5130-840 - IQ Wireless Combo Smoke/Heat Detector
IQ QS5130-840 Product Description:
The IQ Smoke & Heat (QS5130-840) is a wireless 319 MHz S-Line smoke and heat detector designed to provide reliable, around-the-clock fire protection for homes and businesses. Featuring advanced photoelectric smoke-sensing technology that helps quickly detect smoke while reducing nuisance alarms, supplemental fixed-temperature and rate-of-rise heat detection, and a built-in piezoelectric alarm, this detector helps identify potential fire hazards and provide early warning, even when little or no smoke is present.
Designed for compatibility with IQ Panel 5, IQ5 Hub, IQ5 NS, IQ Panel 4, IQ4 Hub, IQ Panel NS, IQ Panel 2+, and other supported Qolsys 319.5 MHz S-Line security systems, the IQ Smoke & Heat provides continuous life-safety monitoring whether the security system is armed or disarmed. When connected to a compatible IQ system, it enables remote notifications to help users stay informed about potential fire emergencies. With flexible wall or ceiling mounting, an easily accessible smoke chamber for convenient cleaning, and up to six years of battery life, this detector delivers dependable fire protection with minimal maintenance.
Product Features:
- Reliable Smoke Detection: Advanced photoelectric sensing technology helps quickly detect smoke while reducing nuisance alarms commonly associated with other detection methods.
- Fixed-Temperature Heat Detection: Supplemental heat sensing detects when temperatures reach a predetermined threshold, providing an additional layer of fire protection.
- Early Fire Awareness: Rate-of-rise heat detection helps identify rapidly developing fire conditions, even when little or no smoke is present.
- Always-On Fire Protection: Continuous life-safety monitoring provides protection whether the security system is armed or disarmed.
- Built-In Audible Alarm: Integrated piezoelectric alarm provides an audible warning when a potential fire condition is detected.
- Remote Fire Notifications: When connected to a compatible IQ security system with supported services, users can receive remote alerts and stay informed about potential fire events.
- IQ Security System Compatibility: Designed for supported IQ Panel 5, IQ5 Hub, IQ5 NS, IQ Panel 4, IQ4 Hub, IQ Panel NS, IQ Panel 2+, and other Qolsys 319.5 MHz S-Line security systems.
- 319 MHz S-Line Wireless Communication: Provides encrypted wireless connectivity with compatible IQ security systems.
- Flexible Installation: Wall and ceiling mounting options accommodate a wide range of residential installation requirements.
- Easy Maintenance: Top-positioned smoke chamber allows convenient access for inspection and cleaning.
- Long Battery Life: Up to six years of battery life under normal operating conditions helps reduce maintenance requirements while supporting dependable operation.
IQ QS5130-840 Product Specifications:
- Dimensions (W x D): 4.53" x 2.17" or 115mm x 55mm
- Weight: 8.64 ounces or 245g (including packaging)
- Sensor Types:
Thermistor: High temperature range 135°F ± 4°F or 58°C ± 4°C
ROR: 15°F / min when > 104°F or 8.3C/min when > 40C
Photoelectric (Optical) - Integrated Head Removal Tamper Switch: When head is removed a signal can be sent to the panel/hub via the RF module
- Sound Level: Minimum output 85dBA at 3m. The sounder contacts are soldered directly to the piezo disc for additional security
- Button Test: Checks the sensors, electronics, battery and horn
- Silence Function: Silences nuisance alarm (automatically resets after approximately 10 minutes)
- Supply Voltage: 1 x CR123A battery. Provision is made for a second opperational CR123A battery
- LED Indicators:
RED - Power up, button test, in alarm, in hush, memory
YELLOW - Power up, low battery, sensor fault, end of life - Operational Temperature: 40°F to 100°F (4°C to 38°C)
- Storage Temperature: 14°F to 104°F (-10°C to 40°C)
- Humidity Range: 15% - 95% Relative Humidity (non-condensing)
- Panel Compatibility: IQ Panel 5, IQ5 Hub, IQ5 NS, IQ Panel 4, IQ4 Hub, IQ Panel NS, IQ Panel 2+, PowerSeries Neo, PowerSeries Pro, IQ Pro, PowerMaster and other panels using the SRF319 radio card
