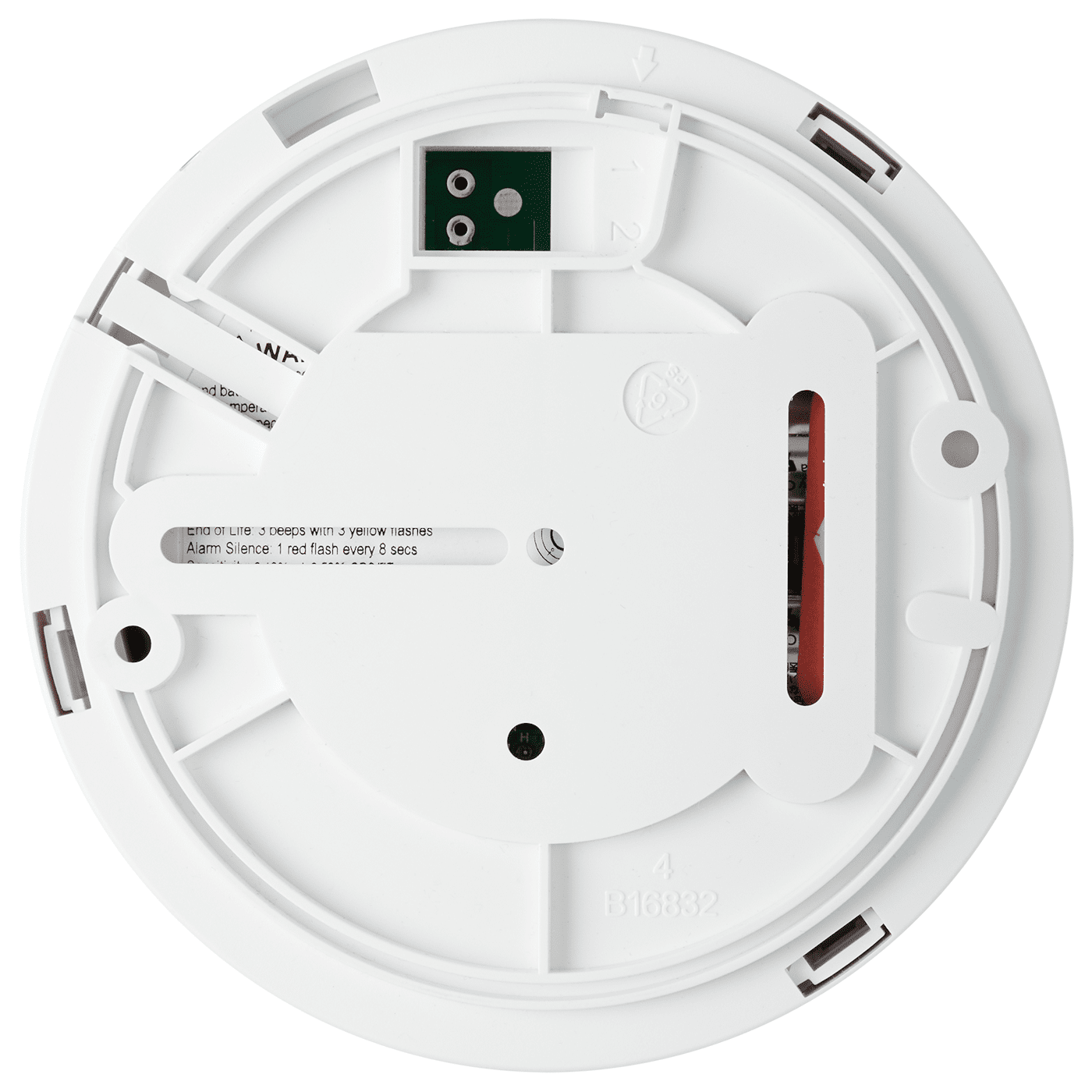

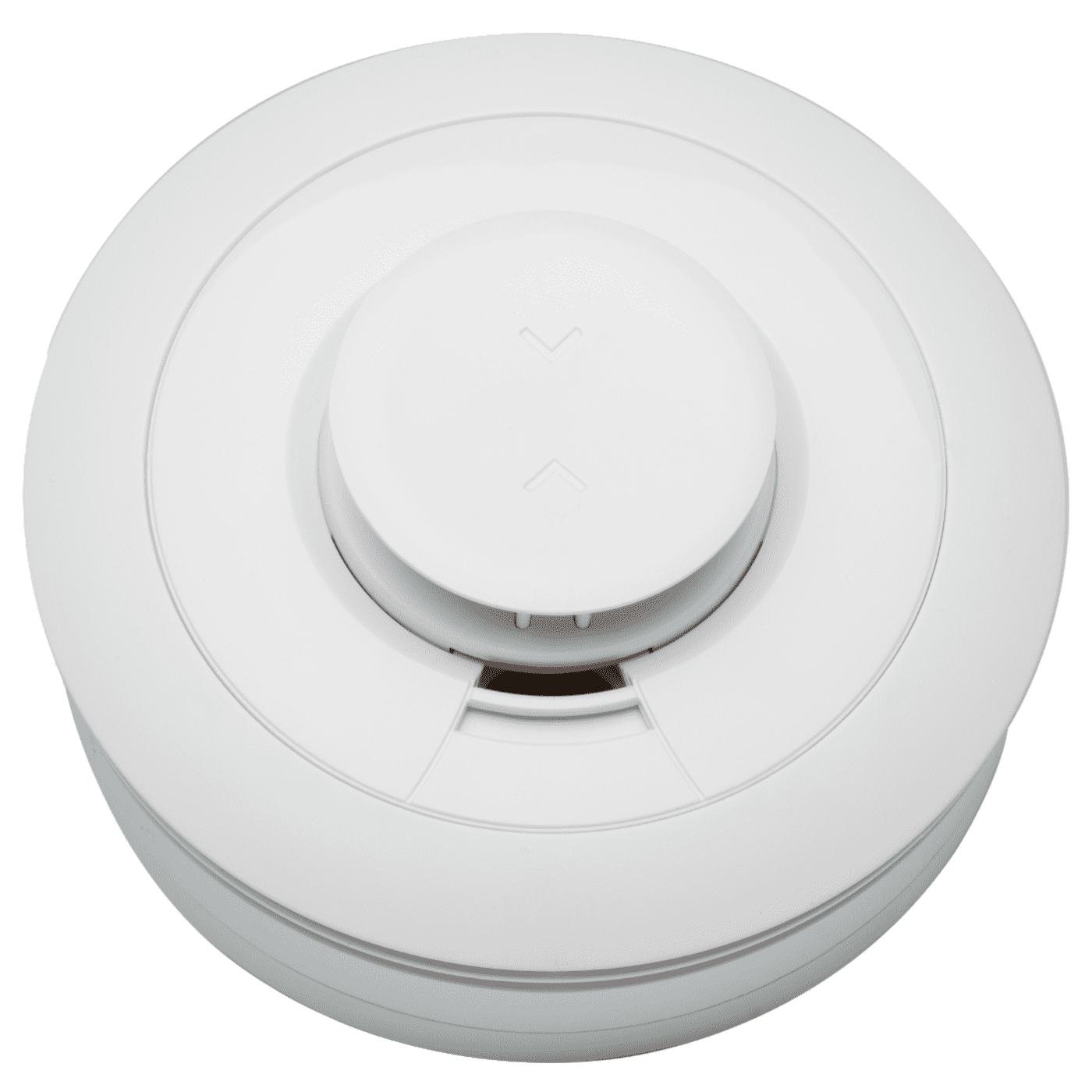

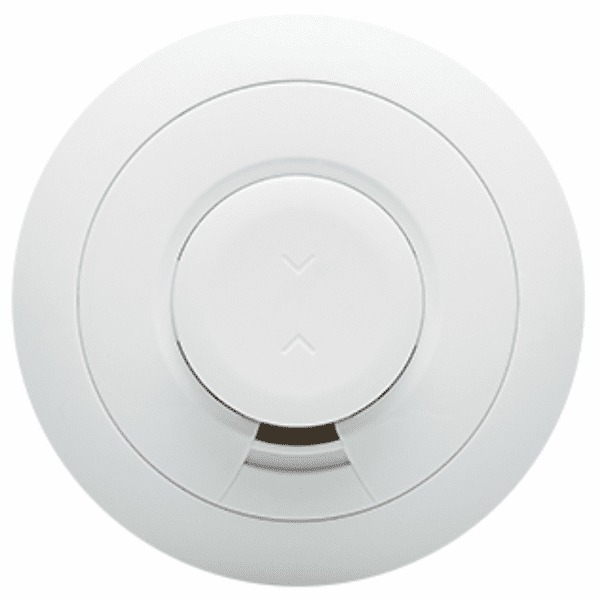

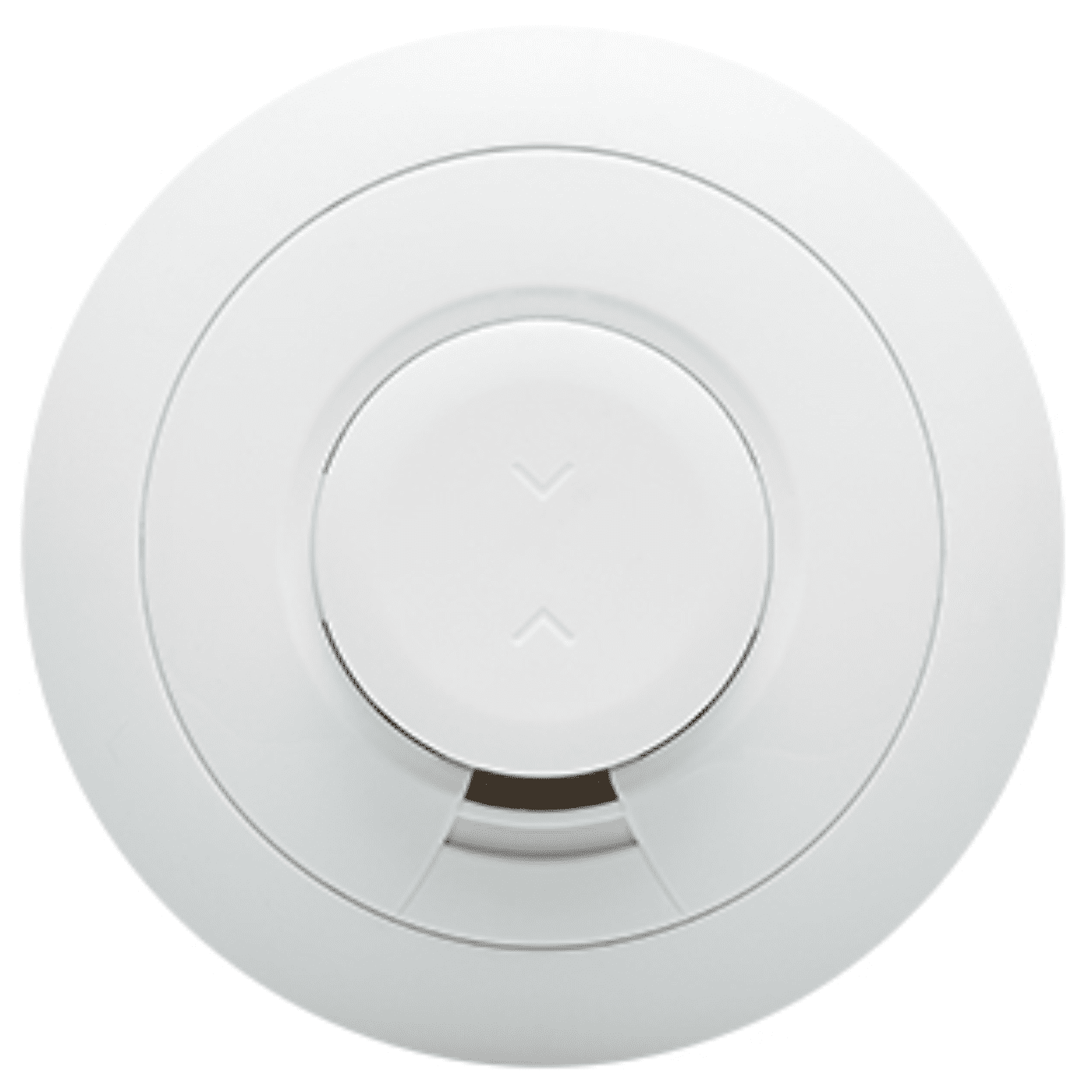

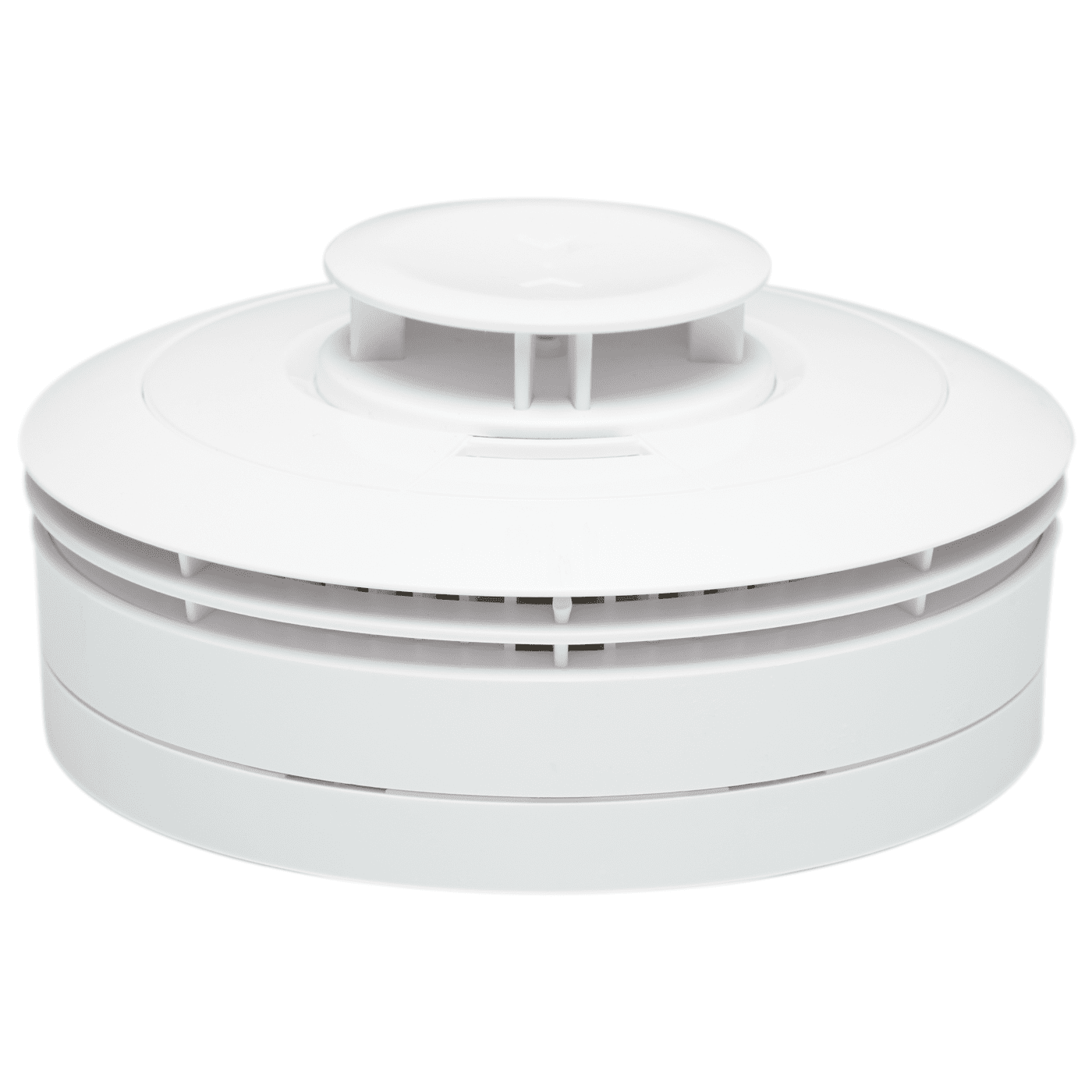

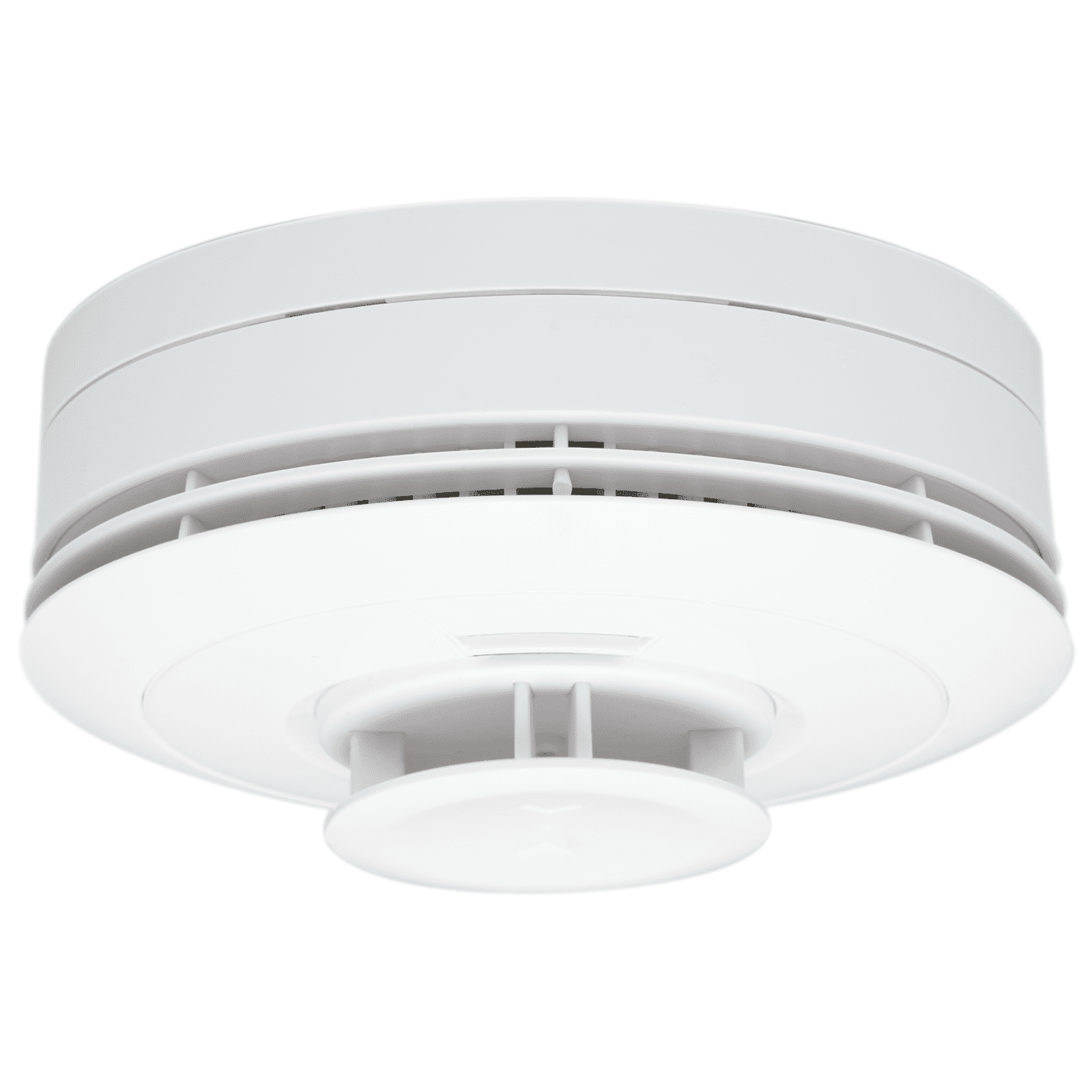

PGP9976 - DSC Wireless PowerG + Combo Smoke/Heat Detector
DSC PGP9976 Product Description:
The DSC PGP9976 is a wireless PowerG + photoelectric smoke and heat detector with a fixed temperature and rate of rise heat detector. The PGP9976 is an advanced life-safety device designed to bring high-performance fire detection to modern PowerG-compatible wireless security systems.
Leveraging PowerG's long-range, high-security wireless technology, this combo detector delivers reliable, rapid detection of both smoke and heat, making it an ideal choice for residential and commercial environments where dependable early warning is critical. Its dual-sensor design combines the strengths of both smoke and heat detection photoelectric sensing that responds quickly to visible smoke from smoldering fires, and a fixed high-temperature heat sensor that detects rapid rises in temperature. This multi-criteria approach reduces the likelihood of false alarms while providing comprehensive coverage across a wide range of fire scenarios.
Built for compatibility with PowerG-enabled panels such as IQ Panel 5, IQ5 Hub, and other PowerG-capable control panels, the PGP9976 features encrypted wireless communication with strong interference resistance and extended range, even in challenging RF environments. The unit supports advanced diagnostic reporting and low-battery indicators, enabling the panel to notify users or monitoring services of maintenance needs before a problem becomes serious. With its tamper-resistant design and smart supervisory features, it ensures continual monitoring of device status, maintaining peace of mind that critical life-safety zones are being watched at all times.
The PGP9976 detector's compact, modern styling blends seamlessly into contemporary interiors, while its simple wireless installation makes it a perfect fit for both new systems and retrofit upgrades. Designed to meet stringent UL217 and UL521 standards for smoke and heat detection, the PGP9976 provides code-compliant protection that adheres to fire safety recommendations. Its dual-sensor capability enhances detection accuracy and responsiveness, delivering dependable alerts to occupants and monitoring centers at the earliest signs of fire hazards.
Whether installed in homes, offices, or mixed-use spaces, the DSC PGP9976 Wireless PowerG + Combo Smoke/Heat Detector provides an essential layer of safety that integrates effortlessly into smart, self-installed security systems. By combining robust wireless performance with sophisticated dual-sensor technology and compatibility with modern interactive monitoring platforms, it helps protect life and property with intelligence, reliability, and ease.
Product Features:
- Dual-sensor detection combining photoelectric smoke and fixed high-temperature heat sensing
- PowerG + encrypted long-range wireless communication
- Compatible with PowerG-enabled alarm panels
- UL217 and UL521 listed for residential and commercial fire protection
- Advanced interference resistance and signal reliability
- Automatic supervisory check-ins with panel status reporting
- Low-battery monitoring with alert notifications
- Built-in tamper detection protection
- Fast response to both smoldering and fast-flaming fires
- Wireless design for easy installation and flexible placement
- Backed by DSC's 1-year limited manufacturer's warranty
DSC PGP9976 Product Specifications:
- Dimensions: 4.53" x 2.17" or 115mm x 55mm
- Weight (including packaging): 8.64 ounces or 245g
- Color: White
- Communication Protocol: PowerG +
- Sensor Types (Thermistor): High temperature range 135deg;F ± 4deg;F or 58C ± 4C
- Sensor Types (ROR): 15°F / min when > 104°F or 8.3C/min when > 40C
- Sensor Types: Photoelectric (Optical)
- Integrated Head Removal Tamper Switch: When head is removed a signal can be sent to the panel/hub via the RF module
- Sound Level: Minimum output 85dBA at 3m. The sounder contacts are soldered directly to the piezo disc for additional security
- Button Test: Checks the sensors, electronics, battery and horn
- Silence Function: Silences nuisance alarm (automatically resets after approximately 10 minutes
- Supply Voltage: 2 x Panasonic 3V CR123A Lithium Batteries
- LED Indicators (Red): Power up, button test, in alarm, in hush, memory
- LED Indicators (Yellow): Power up, low battery, sensor fault, end of life
- Operating Temperature: 40°F to 100°F (4°C to 38°C)
- Storage Temperature: 14°F to 104°F (-10°C to 40°C)
- Humidity Range: 15% - 95% Relative Humidity (non-condensing)
DSC PGP9976 Product Documents:
• Data Sheet - DSC PGP9976 Wireless PowerG + Combo Smoke and Heat Detector
• Installation Guide - DSC PGP9976 Wireless PowerG + Combo Smoke and Heat Detector
DSC PGP9976 Product Compatibility:
- DSC PowerSeries Neo Control Panels
- DSC PowerSeries Pro Control Panels
- Qolsys IQ Panel 4 Control Panels
- Qolsys IQ4 Hub Control Panels (Model Number: IQPH054, IQPH058)
- Qolsys IQ4 NS Control Panels (Model Number: IQPK047, IQPK048)
- Qolsys IQ Pro Control Panels
- IQ Panel 5 Control Panels
- IQ5 Hub Control Panels
- IQ5 NS Control Panels
