▼ Honeywell VISTA 20P Hardwired Security Systems ▼

Honeywell VISTA 20P Product Features


The high capacity, feature-rich VISTA 20P lets you deliver more value to your customers on each and every sale with up to 48 zones of protection, Internet uploading/downloading, graphic keypad support and dual partitions. VISTA 20P gives you the ability to send alarm signals and upload/download via an Internet Protocol (IP), improving the speed at which information can be delivered to and from the control panel. The control panel's installation advantages, innovative end-user benefits and robust system capacity make the value-priced VISTA 20P an ideal choice for higher end DiY installations.

The VISTA 20P is a high capacity, feature-rich, 48-zones security system that delivers more value to the DiYer. The VISTA 20P comes with 8 on-board hardwired zones (up to 15 with zone doubling), up to 40 hardwired zones with expansion (8 on-board zones + 32 expansion zones = 40 total hardwired zones), and up to 40 wireless expansion zones. Additionally, the VISTA 20P supports up to 16 wireless keyfobs, up to 48 user codes and up to 32 schedules. With the VISTA 20P you can have remote programming capability, add graphic keypad support and up to 2 partitions.

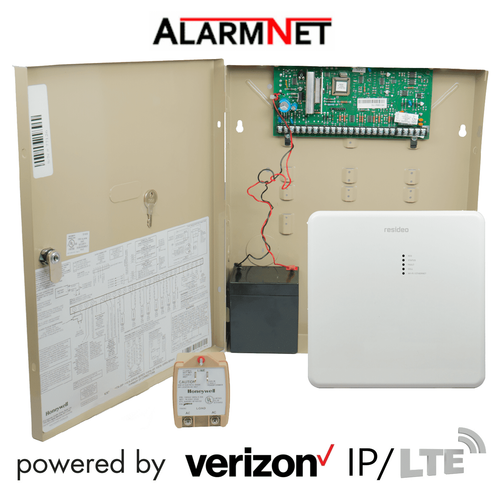

In addition, when used with an AlarmNet® broadband internet communicator (7847i), cellular AT&T LTE communicator (LTE-XA), cellular Verizon LTE communicator (LTE-XV), dual-path Verizon IP/LTE communicator (LTE-IV) or dual-path high-security Verizon IP/LTE communicator (LTE-HSV), the VISTA 20P can be installed in premises without traditional TELCO connected lines.

The VISTA 20P security system is backed by Honeywell's 2-year limited manufacturer's warranty and once upgraded with a Honeywell wireless alarm receiver is compatible with the full line of Honeywell 5800-Series wireless security products. GeoArm and Honeywell give you the options you need to fully customize your DiY security system.

Product Features:

  • IP alarm reporting and uploading/downloading capability for internet and intranet use via compatible communicators
  • Eight on-board hardwired zones standard (15 when Zone Doubling feature is used)
      - 40 hardwired expansion zones
      - 40 wireless expansion zones
  • Supports four graphic touchscreen keypads
  • Wireless keys can be programmed without using zones
  • 16 output devices
      - Relays (Model 4204 Relay Modules, or 4229 Expansion Module)
  • Two low-current on-board trigger outputs
  • 100 Event Log viewable at system keypads with time/date stamp
  • Expandable to 48 total zones when used with hardwired and/or wireless expansion modules
  • 48 system user codes assignable to either partition
  • Four installer-configurable zone types allows the installer to create custom zone types by assigning all zone attributes
  • Two independent partitions plus a common partition
      - Global Arming from any system keypad
      - Go to function to view or operate one partition from the other
      - Separate partition account numbers
  • Multiple actions on output devices depending on system "state"
      - Turns light off when system arms
      - Turns same lights on when system disarms
      - Flashes same lights when system is in alarm
  • Built-in phone line cut monitor with programmable delay and annunciation options
      - Display on system keypads
      - Trigger local sounders
      - Trigger system bell
  • Supports four-wire and up to 16 two-wire smokes
      - Works with Sentrol CleanMe maintenance signal

Honeywell VISTA 20P End User Features:


  • Viewable on system keypads:
      - Exit countdown
      - Time and date display*
      - Event log*
  • Auto keypad backlighting on entry
  • Keyswitch arming
  • Programmable macro buttons and single-button arming
  • Supports a variety of wireless remote controls for single-button operation
  • User Scheduling
      - Latchkey reports to pagers
      - Auto arm/disarm
      - "User access" time windows
  • VIP Module allows system control from any touchtone phone
  • Chime by Zone

Honeywell VISTA 20P Dealer Features:


  • Automatic System Load Shed
      - During extended AC power fail, the system battery will be disconnected to prevent irreversible battery failure. Reduces service calls to replace batteries.
  • Dynamic Signaling
      - Reduces redundant reporting to the GeoArm central station when multiple reporting methods are used; i.e. digital dialer and AlarmNet Radio


*Requires custom alpha keypad

Honeywell VISTA 20P How to Videos:



Do-it-yourself (DiY) home security is emerging as a new trend in the security industry as advances in wireless security system technology have eliminated the need for costly professional on-site hardwired installations. GeoArm is the perfect partner for any home security DiYer considering installing a new wireless security system. With 30-years of professional security installation experience, GeoArm has the technical know-how to make your DIY home security installation as easy and seamless as possible. You can be confident that your DiY security system installation will be backed by a team of expert security professionals. We stand out from our competition by providing you with FREE security system programming with our alarm monitoring services (leave the technical process to the pro's), FREE remote technical support, and FREE do-it-yourself videos!

Once GeoArm receives your order for a VISTA 20P cellular security system, you will receive a confirmation email with a link to an easy VISTA 20P programming form where you will fill out your account information and zone descriptions. Once you have mounted and hardwired all your security devices, GeoArm's central alarm monitoring station will help you do a full system test to ensure your VISTA 20P alarm signals are being sent and received correctly.
