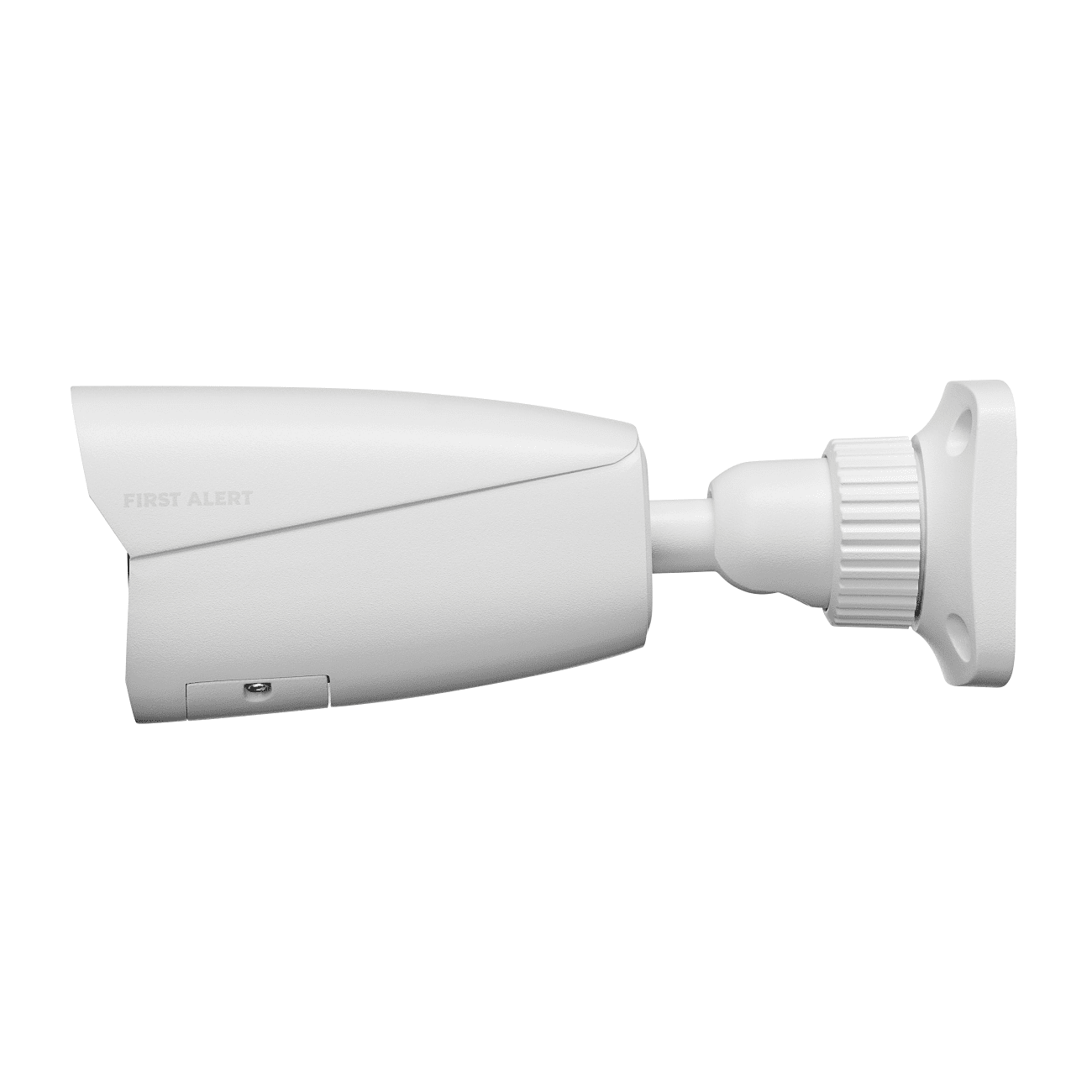

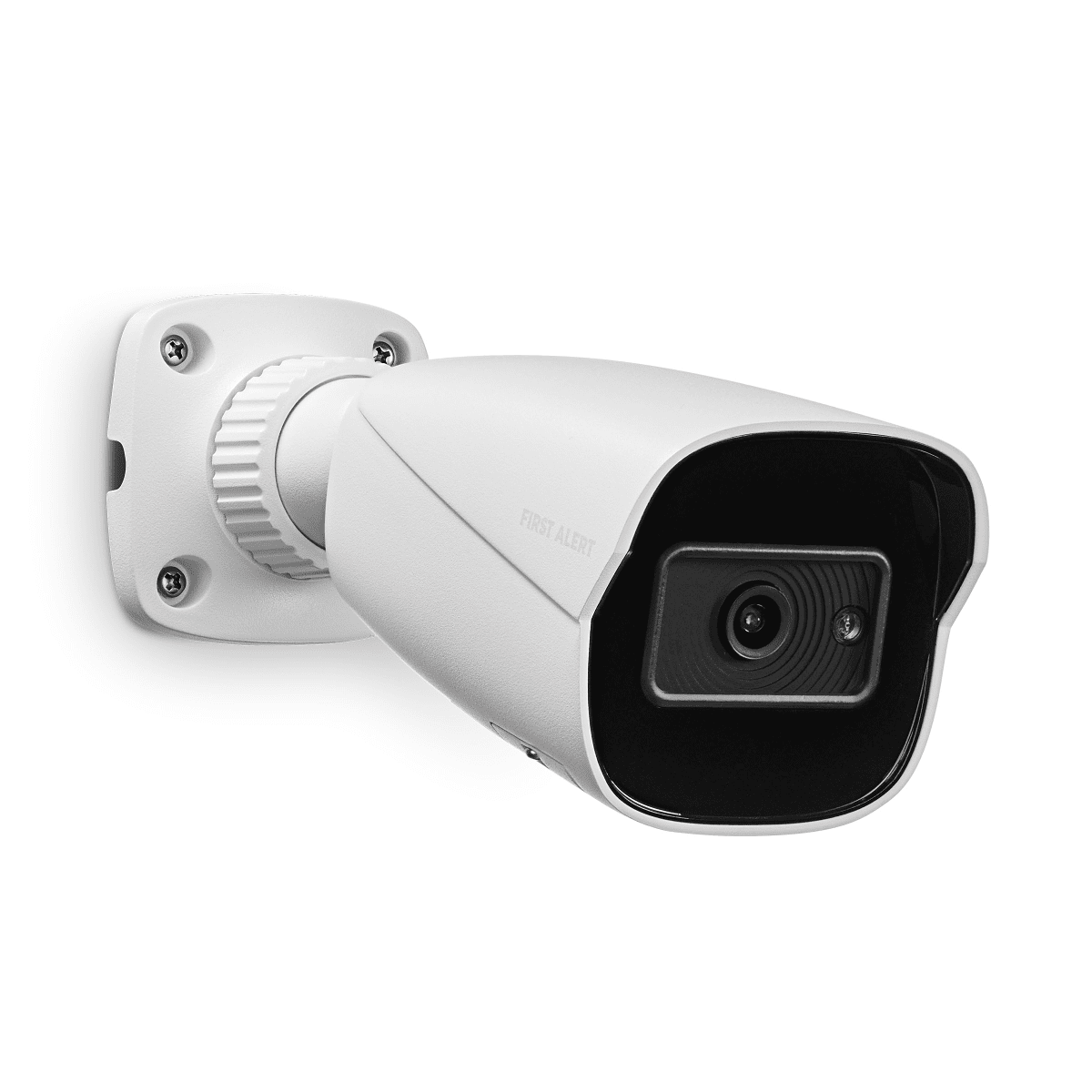

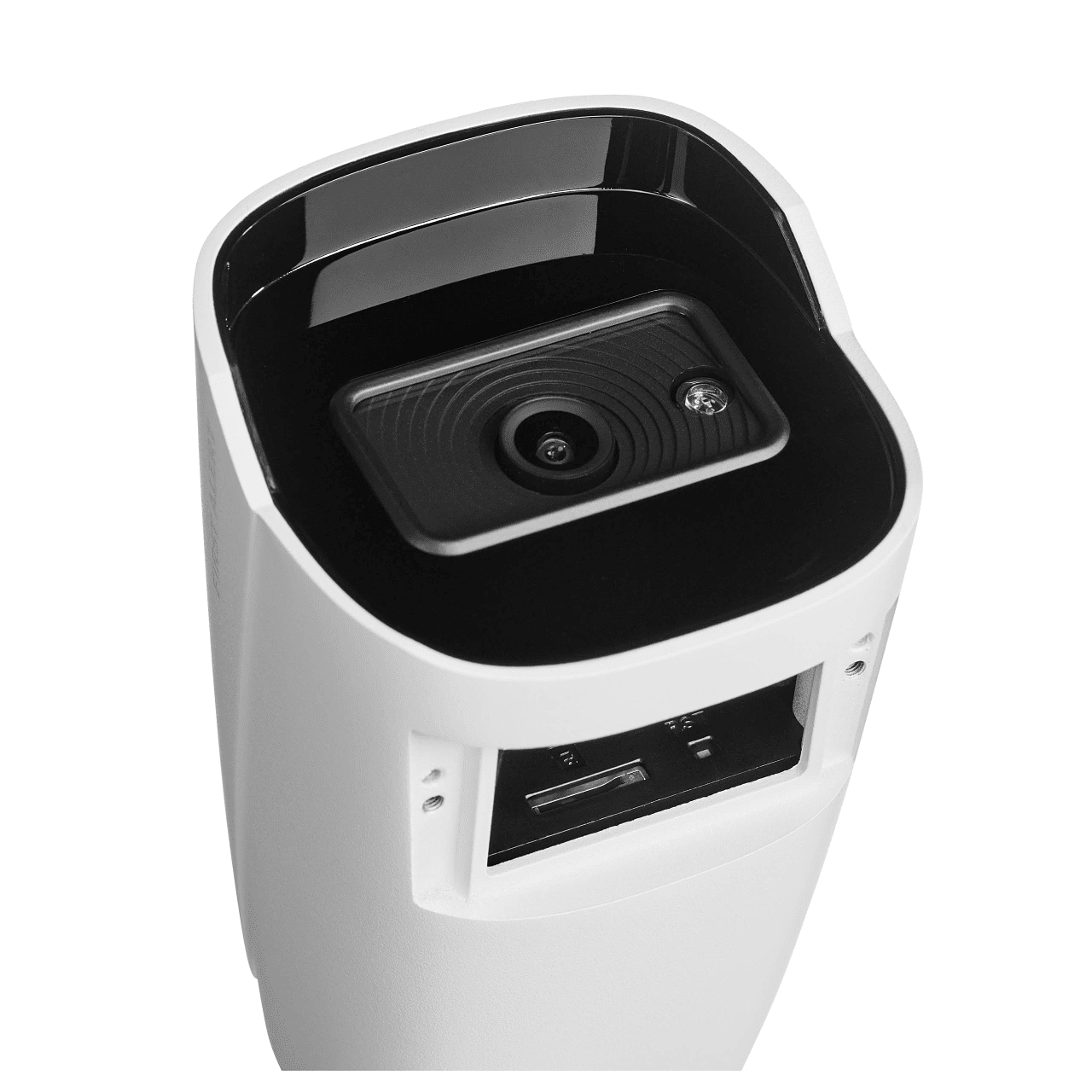

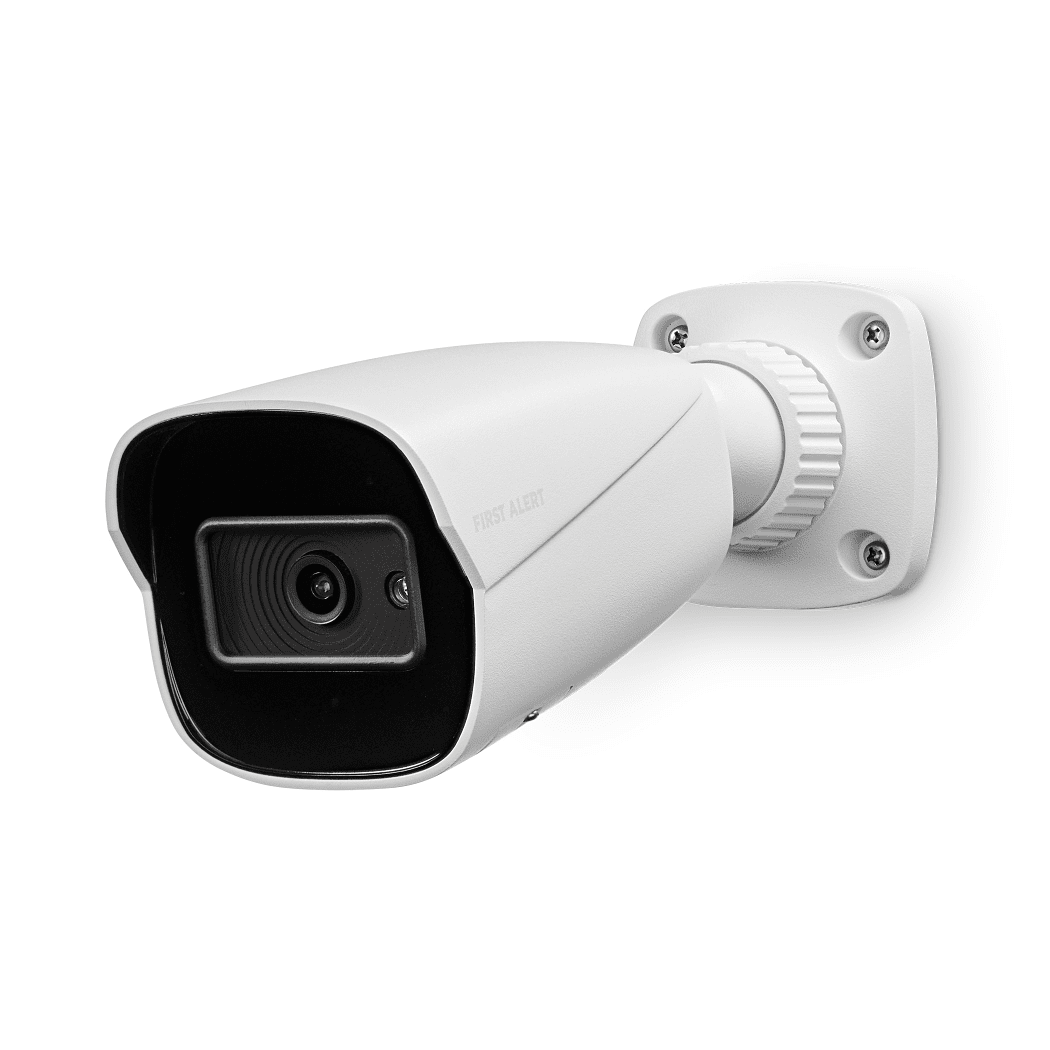

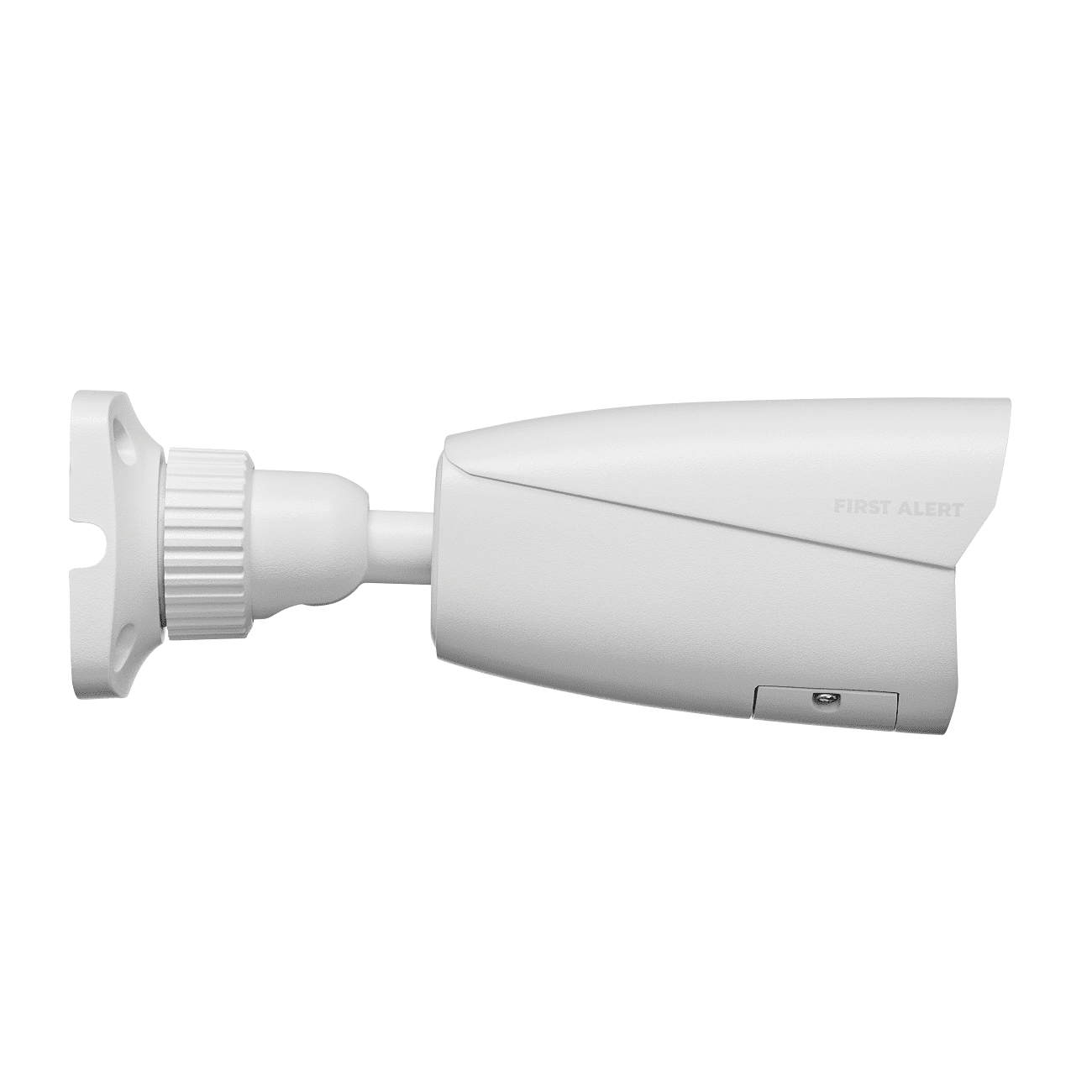

CX4BE08F28PW - First Alert CX4B Indoor/Outdoor 8MP AI Bullet PoE Security Camera, 2.8mm Fixed Lens
First Alert CX4B Product Description:
The First Alert CX4B (Part Number: CX4BE08F28PW) is an indoor/outdoor 8MP AI bullet PoE security camera built for both business and residential protection. With an ultra-HD 8MP sensor and a 2.8mm fixed lens, it delivers crisp, detailed video while the bullet-style housing provides a more visible, deterrent presence. Its shape is especially effective for longer, narrower sightlines, making it a strong fit for driveways, corridors, hallways, and perimeter fencing where you want focused coverage with fewer blind spots.
Designed to help you find what matters fast, the CX4B includes AI smart search for quick video clip retrieval, along with intelligent threat detection and advanced on-camera AI analytics that reduce nuisance alerts and surface more relevant events. For complete coverage, it supports continuous recording, and pairs that with event-based cloud storage so key moments are easier to access and manage. You also get flexible storage at the edge with support for up to 1TB via MicroSDXC (card not included), giving you options for different retention needs and installation scenarios.
Setup is streamlined with dual power options, PoE (Power over Ethernet) for a single-cable install, or 12VDC for traditional power, plus quick enrollment using the AlarmNet 360® app. The CX4B integrates with ProSeries and VISTA® H security panels supported by scalable AlarmNet 360® Plans, and connects seamlessly to Total Connect® 2.0 (web and app) so video and intrusion can be managed in one place. Features like video event filtering and a timeline scrubber make reviewing continuous footage or jumping to event clips simple, while encrypted video transmission and storage support secure cloud management and easy scalability as your system grows.
Product Features:
- High-Resolution 8MP image Sensor with Wide Dynamic Range - Provides crystal clear detailed footage for live and recorded video.
- Dual Power Options - Power over Ethernet and 12V DC options ensure reliable, flexible, and simplified installation.
- Video Event Filtering and Timeline Scrubber - Event-based filtering directs you to the specific video clip and the timeline scrubber lets you jump to a key moment in recorded video.
- Extreme Temperature Resilience - Operates in temperatures ranging from (-22°F to 140°F) or (-30°C to 60°C) ensuring reliable performance in any climate.
- Intelligent Event Detection - Detects people, packages, vehicles, and animals reducing unnecessary notifications and interruptions.
- Edge-Based Recording - Record 24/7 at the edge with storage of up to 1TB on-camera via a MicroSDXC card (not included).
- Cloud-Based Event Storage - Video and audio event clips stored in the cloud ensuring secure storage even if the cameras are tampered with.
- Supports Unified Security Solutions - Unify video and intrusion in the Total Connect 2.0® app with ProSeries AIO or VISTA® H3 panels, supported by flexible video storage plans.
- IR Night Vision - Wide angle views and IR night vision for complete awareness.
- NDAA Compliant - Compliant with NDAA Section 889 - backed by trusted components, while system data is securely stored.
- Resideo Total Connect® 2.0 App for Customers - Enhanced Total Connect® 2.0 experience allows for unified control of the property with video and intrusion within one app.
- AlarmNet 360® App for Dealers - Enables anytime, anywhere programming, troubleshooting, account creation, management and more via your web browser and Apple® and Android™ device.
First Alert CX4B Product Specifications:
Camera
- Image Sensor - 1/2.8" CMOS
- Image Size - 3840 x 2160 pixels
- Iris Type - Fixed Iris
- Min. Illumination - 0.02 lux
- Lens - 2.8mm, Horizontal FoV:104°; Vertical FoV:55°; Diagonal FoV:125°
- Focus - Fixed
- Day & Night - ICR
- Wide Dynamic Range - 120dB
- S/N Ratio - ≥50dB
- Digital NR - 3D DNR
- Angle Adjustment - Pan: 0° to 360°; Tilt:0° to 75°; Rotation: 0°to 360°
- Video Compression - H.264, H.265
- Maximum Resolution - 8MP (3840 x 2160)
- Video Streaming - 1080P (1920 x 1080) 8MP (3840 x 2160)
- Frame Rate - 15 fps
- Bit Rate - 2 - 4 Mbps
- Audio Compression - G.711 A- and µ-law
- Image Settings - Image rotation
- ROI - Each of the (4) areas to be configured separately
Interfaces
- Network - RJ-45 10M / 100M self-adaptive Ethernet port
- Video Output - No
- Audio - 1CH audio input; 1CH built-in MIC
- Storage - Built-in MicroSD card slot (maximum of 1TB)
- Reset - Yes
Functions
- PoE - IEEE802.3af
- IR Distance - 98 to 165 feet (30 to 50m)
- Ingress Protection - IP67
Others
- Security:
-Secure boot
-Encrypted in transit and at rest
-TLS 1.2/TLS 1.3
-256-bit AES
-Automatic updates - Power Supply - IEEE 802.3af PoE / DC12V 1.5A
- Power Consumption - <9W
- Storage Conditions - -4°F to 140°F (- 20°C to 60°C), Humidity: less than 95% (non-condensing)
- Operating Conditions - -22°F to 140°F (- 30°C to 60°C), Humidity: less than 95% (non-condensing)
- Dimensions - 8.32 in (218 mm) x 3.17 in (81 mm) x 3.16 in (80 mm)
- Weight (net) - Approx. 1.49 lbs (0.68KG)
- Installation - Ceiling mounting; wall mounting
- Certificate - CE, FCC
- Environmental Protection - Directive EU RoHS, WEEE (2012/19/EU), directive 94/62/EC and REACH(EC1907/2006)
General Requirements
- Internet Service - Continuous 2 Mbps upload or faster Internet connection (4Mbps recommended)
- Edge Storage - Up to 1TB Class 10 MicroSDXC Card (not provided)
- Storage Plans and Accounts (AlarmNet 360™ Video Service Plans):
-One-Device 30-day Video Storage plan stores up to 1,500 clips
-4 Device 7-Day Video Storage plan stores up to 350 clips
-4 Device 30-Day Video Storage plan stores up to 1,500 clips
-12 Device 30-Day Video Storage plan stores up to 1,500 clips - Total Connect® 2.0 Account Required:
-1 Camera

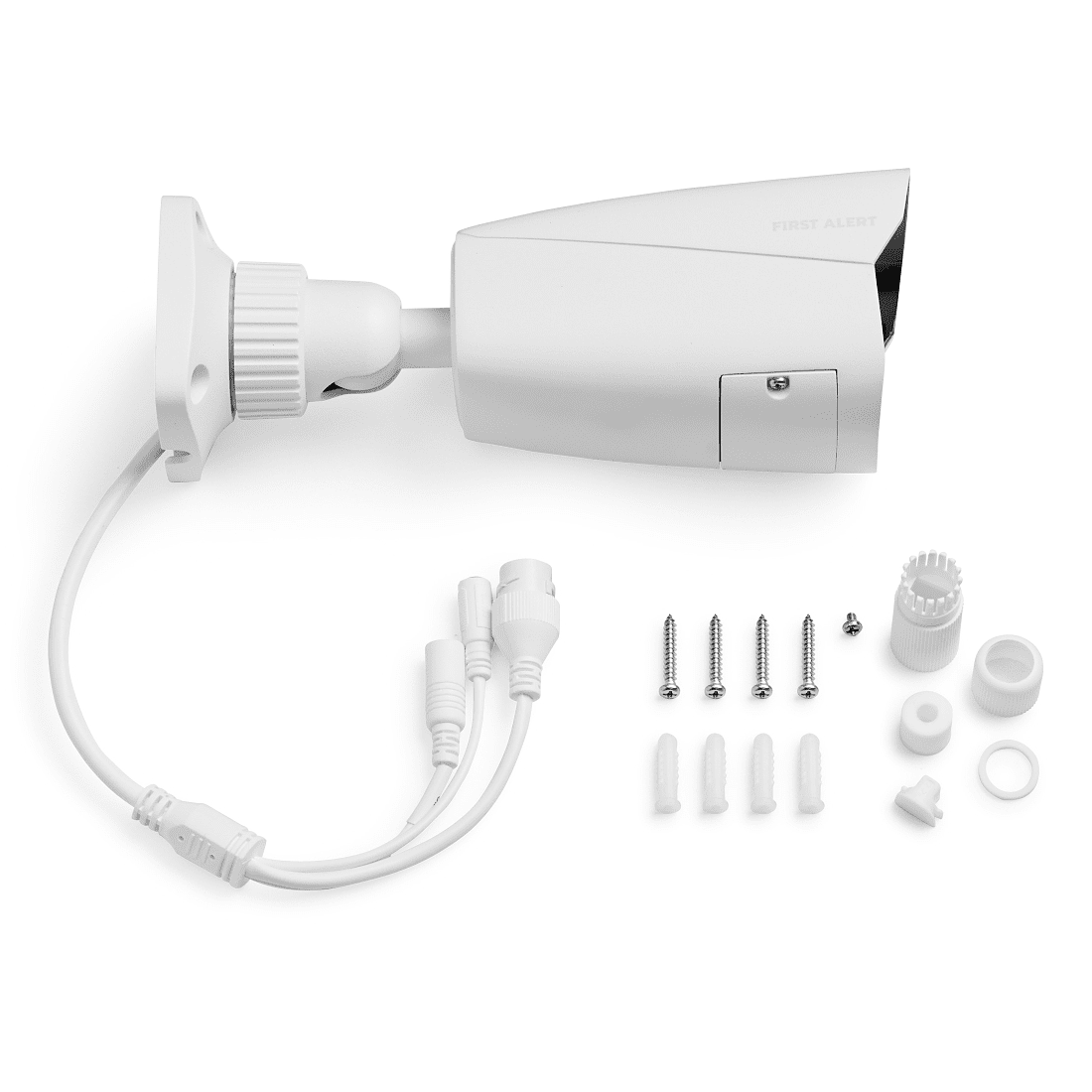

-Mounting hardware
-Quick Installation Guide - Compatible Optional Accessories:
-Extended Junction Box (CX4AJBFTB)
-Gangbox Converter Plate (CX4AGBCP)
