2GIG-FT100-345 - 2GIG Wireless 345S Series Flood Water and Temperature Sensor
Please Note: The 2GIG FT100-345 (2GIG-FT100-345) wireless 345S series floot water and temperature sensor is a special order item.
2GIG-FT100-345 Product Description:
The 2GIG-FT100-345 wireless flood and temperature sensor provides essential protection against costly water damage and temperature-related issues in both residential and commercial environments. Combining flood and temperature sensing in a single compact device, the 2GIG FT100-345 ensures early detection of leaks, floods, or extreme temperatures before they cause major problems.
Operating at 345 MHz, this fully supervised, tamper-protected sensor monitors ambient temperature and detects the presence of standing water in its immediate area. The temperature sensing feature triggers an alert when readings exceed 95°F (35°C) or drop below 41°F (5°C), while the flood detection probe immediately reports the presence of water to the connected control panel.

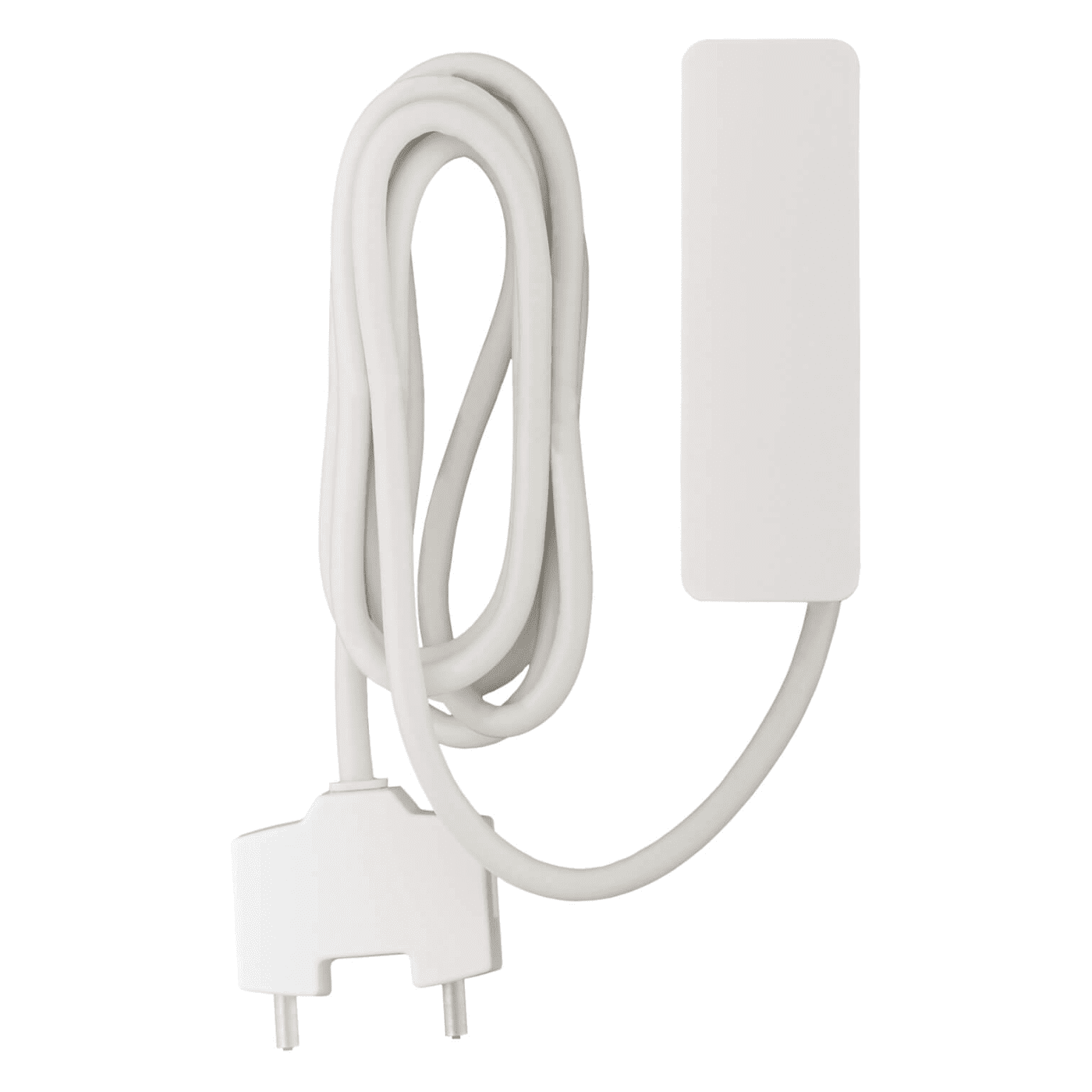

The 2GIG-FT100-345 includes a 45-inch (114 cm) detection probe cable, providing installation flexibility in hard-to-reach or high-risk areas such as basements, laundry rooms, bathrooms, HVAC areas, and water heater closets. This ensures accurate, location-specific monitoring where it's needed most.
As part of the 2GIG 345S Series, the sensor features an onboard switch for encrypted or non-encrypted operation, allowing compatibility across the entire 2GIG ecosystem, including the 2GIG EDGE, GC Touch, and legacy 2GIG panels. This flexible configuration helps installers streamline inventory and simplify setup.
Powered by a single long-life CR123A lithium battery, the FT100-345 provides up to five years of dependable operation, minimizing maintenance while ensuring continuous property protection.
Product Features:
- Dual Detection Functionality - Monitors for standing water and temperature thresholds in one device.
- Temperature Monitoring - Sends alerts when ambient temperatures exceed 95°F (35°C) or drop below 41°F (5°C).
- Flood Detection - Detects standing water through a 45-inch probe cable for flexible placement.
- Wireless Communication - Operates at 345 MHz for reliable signal transmission to 2GIG panels.
- Switchable Encryption - Choose between encrypted or non-encrypted operation for flexible installations.
- Full 2GIG Compatibility - Works seamlessly with 2GIG EDGE, GC Touch, and earlier 2GIG systems.
- Fully Supervised & Tamper-Protected - Monitors communication integrity and alerts for tampering.
- Long Battery Life - Up to 5 years of reliable, maintenance-free operation using a CR123A lithium battery.
- Compact & Versatile Design - Ideal for basements, laundry rooms, bathrooms, and HVAC areas.
- Professional-Grade Construction - Designed for reliability, simplicity, and installer convenience.
2GIG-FT100-345 Product Specifications:
- Model Number: 2GIG-FT100-345
- Product Type: Wireless Flood, Water, and Temperature Sensor
- Dimensions: 2.4" Diameter x 1.3" High
- Sensor (H x W x D): 2.92" x 0.94" x 0.85" inch (74.17 mm x 23.88 mm x 21.59 mm)
- Sensor Probe (H x W x D): 1.31" x 1.34" x 0.47" inch (33.27 mm x 34.04 mm x 11.94 mm)
- Sensor Probe in Probe Bracket (H x W x D): 1.46" x 1.54" x 0.57" inch (37.08 mm x 39.12 mm x 14.48 mm)
- Cord between Sensor and Probe: 45" cord with 0.169" Diameter (114.3 cm cord) (4.29 mm Diameter)
- Transmitter Frequency: 345 MHz
- Series: 345S Series
- Wireless Signal Range: 275 ft. (80 m) open-air with Wireless Control Panel
- Compatibility: 2GIG EDGE, GC Touch, GC2e, GC3e, and legacy 2GIG systems or 345 MHz compatible systems
- Code Outputs: Alarm; Alarm Restore; Supervisory Low Battery; Trouble; Trouble Restore
- Encryption: On/off switchable (supports encrypted and non-encrypted communication modes)
- Supervision: Fully supervised for tamper, signal, and low-battery conditions
- Supervisory Interval: 70 Minutes
- Function: Detects standing water and monitors ambient temperature thresholds
- Flood Detection: Detects water presence at sensor probe location
- Temperature Detection: Alerts when temperature exceeds 95°F (35°C) or falls below 41°F (5°C)
- High Temperature Level: 95°F
- Low Temperature Level: 41°F
- Tamper Protection: Internal tamper switch for case removal alerts
- Housing Material: High-impact ABS plastic enclosure for indoor use
- Operating Temperature: 32° to 120°F (0° to 49°C)
- Relative Humidity: Up to 95%, non-condensing
- Installation Location: Indoor use (recommended for basements, laundry rooms, HVAC areas, and near plumbing)
- Mounting Type: Wall or floor surface mount
- LED Indicator: Transmission and supervision status indicator
- Power Source: 3V CR123A lithium battery
- Battery (included): One CR123A Lithium Battery
- Battery Life: Up to 5 years (typical use)
- Warranty: 2 years limited manufacturer's
- Certifications: ETL, FCC, Industry Canada
2GIG-FT100-345 Product Compatibility:
- 2GIG EDGE
- GC Touch
- GC2e
- GC3e
- Legacy 2GIG Systems
- Other 345 MHz Compatible Systems
