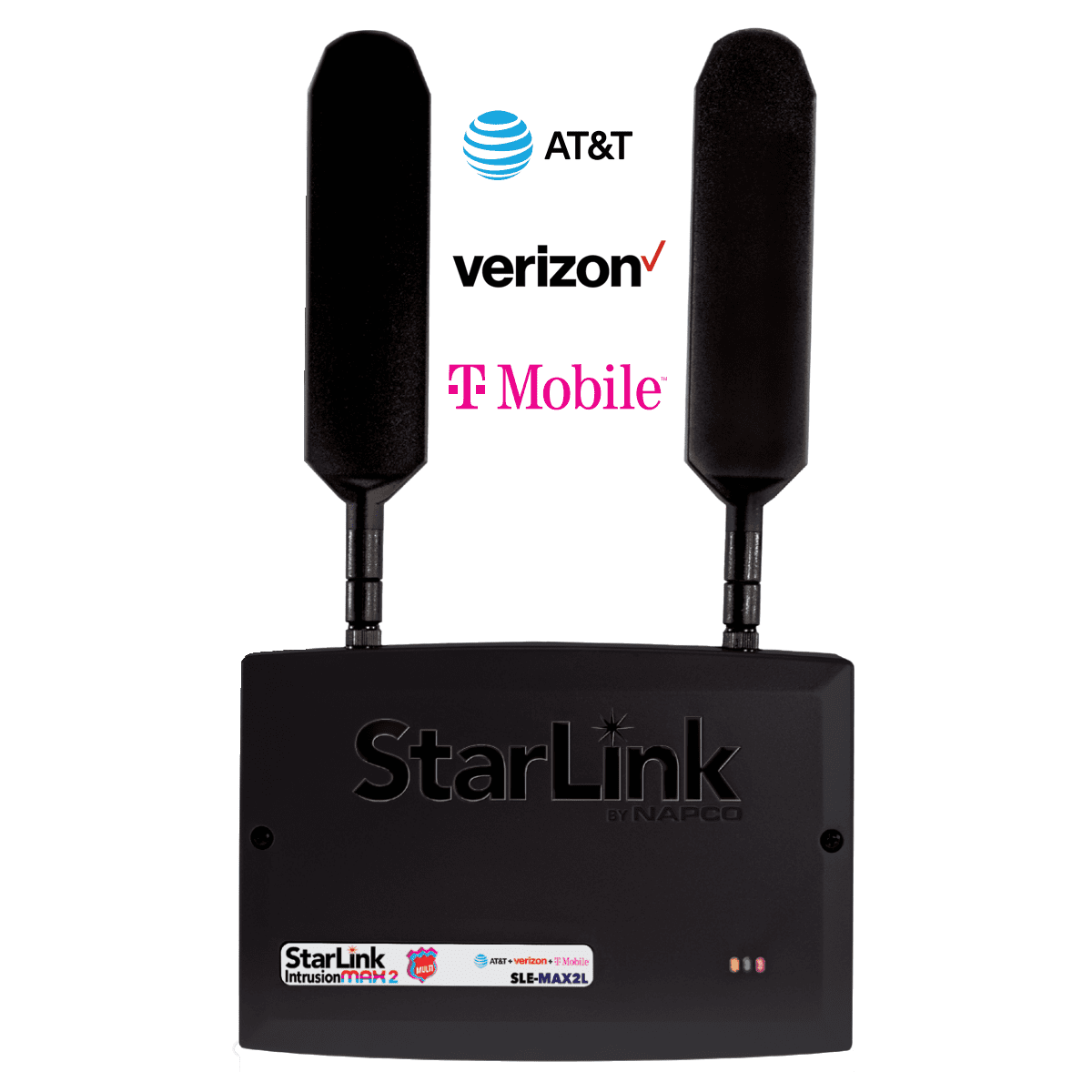

SLE-MAX2L - Napco StarLink Max 2 Universal Cellular Tri-SIM AT&T/Verizon/T-Mobile 5G LTE-M Alarm Communicator (Compatible with Most Panels)
Napco SLE-MAX2L Product Description:
The Napco SLE-MAX2L StarLink Max 2 Universal Cellular Tri-SIM Alarm Communicator is a state-of-the-art solution designed to enhance the reliability and reach of your security system. This advanced communicator is equipped with Tri-SIM technology, allowing it to seamlessly switch between AT&T, Verizon, and T-Mobile networks, ensuring optimal connectivity and coverage. With support for 5G LTE-M, the SLE-MAX2L offers fast and efficient communication, making it an ideal choice for both residential and commercial security applications. Its universal compatibility with most existing control panels means you can easily integrate it into your current setup without the need for extensive modifications.
Engineered for versatility and ease of use, the Napco SLE-MAX2L is perfect for those looking to upgrade their alarm communication capabilities. The device is designed to provide continuous, reliable service, even in challenging environments, thanks to its robust construction and cutting-edge technology. Whether you're looking to enhance the security of a home, office, or industrial facility, the SLE-MAX2L offers a dependable and flexible solution. With its ability to connect to multiple cellular networks, you can rest assured that your alarm signals will be transmitted promptly and securely, providing peace of mind and enhanced protection for your property.
Product Features:
- Easy to Install and Activate - Verizon, AT&T and T-Mobile in One Unit, Intelligently Selected for Max QoS/Signal Strength - With automatic failover for best continuous reliability.
- Universal Full Event Sole Path - cellular alarm reporting from any panel brand, virtually anywhere
- Dependable, full data reporting to any Central Station nationwide - via AT&T, T-Mobile and/or Verizon 5G LTE-M Networks
- Installs in Minutes with Panel-Powered Technology™ - No power supply to add on or fuss with
- Proven StarLink Reliability - Class-Leading Technology with OTA firmware upgrades
- Comes Complete - Includes dual high-performance antennas & all hardware (no extra parts or modules needed)
- My StarLink™ Smart Phone App - Consumer Remote Arm/Disarm on any panel brand with keyswitch input
- Compatible with most 12VDC alarm control panels - including the NAPCO Gemini series (GEM-P816, P1632, P1664, P3200, P9600, X255), as well as Honeywell and DSC panels.
Napco SLE-MAX2L Product Specifications:
Physical
- Plasting Housing Dimensions (H x W x D): 8 x 5-29/64 x 1-1/2" (20.3 x 13.9 x 3.8cm)
- Mounting: Plastic housing includes three keyhole slots for triple gang boxes
Environmental
- Operating Temperature: 32°F - 120°F (0°C - 49°C)
- Humidity: Maximum 93% Non-Condensing
- Installation Note: Indoor/dry location use only
Electrical Ratings (Powered by the control panel)
- Input Voltage: 10-15VDC (power-limited output from UL Certified control panel)
- Input Current: 10V = 70mA, 12V-15V = 65mA
Electrical Ratings for the IN 1 Burg/Fire Input
- Input Voltage: 9-15VDC
- Maximum Input Current: Up to 2mA from circuit
Electrical Ratings for IN 2 and IN 3
- Maximum Loop Voltage: 15VDC
- Maximum Loop Current: 1.2mA
- End of Line Resistor (EOLR) Value: 10K (2 req’d)
Electrical Ratings for 3 PGM Outputs
- Open Collector Outputs: Maximum Voltage 3V when active; 15V maximum when not active
- Maximum PGM Sink Current: 50mA (up to 15VDC), 25mA (15.1VDC - 25VDC)
