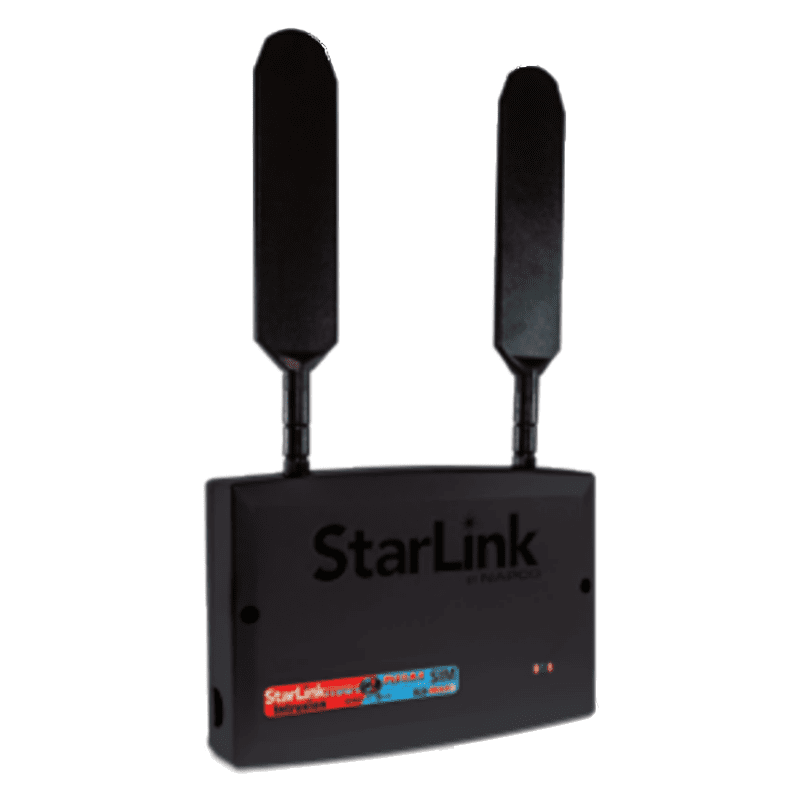

SLE-IMAX2 - Napco StarLink Max 2 Universal Dual-Path IP/Cellular AT&T and Verizon 5G LTE-M Alarm Communicator (Compatible with Most Panels)
Please Note: The Napco SLE-IMAX2 Max 2 universal dual-path IP/Cellular AT&T/ Verizon 5G LTE-M alarm communicator is a special order item.
Napco SLE-IMAX2 Product Description:
The Napco SLE-IMAX2 StarLink Max 2 Universal Dual-Path IP/Cellular Alarm Communicator is a sophisticated solution designed to enhance the reliability and flexibility of your security system. This advanced communicator supports both IP and cellular communication paths, utilizing AT&T and Verizon's 5G LTE-M networks to ensure seamless and uninterrupted connectivity. Its dual-path capability provides an extra layer of security, automatically switching between IP and cellular networks to maintain constant communication with monitoring centers. This feature is particularly beneficial in areas where one type of connection may be more reliable than the other, ensuring that your security system remains operational at all times.
Sole Path communication is cellular only and Dual Path communication is cellular and IP (or two cellular paths--AT&T and Verizon and no IP). If IP is used, requires connection to the local network using the on-board Ethernet jack or via Wi-Fi using the optional Listed SLE-WIFI-MODULE. The communication mode (Sole Path or Dual Path) requires selection of the appropriate service plan at the point of communicator activation. The communicator is equipped with two dry relays, one for a trouble output and one for an auxiliary output. The unit is also equipped with four supervised inputs to report a Burglary Alarm and a Burglary Trouble. This communicator is for use as the primary means of communication with the central station and does not have backup mode capability. A POTS (Telco Line) connection is not permitted (this communicator model only emulates a telephone line to the control panel and is not equipped with hardware that can monitor a live POTS telephone line).
Compatible with most existing hardwired security system control panels, the SLE-IMAX2 is ideal for both residential and commercial intrusion applications. Its universal design allows for easy integration with a wide range of security systems, making it a versatile choice for upgrading or expanding your current setup. The communicator is engineered for reliability and ease of use, with a straightforward installation process and user-friendly interface. Whether you're securing a home or a business, the Napco SLE-IMAX2 provides the peace of mind that comes with knowing your property is protected by a state-of-the-art alarm communication system.
Product Features:
- Easy to Install and Activate - AT&T and Verizon in One Unit, Intelligently Selected for Max QoS/Signal Strength - With automatic failover for best continuous reliability.
- Universal Full Event Dual-Path - internet/cellular alarm reporting from any panel brand, virtually anywhere
- Dependable, full data reporting to any Central Station nationwide - via AT&T and/or Verizon 5G LTE-M Networks
- Installs in Minutes with Panel-Powered Technology™ - No power supply to add on or fuss with
- Proven StarLink Reliability - Class-Leading Technology with OTA firmware upgrades
- Comes Complete - Includes dual high-performance antennas & all hardware (no extra parts or modules needed)
- My StarLink™ Smart Phone App - Consumer Remote Arm/Disarm on any panel brand with keyswitch input
- Compatible with most 12VDC alarm control panels - including the NAPCO Gemini series (GEM-P816, P1632, P1664, P3200, P9600, X255), as well as Honeywell and DSC panels.
Napco SLE-IMAX2 Product Specifications:
Physical
- Plasting Housing Dimensions (H x W x D): 8 x 5-29/64 x 1-1/2" (20.3 x 13.9 x 3.8cm)
- Mounting: Plastic housing includes three keyhole slots for triple gang boxes
- Antenna Length: 8.25" (21cm)
Environmental
- Operating Temperature: 32°F - 120°F (0°C - 49°C)
- Humidity: Maximum 93% Non-Condensing
- Installation Note: Indoor/dry location use only
Electrical Ratings for 12VDC (powered by the control panel)
- Input Voltage: 10-15VDC regulated (power-limited output from Certified control panel Aux/Remote Power)
- Input Current: 12VDC standby: 101mA (non-transmitting), 15VDC standby: 92mA (non-transmitting), Wi-Fi Module: (Optional) Add 45mA to the above. (With peak RF transmission current of 325mA)
Electrical Ratings for the IN 1 Burg/Fire Input
- Input Voltage: 9-15VDC maximum rated voltage
- Maximum Input Current: Up to 2mA from control panel circuit
Electrical Ratings for IN 2, IN 3, IN 4, and IN 5: (Inputs IN 2, IN 3, IN 4, and IN 5 are Class B)
- Maximum Loop Voltage: 15VDC Input
- Maximum Loop Current: 1.7mA Sink Current
- End of Line Resistor (EOLR) Value: 10K (2 req'd)
Napco SLE-IMAX2 Product Documents:
• Installation Instructions - Napco SLE-IMAX2 StarLink Max 2 Universal Dual-Path Communicator
Napco SLE-IMAX2 Product Compatibility:
• 12VDC Hardwired Alarm Control Panels
• ADT Brand
• Honeywell Brand
• DSC Brand
• Napco Brand
