QS7134-840 - Qolsys S-Line 16-Hardwired Zones Translator (w/Large Enclosure)

QS7134-840 - Qolsys S-Line 16-Hardwired Zones Translator (w/Large Enclosure)
QS7134-840 - Qolsys S-Line 16-Hardwired Zones Translator (w/Large Enclosure)
Item# QS7134-840
List Price: $231.62
Your Price: $154.41
Availability: In Stock
QTY:

Qolsys QS7134-840 Product Description:


The Qolsys QS7134-840 (aka IQ Hardwire 16-F) is a S-Line translator with large enclosure that allows you to encrypt and connect up to 16 hardwired zones wirelessly to any S-Line compatible Qolsys IQ control panel. The QS7134-840 is a cost effective way of integrating hardwired security and smoke detector zones with the compatible IQ panel.

It includes backup battery charging, 500mA of 12 volt auxiliary power, an onboard siren relay, built-in status LED's for each zone and support for up to 10 two-wire smoke detectors. Normally Open and Normally Closed contacts are supported as well as powered zones like motion sensors and glass break detectors.

Product Features:

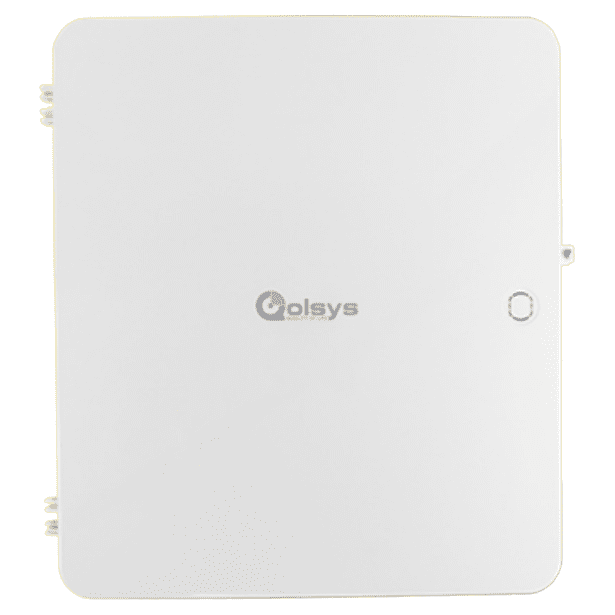

  • Large plastic enclosure with ample wiring room, backup battery holder, and an expansion slot for second module
  • Encrypted S-Line sensor technology protects signals sent to the compatible panel (while still providing support for legacy 319.5 systems)
  • Supports up to ten two wire smoke detectors
  • LED lighted zones for ease of "learn-in" installation/troubleshooting
  • EOL supervision using 4.7K Ohm resistors (included) or 1k-10k Ohm depending on Resistor Mode
  • Up to 500 Milliamps of power for hardwired motion detectors, glass break detector, and/or sirens
  • Charging circuit for back-up battery, fully supervised with power outage recovery

Qolsys QS7134-840 Product Specifications:


  • Dimensions: 16" X 14" X 3"
  • Backup batteries: 12VDC 5AH Max (not included)
  • Input voltage: 16.0VDC Plug-In Transformer
  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Humidity: 95&per; RH Max
  • EOL Supervision: 4.7K Ohm fixed or 1k-10k Ohm depending on Resistor Mode
  • Input Zones: 15 N/O or N/C
  • Smoke Zone: 1 two-wire smoke loop, 10 detectors max. Support for System Sensor® 2W-B, 2WT-B, 2WTA-B*
  • Auxiliary Voltage Output: 12VDC @ 500mA Max
  • Tamper Zone: Used for case tamper, no resistor
  • Relay Contact: 60VDC/1A Max drives siren or other device


*Detector models should not be mixed

Qolsys QS7134-840 Product Compatibility:


  • Qolsys IQ Panel 2 (Model Numbers: QS9201-1200-840, QS9202-1200-840)
  • Qolsys IQ Panel 2+ (Model Numbers: QS9201-1208-840, QS9202-1208-840)
  • Qolsys IQ Panel 4 (Model Numbers: IQP4001, IQP4004, IQP4007)
  • Qolsys IQ Hub (Model Numbers: QS9301-1200-840, QS9302-1200-840, QS9307-1200-124)
  • Qolsys IQ4 Hub (Model Number: IQPH051)
