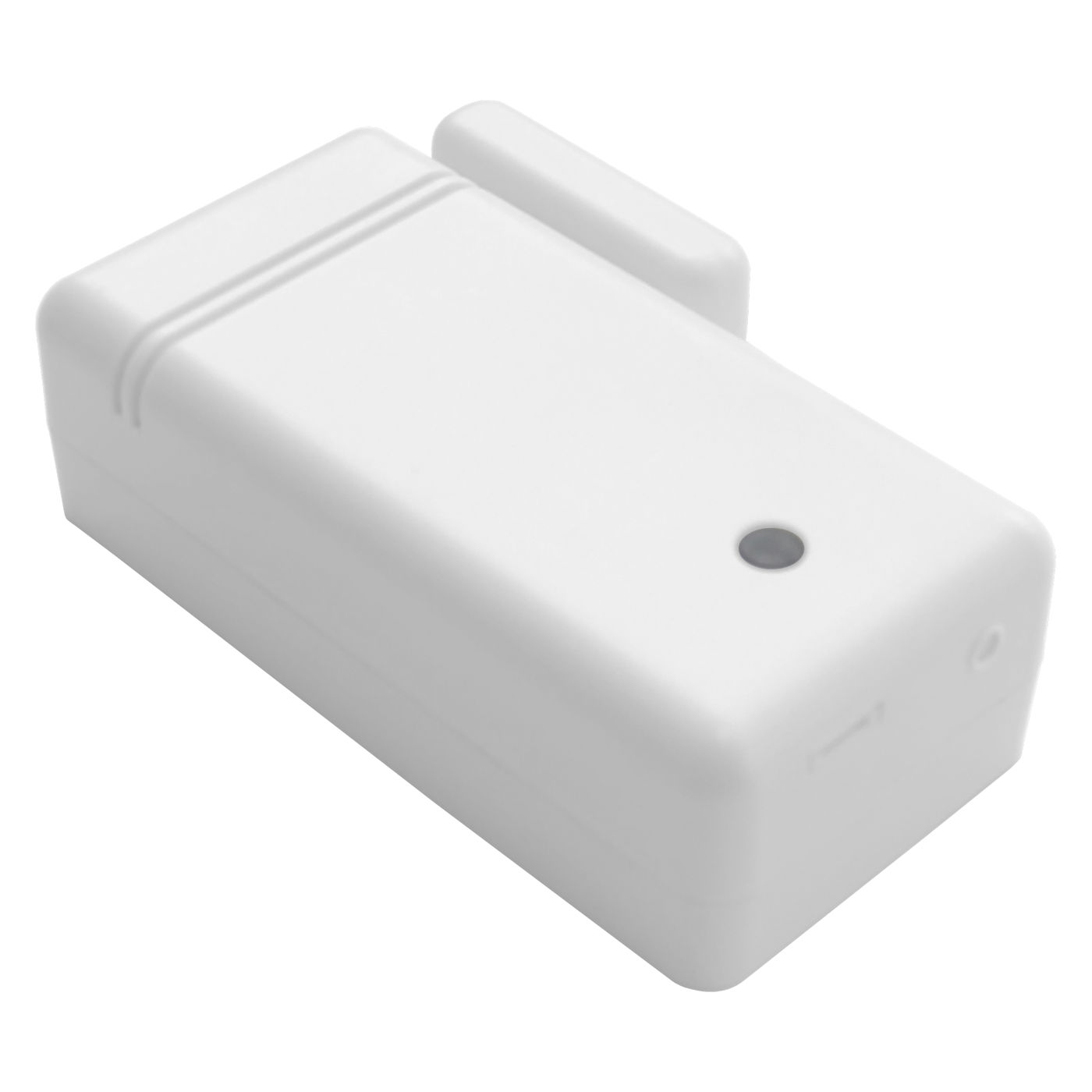

QS1138-840 - Qolsys IQ Wireless S-Line Door/Window Contact and Shock Sensor

Description
Specifications
Documents
Dip Switches
Compatible

Qolsys QS1138-840 Product Description:

The Qolsys QS1138-840 IQ Shock-S is an encrypted S-Line sensor with superior range specifically designed with multi-level vibration detection to a S-Line compatible Qolsys IQ control panel. It can alert you if a door is left open, automatically adjust your smart thermostat to save you energy, and provide security for anything that opens or closes. Know when these doors and windows are opened with customizable chimes and unique names spoken by the panels text-to-speech. With the QS1138-840 Shock-S sensor you can create personalized notifications and rules using the Alarm.com interactive app.

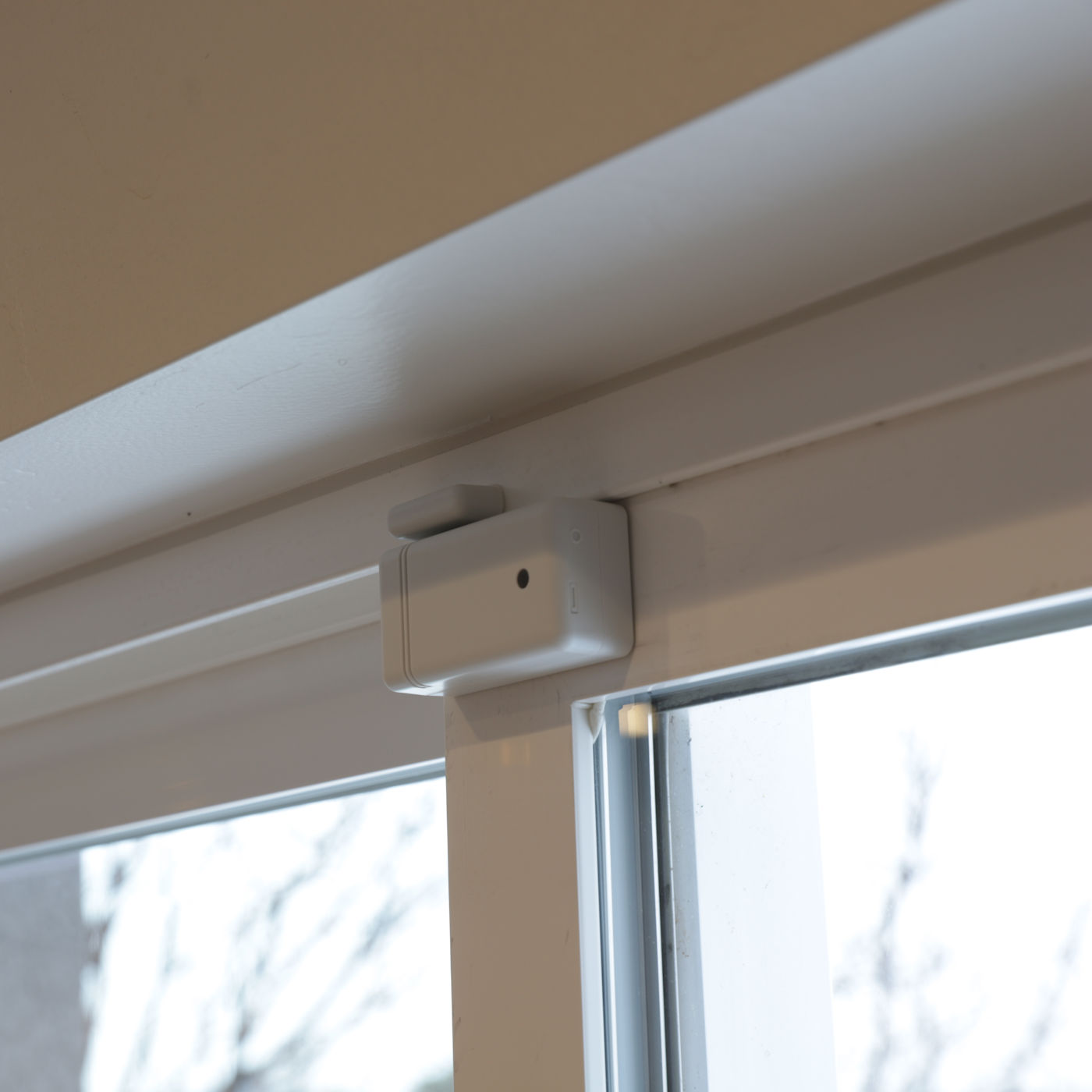

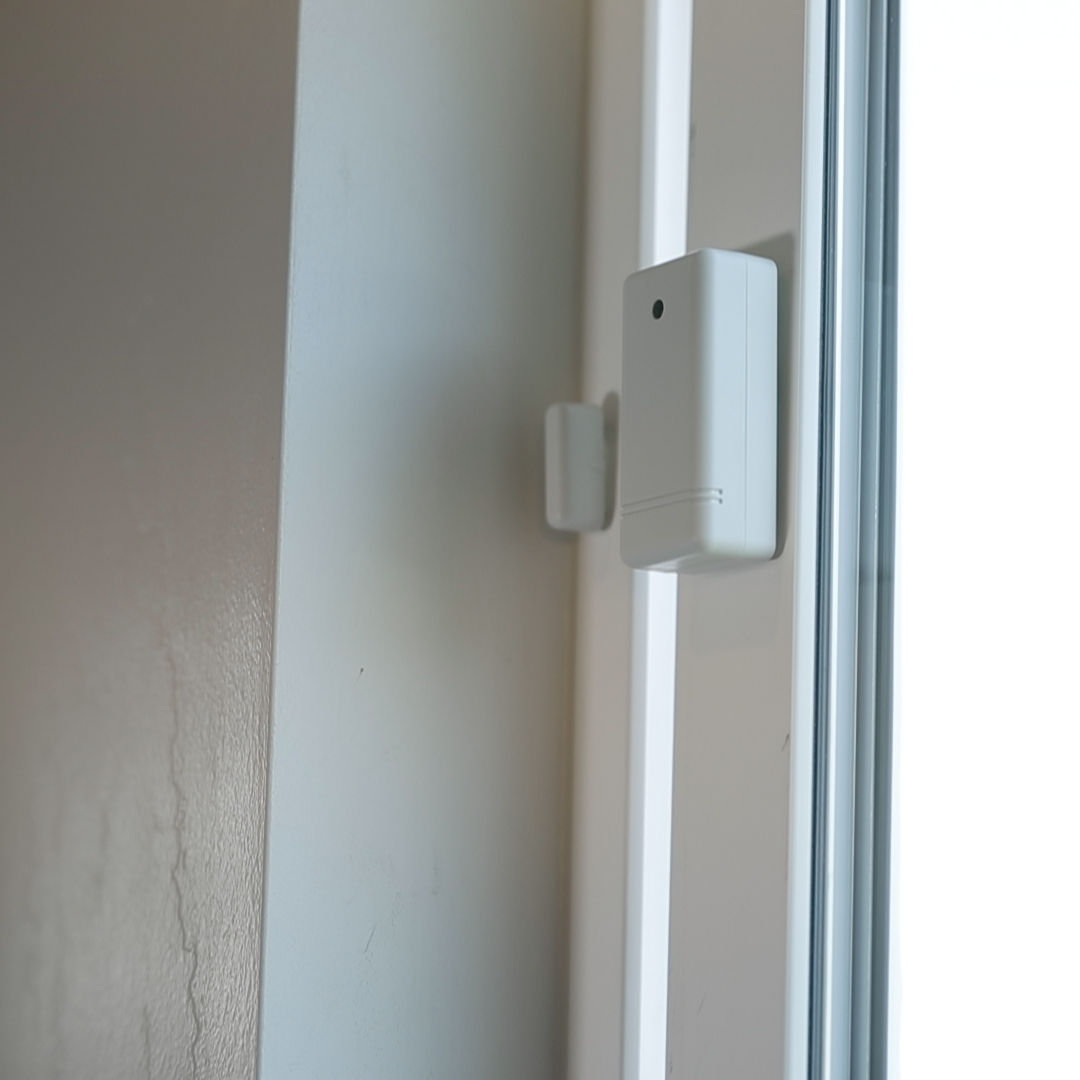

The IQ Shock-S is intended to be installed on doors with or without glass inserts and on window frames but not on the actual glass surface.

Product Features:

Encrypted S-Line sensor technology protects signals sent to the compatible panel (while still providing support for legacy 319.5 systems)
Alerts if door/window is left open
Adjusts smart thermostat if door/window is open
Create personalized notification/rules

Qolsys QS1138-840 Product Specifications:

Dimensions: 23.97mm D x 39.91mm W x 79.60mm L
Frequency: 319.5 MHz
Battery: 3V lithium CR123A
Magnet Gap: 1 inch max
Operating Temperature: 32° to 110°F (0° to 45°C)
Operating Humidity: 5 to 85% RH non-condensing
Supervisory Signal Interval: 60 min (approximately)
Potentiometer: Shock sensitivity adjustment

Qolsys QS1138-840 Product Documents:

• Quick Installation Guide for Qolsys S-Line Shock Sensor (QS1138-840)

Qolsys QS1138-840 Product Dip Switches:

DS#1 - Test Mode:
ON: Enables sensitivity test mode. Please note, when test mode is enables (ON) the IQ Shock will NOT transmit signals to the IQ Panel. This mode is only used for initial installation of the shock sensor.
OFF: Disables sensitivity test mode.

DS#2 - Pre-Warn:
ON: Enables pre-warn sounder and red LED
OFF: Disables pre-warn sounder and red LED

DS#3 - Reed Switch:
ON: Enables reed switch
OFF: Disables reed switch

Qolsys QS1138-840 Product Compatibility:

Qolsys IQ Panel 2 (Model Numbers: QS9201-1200-840, QS9202-1200-840)
Qolsys IQ Panel 2+ (Model Numbers: QS9201-1208-840, QS9202-1208-840)
Qolsys IQ Panel 4 (Model Numbers: IQP4001, IQP4004, IQP4007)
Qolsys IQ Hub (Model Numbers: QS9301-1200-840, QS9302-1200-840, QS9307-1200-124)
Qolsys IQ4 Hub (Model Number: IQPH051)
