LTEXV-TC2 - Resideo Honeywell Home Cellular Verizon LTE Alarm Communicator with TC 2.0 Chip (for VISTA-Series Control Panels)

LTEXV-TC2 - Resideo Honeywell Home Cellular Verizon LTE Alarm Communicator with TC 2.0 Chip (for VISTA-Series Control Panels)
LTEXV-TC2 - Resideo Honeywell Home Cellular Verizon LTE Alarm Communicator with TC 2.0 Chip (for VISTA-Series Control Panels)
Item# LTEXV-TC2

Please Note: The Honeywell LTEXV-TC2 cellular alarm communicator has been discontinued and replaced by the LTEM-XV model number.

Honeywell Home LTEXV-TC2 Product Description:

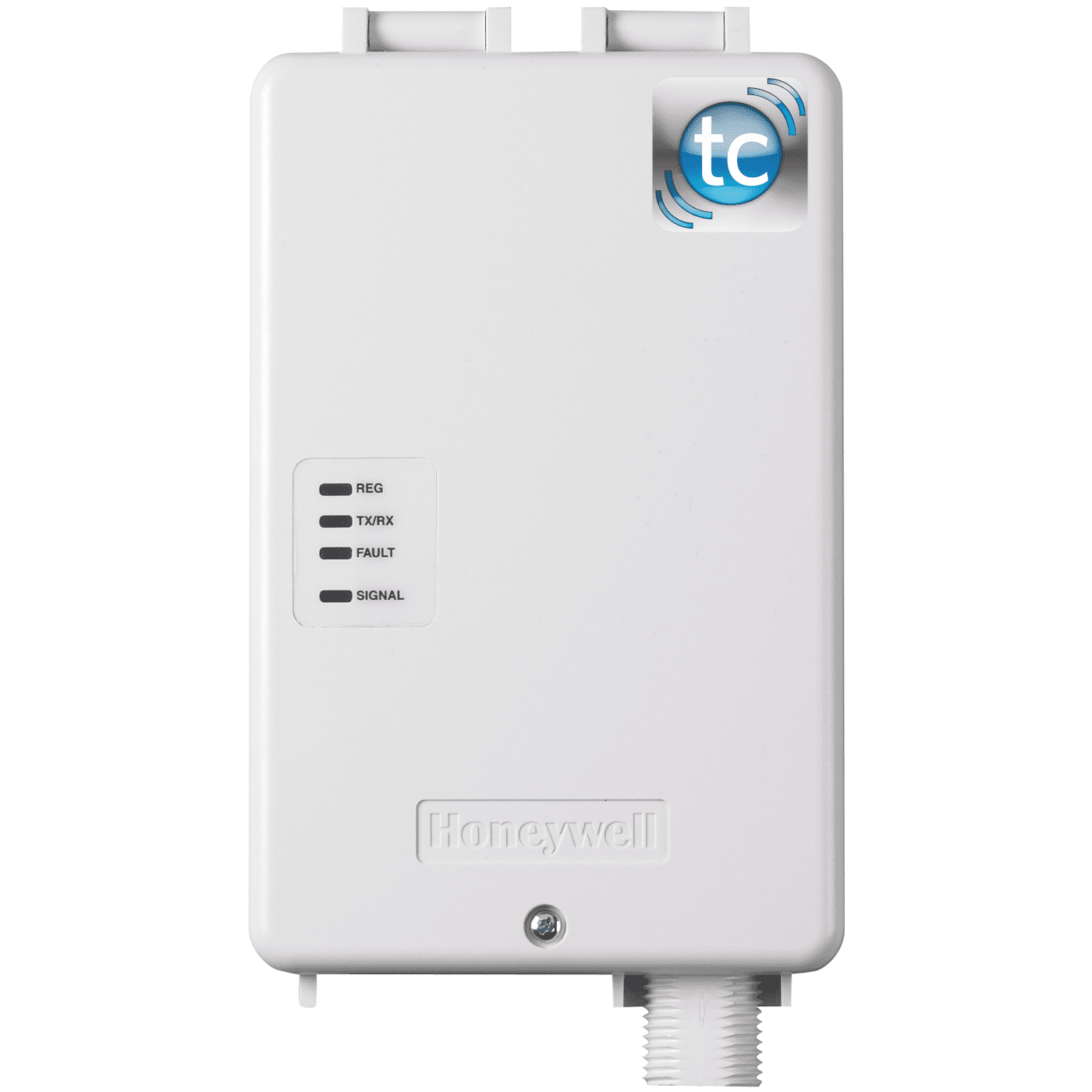

The Honeywell LTEXV-TC2 is a cellular 4G LTE alarm communicator for Total Connect 2.0, that is designed for use with the VISTA-Series hardwired control panels. The LTE-XV easily connects to Honeywell's VISTA-15P, VISTA-20P, VISTA-128BPT, and 250BPT control panels. The LTEXV-TC2 is easy to install and sends alarm signals over the Verizon 4G LTE cellular towers. All signals are delivered to Honeywell's AlarmNet® Network Control Center, which routes the information to the GeoArm central station. The state-of-the-art AlarmNet Network Control Center is fully redundant and monitored 24/7. AlarmNet then routes messages using AlarmNet-i and 800 PLUS services, providing true redundancy and multi-path message delivery.

Product Features:

  • Full Contact ID: Contact ID reporting using ECP mode with compatible Honeywell VISTA control panels.
  • Total Connect 2.0: Includes the compatible chip accessory
  • 256-bit AES Encryption: Advanced encryption standard used for secure communications.
  • Upload/Download: Available with select Honeywell control panels.
  • Integration: Quick and easy installation of cellular communicator for VISTA control panels.
  • Diagnostic LEDs: Provide signal strength and status indications.
  • QOS: Quality of Service diagnostics via AlarmNet supply vital information including when a message was received, battery voltage, input voltage, signal strength and message path.
  • AlarmNet360™ Online Management Platform: Remote programming and diagnostics
  • Remote Services Capability: Optional Honeywell Total Connect remote services provide on-the-go security and home control, video viewing, and real-time alerts, anytime, anywhere, on any PC or smart device.
  • FOTA Firmware Upgrading: Complete over-the-air firmware upgrading capability. Provides remote service management ability.
  • Design: Integrated VISTA ECP design, four-wire connection, LTE Cat 1

Honeywell Home LTEXV-TC2 Product Specifications:


  • Dimensions (H x W x D): 8.4" x 8.0" x 1.5" (21.3cm x 20.3cm x 3.8cm)
  • Panel Compatibility: All VISTA controls with ECP radio support
  • Input Power: powered from 12V aux power
  • Current Drain: 210mV
  • RF Antenna: Internal Penta-Band antenna with receive diversity for LTE CAT1. Average 3.8dBi gain
  • Operating Temperature: -4° to 131°F (-20° to 55°C)
  • Storage Temperature: -40° to 158°F (-40° to 70°C)
  • Agency Listings: ETL listed
