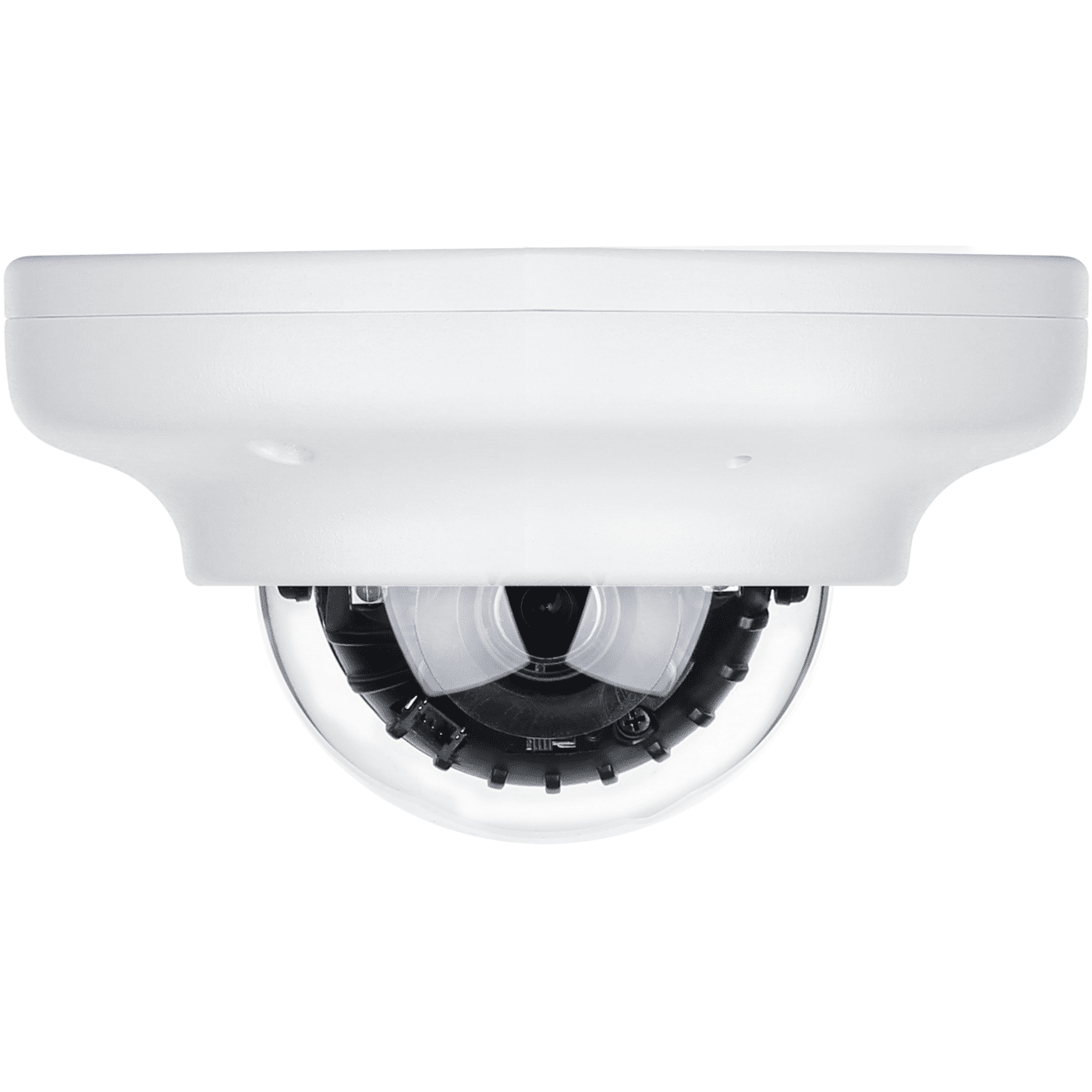

ADC-V821 - Alarm.com Indoor/Outdoor 720p Mini-Dome Security Camera
Alarm.com ADC-V821 Product Description:
The Alarm.com ADC-V821 is a indoor/outdoor, mini-dome security camera designed specifically to work with the Alarm.com hosted video service. The ADC-V821 camera has a compact design and outstanding HD quality video that makes it ideal for both commercial and residential installation for the DIYer. The ADC-V821 features a vandal-resistant exterior casing with an IP66 rating and Power over Ethernet (PoE) capabilities. In addition to being waterproof, the ADC-V821 is also dust tight.
Product Includes:
- Mini dome camera
- Mounting hardware
- Drill template
- Torx wrench
- Power adapter
- Installation guide
Alarm.com ADC-V821 Product Documents:
• Data Sheet for Alarm.com Indoor/Outdoor Mini Dome Security Camera (ADC-V821)
• Installation Guide for Alarm.com Indoor/Outdoor Mini Dome Security Camera (ADC-V821)
Alarm.com ADC-V821 Product Specifications:
- Dimensions (L x H): 4.13 x 2.36" (105 x 60 mm)
- Live resolution options: 1280x720, 704x480, 352x240, 176x112
- Recording resolution: 1280x720, 704x480, 352x240
- Recording compression: H.264
- Image sensor: 1/3" Progressive Scan CMOS, 1280x1024
- Lens:3.6 mm, F2.0
- Angle of view: 78°
- Low-light sensitivity: 0 lux with IR
- IR range: -30 feet (10 meters)
- Image adjustments: Brightness, Contrast, Exposure, Sharpness
- Video motion detection: 3 windows, adjustable sensitivity and threshold
- Ethernet connection: 10/100 Mbps RJ-45
- Password authentication: "Digest" authentication
- Operation temperature: 14° - 122° F (-10°C - 50°C)
- Operating humidity: <90%
- Max power consumption: 12V DC, 3.9W, PoE (802.3af), 4.2 W
- Ingress protection: IP66
- Weight: 0.85 lbs. (385 g)
