7945BR - Honeywell Home Hardwired Surface-Mount XTP Door/Window Alarm Contact (in Brown Color)

Description
PDF Documents
Specifications

Honeywell Home 7945BR Product Description:

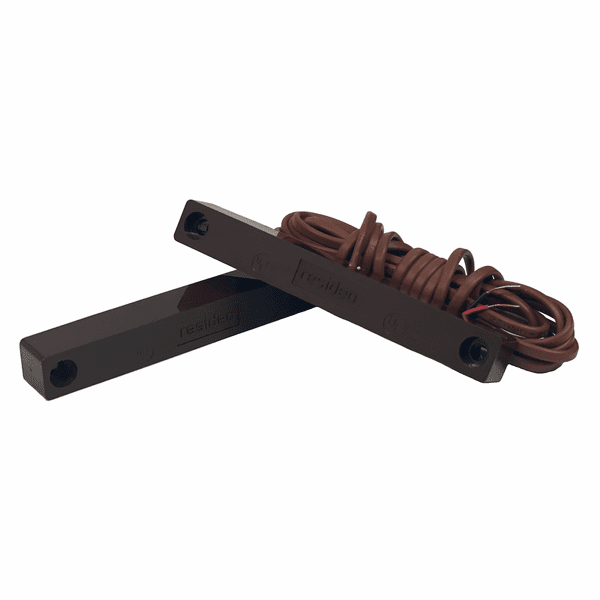

The Honeywell 7945BR is a hardwired, XTP surface-mount, brown color, door and window alarm contact with leads. The 7945BR is used to protect door and window openings. Please note the maximum wide gap of 2-1/2". The 7945BR is a great addition to any compatible Honeywell hardwired or hybrid security system.

Product Features:

XTP contacts withstand surges up to 2400VDC
6' (1.8m) CLII cable is standard
Brown Color (7945BR)
Completely immersion proof (epoxy sealed)
Wide gap of 2-1/2" (64mm) is standard
Backed by Honeywell's 2-year limited manufacturer's warranty

Honeywell Home 7945BR Product Documents:

• Data Sheet for Honeywell XTP Surface-Mount Door/Window Contact (7945BR)

Honeywell Home 7945BR Product Specifications:

Dimensions: 3.95" L x 0.53" W x 0.53"H
Switch Type (7945): Form A (SPST) Reed
Switch Type (7945-2): Form C (SPDT) Reed
Color: Brown
Contact Rating: 100ma @ 28VDC
