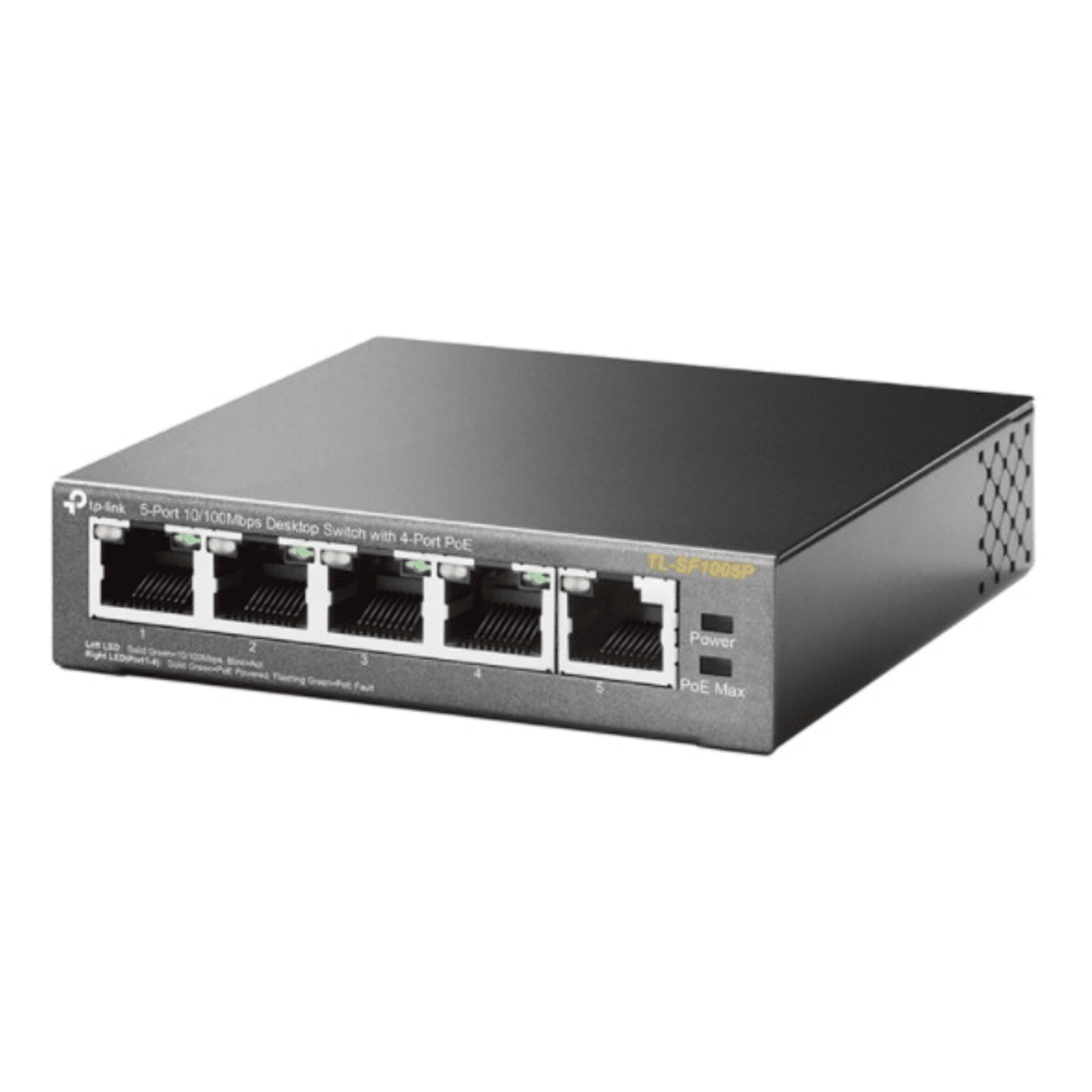

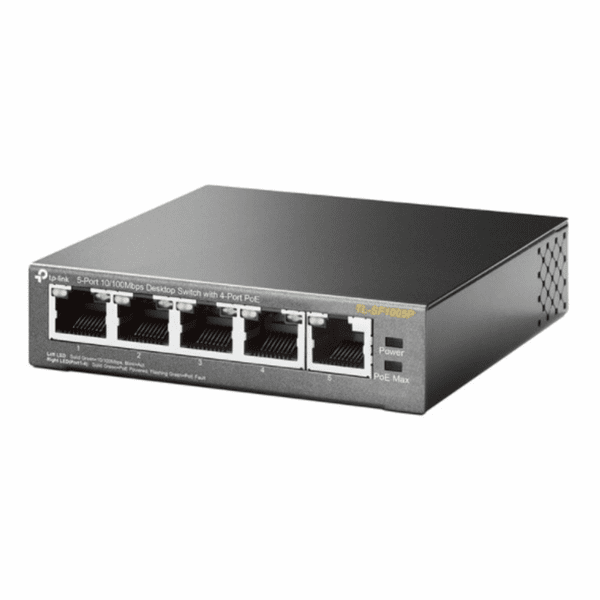

TL-SF1005P - TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
Alarm.com TL-SF1005P Product Description:
The TP-Link TL-SF1005P 5-Port 10/100Mbps Desktop Switch is a compact and cost-effective networking solution designed for small offices, home offices, and surveillance setups. Equipped with five Fast Ethernet ports, this switch provides reliable connectivity for multiple devices. Four of the ports support Power over Ethernet (PoE), delivering both data and power over a single Ethernet cable. With a total PoE power budget of up to 58W, it is ideal for powering devices such as IP security cameras, wireless access points, and VoIP phones without the need for additional power adapters or outlets.
This switch is particularly useful for IP surveillance systems, where it can supply both data and power directly to network cameras, simplifying installation and reducing wiring costs. Its plug-and-play design makes setup quick and easy, with no configuration required. Featuring intelligent power management, the TL-SF1005P automatically prioritizes PoE ports and protects against overload, ensuring stable operation for critical devices. Whether for a small business, a home security system, or a simple networking expansion, this switch offers reliable, flexible, and energy-efficient connectivity.
Product Features:
- 5 Fast Ethernet Ports - Provides reliable 10/100Mbps connectivity for multiple wired devices.
- 4 PoE-Enabled Ports - Supports Power over Ethernet to deliver both power and data through a single cable.
- 58W PoE Power Budget - Supplies sufficient power for IP cameras, VoIP phones, and wireless access points.
- Plug-and-Play Installation - No configuration required, simple to set up and expand your network.
- Compact Desktop Design - Space-saving form factor suitable for home or small office use.
- Intelligent Power Management - Automatically detects and prioritizes connected PoE devices to prevent overload.
- Overload Protection - Ensures stable operation and safeguards equipment from excess power draw.
- Silent Fanless Operation - Designed for quiet performance in any environment.
- Energy-Efficient Design - Reduces power consumption while maintaining reliable connectivity.
Alarm.com TL-SF1005P Product Specifications:
- Dimensions - 3.9 x 3.9 x 1.0 in (99.8 x 98 x 25 mm)
- Weight - 0.73 lb (330 g approx.)
- Ports - 5 x 10/100Mbps RJ45 Ethernet Ports | 4 x PoE Ports (Ports 1-4)
- PoE Standard - IEEE 802.3af compliant
- PoE Power Budget - Up to 58W total
- Max Power Per Port - 15.4W
- Switching Capacity - 1 Gbps
- Packet Forwarding Rate - 0.744 Mpps
- MAC Address Table - 2K entries
- Buffer Memory - 768 KB
- Transmission Method - Store-and-forward
- Network Cables Supported - UTP Cat3/4/5 (up to 100m for 10BASE-T) | UTP Cat5/5e or above (up to 100m for 100BASE-TX)
- LED Indicators - Power, Link/Activity, PoE Status (per port)
- Power Supply - External Power Adapter (Output: 48V DC, 1.25A)
- Max Power Consumption - 63.31W (220V/50Hz, with PoE fully loaded)
- Max Heat Dissipation - 215.9 BTU/h
- Operating Temperature - 32°F to 104°F (0°C to 40°C)
- Storage Temperature - -40°F to 158°F (-40°C to 70°C)
- Operating Humidity - 10% - 90% non-condensing
- Storage Humidity - 5% - 90% non-condensing
- Certifications - CE, FCC, RoHS
