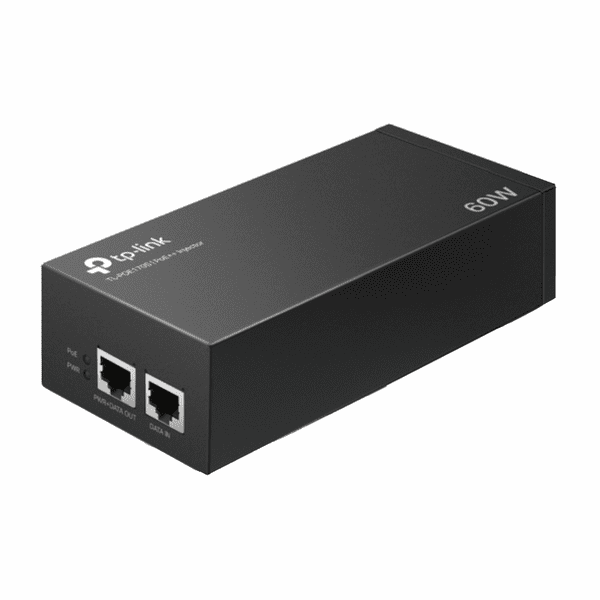

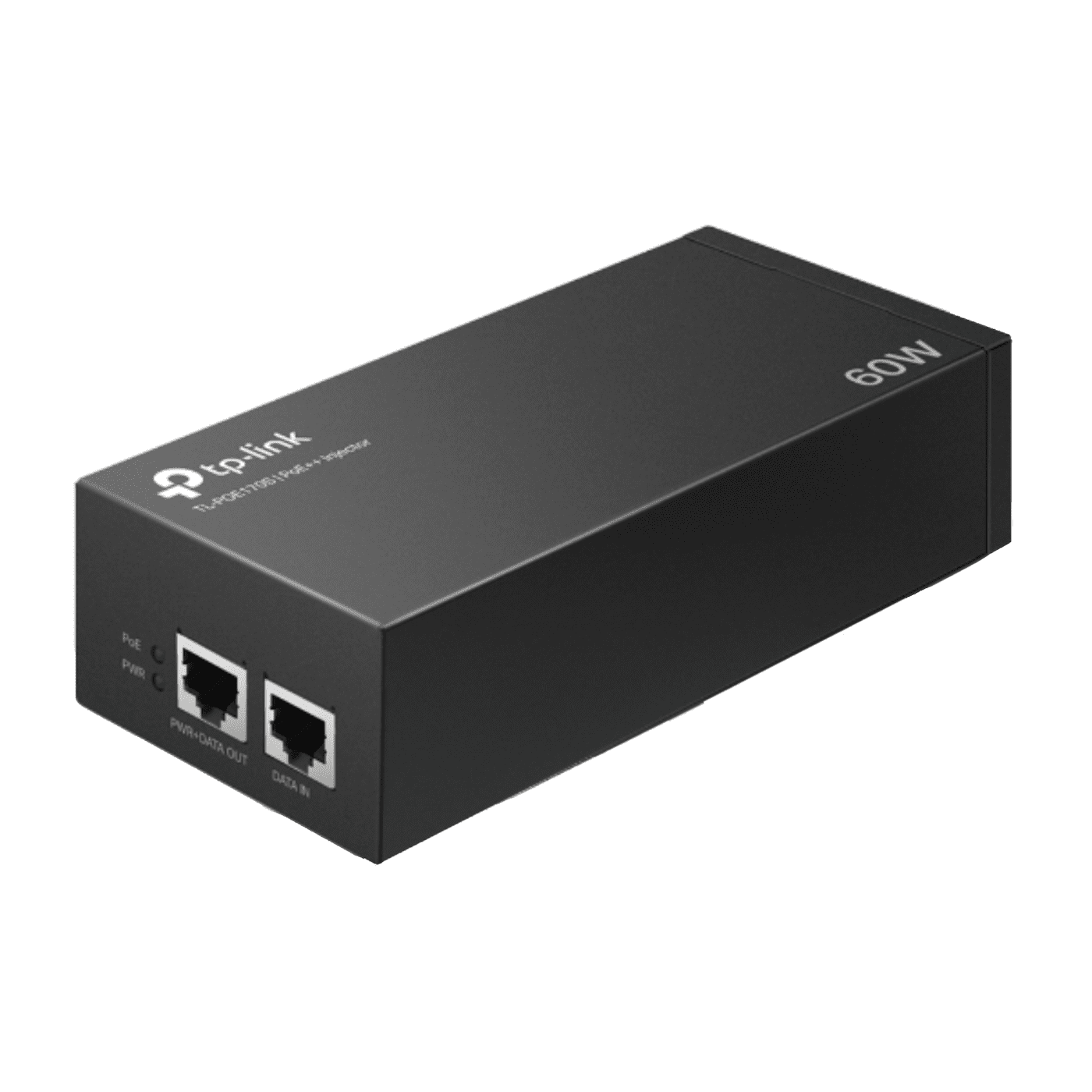

TL-POE170S - TP-Link Gigabit Ports PoE Injector with 60 Watt Power Supply
Alarm.com TL-POE170S Product Description:
The TP-Link TL-POE170S Gigabit PoE Injector delivers up to 60W of power and Gigabit data over a single Ethernet cable, making it the perfect solution for IP security cameras, wireless access points, and VoIP phones. Designed for reliability and easy installation, it simplifies network setups by eliminating the need for separate power lines, ensuring seamless performance even for high-power devices like PTZ or 4K surveillance cameras. Its Gigabit Ethernet port ensures fast, stable data transfer, maintaining high network performance while delivering power efficiently over long cable runs.
For surveillance installations, the TL-POE170S is a perfect solution. Instead of running separate power lines to each IP camera, this injector allows you to provide both power and data over one cable, simplifying setup and reducing costs. It's particularly useful for outdoor or hard-to-reach camera locations where installing a dedicated power outlet isn't practical. Whether you're building a new security system or expanding an existing one, this PoE injector ensures your cameras receive the power they need for continuous monitoring while maintaining reliable video streaming performance.
Product Features:
- High Power PoE Output - Delivers up to 60W of power for demanding devices like PTZ and 4K IP security cameras.
- Gigabit Connectivity - Ensures fast, stable data transfer with no loss in video quality or streaming performance.
- Simplified Installation - Provides power and data over a single Ethernet cable, reducing the need for additional wiring.
- Supports IEEE 802.3af/at/bt - Compatible with a wide range of PoE-enabled devices, including cameras, access points, and VoIP phones.
- Ideal for IP Surveillance - Perfect for powering cameras in remote or outdoor locations where power outlets aren't available.
- Plug-and-Play Setup - Easy to install with no software or configuration required.
- Cost-Effective Solution - Eliminates the need for separate power adapters or electrical outlets at each device location.
- Reliable Performance - Provides consistent power and data transfer to ensure uninterrupted video monitoring.
- Compact Design - Space-saving housing makes it easy to fit into tight networking setups.
- Versatile Applications - Suitable for business networks, home security systems, and enterprise-grade installations.
Alarm.com TL-POE170S Product Specifications:
- Dimensions - 5.6 x 2.8 x 1.4 in. (142 x 70 x 36 mm)
- Weight - 0.68 lbs (310g approx.)
- Standards - IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt (PoE/PoE+/PoE++)
- Network Interface - 2 x 10/100/1000Mbps RJ45 Ports (Data In, Data + Power Out)
- Power Output - Up to 60W
- Input Voltage - 100-240V AC, 50/60Hz
- Output Voltage - 54V DC, 1.1A
- PoE Power Pin Assignment - 4/5(+), 7/8(-) and 3/6(+), 1/2(-)
- Cabling Requirements - UTP Cat5e or higher (recommended Cat6 for longer runs/high power)
- Data Transmission Speed - Gigabit (10/100/1000 Mbps)
- Maximum Transmission Distance - Up to 100m (328 ft.) over Ethernet cable
- Operating Temperature - 32°F to 104°F (0°C to 40°C)
- Storage Temperature - -40°F to 158°F (-40°C to 70°C)
- Operating Humidity - 10% - 90% non-condensing
- Certifications - CE, FCC, RoHS
