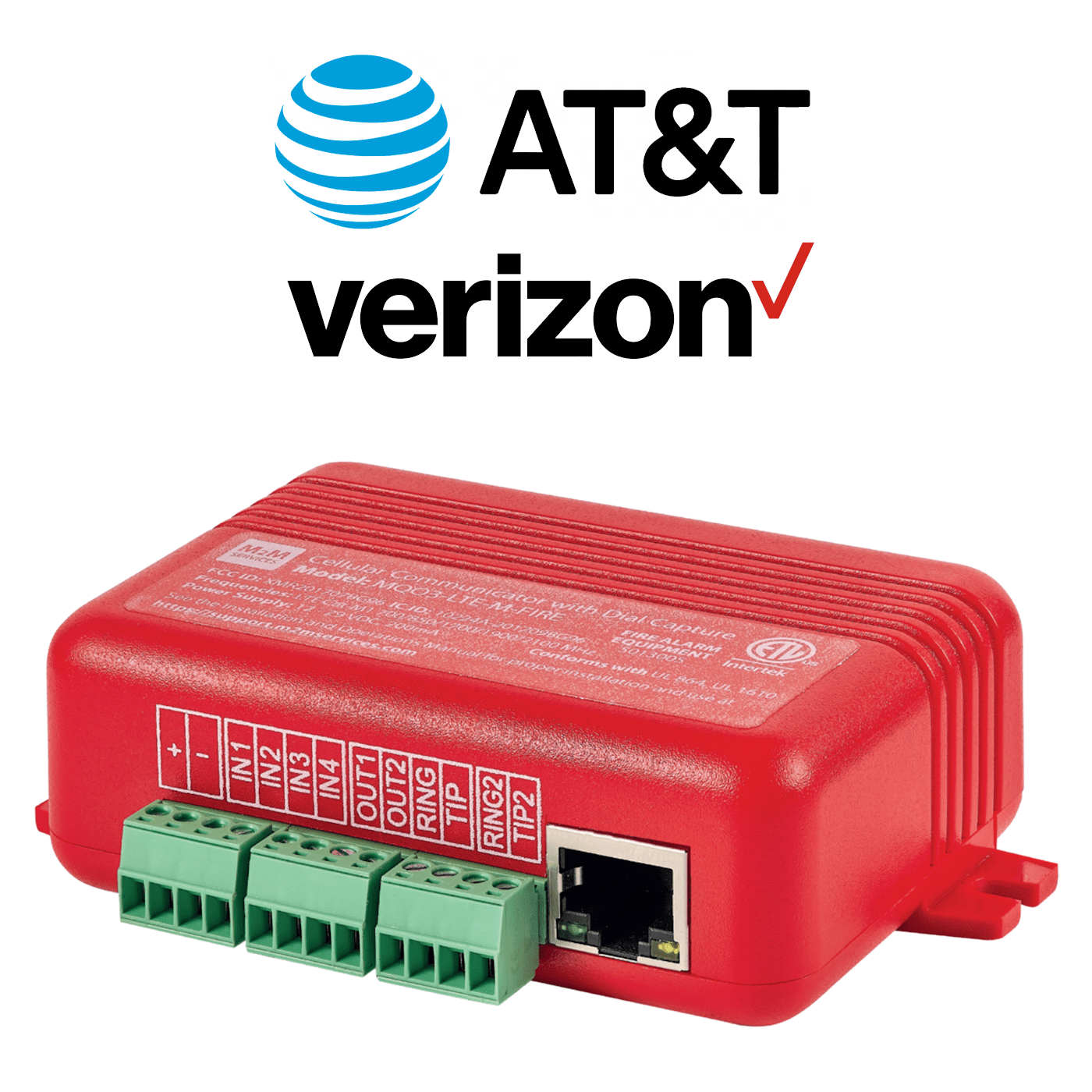

MQ03-LTE-M-FIRE-AV - M2M Universal Dual-Path Multi-Band AT&T/Verizon LTE-M with LAN Ethernet Commercial Fire Alarm Communicator (Compatible with Most Panels)
M2M Services MQ03-LTE-M-FIRE-AV Product Description:
The M2M Services MQ03-LTE-M-FIRE-AV is a universal multi-band dual-path ethernet LAN and cellular 5G LTE CAT-M1 commercial fire alarm communicator that is compatible with most dial-capture interface existing panels supporting Ademco ContactID and SIA formats. With future-proof technology, the MQ03-LTE-M-FIRE-AV communicator has a dual-SIM card that transmits fire alarm signals over the AT&T/Verizon LTE network(s) to the GeoArm central monitoring station.
The MQ03-LTE-M-FIRE-AV communicator comes fully assembled, except for the antenna. The communicator must be installed within M2M FC08 Enclosure for Cellular Alarm Communicators, Altronix BC300R, or any other UL-Listed (UOXX, NITW or CYIV) metal enclosure. All the wiring must be routed through a conduit. For UL installations, the communicator must be mechanically secured to a UL-Listed enclosure such as a UL-Listed junction box.
Product Features:
- Universal Fire Panel Compatibility: Dial-Capture Interface supporting Contact ID, SIA and Pulse 4+2
- Exceptional Network: Dual-SIM supporting AT&T and Verizon LTE
- Redundant Communications: Ethernet LAN and Dual-SIM supporting AT&T and Verizon LTE
- Default Connection Polling Interval: 5 min via cellular and 1 min via LAN
- High reliability due to multiple transmission channels (LTE CAT-M1/LAN) and redundant servers
- Web-based software and a smartphone app
- End-user smartphone app - supports push and email notifications
*Please Note: The part listed above requires a subscription to M2M Services powered by AlarmClub. If ordered, the M2M cellular radio antenna manufactured in the 10' foot length is subject to product availability.
M2M Services MQ03-LTE-M-FIRE-AV Product Specifications:
- Dimensions: 2.48" x 3.54" x 1.26"
- Weight: 2.65 oz (75 g) without antenna
- Power Consumption: Nominal 50mA, Peak 200 mA
- Supply voltage: +12 to +30 VDC
- Operating Temperature: -4°F to 130°F (-20°C to 55°C)
- Relative Humidity: 0 to 85% relative humidity, non-condensing
- Multi-band CAT M1 LTE 700/850/1700/1900/2100 MHz cellular communicator for AT&T and Verizon
- Dual SIM for AT&T and Verizon
- Dual Ring & Tip
- Dial Capture interface supporting ContactID, SIA and Pulse 4+2
- 4 digital inputs, 2 digital outputs (programmable)
- CSFM 7300 & FDNY-approved
M2M Services MQ03-LTE-M-FIRE-AV Product Documents:
• Installation and Operation Manual for M2M Services MQ03-LTE-M-FIRE-AV Commercial Fire Universal Multi-Band Dual-Path Ethernet LAN and Cellular AT&T/Verizon LTE Alarm Communicator
• Quick Installation Guide for M2M Services MQ03-LTE-M-FIRE-AV Commercial Fire Universal Multi-Band Dual-Path Ethernet LAN and Cellular AT&T/Verizon LTE Alarm Communicator
