LX30B-Q50TU-AUC - Alarm.com Universal LX-Connected 4G LTE Alarm Communicator (for Existing POTS-Type Security Systems)

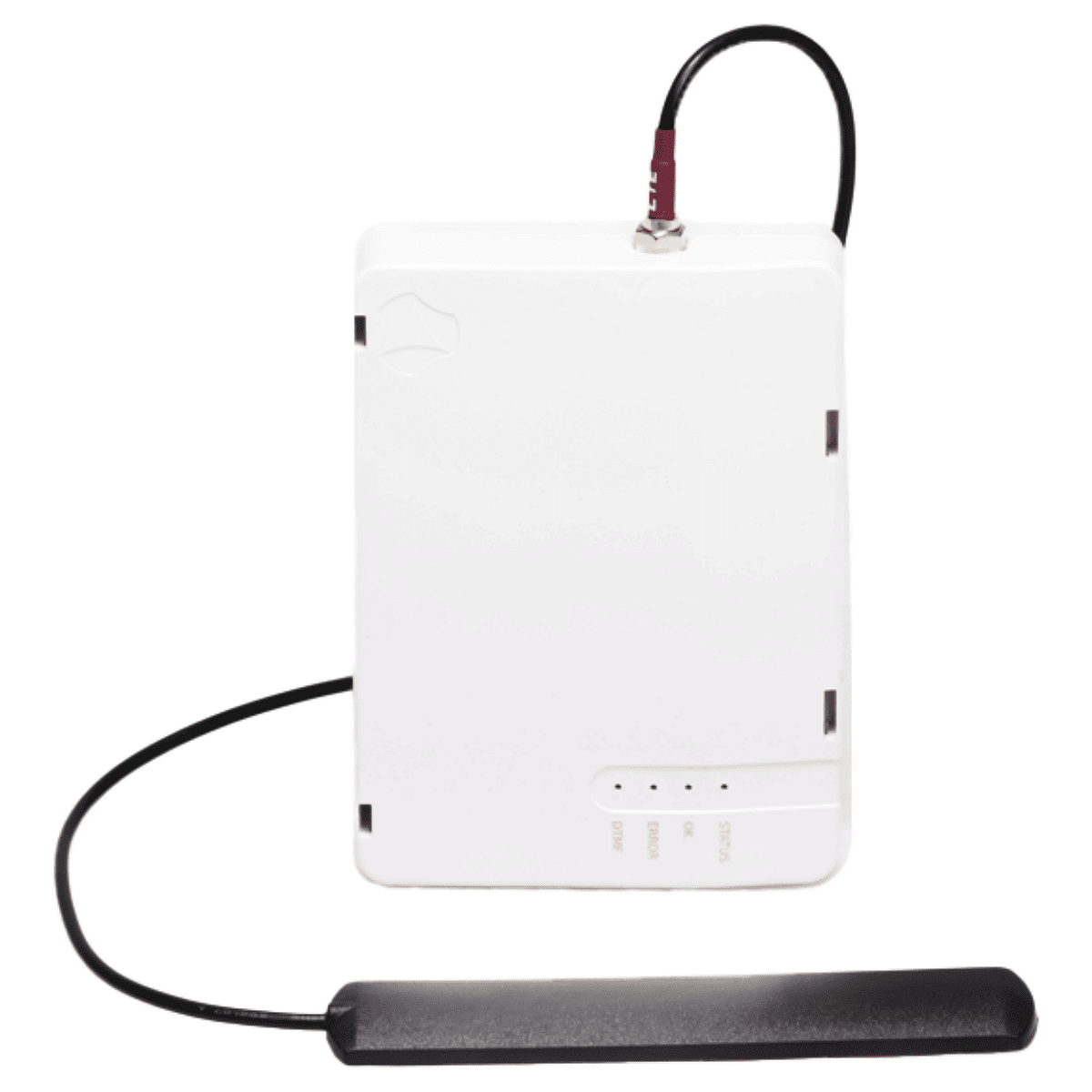

Alarm.com LX30B-Q50TU-AUC Product Description:
The Alarm.com LX30B-Q50TU-AUC Universal Communicator is a takeover device for upgrading compatible older POTS security systems. The LX30B-AUC provides the best of Alarm.com security, including arming and disarming remote control through the Alarm.com Customer app and notifications like Unexpected Activity Alerts and location-based arming reminders.
The LX30B-AUC can retrofit various compatible older POTS-type security systems, such as DSC, Honeywell, PIMA, GE, Paradox, Intelbras, Visonic, and Texacom. Legacy panels can communicate with the LX30B-AUC using the POTS line and can be remotely armed/disarmed through the use of a keyswitch zone. Keyswitch zone refers to the type of definition of a zone, which would allow a security system to be armed/disarmed, through momentary contact. This is generally supported by most traditional security systems.
Product Features:
- Universal Compatibility - Universal takeover capability using phone line (PSTN).
- Panel Agnostic - Universal Communicators are compatible with a wide range of alarm systems and do not require a specific brand or model of panel.
- Key Switch Zones - Universal Communicators with key zone switching feature will enable arming and disarming of the panel through the Alarm.com application.
- Easy Installation - Universal Communicators are easy to install and can be added to existing alarm systems without the need for additional infrastructure.
- Integration with Alarm.com Video and Automation - Systems that are connected to Alarm.com with Universal Communicators can be integrated with Alarm.com cameras and cloud automation integrations.
Alarm.com LX30B-Q50TU-AUC Product Specifications:
- Dimension of PCB: 102mm x 73mm
- SKU type: LX30B-Q30TU-AUC - Europe, LX30B-Q40TU-AUC - LATAM, LX30B-Q50TU-AUC - North America
- Firmware version: 2.19.2+
- Hardware version: 2.5.1
- Configuration: LTE
- Protocol supported: SIA, ContactID
- Transmission security : AES Encryption
- Serial interface: RS232 / RS485 transmission speed up to 115200bps

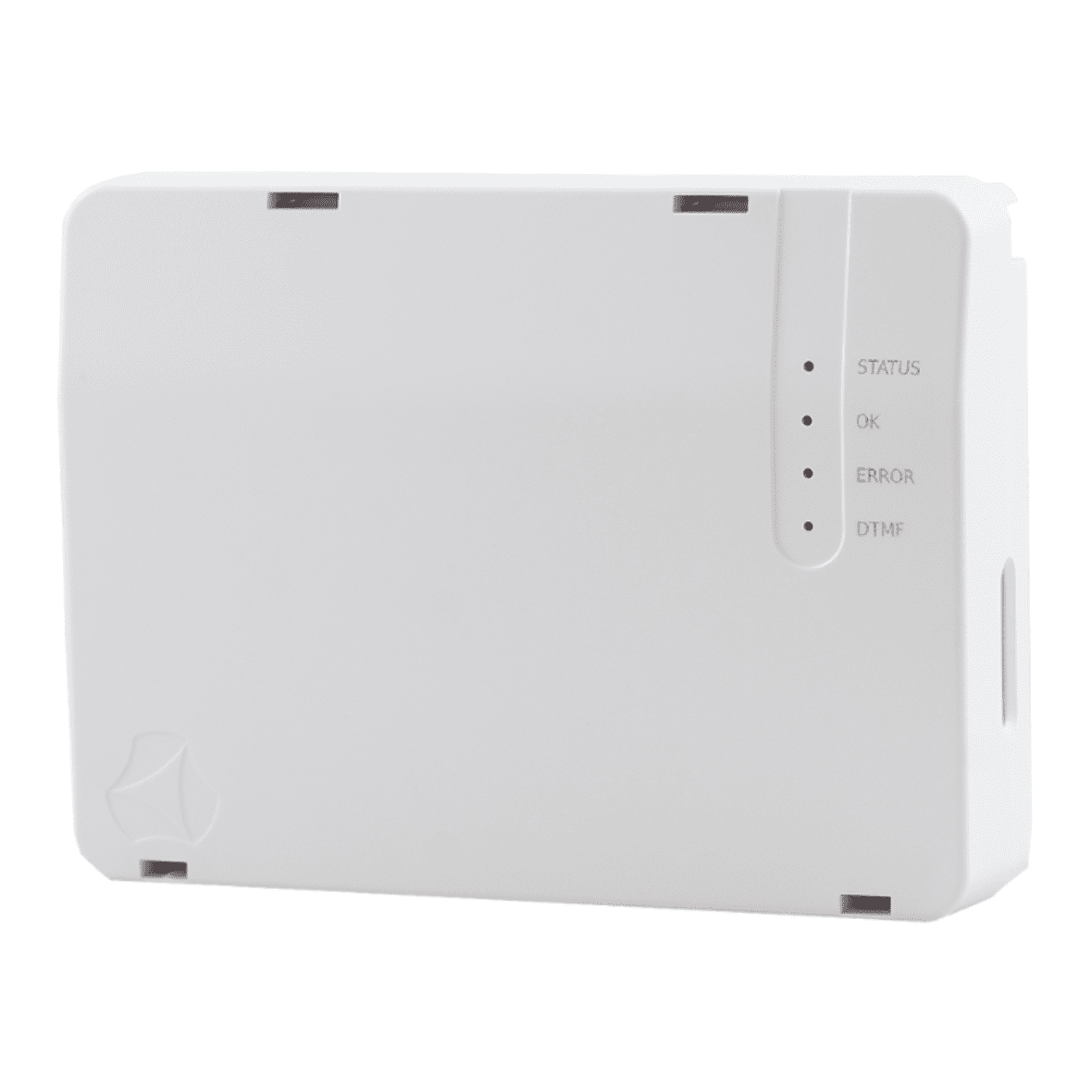

- LED status function: 4 LEDs (cellular signal level, device status, DTMF communication)
- Voltage supply : 13.8VDC (acceptable: 12-14VDC)
- SEM Circuit Board Indicators: One LAN LED, one processor LED, one COMM fail LED
- Z-Wave Frequency: 908.4 MHz
- Temperature Range: 14° - 131° F (-10°C - 55°C)
- Humidity: 5-93% relative humidity, non-condensing
Alarm.com LX30B-Q50TU-AUC Product Documents:
• Data Sheet - Alarm.com Universal LX-Connected 4G LTE Alarm Communicator (LX30B-Q50TU-AUC)
• Alarm.com Universal LX-Connected 4G LTE Alarm Communicator (LX30B-Q50TU-AUC)

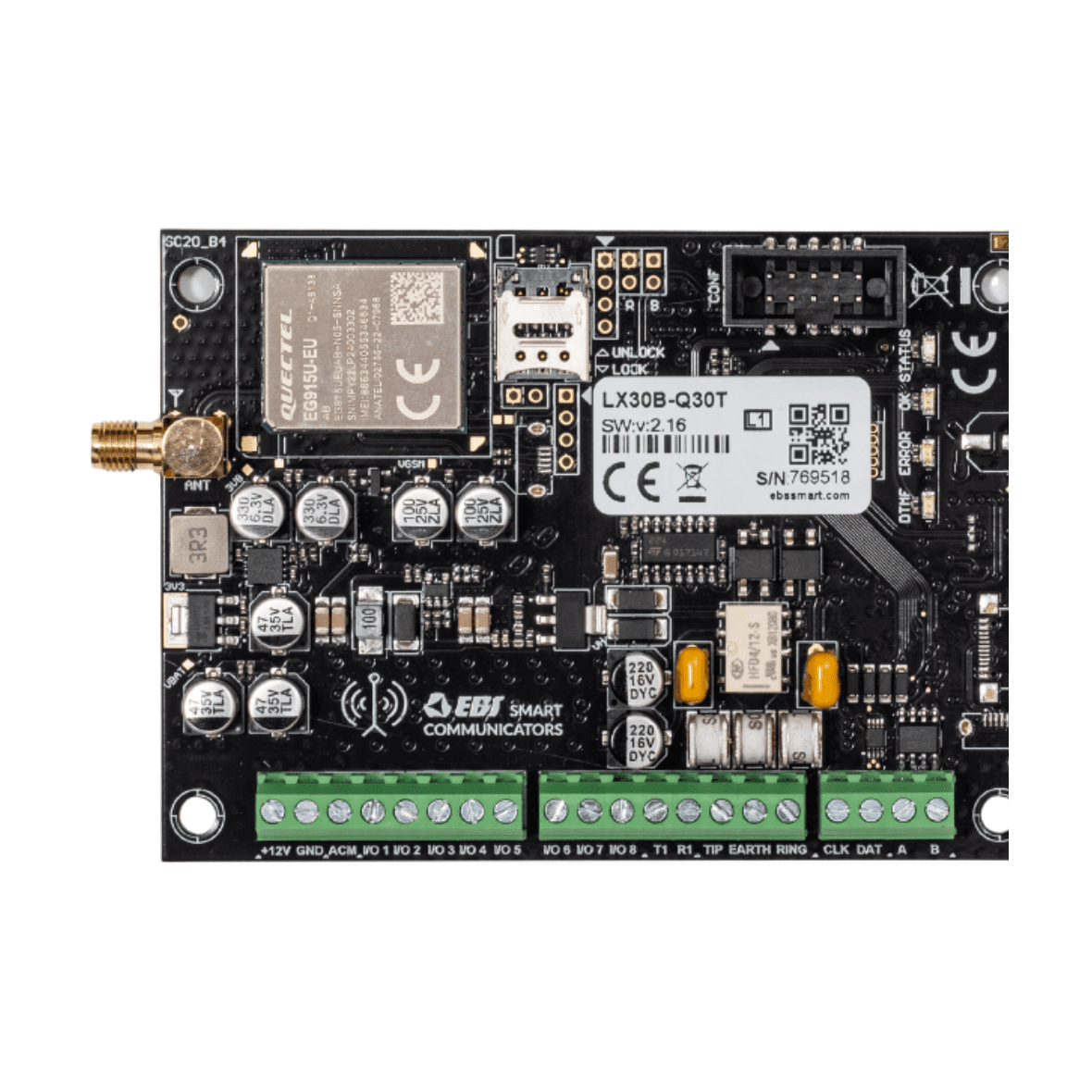

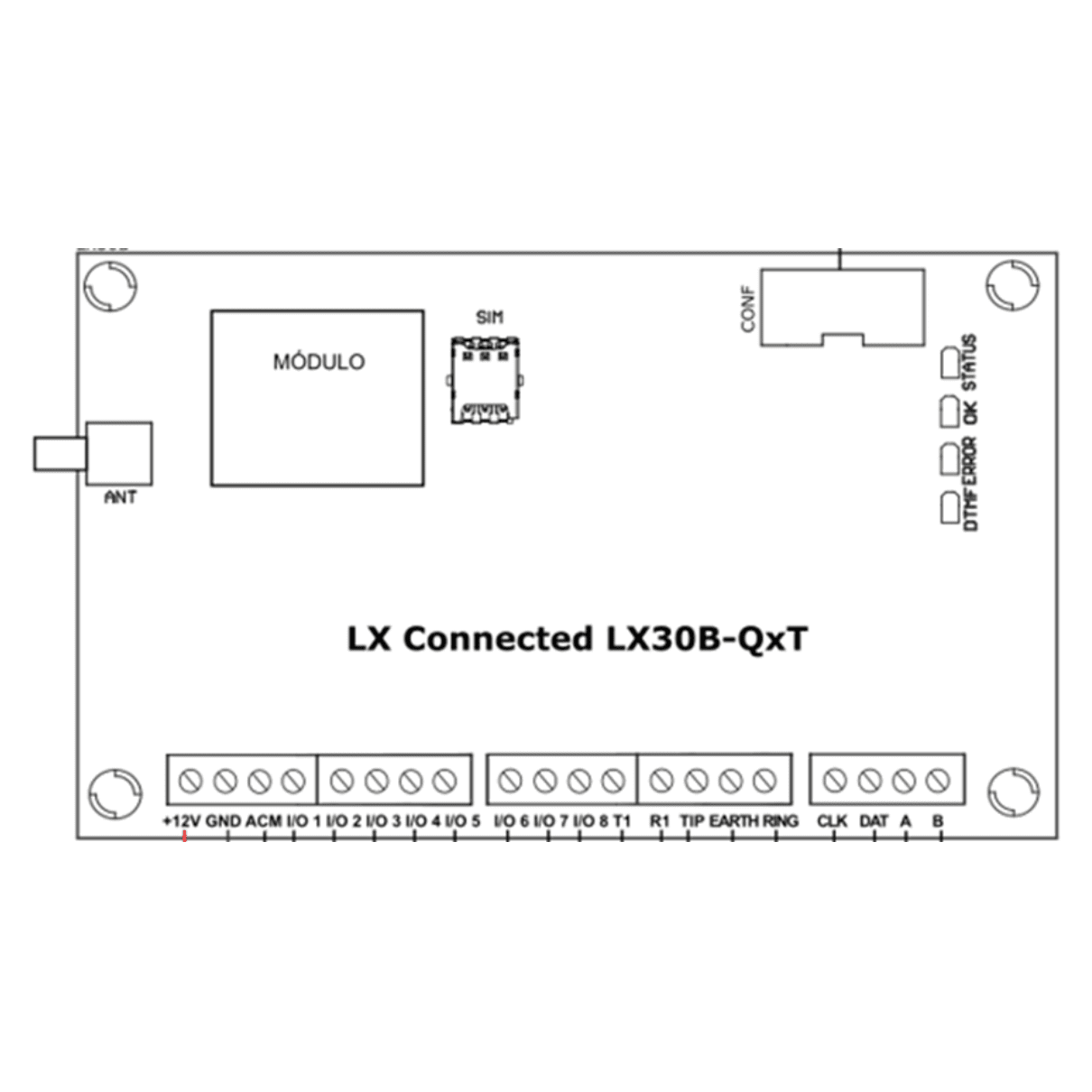

Alarm.com LX30B-Q50TU-AUC Product Terminals:
- +12V - Positive 12-14VDC supply pole.
- GND - Negative supply pole. Device ground. Common terminal for inputs and outputs.
- ACM - Control connector for monitoring the AC power supply to an external control panel. If this connector is connected to the control panel AC connector, the communicator can verify the presence of power in the control panel.
- I/O 1 – I/O 8 - Role configurable connectors where the installer, using the EBS Config 2.0 program, can define whether the connector is to behave as an input or as an output. If configured as an input, the connector behaves as a typical signal input. If configured as an output, the connector behaves as a typical OC output.
- T1 - R1 - Connections for connecting a telephone communicator of the alarm control panel.
- TIP – RING - Connectors for connecting another transmitter (e.g., working in another GSM network)
- EARTH - Earthing
- A, B - Connectors not used (for future use)
- DAT, CLK - Connections for connecting the alarm control panel. Keybus Connection> (for future use)
Alarm.com LX30B-Q50TU-AUC Product Safety:
- The device should be assembled, installed, and serviced by qualified personnel in accordance with the instructions.
- The device should be checked by qualified personnel once a year (on average).
- The device should work in a safe environment with parameters in accordance with the device's specifications.
- Operating Temperature: nominal: +68ºF (+20ºC), acceptable: +14ºF to +131ºF (-10ºC to +55ºC).
- Operating Humidity: 0% to 93% (without condensation).
- Do not install the device near any heat sources; such as radiators, heat registers, stoves, or other appliances that produce heat.
- The device is intended only for indoor and dry installation.
- Do not install in dirty, dusty places, places with high humidity (with condensation), or near water, chemical vapors or in the same room with medical equipment, the function of which may be disrupted.
- If damaged, the device should be disconnected then replaced only by trained, qualified personnel. Before disconnecting the device, it is necessary to disconnect the power supply.
- Do not repair the device yourself, repairs are made only by the manufacturer's service.
- The device should always be cleaned with a dry cloth. Do not use water, detergents or chemicals - they may damage the device.
- Avoid mounting the Universal Communicator near sources of significant electromagnetic interference, or in rooms where metal is the predominant structural material due to the potential for cellular signal attenuation.
Caution: To reduce the risk of fire or electric shock, do not expose the device to rain or moisture.
Alarm.com LX30B-Q50TU-AUC Product Compatibility:
- LX30B-AUC firmware version must be 2.19.4+.
- Verify compatibility of the panel and desired protocol (CID or SIA).
- Verify that the panel is not using zone numbers greater than 126 and is capable of sending signals using a POTS phone line (PSTN).
- For keyswitch integration to remotely view or change panel arming status, verify each of the following:
-For remotely viewing panel arming status, verify a PGM slot is available.
-For remotely changing panel arming status, verify a hardwired zone is available.
-A Universal Communicator service package is required.
-The Customer app version must be 5.6+ on iOS and Android.
