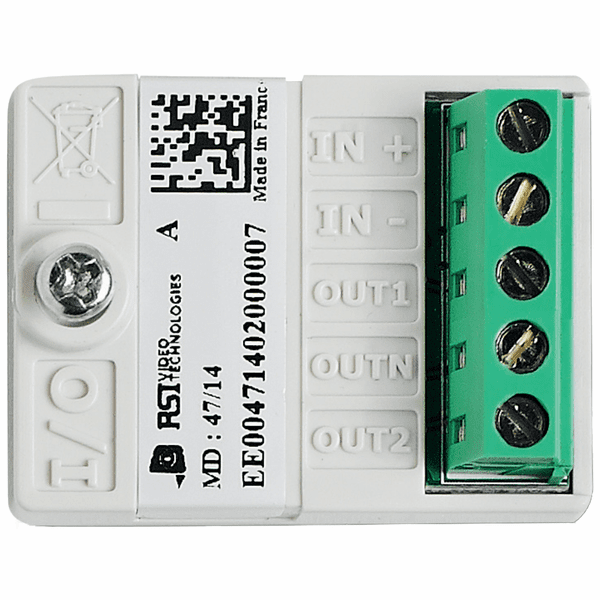

The Videofied WIO100 Input/Output (I/O) Board adds 1 arming/programmable input and 2 programmable outputs to a Videofied W-Series control panel (WIP620, WIP630). The WIO100 input/output allows for video verification upgrades to existing alarm systems (using the programmable input) as well as the integration of third-party, wired input devices (panic buttons, temperature sensors, door contacts, glass breaks, gas detectors, etc.) and output devices (flashing lights, gates, smoke equipment, etc.).
The programmable input can be configured as normally open (NO) or normally closed (NC), it can also be
supervised in order to detect cable tampers. With the Mapping, the programmable input can be set up to take a 10 second video from any Videofied Motion Viewer™ when the detector linked to the programmable input is triggered. The programmable input can also be wired to an existing alarm system in order to add video-vérification. That mode is called XTENDER mode. Programmable outputs are normally open drys contacts that close when the output is activated
Simple one-screw attachment to the W panel motherboard
End of line supervision
Mapping ability: set up the system to have a MotionViewer take a short video clip when a programmable input is triggered
