GPS-HW - Uplink Hardwired GPS Vehicle Tracking Device (for Personal Use or Fleet Management)

GPS-HW - Uplink Hardwired GPS Vehicle Tracking Device (for Personal Use or Fleet Management)
Please Note: The Uplink GPS-HW hardwired vehicle tracking product has been discontinued and replaced by the GPSLTE model number.

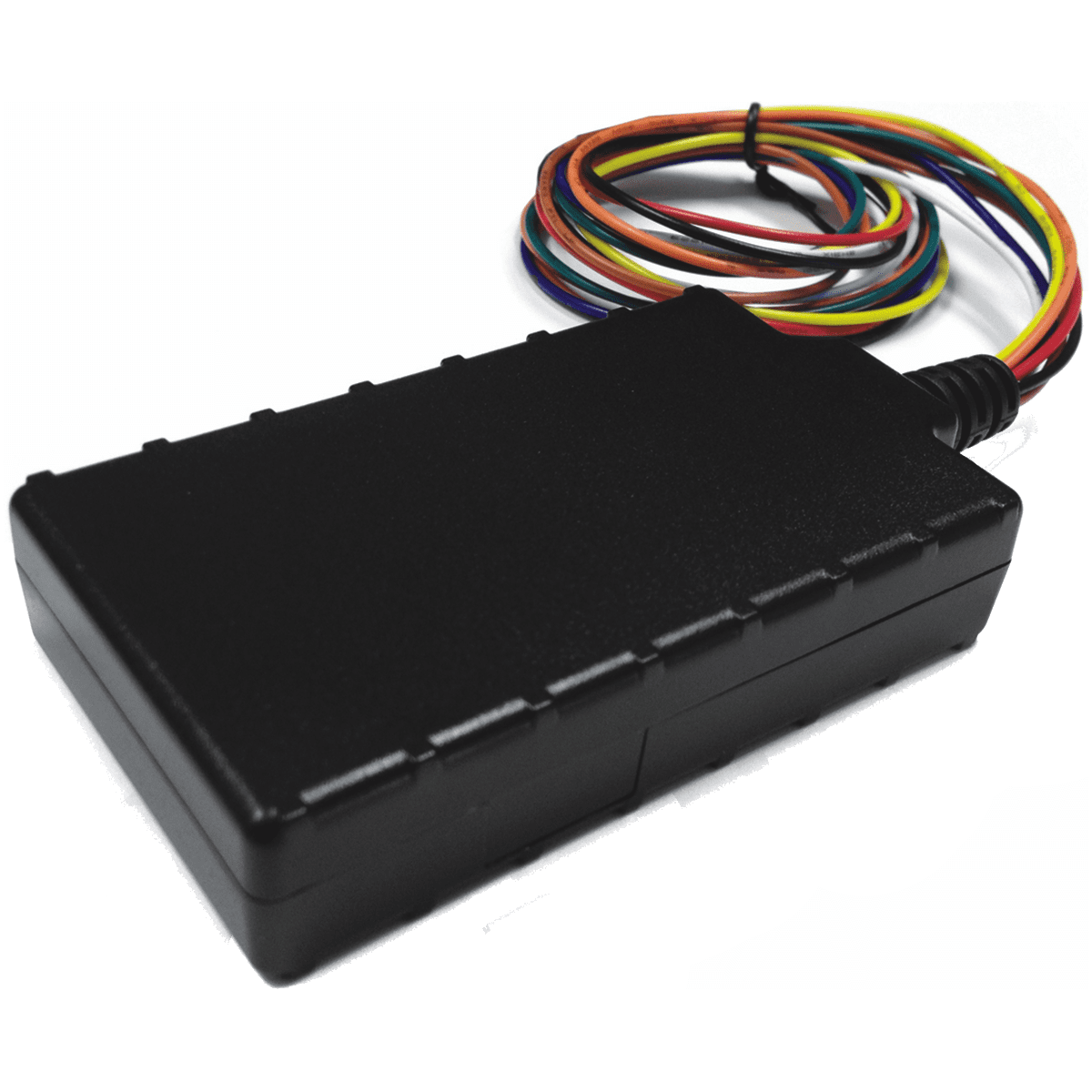

Uplink GPS-HW Product Description:


The Uplink GPS-HW is a turnkey GPS hardwired tracking product for commercial and residential customers to manage their vehicles. Uplink GPS features a fully-hosted, and cloud-based vehicle tracking service that allows for monitoring times (travel, onsite, start and end, idle), ignition events, and more. The GPS-OD provides asset recovery due to the ability to view vehicle locations recorded every two or five minutes, including 60 days of stored history.

Product Features:

  • Email alerts in the event of speeding, unauthorized use, theft, or vehicle alert zone violation
  • Includes GPS receiver, GSM radio, built-in antenna, and internal backup battery
  • Easy three wire installation
  • Internal 200 mAh backup battery
  • Track teens, elderly drivers, commercial fleets
  • Tracks up to every 2 minutes
  • View all vehicle locations
  • Click-to-locate
  • Notifications for ignition events during designated time periods

Uplink GPS-HW Product Specifications:


Product Dimensions: 2.125" x 3.5" x 0.625" (54 x 89 x 16mm)
Product Weight: 3.7 oz (106 g)
Connection Type: Captive 8 wire harness
GPS Location Accuracy: 2.0 meter CEP (with SBAS)
Communication Modes: UDP Packet data and SMS
Location Technology: 50 channel GPS
Operating Voltage: 12 and 24 volt vehicle systems
Cellular Data Support: SMS, GPRS
Cellular Operating Bands: 850/1900MHz
Operating Temperature: -30° - 70°C
Storage Temperature: -40° - 85°C
Humidity: 0% - 95% @ 50° relative humidity (non- condensing)
Shock and Vibration: U.S. Military Standards 202G and 810F, SAE J1455
EMC/EMI: SAE J1113; FCC–Part 15B; Industry Canada
