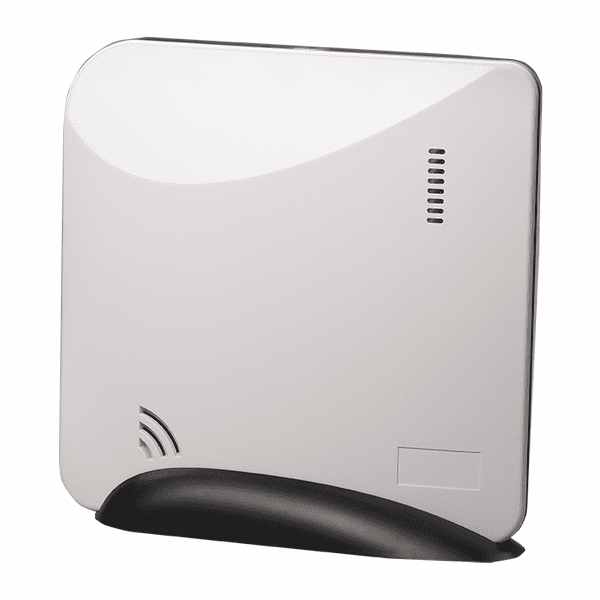

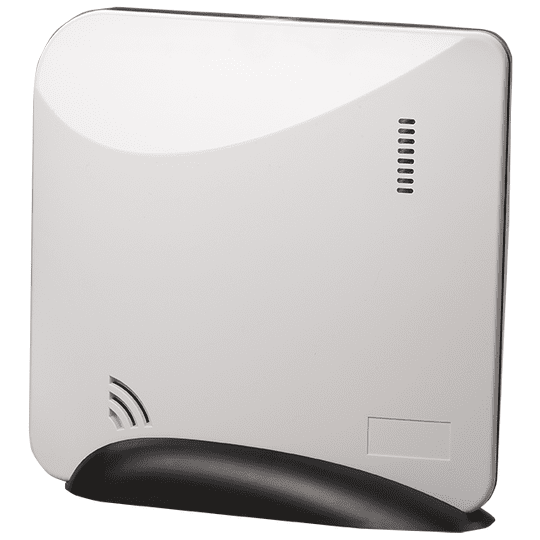

RE6100S-XX-X - Alula Connect+ Control Panel (w/Bluetooth Radio, Connect+ Receiver & Ethernet Port)

RE6100S-XX-X - Alula Connect+ Control Panel (w/Bluetooth Radio, Connect+ Receiver & Ethernet Port)
RE6100S-XX-X - Alula Connect+ Control Panel (w/Bluetooth Radio, Connect+ Receiver & Ethernet Port)
Item# RE6100S-XX-X
List Price: $168.66
Your Price: $112.44
Connect+ Wireless Control Panel (RE6100S-XX-X):  Connect+ Alarm Battery (RE029):  Connect+ Alarm Transformer (RE012-6):  Connect+ Alarm Communicator:  Wireless Nanomax Door/Window Contact (RE622):  Wireless PIR Motion Detector (RE610P):  Wireless Secondary Slimline Touchscreen Keypad (RE667W):  Wireless Secondary HeliPAD Keypad (RE656):  Wireless Secondary PINpad Keypad (RE652):  Wireless Remote 5-Button Keyfob (RE600-5):  Wireless Standard Door/Window Contact (RE601):  Wireless Temperature Range Sensor (RE605):  Wireless Garage Door Tilt Sensor (RE606):  Wireless Glassbreak Detector (RE609):  Wireless Smoke Detector (RE614):  Wireless Carbon Monoxide Detector (RE615):  Wireless Alarm Siren (RE616):  Wireless Home Disaster Sensor (RE619):  Wireless Trident Detector (RE618):  Indoor Mini Camera (RE700):  Indoor 360 Degree Bullet Camera (RE702):  Outdoor Bullet Camera (RE701):  Video Doorbell (RE703):
Availability: In Stock
QTY:

Alula Connect+ RE6100S-XX-X Product Description:



The Alula RE6100S-XX-X Connect+ is a professional wireless security panel designed to deliver home security and automation services. The RE6100S-XX-S Connect+ panel comes standard with built-in Bluetooth Radio, Connect+ Receiver and Ethernet Port. Optional Cellular LTE (RE929RSV) and WiFi cards (RE926RS) provide primary or backup communication channels. Its long-range encrypted wireless receiver easily provides whole home coverage. Wireless arming stations and mobile devices uncouple the Connect+ panel from the entry wall and allow it to be installed at a location convenient for Internet and power connections.

Product Features:

  • Included Ethernet communication channel
  • Optional WiFi and/or Cellular LTE communication channels
  • Control from a user's mobile device
  • Industry-leading wireless range
  • Up to 50 users
  • Up to 96 zones
  • 5 year warranty

Alula Connect+ RE6100S-XX-X Product Specifications:


  • Housing Body Dimensions: 8.9 x 8.9 x 1.5 inches (22.6 x 22.6 x 3.8 cm)
  • Housing Base Dimensions: 8.2 x 1.3 x 2.7 inches (20.8 x 3.3 x 6.7 cm)
  • Weight with Battery: 26.8 ounces (760 grams, 1.87 pounds)
  • Mounting Fastener: #6 or #8 screws (not provided)
  • Operating Temperature: 32 to 120°F (0 to 49°C)
  • Storage Temperature: -4 to 86°F (-20 to 30°C)
  • Maximum Humidity: 85% non-condensing relative humidity
  • Radio Frequency: 433.92MHz, 2.4GHz
  • Power Supply Part Number: RE012-6
  • Power Input: 100-240VAC, 50/60 Hz, 0.5A
  • Power Output: 12VDC, 1A
  • Battery Part Number: RE029
  • Backup Battery: 24 hours minimum (fully charged)
  • Backup Battery Specifications: 6VDC, 2.5Ah, NiMH
  • Battery Charger: 25mA (Trickle), 95mA (Fast)
  • Current Draw: 150mA (Normal), 300mA (Alarm)
  • Tamper Indications: Cover opening and Wall removal
  • Ethernet Communication (included): 10/100 Mbps Ethernet RJ-45
  • WiFi Communication (optional): 802.11 b/g/n with WPS
  • LTE Communication (optional): 3G (Primary or Secondary Configuration)
  • Sensors: Up to 96 Connect+ Encrypted Wireless Security Zones
  • Siren: 90dBa
  • Wireless Siren Support Built-in: Transmitter for Resolution Wireless Siren
  • Control Bus Radio Type: Bluetooth® Low-Energy (BLE)
  • Control Bus Radio Range: 300 feet open air range on Control Bus Radio
  • Sensor Radio Type: Crystal with Encryption
  • Sensor Radio RF Specifications: 433 MHz 433 MHz; 115dBm Receiver Sensitivity
  • Sensor Radio Wireless Range: 1500' Open Air Range
  • Interface Devices: Up to 8 PINPads (RE652), Up to 8 HeliPads (RE656) and/or mobile devices
  • Maximum Number of Users: 50
  • Certification FCC: Part 15, Part 22
  • Certification UL: 985, 1023, C-UL, CSFM

Alula Connect+ RE6100S-XX-X Product Includes:


  • The Connect+ panel
  • Rechargeable backup battery
  • 12-Volt power adapter
  • 6-foot Ethernet cable
  • Table-top mounting base
  • A screw to secure the cover (required for UL installations)
  • Installation guide
  • Configuration guide
