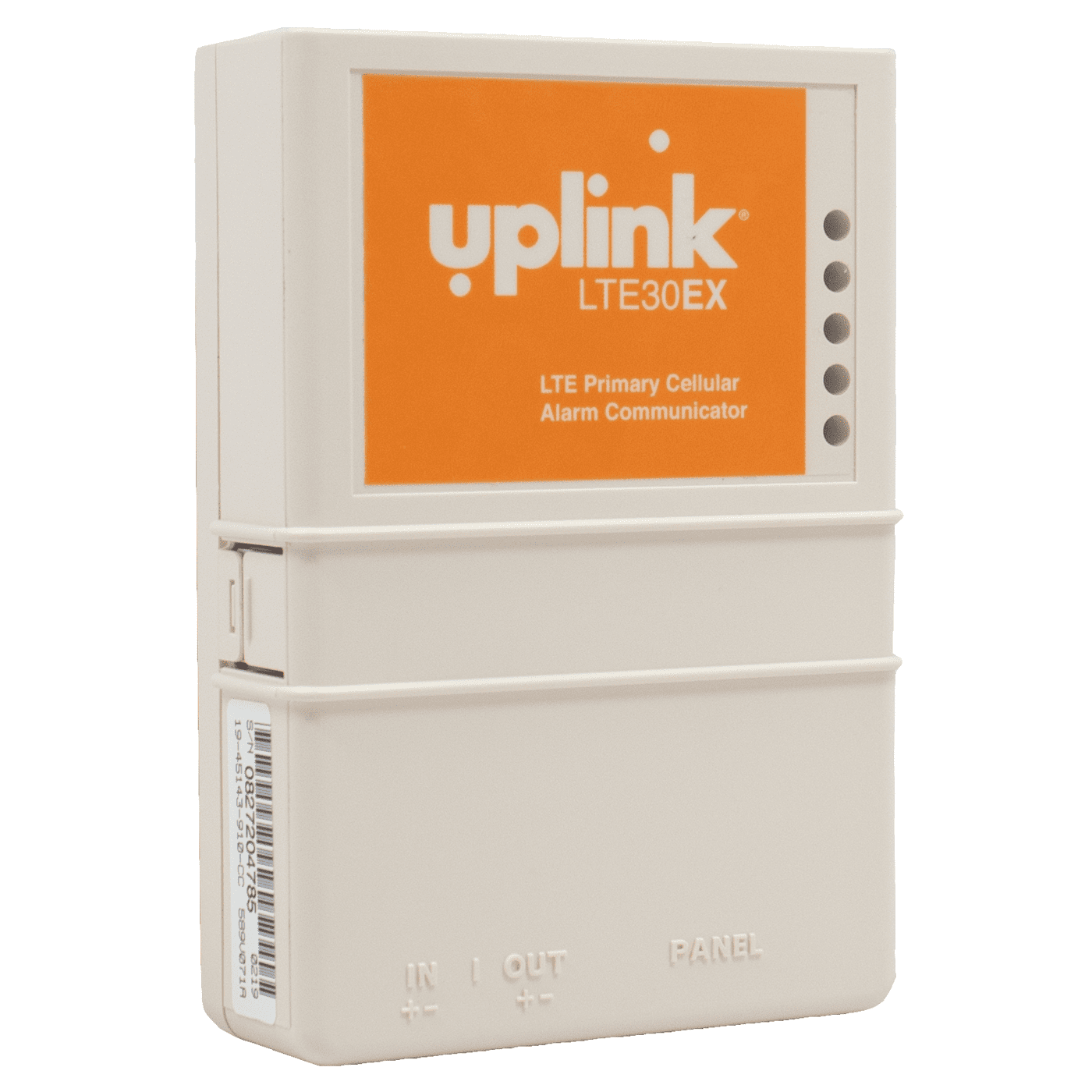

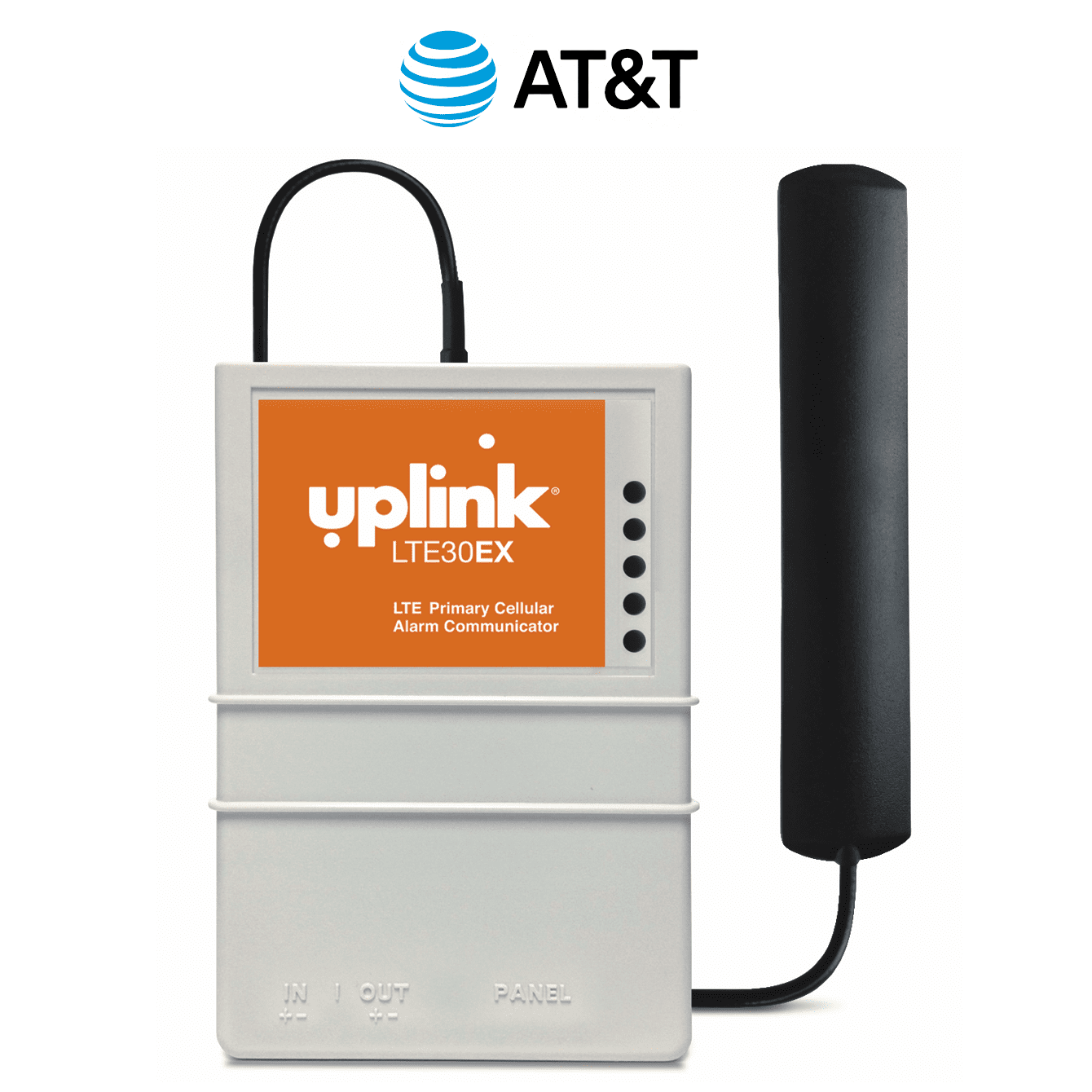

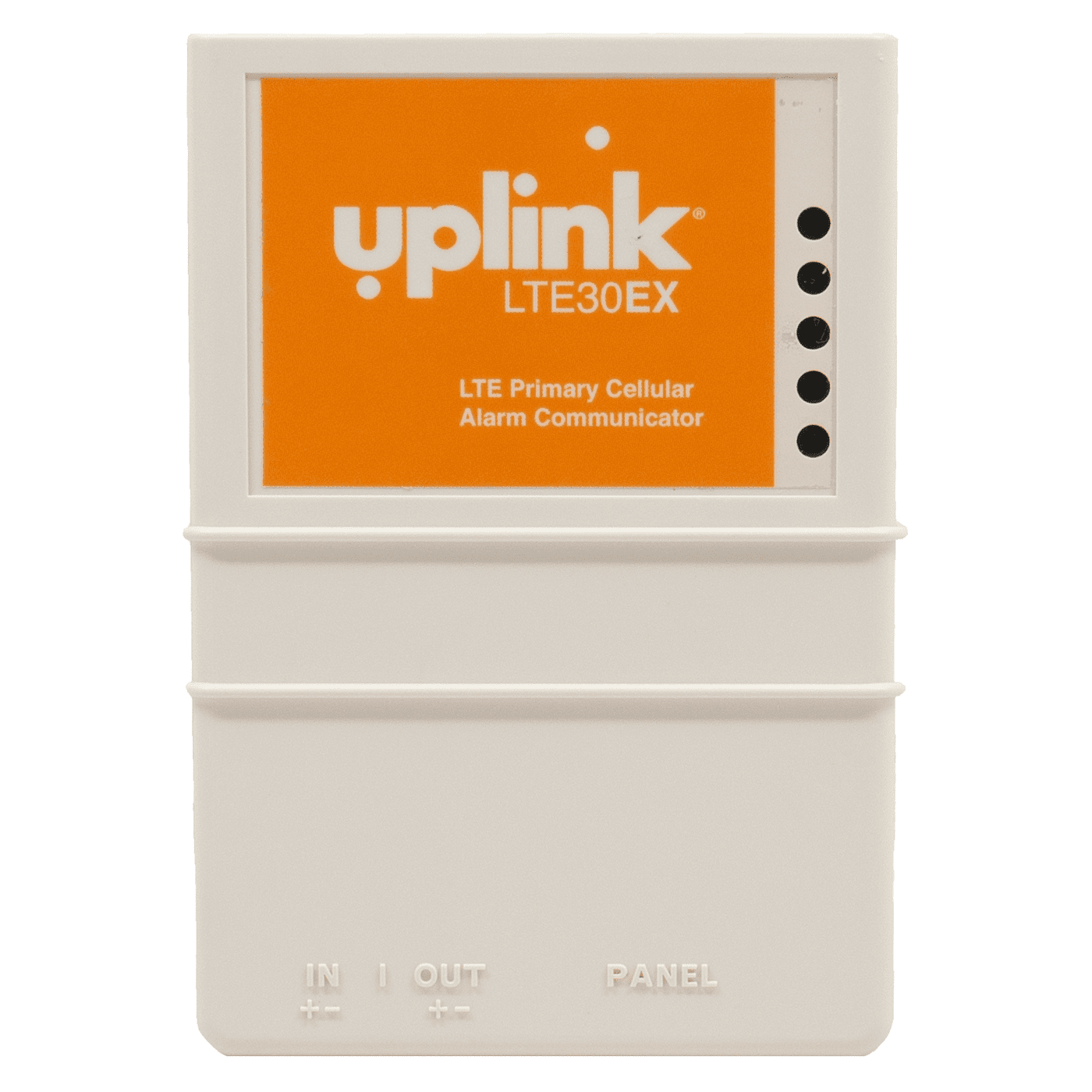

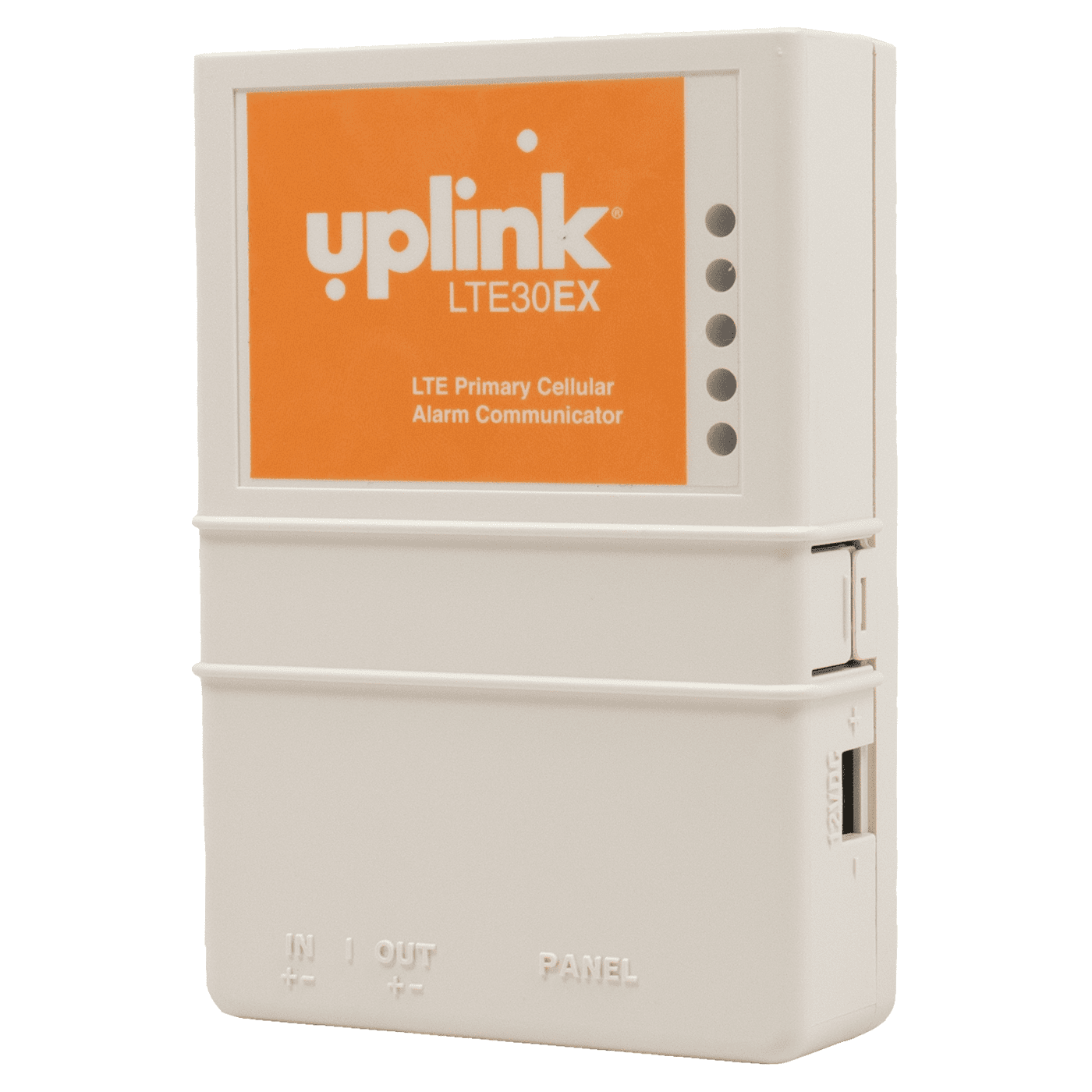

LTE30EX - Uplink Universal Primary Cellular AT&T LTE Alarm Communicator (Compatible with Most Panels)
Please Note: The Uplink LTE30EX primary cellular LTE alarm communicator has been discontinued and replaced by the LTE30ATT/LTE30VZ model number(s).
Uplink LTE30EX Product Description:
The Uplink LTE30EX is a universal cellular AT&T LTE alarm communicator intended for existing security systems. The LTE30EX features full event or summary event reporting for use as a primary communicator. It offers dial-capture and smart siren/bell sampling to detect burglary or fire conditions for universal compatibility with almost every alarm system. The LTE30EX communicates to central stations by dialup to any industry standard receiver, or over the internet to an IP receiver.
Product Features:
- Primary alarm communications for residential or commercial security
- Supports virtually all security systems and multiple formats
- Remote on-demand testing for status and signal strength

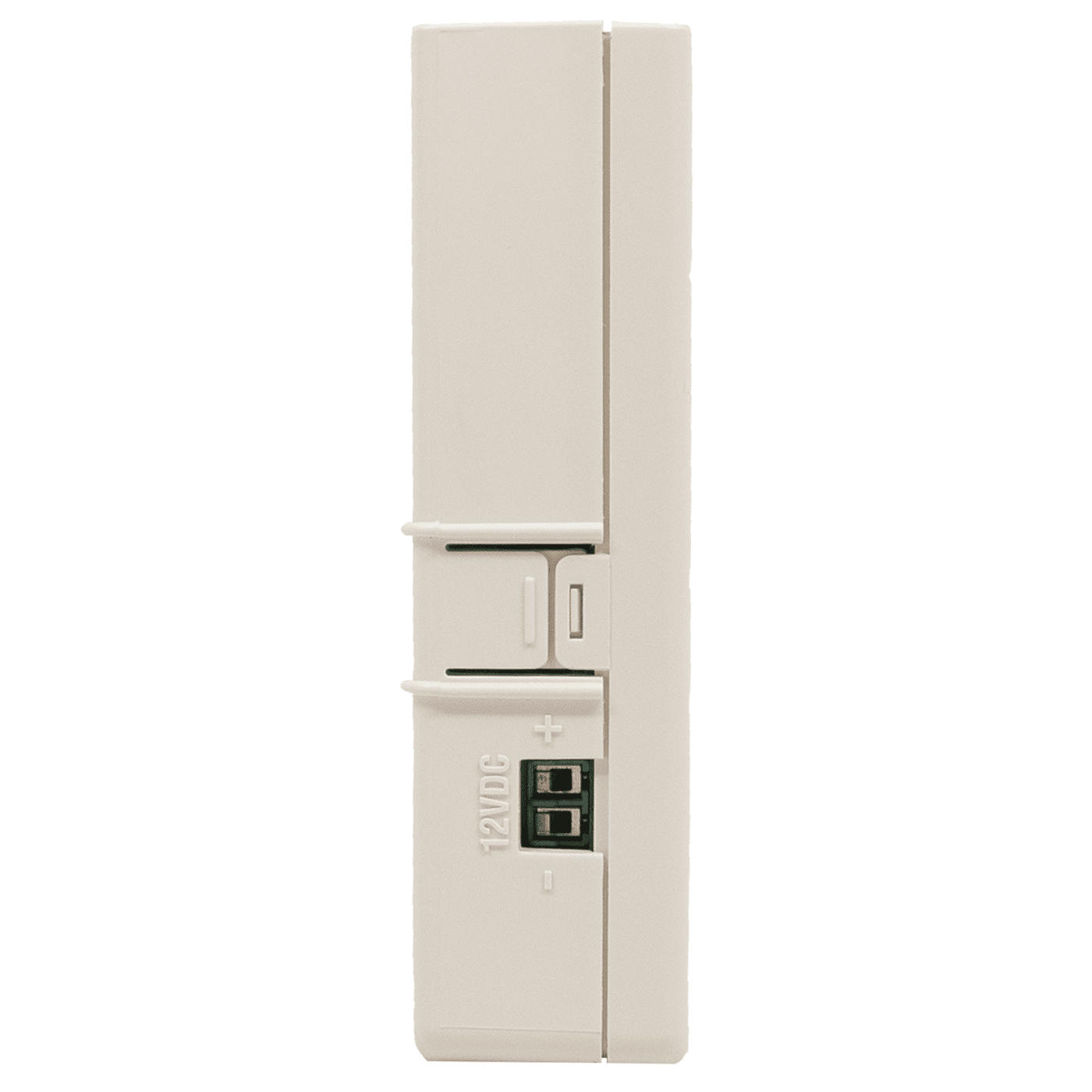

- Power from the panel or separate 12V DC power supply (not included)
- Installs in minutes with reliable end-to-end signal verification
- Web and smartphone apps for remote arming and disarming
- Login to Uplink Remote @ uplinkremote.com for remote interactive control and end-user notifications
Uplink LTE30EX Product Specifications:
Product Dimensions (H x W x D): 4.75" x 3.3" x 1.3"

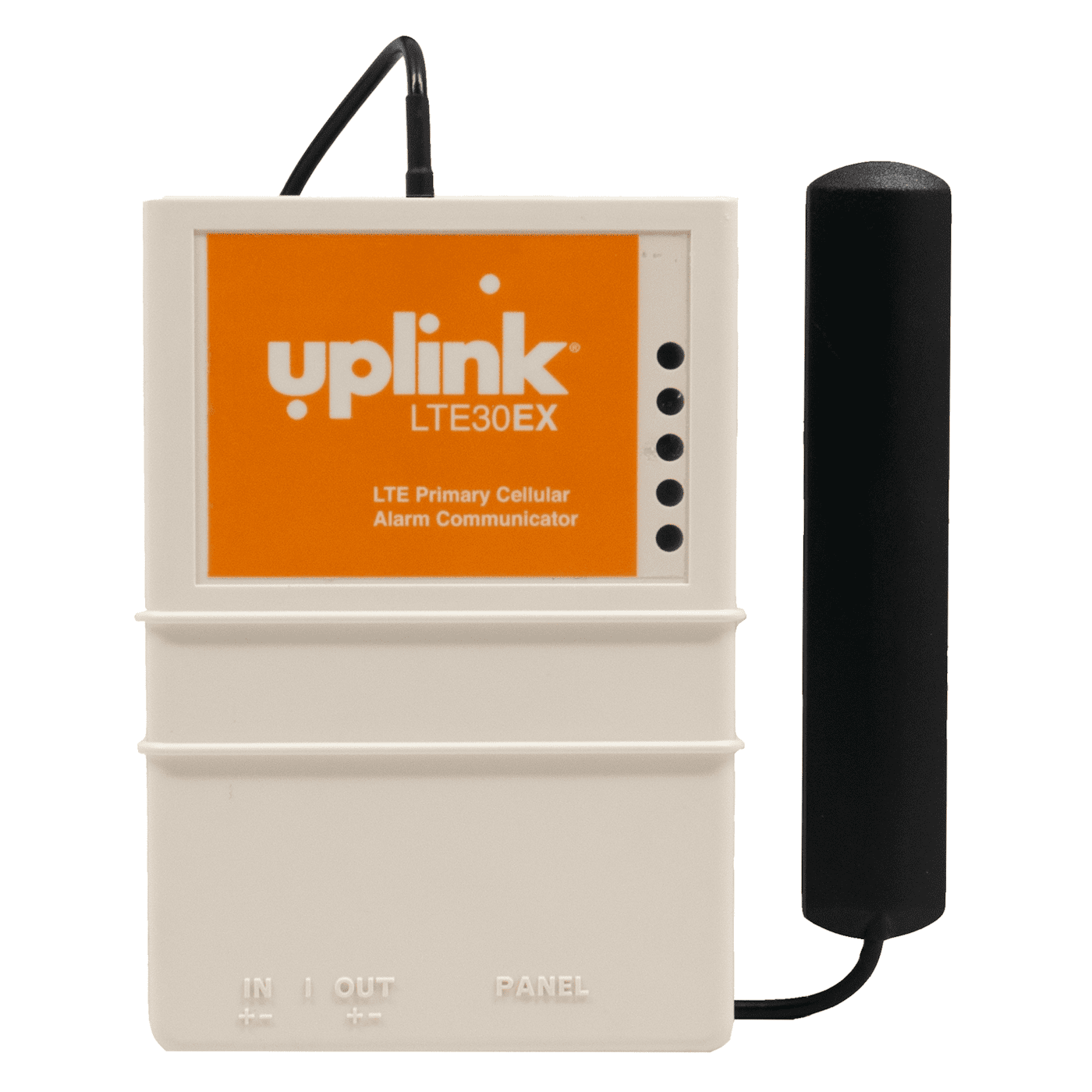

Antenna Dimensions: 3.75"
Central Station: Contact ID, SIA, Modem IIe/IIIa2, or Pulse 4/2 (:10, :20, or :40 PPS) internet or dialup
Alarm Dial Capture: Full event reporting of Contact ID, SIA, Modem IIe/IIIa2, or Pulse 4/2 (:10, :20, or :40 PPS) internet or dialup
One Input: Connect to siren/bell (distinguishes between burg/steady and fire/pulsed) or programmable to 12 volts
One Relay Output: Configurable - normally open
Automated Testing: Monthly, Weekly or Daily
Other Reporting: Email, text message
Status LEDs: Signal strength, power, panel hook status, trouble, heartbeat
Radio Technology: 1 LTE with UMTS/HSPA+ fallback for maximum coverage
Cellular Frequency Bands (UMTS/HSPA+): Triple band, 850 (BdV) / AWS (BdIV) / 1900MHz (BdII)LTE: Quad band, 700 (Bd12) / 850 (Bd5) / AWS (Bd4) / 1900MHz (Bd2)
Output power (according to Release 99): Class 3 (+24dBm +1/-3dB) for UMTS 1900,WCDMA FDD BdIIClass 3 (+24dBm +1/-3dB) for UMTS AWS, WCDMA FDD BdIVClass 3 (+24dBm +1/-3dB) for UMTS 850, WCDMA FDD BdV
Output power (according to Release 8): Class 3 (+23dBm ±2dB) for LTE 1900,LTE FDD Bd2Class 3 (+23dBm ±2dB) for LTE AWS, LTE FDD Bd4Class 3 (+23dBm ±2dB) for LTE 850, LTE FDD Bd5Class 3 (+23dBm ±2dB) for LTE 700, LTE FDD Bd1
Operating Temperature Range: -20°C to +50°C (-4°F to 122°F)
Storage Temperature Range: -30°C to +70°C (-22°F to 158°F)
Humidity Range: 0 to 95% non-condensing
Voltage: 12V DC
On hook current max: 125mA
Off hook current max: 250mA
Transmit max: 250mA
