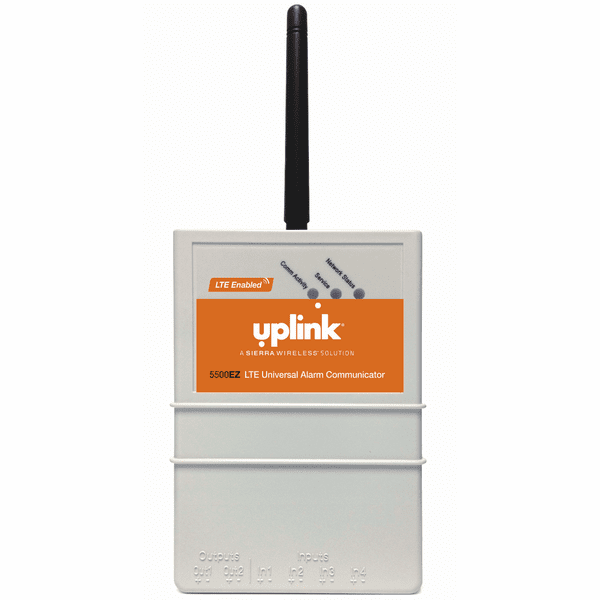

5500EZ - Uplink Universal Cellular 3G/LTE Alarm Communicator (Compatible with Most Panels)
Please Note: The Uplink 5500EZ universal cellular LTE alarm communicator has been discontinued and replaced by the LTE30EX model number.
Uplink 5500EZ Product Description:
The Uplink 5500EZ is a universal cellular LTE alarm communicator intended for existing security systems. The Uplink 5500EZ includes the latest LTE technology for the best performance and longest life cycle. Compatible with 3G and LTE cellular networks. The 5500EZ is designed as a summary event communicator.
Installation of the Uplink 5500EZ is remarkably easy with the use of a secure website. Activation is instant and is available using website, Installer App, or by a live operator. The 5500EZ communicator is great for non-security applications such as pumps, freezers, chillers, motors, electronic devices.
Product Features:
- Primary or redundant alarm communications for residential or commercial security
- Supports virtually all security systems and multiple formats
- Programmable monthly, weekly, or daily status and signal tests
- Power from the panel or separate 12V DC power supply (not included)
- Four inputs and two web configurable outputs
- Installs in minutes with reliable end-to-end signal verification
- Web and smartphone apps for remote arming and disarming
- Login to Uplink Remote @ uplinkremote.com for remote interactive control and end-user notifications
Uplink 5500EZ Product Specifications:
Product Dimensions (H x W x D): 4.75" x 3.3" x 1.3"
Central Station: Contact ID, SIA, Pulse 4/2 and Modem IIe/IIla, Internet or Dial-up
Relay Outputs: Two - Configurable
Four Inputs: Input 1: Connect to Siren/Bell (distinguishes between Burg/steady and Fire/pulsed) or programmable to 12 volts, Input 2-4: 12 volts
Testing: Monthly, Weekly or Dialy
Other Reporting: Low Voltage, Email alerts to customer or alarm company
Status LEDs: Network, Service, Communications
LTE: Compatible with 3G and LTE networks
Cellular Frequencies: 850/1900 MHz
Transmit Power: Maximum allowable: 1.0W at 1900MHz, 2.0W at 850MHz
Power Requirements (Not Included): 12V DC, 500mA max on transmit, 28mA Standby
Optional Accessories: Magnet mount antenna with 9ft cable - part number 1004ANT, 8 inches tall high gain antenna with articulating joint - part number 1005ANT
